NCP165V-EXXRK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Sep 9999
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

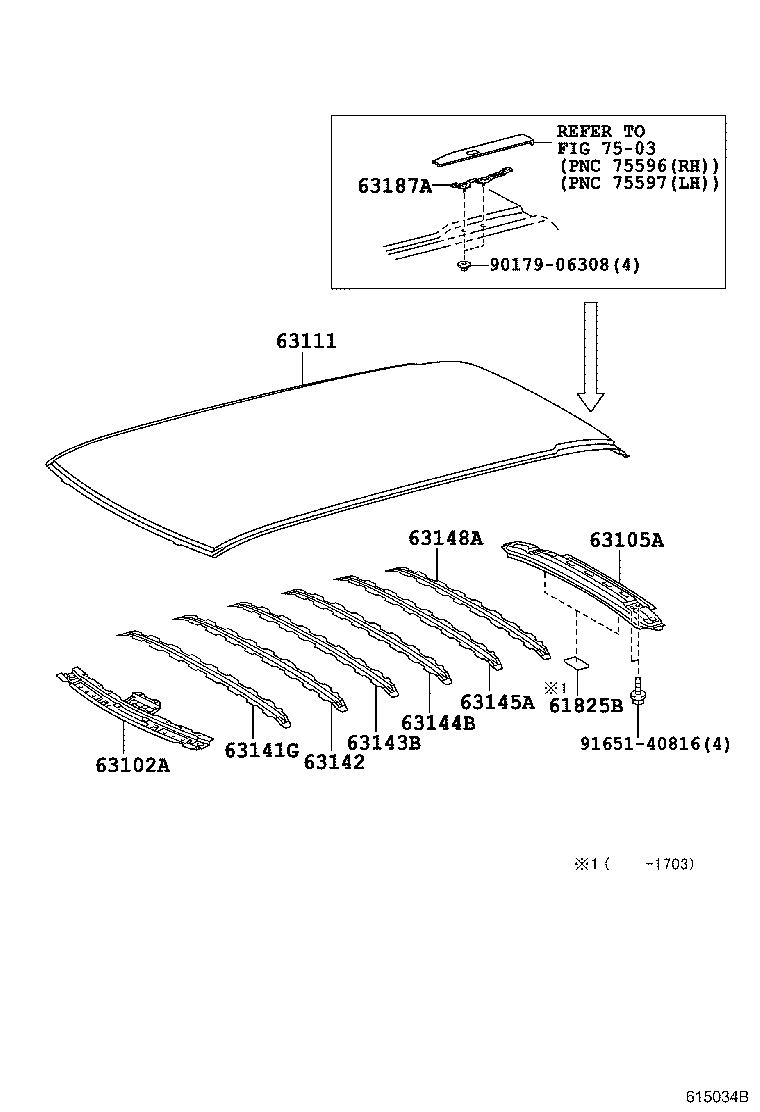

Click highlighted areas on diagram

diagram 61825B 63102A 63105A 63111 63141G 63142 63143B 63144B 63145A 63148A 63187A 7503 9017906308 9165140816
Part # Description Qty Price
61825B - PLATE, NOISE CONTROL, NO.2
61825-52040

NCP16#,NSP160

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-52240

NCP16#,NHP160,NSP160..PROB

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-52040

NCP16#,NHP160,NSP160..PROB

 1
63111 - PANEL, ROOF
63111-52440

NCP16#,NHP160,NSP160..PROB

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-52050

NCP16#,NHP160,NSP160..PROB

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-52030

NCP16#,NHP160,NSP160..PROB

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-52050

NCP16#,NHP160,NSP160..PROB

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-52030

NCP16#,NHP160,NSP160..PROB

 1
63145A - REINFORCEMENT, ROOF PANEL, NO.5
63147-52010

NCP16#,NHP160,NSP160..PROB

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-52040

NCP16#,NHP160,NSP160..PROB

 1
63187A - BRACKET, ROOF RACK, REAR
63107-52020

NCP16#,NHP160,NSP160..PROB

 2
Common parts
90179-06308
91651-40816
Linked diagrams
7503
