NCP165V-EXXRK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Sep 9999
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

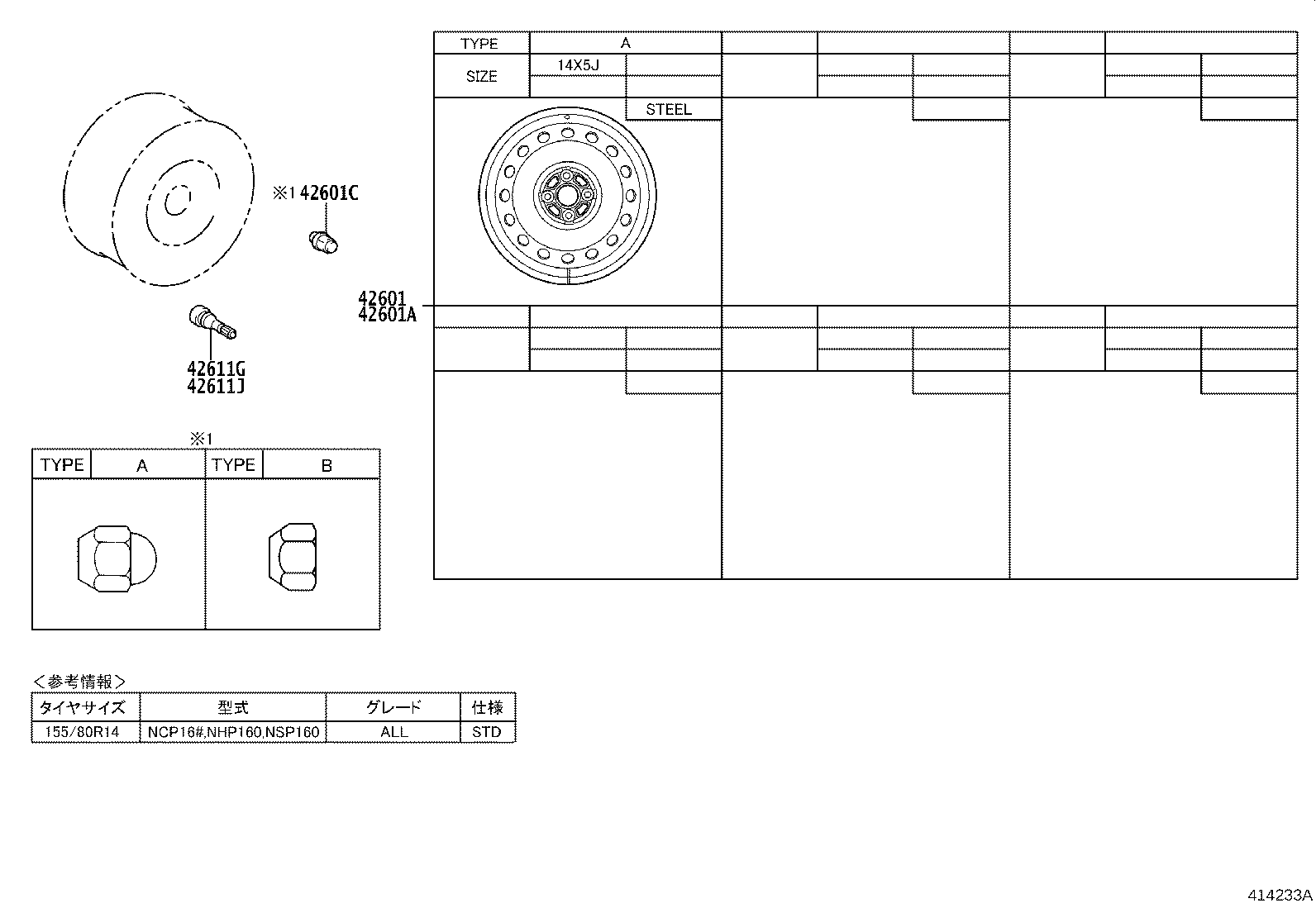

ILLUST NO. 1 OF 3(1409- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42611G 42611J
Part # Description Qty Price
42601 - WHEEL, DISC
42611-52760

NCP16#,NHP160..F

14×5J,#,TYPE A:ｲﾗｽﾄ参照

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-52760

NCP16#,NHP160..F

14×5J,#,TYPE A:ｲﾗｽﾄ参照

 1
42601C - NUT, HUB (FOR AXLE)
90942-01007

NCP16#,NHP160..F

TYPE B:ｲﾗｽﾄ参照

 16
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

NCP16#,NHP160,NSP160..PROB

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

NCP16#,NHP160,NSP160..PROB

 1

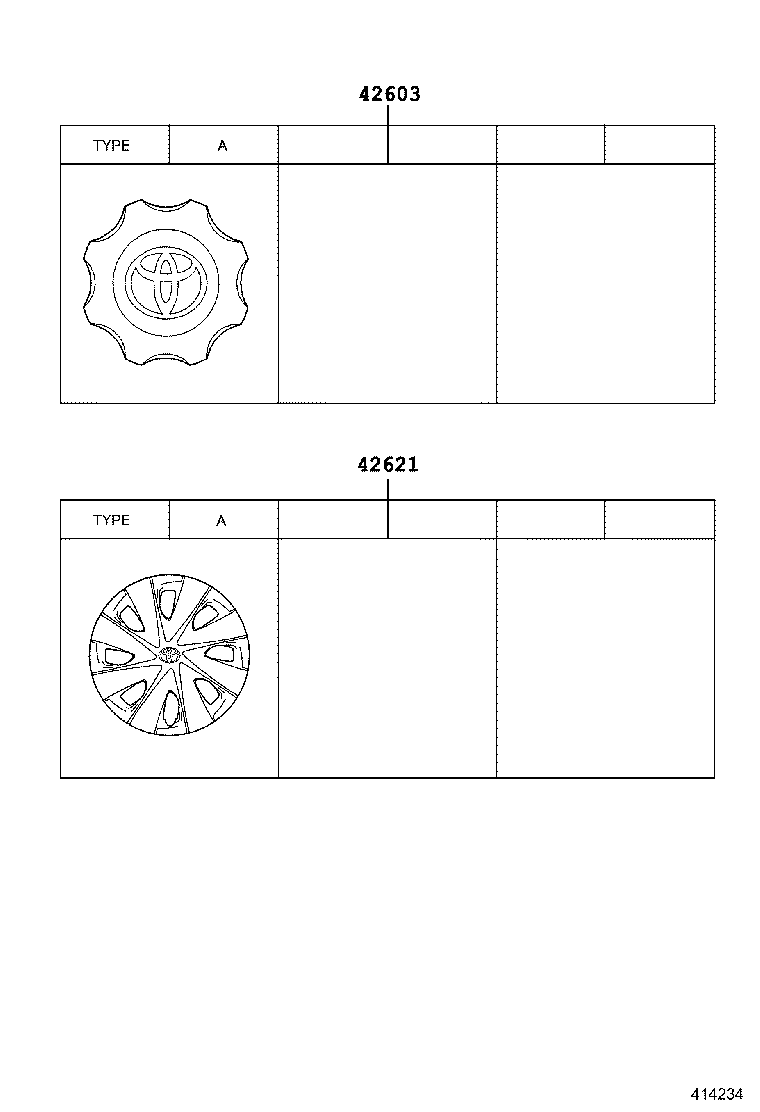

ILLUST NO. 2 OF 3(1409- )

Click highlighted areas on diagram

diagram 42603 42621
Part # Description Qty Price
42621 - CAP, WHEEL
42602-52590

NCP16#,NHP160..F

TYPE A:ｲﾗｽﾄ参照

 4

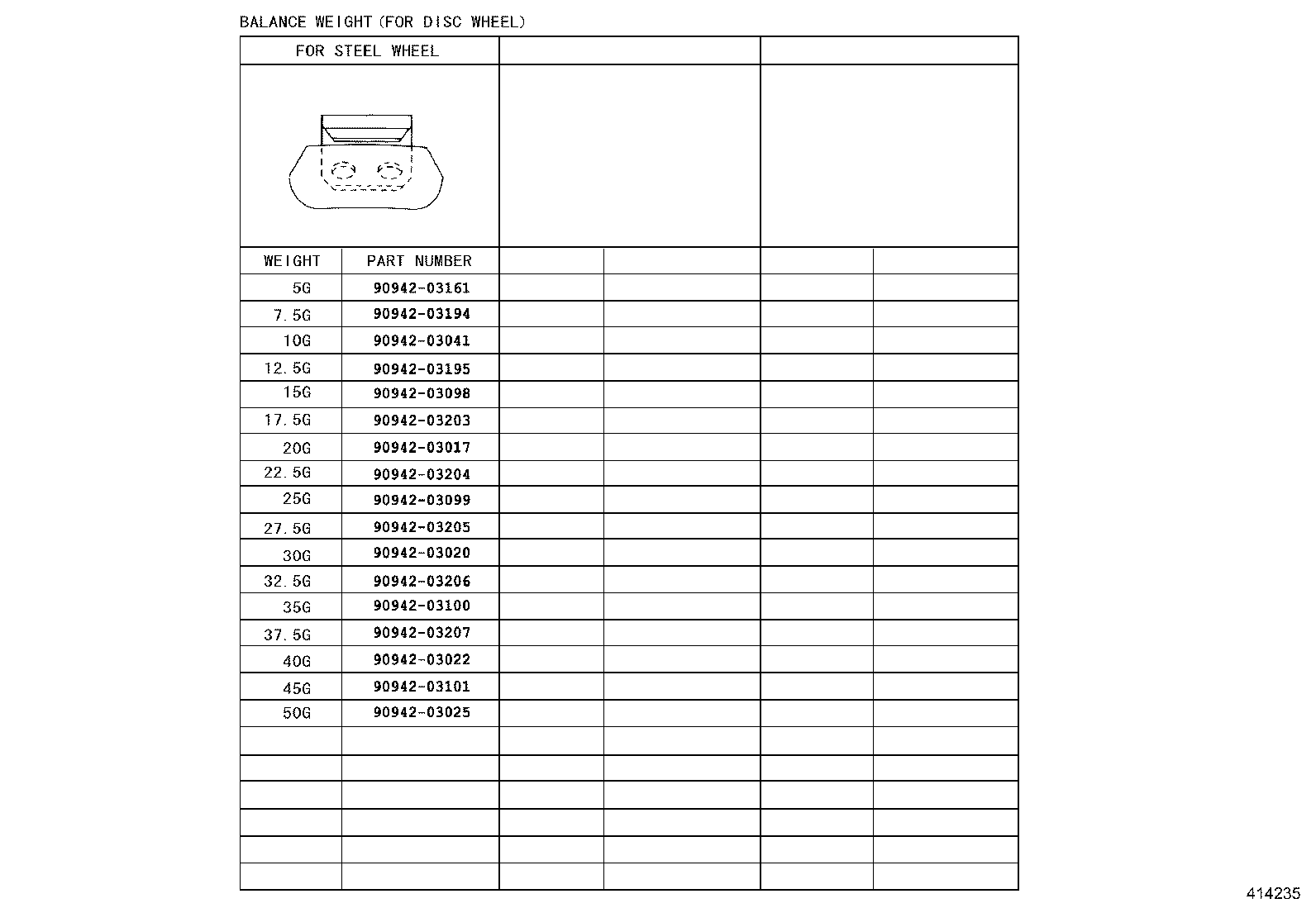

ILLUST NO. 3 OF 3(1409- )

Click highlighted areas on diagram

diagram 9094203017 9094203020 9094203022 9094203025 9094203041 9094203098 9094203099 9094203100 9094203101 9094203161 9094203194 9094203195 9094203203 9094203204 9094203205 9094203206 9094203207
Part # Description Qty Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03161
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
