NCP165V-EXXGK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Sep 9999
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

Click highlighted areas on diagram

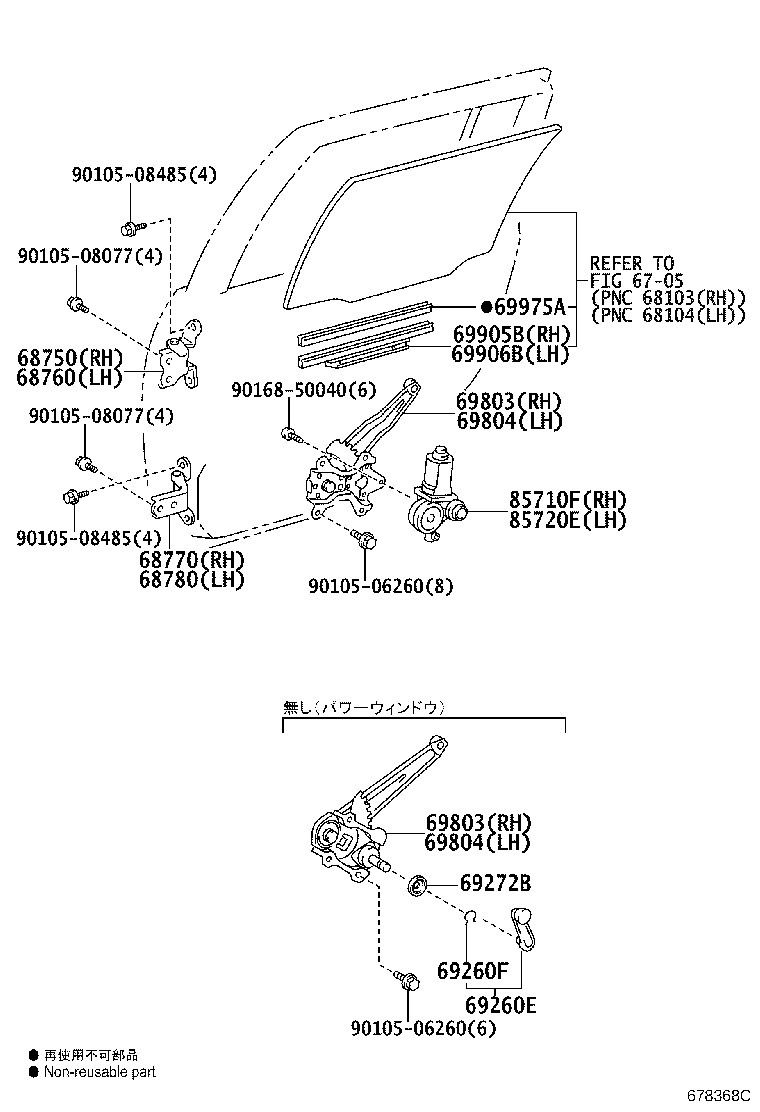

diagram 6705 68750 68760 68770 68780 69260E 69260F 69272B 69803 69803 69804 69804 69905B 69906B 69975A 85710F 85720E 9010506260 9010506260 9010508077 9010508077 9010508485 9010508485 9016850040
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-20122

NCP16#,NHP160,NSP160..PROB

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-20122

NCP16#,NHP160,NSP160..PROB

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-52031

NCP16#,NHP160,NSP160..PROB

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-52031

NCP16#,NHP160,NSP160..PROB

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-52070C0

NCP16#,NHP160,NSP160..DX,DXCOM,GL,U,UL,ULX

BLACK,TRIM1#

 2
69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01274

NCP16#,NHP160,NSP160..DX,DXCOM,GL,U,UL,ULX

 1
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69285-22010

NCP16#,NHP160,NSP160..DX,DXCOM,GL,U,UL,ULX

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-13020

NCP16#,NHP160..F

 1
69830-52160

NCP16#,NHP160,NSP160..DX,DXCOM,GL

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-13020

NCP16#,NHP160..F

 1
69830-52160

NCP16#,NHP160,NSP160..DX,DXCOM,GL

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-13020

NCP16#,NHP160..F

 1
69840-52160

NCP16#,NHP160,NSP160..DX,DXCOM,GL

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-13020

NCP16#,NHP160..F

 1
69840-52160

NCP16#,NHP160,NSP160..DX,DXCOM,GL

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-52020

NCP16#,NHP160,NSP160..PROB

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-52010

NCP16#,NHP160,NSP160..PROB

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-52010

NCP16#,NHP160,NSP160..PROB

 2
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85720-52200

NCP16#,NHP160..F

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85710-52220

NCP16#,NHP160..F

 1
Common parts
90105-06260
90105-08077
90105-08485
90168-50040
Linked diagrams
6705
