NCP165V-EXXGK (2014)
Toyota Probox/Succeed
Production
Sep 2014
-
Sep 9999
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1409- )

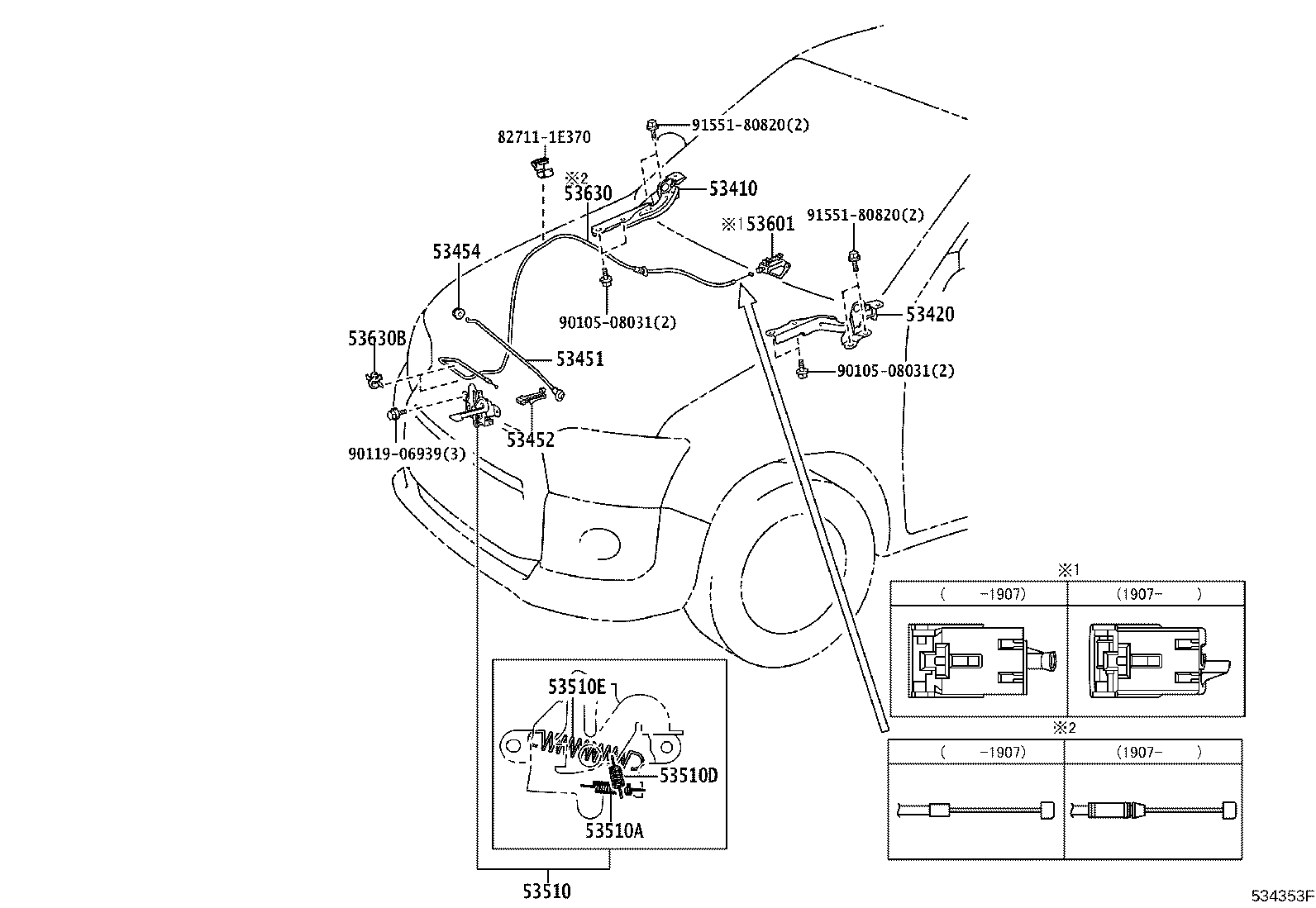

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-52410 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-52420 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53440-52300 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-52030 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 53454 - CLIP, HOOD SUPPORT ROD | ||||
| 53454-52020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-52730 |
NCP165,NHP160,NSP160 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
NCP16#,NHP160,NSP160 線径=0.9,ｺｲﾙ巻数=21 |
1 | ||
| 53510D - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
NCP16#,NHP160,NSP160 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 53510E - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-16077 |
NCP16#,NHP160,NSP160 線径=1.6,ｺｲﾙ巻数=12 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-52010C1 |
NCP16#,NHP160,NSP160 BLACK,TRIM1# |
1 | ||
| 53601-52010C0 |
NCP16#,NSP160 BLACK,TRIM1# |
1 | ||
| 53601-30100C0 |
NCP16#,NHP160,NSP160 BLACK,TRIM1# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-52190 |
NCP16#,NSP160 |
1 | ||
| 53630-52191 |
NCP16#,NSP160 |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-06005 |
NCP16#,NHP160,NSP160 |
2 | ||
| Common parts | ||||
| 82711-1E370 | ||||
| 90105-08031 | ||||
| 90119-06939 | ||||
| 91551-80820 | ||||
