NCP165V-EXXGK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Sep 9999
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

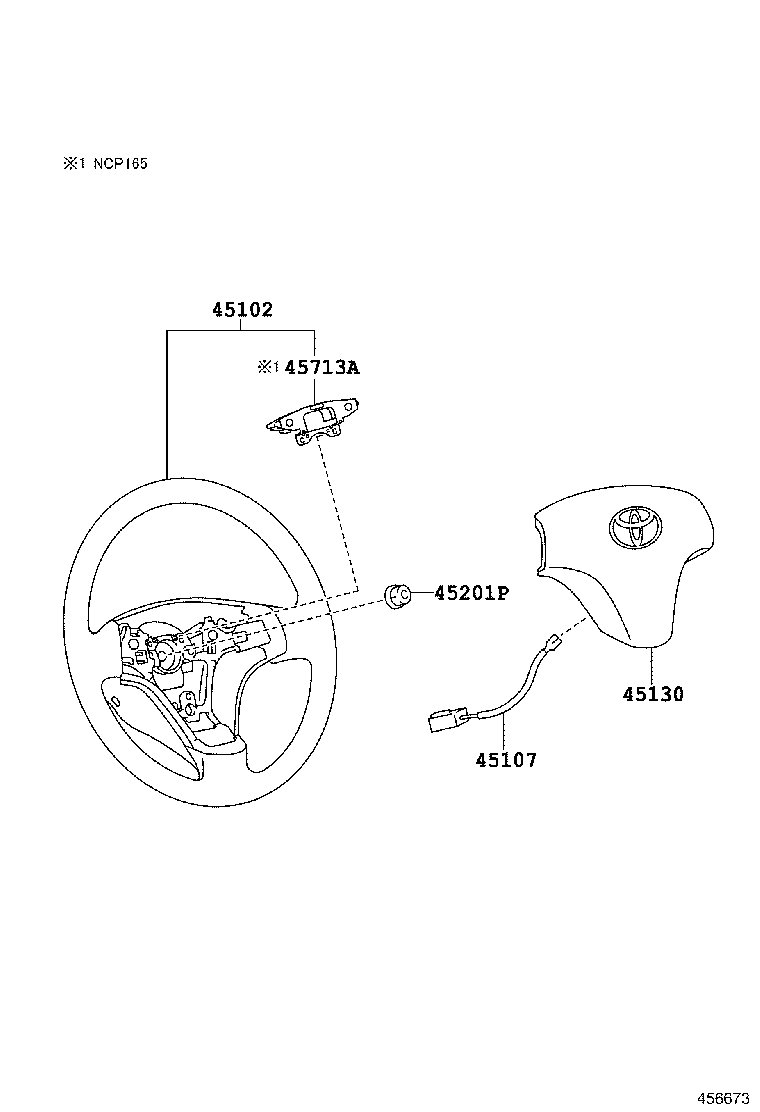

Click highlighted areas on diagram

3ﾎﾝｽﾎﾟｰｸ

diagram 45102 45107 45130 45201P 45713A
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45102-52300C1

NCP165..PROB

BLACK,TRIM1#

 1
45102-52300C0

NCP165

BLACK,TRIM1#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-B2050

NCP16#,NHP160,NSP160..PROB

 1
45130 - BUTTON ASSY, HORN
45130-52790C0

NCP16#,NSP160..DX,DXCOM,GL,U,UL,ULX

BLACK,TRIM1#

 1
45130-52800C1

NCP16#,NHP160..F

BLACK,TRIM1#

 1
45130-52790C1

NCP16#,NHP160,NSP160..DX,DXCOM,GL

BLACK,TRIM1#

 1
45130-52800C0

NCP16#..F,TX

BLACK,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

NCP16#,NHP160,NSP160..PROB

 1
45713A - DAMPER, STEERING SHAKE
45713-52090

NCP165..PROB

 1
