NCP165V-EXXDK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Sep 9999
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

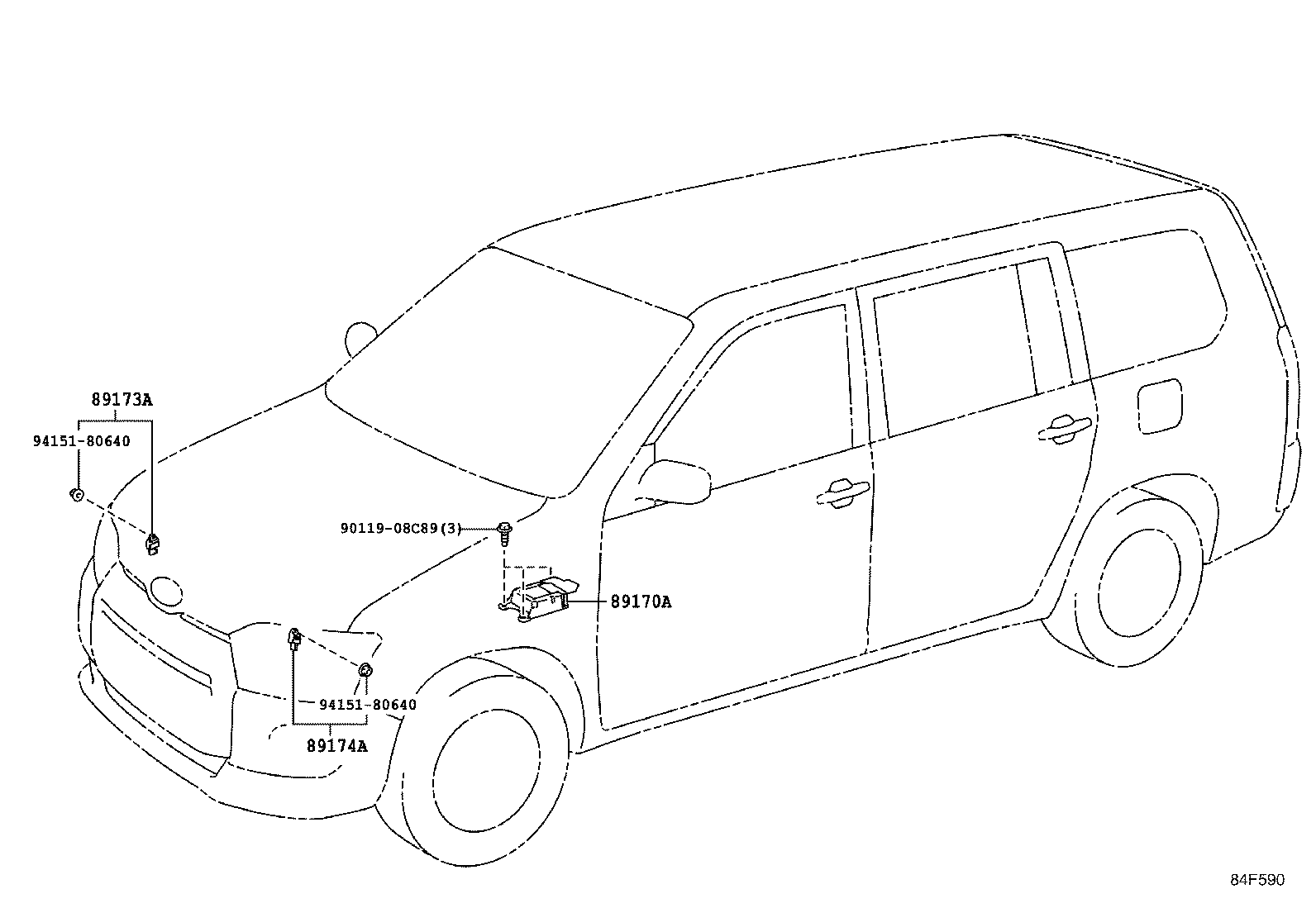

Click highlighted areas on diagram

diagram 89170A 89173A 89174A 9011908C89 9415180640 9415180640
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-52N70

NCP16#,NSP160..PROB

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-59305

NCP16#,NHP160,NSP160..PROB

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-59305

NCP16#,NHP160,NSP160..PROB

 1
Common parts
90119-08C89
94151-80640
