NCP165V-EXXDK (2014)
Toyota Probox/Succeed

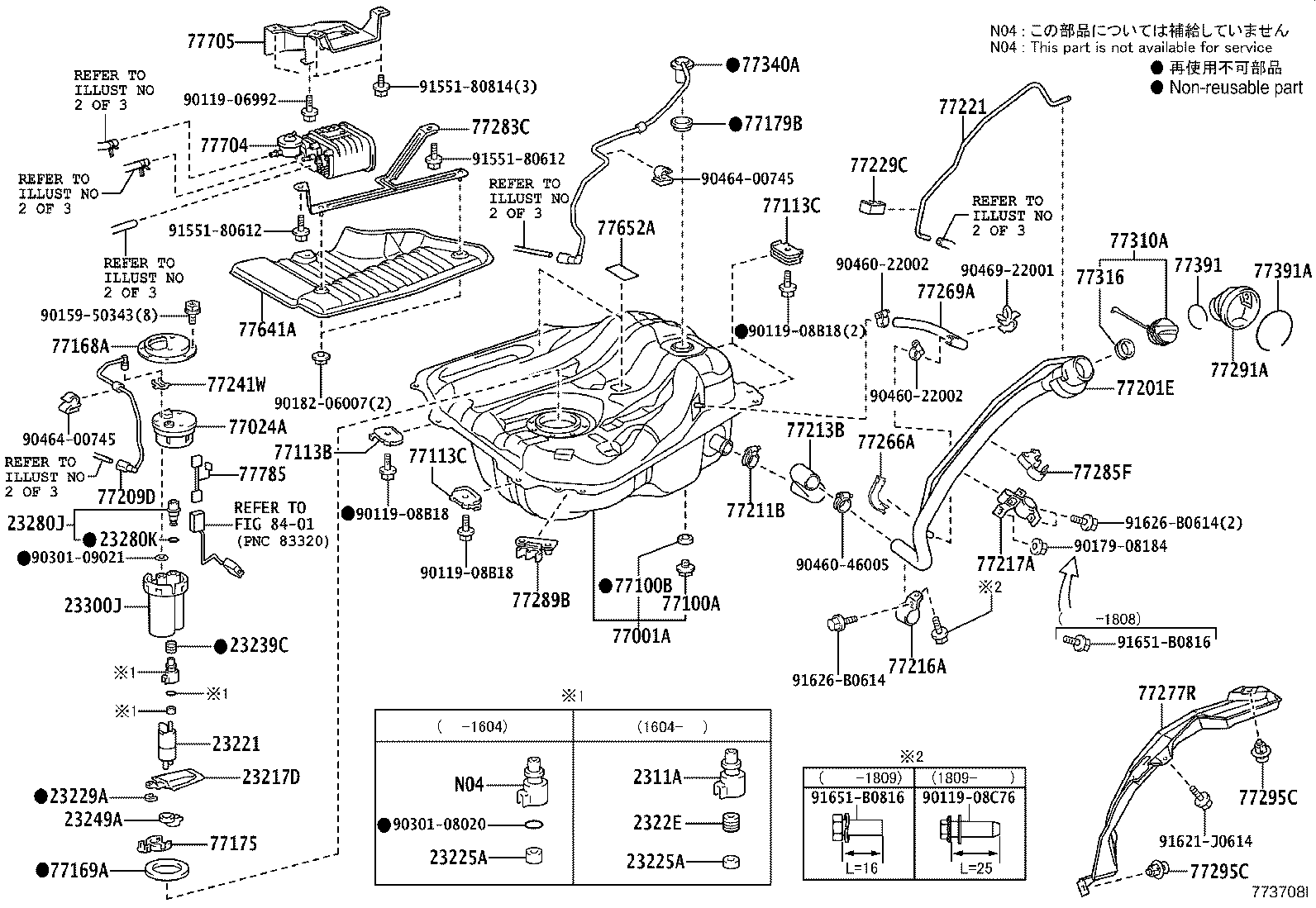

ILLUST NO. 1 OF 3(1409- )NCP16#,NSP160
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 2311A - PIPE, FUEL PUMP | ||||
| 2311A-21010 |
1NZFE,1NRFE..NCP16#,NSP160 |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-0D070 |
1NZFE,1NRFE..NCP16#,NSP160 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-47031 |
1NZFE,1NRFE..NCP16#,NSP160 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21030 |
1NZFE,1NRFE..NCP16#,NSP160 |
1 | ||
| 23225-21020 |
1N#..NCP16#,NSP160 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21030 |
1NZFE,1NRFE..NCP16#,NSP160 |
1 | ||
| 23225-21020 |
1N#..NCP16#,NSP160 |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1NZFE,1NRFE..NCP16#,NSP160 |
1 | ||
| 2322E - SEAL, FUEL PUMP | ||||
| 23239-21020 |
1NZFE,1NRFE..NCP16#,NSP160 |
1 | ||
| 23239C - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
1NZFE,1NRFE..NCP16#,NSP160 |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-21010 |
1NZFE,1NRFE..NCP16#,NSP160 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-20060 |
1NZFE,1NRFE..NCP16#,NSP160 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1NZFE,1NRFE..NCP16#,NSP160 |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-23040 |
1NZFE,1NRFE..NCP16#,NSP160 |
1 | ||
| 77001A - TANK SUB-ASSY, FUEL | ||||
| 77001-52510 |
NCP16#,NSP160 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-52270 |
NCP16#,NSP160 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
NCP16#,NSP160 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
NCP16#,NSP160 |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-52020 |
NCP16#,NSP160..PROB |
1 | ||
| 77113C - PLATE, FUEL TANK SIDE | ||||
| 77113-52040 |
NCP16#,NSP160..PROB |
3 | ||
| 77113C - PLATE, FUEL TANK SIDE | ||||
| 77113-52040 |
NCP16#,NSP160..PROB |
3 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33050 |
NCP16#,NSP160 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
NCP16#,NSP160 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-52020 |
NCP16#,NSP160 |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-33010 |
NCP16#,NSP160 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-52470 |
NCP16#,NSP160 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-52060 |
NCP16#,NSP160 |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-46005 |
NCP16#,NSP160..PROB |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-52060 |
NCP16#,NSP160 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-52060 |
NCP16#,NSP160 |
1 | ||
| 77216-52270 |
NCP16#,NHP160,NSP160 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-32050 |
NCP16#,NHP160,NSP160 |
1 | ||
| 77221 - TUBE, FUEL TANK BREATHER, NO.1 | ||||
| 77226-52200 |
NCP16#,NHP160,NSP160 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-47060 |
NCP16#,NHP160,NSP160 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NCP16#,NSP160 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-52140 |
NCP16#,NHP160,NSP160 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-52030 |
NCP16#,NSP160 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-52011 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 77283C - BRACKET, FUEL TANK PROTECTOR | ||||
| 77705-52020 |
NCP16#,NSP160..PROB |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-52080 |
NCP16#,NHP160,NSP160 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-52010 |
NCP16#,NSP160 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-52050 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-52020 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-52020 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
NCP16#,NHP160,NSP160 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
NCP16#,NHP160,NSP160 |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-52020 |
NCP16#,NSP160 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12040 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 87268-52030 |
NCP16#,NSP160..PROB |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
NCP16#,NSP160..PROB |
2 | ||
| 77704 - CANISTER SUB-ASSY, CHARCOAL | ||||
| 77704-30200 |
NCP16#,NSP160..PROB |
1 | ||
| 77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER | ||||
| 77705-52010 |
NCP16#,NSP160..PROB |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52130 |
NCP16#,NSP160 |
1 | ||
| Common parts | ||||
| 90119-06992 | ||||
| 90119-08B18 | ||||
| 90119-08C76 | ||||
| 90159-50343 | ||||
| 90179-08184 | ||||
| 90182-06007 | ||||
| 90301-08020 | ||||
| 90301-09021 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90464-00745 | ||||
| 90469-22001 | ||||
| 91551-80612 | ||||
| 91551-80814 | ||||
| 91621-J0614 | ||||
| 91626-B0614 | ||||
| 91651-B0816 | ||||
| Linked diagrams | ||||
| 8401 | ||||

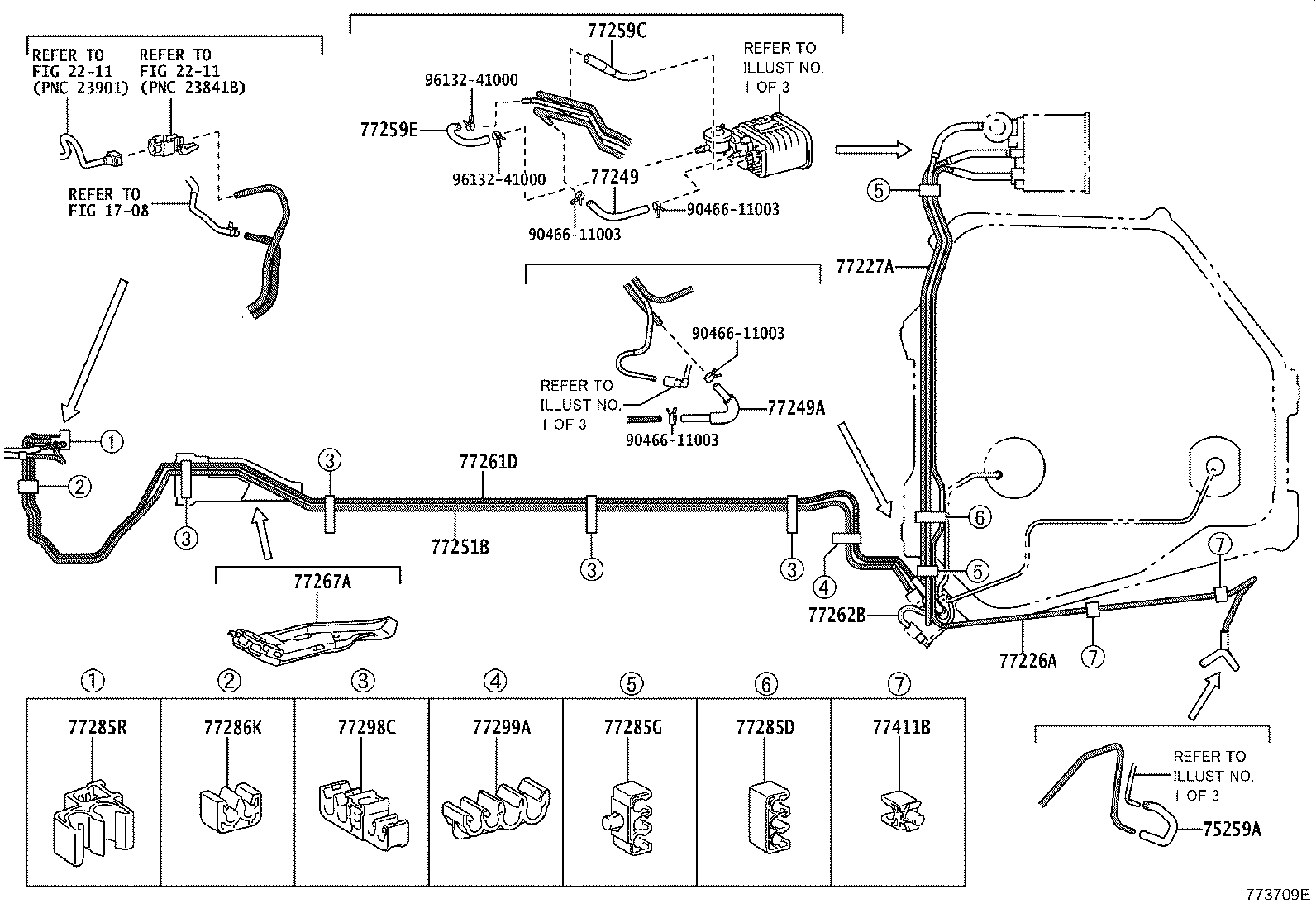

ILLUST NO. 2 OF 3(1409- )NCP16#,NSP160
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75259A - HOSE, FUEL | ||||
| 77259-52160 |
NCP16#,NSP160 |
1 | ||
| 77259-52161 |
NCP16#,NSP160..PROB |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-52210 |
NCP16#,NSP160..PROB |
1 | ||
| 77227A - TUBE, FUEL TANK EVAPORATION VENT | ||||
| 77227-52030 |
NCP16#,NSP160..PROB |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-52080 |
NCP16#,NSP160..PROB |
1 | ||
| 77249A - HOSE, FUEL EMISSION | ||||
| 77249-52090 |
NCP16#,NSP160..PROB |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-52480 |
NCP16#..PROB |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-52170 |
NCP16#,NSP160..PROB |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 77259-52180 |
NCP16#,NSP160..PROB |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-52470 |
NCP16#..PROB |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77261-52480 |
NCP16#,NSP160..PROB |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-52050 |
NCP16#,NSP160..PROB |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60C60 |
NCP16#,NSP160..PROB |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60790 |
NCP16#,NSP160..PROB |
2 | ||
| 77285R - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-52060 |
NCP16#,NSP160 |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-52100 |
NCP16#,NSP160..PROB |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52070 |
NCP16#,NSP160..PROB |
4 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-52070 |
NCP16#,NSP160..PROB |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-20050 |
NCP16#,NSP160..PROB |
2 | ||
| Common parts | ||||
| 90466-11003 | ||||
| 96132-41000 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1409- )
ﾌｭｰｴﾙﾘｯﾄﾞｵｰﾌﾟﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-52110 |
NCP16#,NSP160..PROB |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09004 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-52080 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-30080 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90269-06017 | ||||
| 90467-12009 | ||||
| 90469-06005 | ||||
| 90959-01369 | ||||
