NCP160V-FXXRK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Jul 2020
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

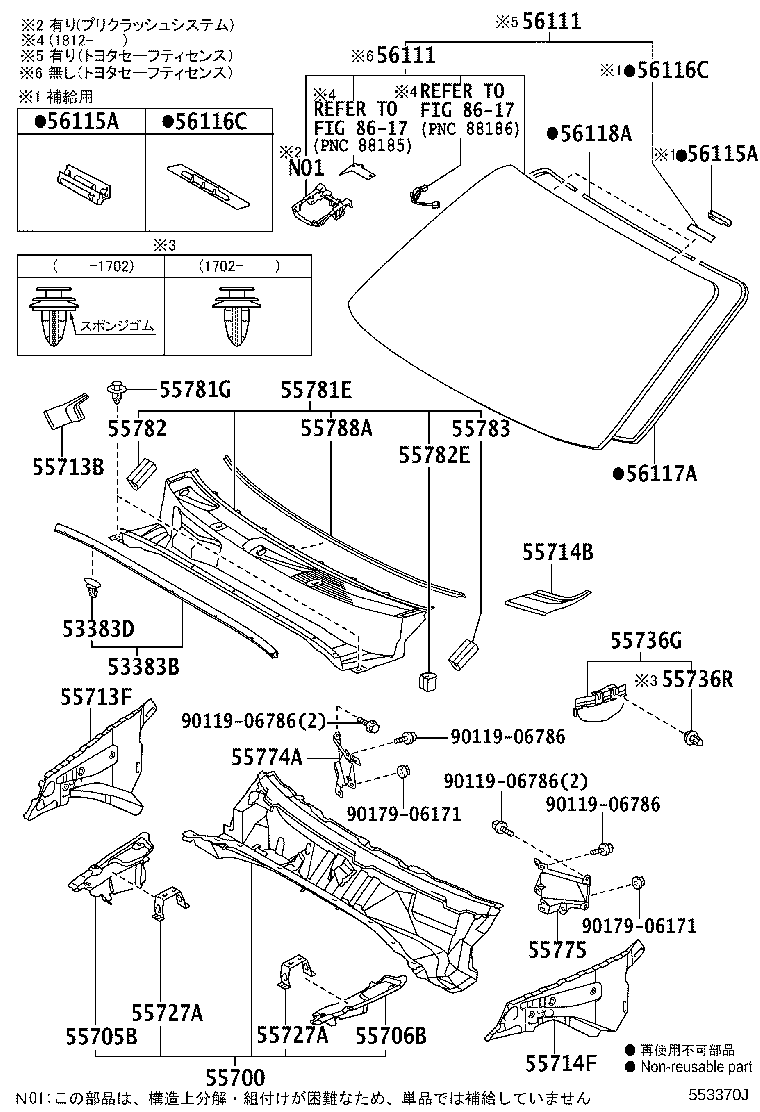

Click highlighted areas on diagram

diagram 53383B 53383D 55700 55705B 55706B 55713B 55713F 55714B 55714F 55727A 55727A 55736G 55736R 55774A 55775 55781E 55781G 55782 55782E 55783 55788A 56111 56111 56115A 56115A 56116C 56116C 56117A 56118A 8617 8617 9011906786 9011906786 9011906786 9011906786 9017906171 9017906171
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-52170

NCP16#,NHP160..SUCD

 1
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
67867-12150

NCP16#,NHP160..SUCD

 7
55700 - PANEL ASSY, FRONT
55700-52390

NCP16#..SUCD

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-52160

NCP16#,NHP160..SUCD

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-52160

NCP16#,NHP160..SUCD

 1
55713B - COVER, COWL SIDE PANEL HOLE, RH
53445-52020

NCP16#,NHP160..SUCD

 1
55713F - REINFORCEMENT, COWL TOP SIDE, RH
55713-52160

NCP16#,NHP160..SUCD

 1
55714B - COVER, COWL SIDE PANEL HOLE, LH
53446-52020

NCP16#,NHP160..SUCD

 1
55714F - REINFORCEMENT, COWL TOP SIDE, LH
55714-52160

NCP16#,NHP160..SUCD

 1
55727A - RETAINER, FRONT PANEL UPPER REINFORCEMENT
55727-52130

NCP16#,NHP160..SUCD

 2
55727A - RETAINER, FRONT PANEL UPPER REINFORCEMENT
55727-52130

NCP16#,NHP160..SUCD

 2
55736G - SEAL, FRONT AIR SHUTTER, LH
55736-52090

NCP16#,NHP160..SUCD

 1
55736R - CLIP, FRONT AIR SHUTTER SEAL
90467-10161

NCP16#,NHP160..SUCD

 2
90467-09206

NCP16#,NSP160

 2
55774A - BRACKET, COWL TOP INNER TO PILLAR BRACE, RH
55774-52040

NCP16#,NHP160..SUCD

 1
55775 - BRACKET, COWL TOP INNER TO PILLAR BRACE, LH
55775-52040

NCP16#,NHP160..SUCD

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-52390

NCP16#,NHP160..SUCD

 1
55708-52400

NCP16#,NHP160..SUCD

寒冷地仕様

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90044-67496

NCP16#,NHP160..SUCD

 2
55782 - PROTECTOR, COWL TOP VENTILATOR LOUVER, RH
55789-52080

NCP16#,NHP160..SUCD

 1
55782E - PROTECTOR, COWL TOP VENTILATOR LOUVER
55789-52070

NCP16#,NHP160..SUCD

 1
55783 - PROTECTOR, COWL TOP VENTILATOR LOUVER, LH
55789-52060

NCP16#,NHP160..SUCD

 1
55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER
55788-52270

NCP16#,NHP160..SUCD

 1
56111 - GLASS, WINDSHIELD
56101-52830

NCP16#,NSP160

ﾊﾞｯｸﾓﾆﾀ−有り

 1
56101-52E40

NCP16#,NHP160..SUCD

 1
56101-52830

NCP16#,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾊﾞｯｸﾓﾆﾀ−有り

 1
56101-52130

NCP16#,NSP160

 1
56101-52D90

NCP16#,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し

 1
56101-52D91

NCP16#,NHP160..SUCD

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し

 1
56101-52D80

NCP16#,NSP160

 1
56101-52D81

NCP16#,NSP160

 1
56101-52831

NCP16#,NHP160..SUCD

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾊﾞｯｸﾓﾆﾀ−有り

 1
56111 - GLASS, WINDSHIELD
56101-52830

NCP16#,NSP160

ﾊﾞｯｸﾓﾆﾀ−有り

 1
56101-52E40

NCP16#,NHP160..SUCD

 1
56101-52830

NCP16#,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾊﾞｯｸﾓﾆﾀ−有り

 1
56101-52130

NCP16#,NSP160

 1
56101-52D90

NCP16#,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し

 1
56101-52D91

NCP16#,NHP160..SUCD

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し

 1
56101-52D80

NCP16#,NSP160

 1
56101-52D81

NCP16#,NSP160

 1
56101-52831

NCP16#,NHP160..SUCD

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾊﾞｯｸﾓﾆﾀ−有り

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

NCP16#,NHP160..SUCD

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

NCP16#,NHP160..SUCD

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

NCP16#,NHP160..SUCD

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

NCP16#,NHP160..SUCD

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-52010

NCP16#,NSP160

*D,L=3015,ﾊﾞｯｸﾓﾆﾀ−有り

 1
56117-52010

NCP16#,NHP160..SUCD

*D,L=3015,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し

 1
56117-52010

NCP16#,NHP160..SUCD

*D,L=3015

 1
56117-52010

NCP16#,NHP160..SUCD

*D,L=3015,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾊﾞｯｸﾓﾆﾀ−有り

 1
56118A - DAM, WINDOW GLASS ADHESIVE, NO.2
56117-52040

NCP16#,NHP160..SUCD

*D,L=667,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾊﾞｯｸﾓﾆﾀ−有り

 1
56117-52040

NCP16#,NHP160..SUCD

*D,L=667,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し

 1
56117-52040

NCP16#,NHP160..SUCD

*D,L=667

 1
56117-52040

NCP16#,NSP160

*D,L=667,ﾊﾞｯｸﾓﾆﾀ−有り

 1
Common parts
90119-06786
90179-06171
Linked diagrams
8617
