Toyota Probox/succeed NCP160 FRONT DOOR PANEL & GLASS

Manufacturers Home
Toyota
JP
PROBOX/SUCCEED
NCP160V-EXXGK (2014)
6701 - FRONT DOOR PANEL & GLASS

NCP160V-EXXGK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Sep 9999

Engine 1NZFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

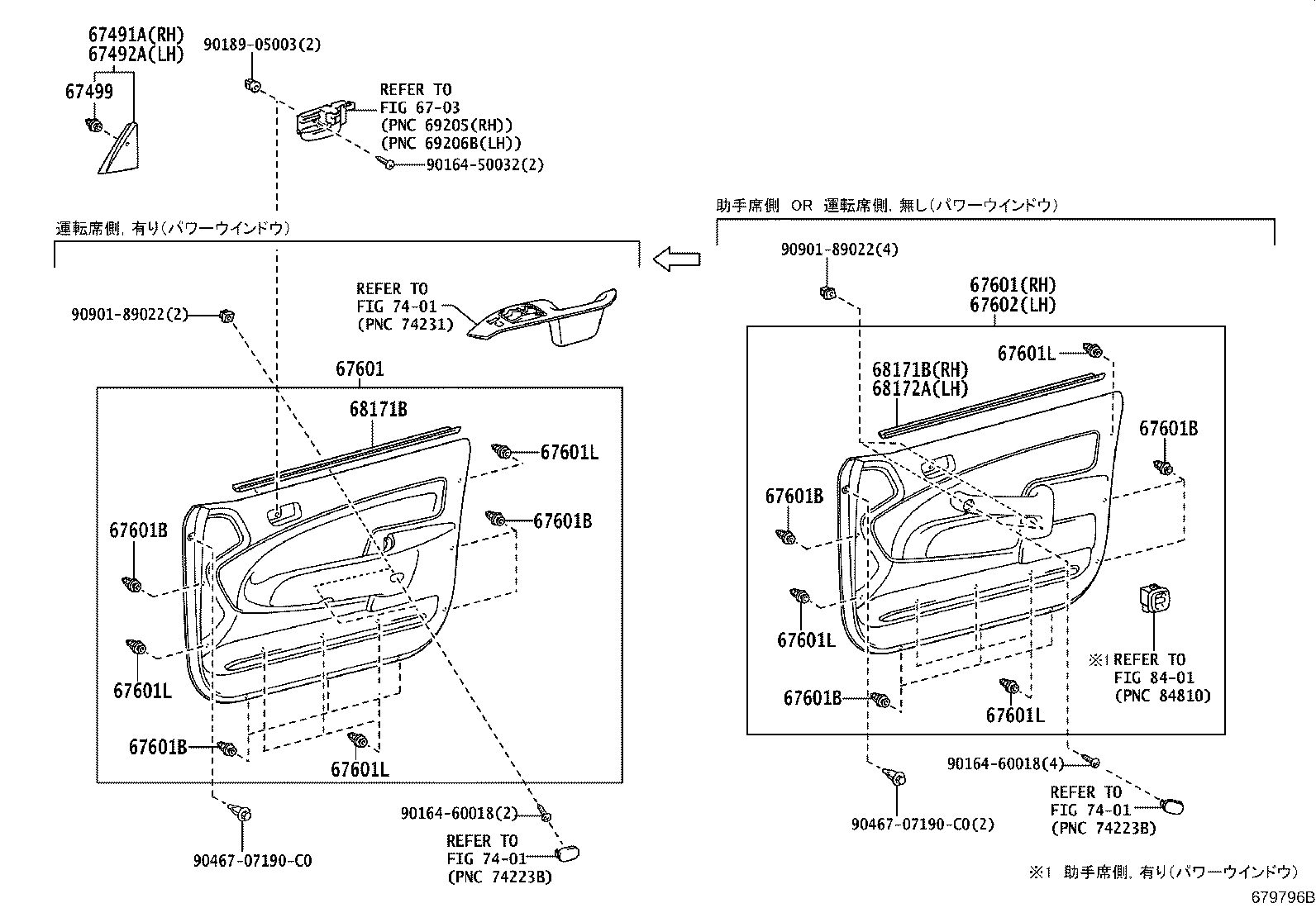

ILLUST NO. 2 OF 2(1409- )

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

Part #	Description	Period	Qty
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-52060	NCP16#,NHP160,NSP160	09/2014 - 12/2999	1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-52060	NCP16#,NHP160,NSP160	09/2014 - 12/2999	1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67771-12060	NCP16#,NHP160,NSP160	09/2014 - 12/2999	2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-5CK90C0	NCP16#,NHP160,NSP160..DXCOM,F,GL,TX,UL,ULX BLACK,TRIM1#	09/2014 - 12/2999	1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-5CK90C0	NCP16#,NHP160,NSP160..DXCOM,F,GL,TX,UL,ULX BLACK,TRIM1#	09/2014 - 12/2999	1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10161	NCP16#,NHP160,NSP160	09/2014 - 12/2999	12
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10161	NCP16#,NHP160,NSP160	09/2014 - 12/2999	12
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10161	NCP16#,NHP160,NSP160	09/2014 - 12/2999	12
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10161	NCP16#,NHP160,NSP160	09/2014 - 12/2999	12
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10161	NCP16#,NHP160,NSP160	09/2014 - 12/2999	12
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10161	NCP16#,NHP160,NSP160	09/2014 - 12/2999	12
67601L - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206	NCP16#,NHP160,NSP160	09/2014 - 12/2999	10
67601L - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206	NCP16#,NHP160,NSP160	09/2014 - 12/2999	10
67601L - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206	NCP16#,NHP160,NSP160	09/2014 - 12/2999	10
67601L - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206	NCP16#,NHP160,NSP160	09/2014 - 12/2999	10
67601L - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206	NCP16#,NHP160,NSP160	09/2014 - 12/2999	10
67601L - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206	NCP16#,NHP160,NSP160	09/2014 - 12/2999	10
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-5CK90C0	NCP16#,NHP160,NSP160..F,GL,TX,ULX BLACK,TRIM1#	09/2014 - 12/2999	1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-52100	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-52100	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-52040	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
Common parts
90164-50032
90164-60018
90189-05003
90467-07190C0
90901-89022
Linked diagrams
6703
7401
8401

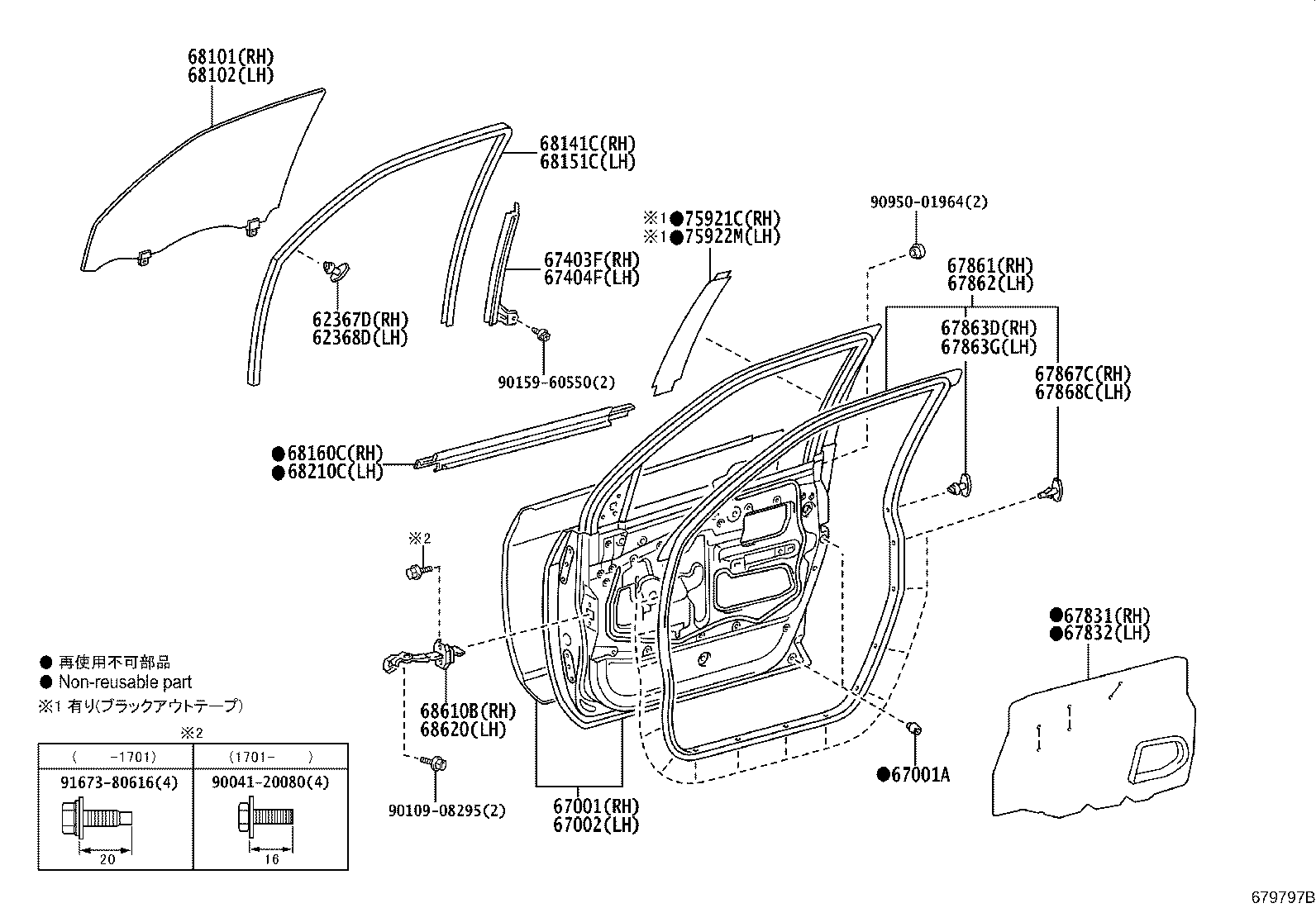

ILLUST NO. 1 OF 2(1409- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

Part #	Description	Period	Qty
62367D - CLIP, DOOR WINDOW GLASS, RH
62367-60030	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
62368D - CLIP, DOOR WINDOW GLASS, LH
62367-60030	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-52620	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
67001A - CUSHION, FRONT DOOR PANEL
90541-09069	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-52620	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-52100	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-52050	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-52460	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-52330	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-52050	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
67861-52100	NCP16#,NHP160,NSP160..PROB 寒冷地仕様	09/2014 - 12/2999	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-52110	NCP16#,NHP160,NSP160..PROB 寒冷地仕様	09/2014 - 12/2999	1
67862-52080	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67867-32060	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
67863G - RETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67867-32060	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	14
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	14
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68110-52131	NCP16#,NHP160,NSP160..PROB	12/2017 - 12/2999	1
68110-52130	NCP16#,NSP160	09/2014 - 12/2017	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68120-52130	NCP16#,NSP160	09/2014 - 12/2017	1
68120-52131	NCP16#,NHP160,NSP160..PROB	12/2017 - 12/2999	1
68141C - RUN, FRONT DOOR GLASS, RH
68141-52090	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
68151C - RUN, FRONT DOOR GLASS, LH
68151-52090	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68160-52071	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68210-52071	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-52210	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-52130	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
75921C - TAPE, BLACK OUT, NO.1 RH
75921-52100C0	NCP16#,NSP160..GL,ULX BLACK,058 ,1E7 ,209 ,3R9 ,6U6 ,8P4	09/2014 - 12/2999	1
75921-52100C0	NCP16#..F,TX;NHP160..F,GL,TX,ULX BLACK,058 ,1E7 ,6U6 ,8P4	09/2014 - 12/2999	1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-52100C0	NCP16#,NSP160..GL,ULX BLACK,058 ,1E7 ,209 ,3R9 ,6U6 ,8P4	09/2014 - 12/2999	1
75922-52100C0	NCP16#..F,TX;NHP160..F,GL,TX,ULX BLACK,058 ,1E7 ,6U6 ,8P4	09/2014 - 12/2999	1
Common parts
90041-20080
90109-08295
90159-60550
90950-01964
91673-80616
