NCP160V-EXXDK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Sep 9999
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

Click highlighted areas on diagram

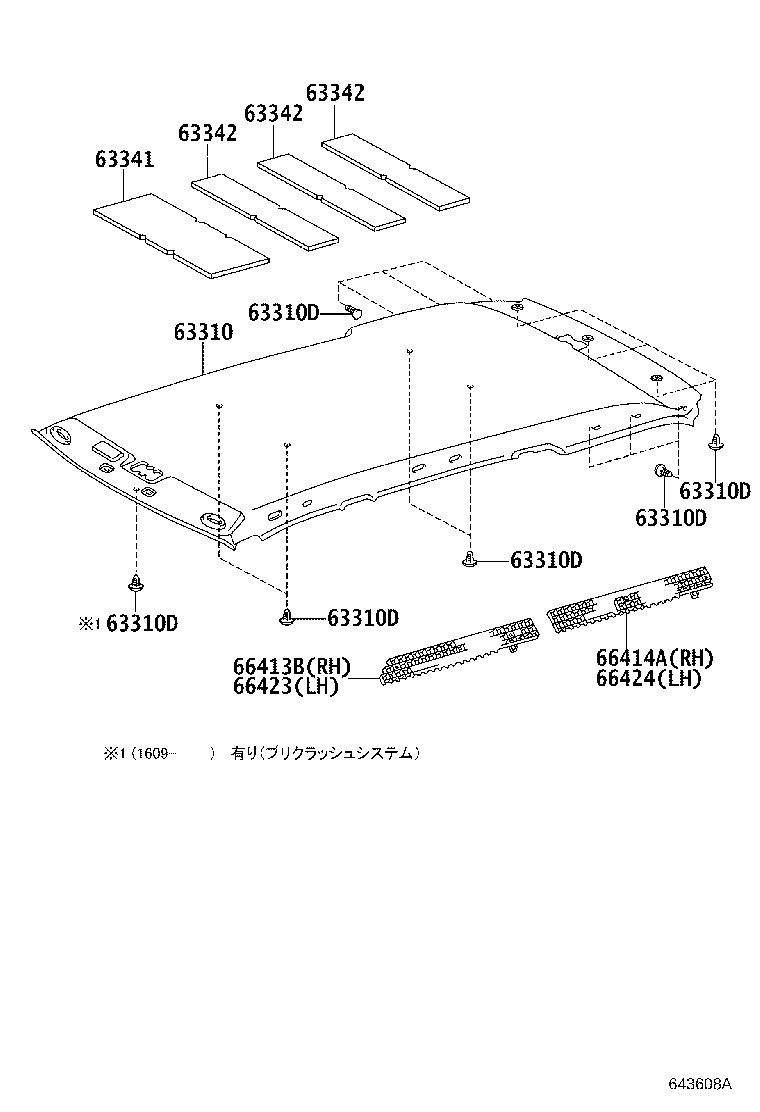

diagram 63310 63310D 63310D 63310D 63310D 63310D 63310D 63341 63342 63342 63342 66413B 66414A 66423 66424
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-52D20B0

NCP16#,NHP160,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾊﾞｯｸﾓﾆﾀ−有り,LIGHT GRAY,TRIM1#

 1
63310-52400B0

NCP16#,NSP160

DK.GRAY,TRIM1#

 1
63310-52D20B0

NCP16#,NSP160

ﾊﾞｯｸﾓﾆﾀ−有り,LIGHT GRAY,TRIM1#

 1
63310-52400B0

NCP16#,NHP160,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し,DK.GRAY,TRIM1#

 1
63310-52F10B0

NCP16#,NHP160,NSP160

LIGHT GRAY,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-05164B0

NCP16#,NHP160,NSP160

LT.GRAY,TRIM1#

 14
90467-05164B0

NCP16#,NHP160,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾊﾞｯｸﾓﾆﾀ−有り,LT.GRAY,TRIM1#

 13
90467-05164B0

NCP16#,NSP160

LT.GRAY,TRIM1#

 13
90467-05164B0

NCP16#,NHP160,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し,LT.GRAY,TRIM1#

 13
63310D - CLIP, ROOF HEADLINING
90467-05164B0

NCP16#,NHP160,NSP160

LT.GRAY,TRIM1#

 14
90467-05164B0

NCP16#,NHP160,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾊﾞｯｸﾓﾆﾀ−有り,LT.GRAY,TRIM1#

 13
90467-05164B0

NCP16#,NSP160

LT.GRAY,TRIM1#

 13
90467-05164B0

NCP16#,NHP160,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し,LT.GRAY,TRIM1#

 13
63310D - CLIP, ROOF HEADLINING
90467-05164B0

NCP16#,NHP160,NSP160

LT.GRAY,TRIM1#

 14
90467-05164B0

NCP16#,NHP160,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾊﾞｯｸﾓﾆﾀ−有り,LT.GRAY,TRIM1#

 13
90467-05164B0

NCP16#,NSP160

LT.GRAY,TRIM1#

 13
90467-05164B0

NCP16#,NHP160,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し,LT.GRAY,TRIM1#

 13
63310D - CLIP, ROOF HEADLINING
90467-05164B0

NCP16#,NHP160,NSP160

LT.GRAY,TRIM1#

 14
90467-05164B0

NCP16#,NHP160,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾊﾞｯｸﾓﾆﾀ−有り,LT.GRAY,TRIM1#

 13
90467-05164B0

NCP16#,NSP160

LT.GRAY,TRIM1#

 13
90467-05164B0

NCP16#,NHP160,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し,LT.GRAY,TRIM1#

 13
63310D - CLIP, ROOF HEADLINING
90467-05164B0

NCP16#,NHP160,NSP160

LT.GRAY,TRIM1#

 14
90467-05164B0

NCP16#,NHP160,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾊﾞｯｸﾓﾆﾀ−有り,LT.GRAY,TRIM1#

 13
90467-05164B0

NCP16#,NSP160

LT.GRAY,TRIM1#

 13
90467-05164B0

NCP16#,NHP160,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し,LT.GRAY,TRIM1#

 13
63310D - CLIP, ROOF HEADLINING
90467-05164B0

NCP16#,NHP160,NSP160

LT.GRAY,TRIM1#

 14
90467-05164B0

NCP16#,NHP160,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾊﾞｯｸﾓﾆﾀ−有り,LT.GRAY,TRIM1#

 13
90467-05164B0

NCP16#,NSP160

LT.GRAY,TRIM1#

 13
90467-05164B0

NCP16#,NHP160,NSP160

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し,LT.GRAY,TRIM1#

 13
63341 - PAD, ROOF SILENCER, NO.1
63341-52111

NCP16#,NHP160,NSP160

 1
63342 - PAD, ROOF SILENCER, NO.2
63341-52121

NCP16#,NHP160,NSP160

 3
63342 - PAD, ROOF SILENCER, NO.2
63341-52121

NCP16#,NHP160,NSP160

 3
63342 - PAD, ROOF SILENCER, NO.2
63341-52121

NCP16#,NHP160,NSP160

 3
66413B - SPACER, SIDE RAIL, FRONT RH
66413-52070

NCP16#,NHP160,NSP160

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-52050

NCP16#,NHP160,NSP160

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-52070

NCP16#,NHP160,NSP160

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-52050

NCP16#,NHP160,NSP160

 1
