NCP160V-EXXDK (2014)
Toyota Probox/Succeed
Production
Sep 2014
-
Sep 9999
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1409- )NCP160,NHP160,NSP160

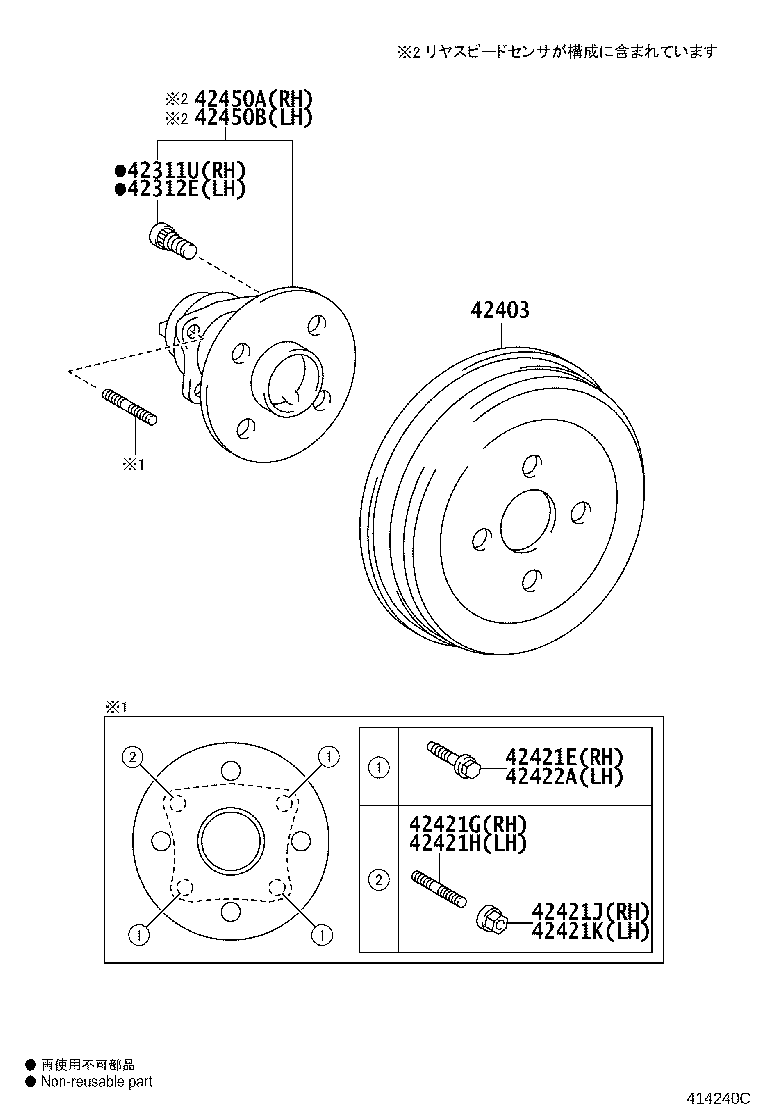

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
NCP160,NHP160,NSP160..PROB |
4 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
NCP160,NHP160,NSP160..PROB |
4 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-52040 |
NCP16#,NSP160..PROB |
2 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-10515 |
NCP160,NHP160,NSP160..PROB |
3 | ||
| 42421G - BOLT (FOR REAR AXLE BEARING CASE RH NO.2) | ||||
| 90116-10218 |
NCP160,NHP160,NSP160..PROB |
1 | ||
| 42421H - BOLT (FOR REAR AXLE BEARING CASE LH NO.2) | ||||
| 90116-10218 |
NCP160,NHP160,NSP160..PROB |
1 | ||
| 42421J - NUT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90178-10008 |
NCP160,NHP160,NSP160..PROB |
1 | ||
| 42421K - NUT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90178-10008 |
NCP160,NHP160,NSP160..PROB |
1 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-10515 |
NCP160,NHP160,NSP160..PROB |
3 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42450-52130 |
NCP160,NHP160,NSP160..PROB |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42450-52130 |
NCP160,NHP160,NSP160..PROB |
1 | ||
