Toyota Probox/succeed NCP160 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
PROBOX/SUCCEED
NCP160V-EXXCK (2014)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

NCP160V-EXXCK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Sep 9999

Engine 1NZFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1409- )

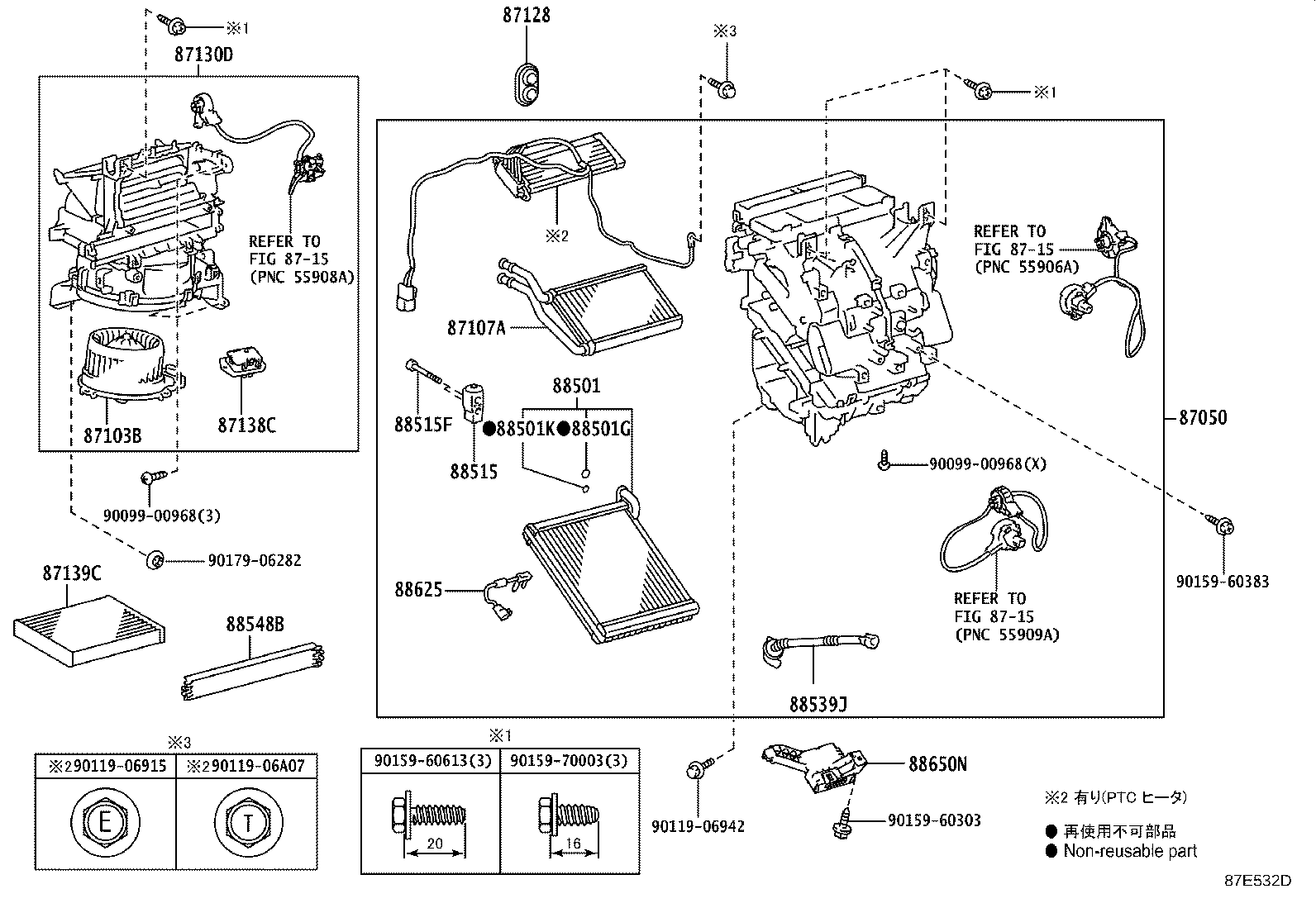

Click highlighted areas on diagram

ﾏﾆｭｱﾙｴｱｺﾝ

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52360	NCP16#,NSP160..PROB 寒冷地仕様	09/2014 - 12/2999	1
87050-52350	NCP16#,NSP160..PROB	09/2014 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12110	NCP16#,NSP160..PROB	09/2014 - 12/2999	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52070	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
87128 - GROMMET, HEATER
90480-01696	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
87130D - BLOWER ASSY
87130-52210	NCP16#,NSP160..PROB	09/2014 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-52030	NCP16#,NSP160..PROB	09/2014 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-50100	NCP16#,NHP160,NSP160..PROB 脱臭 & 花粉ﾌｨﾙﾀ	09/2014 - 12/2999	1
87139-52040	NCP16#,NHP160,NSP160..PROB 花粉ﾌｨﾙﾀ	09/2014 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12520	NCP16#,NSP160..PROB	09/2014 - 12/2999	1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121	NCP16#,NHP160,NSP160..PROB 内径=13.4,外径=18.2	09/2014 - 12/2999	1
88501K - O-RING, COOLER EVAPORATOR NO.1(LIQUID)
90099-14120	NCP16#,NHP160,NSP160..PROB 内径=10.8,外径=15.6	09/2014 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-30780	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	2
88539J - HOSE, DRAIN COOLER
88539-52030	NCP16#,NSP160	09/2014 - 12/2018	1
88539-52060	NCP16#,NHP160,NSP160..PROB	12/2018 - 12/2999	1
88548B - CASE, AIR FILTER
88548-52040	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88620-52010	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-52A50	NCP16#,NSP160	09/2014 - 09/2016	1
88650-52A50	NCP16#..DXCOM,UL 特殊用途ﾊﾟｯｹｰｼﾞ−ｸｰﾘﾝｸﾞﾊﾞﾝ&寒冷地仕様	09/2014 - 09/2016	1
88650-52A50	NCP16#..DXCOM,UL 特殊用途ﾊﾟｯｹｰｼﾞ−ｸｰﾘﾝｸﾞﾊﾞﾝ	09/2014 - 09/2016	1
88650-52D50	NCP16#..DXCOM 特殊用途ﾊﾟｯｹｰｼﾞ−ｸｰﾘﾝｸﾞﾊﾞﾝ	09/2016 - 12/2999	1
88650-52A60	NCP16#,NSP160 寒冷地仕様	09/2014 - 09/2016	1
88650-52D50	NCP16#..DXCOM 特殊用途ﾊﾟｯｹｰｼﾞ−ｸｰﾘﾝｸﾞﾊﾞﾝ&寒冷地仕様	09/2016 - 12/2999	1
88650-52D50	NCP16#,NSP160..PROB	09/2016 - 12/2999	1
88650-52D60	NCP16#,NSP160..PROB 寒冷地仕様	09/2016 - 12/2999	1
Common parts
90099-00968
90119-06915
90119-06942
90119-06A07
90159-60303
90159-60383
90159-60613
90159-70003
90179-06282
Linked diagrams
8715

(1812- )

Click highlighted areas on diagram

ｵｰﾄｴｱｺﾝ

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52360	NCP16#,NSP160..PROB 寒冷地仕様	09/2014 - 12/2999	1
87050-52350	NCP16#,NSP160..PROB	09/2014 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12110	NCP16#,NSP160..PROB	09/2014 - 12/2999	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52070	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
87128 - GROMMET, HEATER
90480-01696	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
87130D - BLOWER ASSY
87130-52210	NCP16#,NSP160..PROB	09/2014 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-50100	NCP16#,NHP160,NSP160..PROB 脱臭 & 花粉ﾌｨﾙﾀ	09/2014 - 12/2999	1
87139-52040	NCP16#,NHP160,NSP160..PROB 花粉ﾌｨﾙﾀ	09/2014 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12520	NCP16#,NSP160..PROB	09/2014 - 12/2999	1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121	NCP16#,NHP160,NSP160..PROB 内径=13.4,外径=18.2	09/2014 - 12/2999	1
88501K - O-RING, COOLER EVAPORATOR NO.1(LIQUID)
90099-14120	NCP16#,NHP160,NSP160..PROB 内径=10.8,外径=15.6	09/2014 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-30780	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	2
88539J - HOSE, DRAIN COOLER
88539-52030	NCP16#,NSP160	09/2014 - 12/2018	1
88539-52060	NCP16#,NHP160,NSP160..PROB	12/2018 - 12/2999	1
88548B - CASE, AIR FILTER
88548-52040	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88620-52010	NCP16#,NHP160,NSP160..PROB	09/2014 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-52A50	NCP16#,NSP160	09/2014 - 09/2016	1
88650-52A50	NCP16#..DXCOM,UL 特殊用途ﾊﾟｯｹｰｼﾞ−ｸｰﾘﾝｸﾞﾊﾞﾝ&寒冷地仕様	09/2014 - 09/2016	1
88650-52A50	NCP16#..DXCOM,UL 特殊用途ﾊﾟｯｹｰｼﾞ−ｸｰﾘﾝｸﾞﾊﾞﾝ	09/2014 - 09/2016	1
88650-52D50	NCP16#..DXCOM 特殊用途ﾊﾟｯｹｰｼﾞ−ｸｰﾘﾝｸﾞﾊﾞﾝ	09/2016 - 12/2999	1
88650-52A60	NCP16#,NSP160 寒冷地仕様	09/2014 - 09/2016	1
88650-52D50	NCP16#..DXCOM 特殊用途ﾊﾟｯｹｰｼﾞ−ｸｰﾘﾝｸﾞﾊﾞﾝ&寒冷地仕様	09/2016 - 12/2999	1
88650-52D50	NCP16#,NSP160..PROB	09/2016 - 12/2999	1
88650-52D60	NCP16#,NSP160..PROB 寒冷地仕様	09/2016 - 12/2999	1
Common parts
90099-00968
90119-06942
90119-06A07
90159-60303
90159-60383
90159-60613
90159-70003
90179-06282

NCP160V-EXXCK (2014)

(1409- )

(1812- )
