NCP160V-EXXCK (2014)
Toyota Probox/Succeed
(1409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-52040 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 85391-52040 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85307 - GROMMET SUB-ASSY, WASHER | ||||
| 85307-52010 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 85307-52010 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-60160 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 85330-60160 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 85336-60300 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85336-60300 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 85349-89122 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85355-20200 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 85349-89122 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85349-89122 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 85349-89122 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85348Y - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 85349-89122 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL *H,L=220,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 90099-33299 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX *H,L=220 |
1 | ||
| 85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT) | ||||
| 90099-33299 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX *H,L=240 |
1 | ||
| 90099-33299 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL *H,L=240,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL *H,L=50,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 90099-33080 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX *H,L=50 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-59391 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL 長さ=3570,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 90099-59391 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX 長さ=3570 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL *H,L=50,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 90099-33080 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX *H,L=50 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL *H,L=1210,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 90446-07001 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX *H,L=1210 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85372-20020 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85372-20020 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX *H,L=270 |
1 | ||
| 90099-33299 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL *H,L=270,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 82711-3F190 | ||||
| 85379-52530 | ||||
| 90949-01989 | ||||

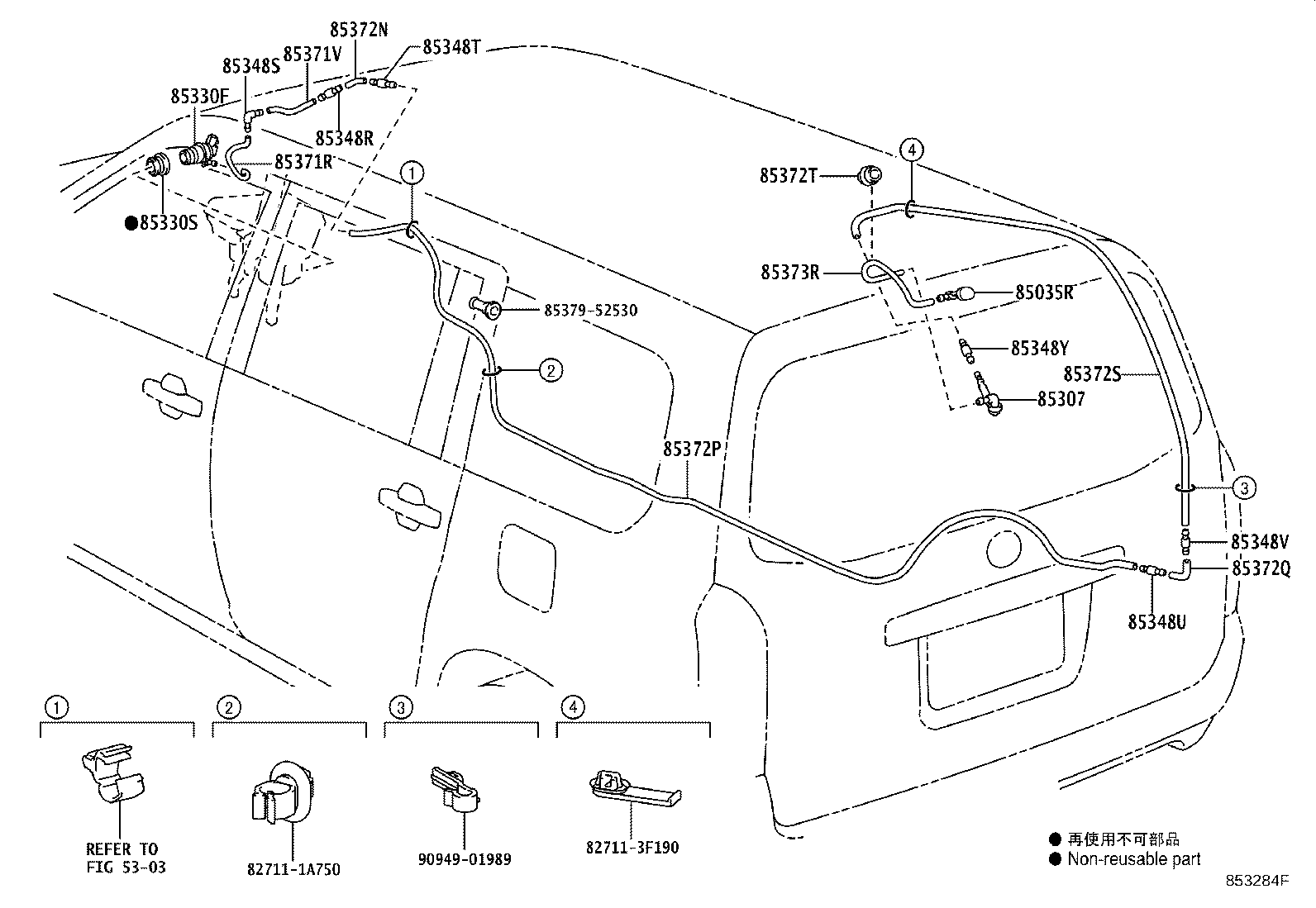

| Linked diagrams | ||||
| 5303 | ||||
