NCP160V-EXXCK (2014)
Toyota Probox/Succeed
Production
Sep 2014
-
Sep 9999
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1409- )NCP16#

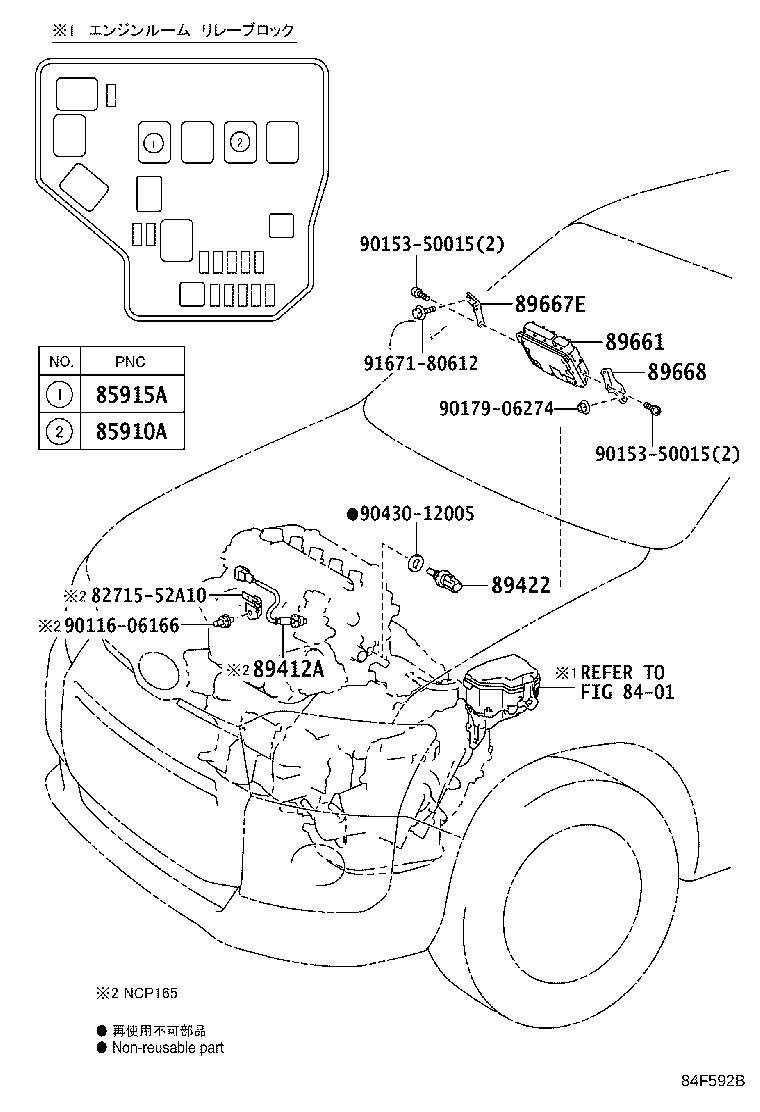

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90987-02027 |
NCP16#,NSP160 |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02027 |
NCP16#,NSP160 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
NCP16#,NHP160,NSP160 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-5C790 |
NCP160 無し(STOP & STARTｼｽﾃﾑ) |
1 | ||
| 89661-5C800 |
NCP160 |
1 | ||
| 89661-5C410 |
NCP160 |
1 | ||
| 89661-5C470 |
NCP160 DENSO TEN |
1 | ||
| 89661-5CD70 |
NCP160 DENSO TEN |
1 | ||
| 89661-5CD60 |
NCP160 DENSO TEN,無し(STOP & STARTｼｽﾃﾑ) |
1 | ||
| 89661-5C460 |
NCP160 DENSO TEN,無し(STOP & STARTｼｽﾃﾑ) |
1 | ||
| 89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-52340 |
NCP16#,NHP160,NSP160 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-52350 |
NCP16#,NHP160,NSP160 |
1 | ||
| Common parts | ||||
| 82715-52A10 | ||||
| 90116-06166 | ||||
| 90153-50015 | ||||
| 90179-06274 | ||||
| 90430-12005 | ||||
| 91671-80612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
