NCP160V-EXXCK (2014)
Toyota Probox/Succeed

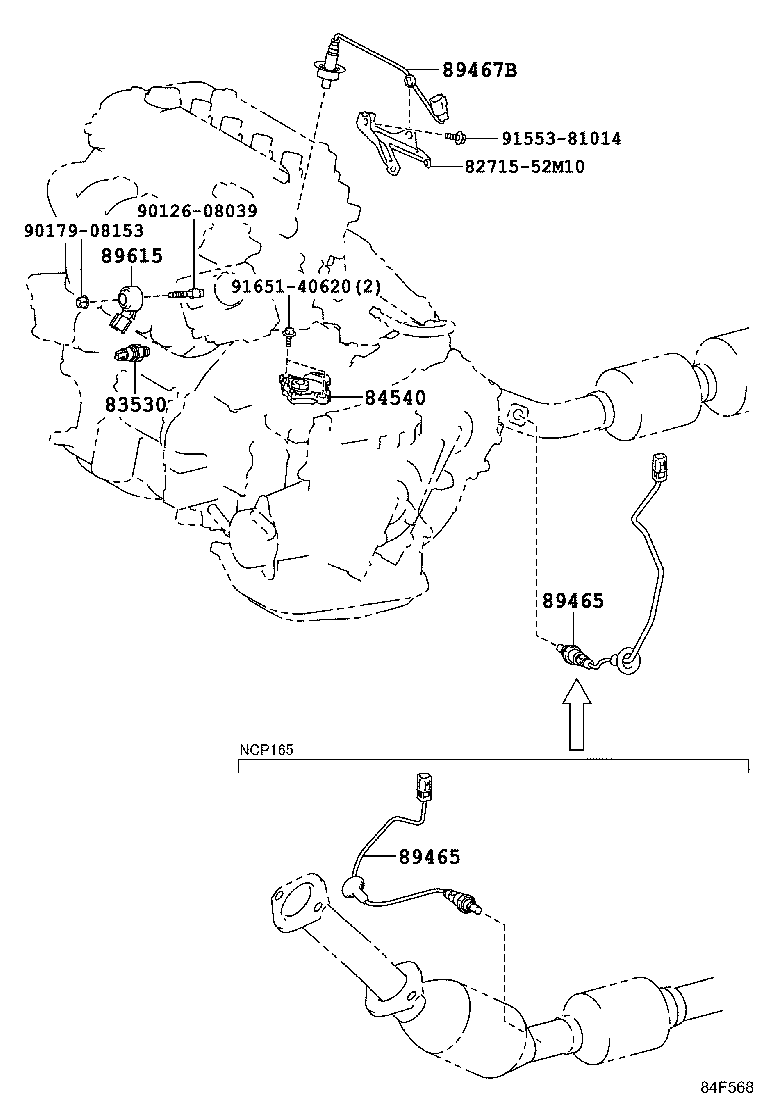

ILLUST NO. 1 OF 7(1409- )NCP16#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
NCP16#,NHP160,NSP160..PROB YAZAKI |
1 | ||
| 83530-28020 |
NCP16#,NHP160,NSP160..PROB DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
NCP16#,NSP160..PROB |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52780 |
NCP160..PROB |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52780 |
NCP160..PROB |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12160 |
NCP160..PROB |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| Common parts | ||||
| 82715-52M10 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||
ILLUST NO. 6 OF 7(1409- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-52090 |
NCP16#,NSP160 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-52110 |
NCP16#,NSP160 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-12580 |
NCP16#,NHP160,NSP160 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-12570 |
NCP16#,NHP160,NSP160 |
1 | ||
| 84140-42080 |
NCP16#,NHP160,NSP160 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-42070 |
NCP16#,NHP160,NSP160 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-76220 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 84140-52180 |
NCP16#,NSP160 |
1 | ||
| 84140-76240 |
NCP16#,NHP160,NSP160..PROB ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-52130 |
NCP16#,NSP160 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-76210 |
NCP16#,NHP160,NSP160..PROB ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-76230 |
NCP16#,NHP160,NSP160..PROB ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-12130 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-42132 |
NCP16#,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 84652-52270 |
NCP16#,NSP160..DX,DXCOM,U,UL |
1 | ||
| 84652-48101 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 84652-42130 |
NCP16#,NSP160..F,GL,TX,ULX |
1 | ||
| 84652-42130 |
NCP16#,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 84652-52271 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL |
1 | ||
| 84652-42132 |
NCP16#,NSP160..F,GL,TX,ULX |
1 | ||
| 84652-48101 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-52010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

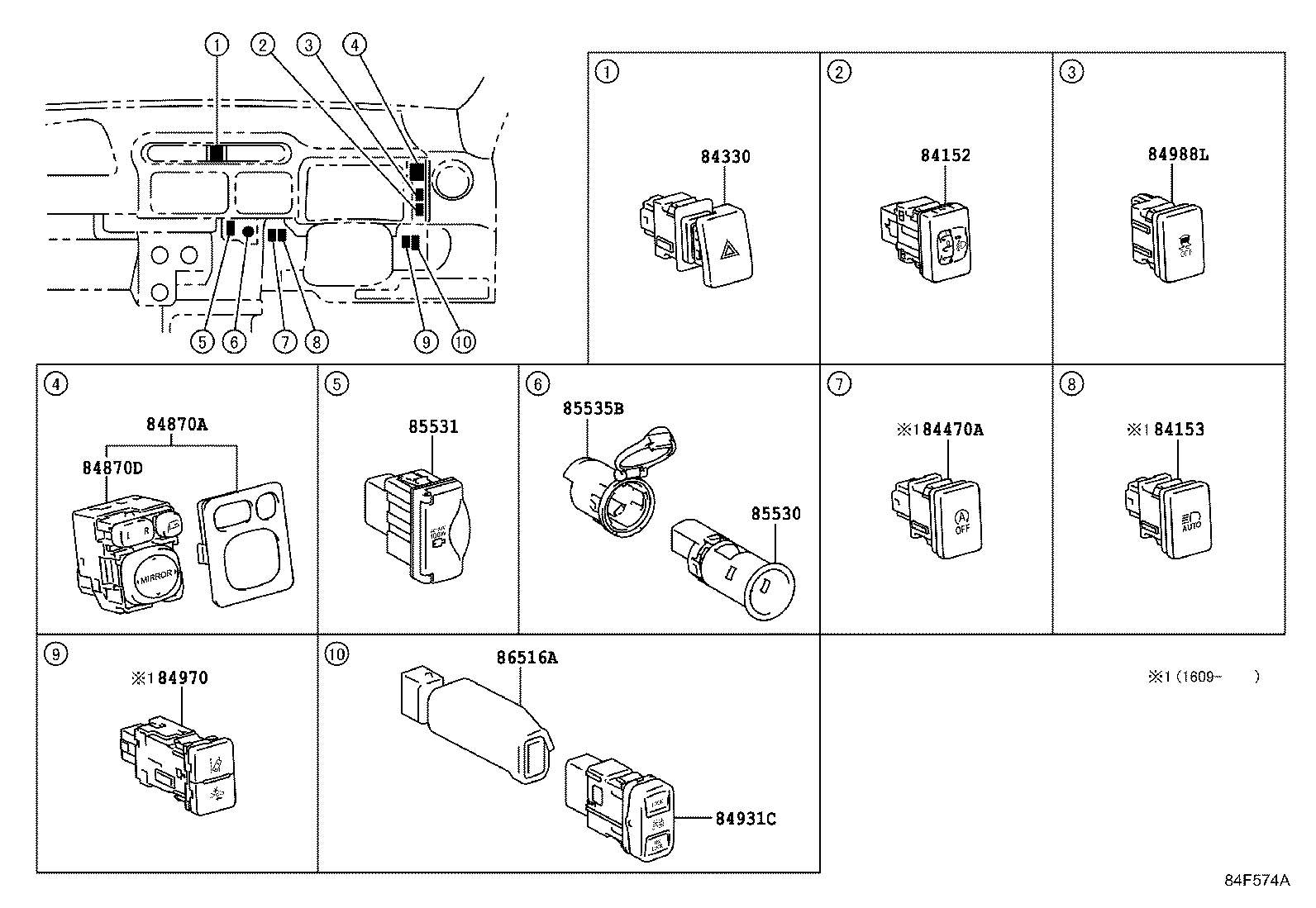

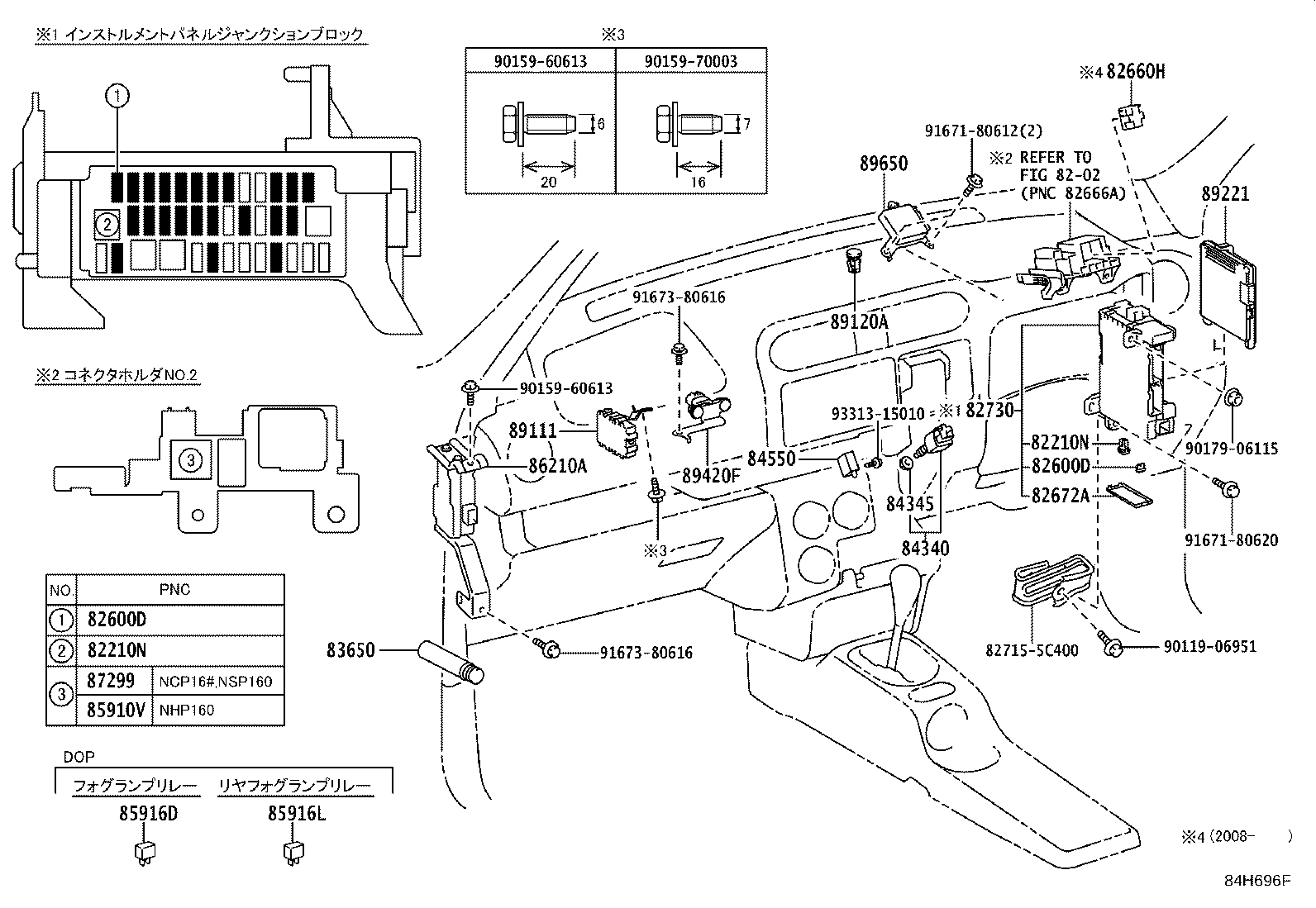

ILLUST NO. 5 OF 7(1409-1812)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52160 |
NCP16#,NSP160 |
1 | ||
| 84152-52161 |
NCP16#,NSP160 |
1 | ||
| 84152-52091 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-52020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-52130 |
NCP16#,NSP160 |
1 | ||
| 84332-52131 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 84470A - SWITCH ASSY, ECORUN CANCEL | ||||
| 84470-28011 |
NCP160..PROB |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
NHP160..UL;NCP16#,NSP160..DXCOM,UL ｱｳﾀﾐﾗｰ−*57(材料着色) & 有り(ﾋｰﾀﾐﾗｰ) |
1 | ||
| 84870-28020 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 84870-28020 |
NCP16#,NHP160,NSP160..DX,U 寒冷地仕様 |
1 | ||
| 84870-28020 |
NHP160..UL;NCP16#,NSP160..DXCOM,UL ｱｳﾀﾐﾗｰ−*57(材料着色) |
1 | ||
| 84870-34010 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-52040 |
NHP160..UL;NCP16#,NSP160..DXCOM,UL ｱｳﾀﾐﾗｰ−*57(材料着色) |
1 | ||
| 84872-52030 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL |
1 | ||
| 84872-52040 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 84872-52040 |
NHP160..UL;NCP16#,NSP160..DXCOM,UL ｱｳﾀﾐﾗｰ−*57(材料着色) & 有り(ﾋｰﾀﾐﾗｰ) |
1 | ||
| 84872-52040 |
NCP16#,NHP160,NSP160..DX,U 寒冷地仕様 |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-52020 |
NCP16#,NHP160,NSP160..DX |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-52110 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-52080 |
NCP16#,NSP160 |
1 | ||
| 84988-52081 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85530-58080C0 |
NCP16#,NHP160,NSP160..DXCOM,F,GL ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V),BLACK,TRIM1# |
1 | ||
| 85530-35010 |
NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V) |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-30020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 86516A - CONDENSER | ||||
| 86516-52010 |
NCP16#,NHP160,NSP160..DX |
1 | ||

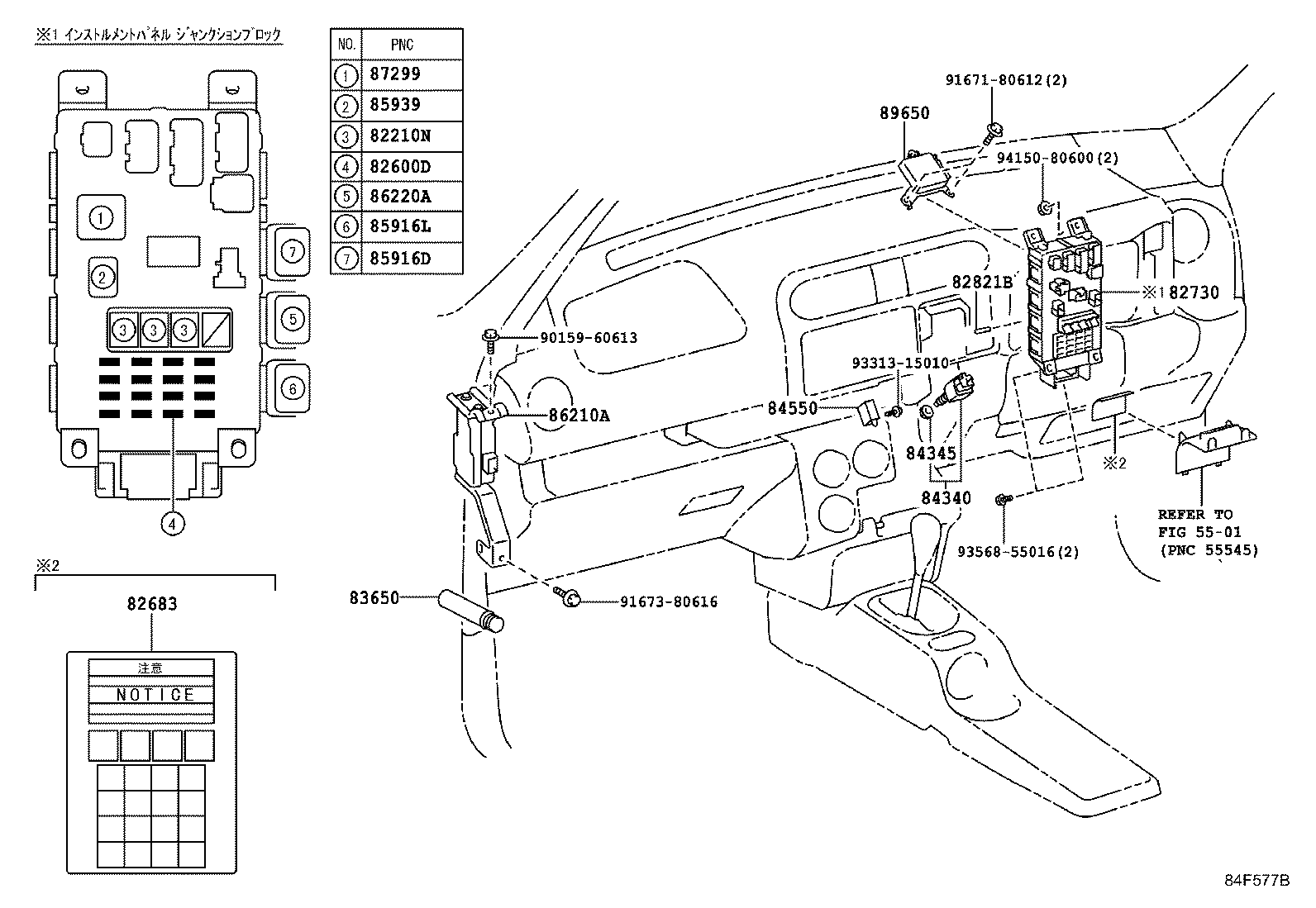

ILLUST NO. 4 OF 7(1409-1609)
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08283 |
NCP16#,NSP160 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08285 |
NCP16#,NSP160 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08284 |
NCP16#,NSP160 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08306 |
NCP16#,NHP160,NSP160..PROB 30A,ﾒｽ端子,桃 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09010 |
NCP16#,NSP160 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
NCP16#,NSP160 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09009 |
NCP16#,NSP160 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09019 |
NCP16#,NHP160,NSP160..PROB 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09020 |
NCP16#,NHP160,NSP160..PROB 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
NCP16#,NHP160,NSP160..PROB 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09011 |
NCP16#,NSP160 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
NCP16#,NHP160,NSP160..PROB 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
NCP16#,NHP160,NSP160..PROB 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
NCP16#,NHP160,NSP160..PROB 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-52260 |
NCP16#,NSP160 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52R10 |
NCP16#,NSP160 |
1 | ||
| 82730-52R11 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 82732-52330 |
NCP16#,NSP160 |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-52020 |
NCP16#,NSP160 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
NCP16#,NHP160,NSP160 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19026 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 84340-19025 |
NCP16#,NSP160 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
NCP16#,NHP160,NSP160 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 90987-02027 |
NCP16#,NSP160 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
NCP16#,NHP160,NSP160 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 90987-02027 |
NCP16#,NSP160 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02027 |
NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-52040 |
NCP16#,NHP160,NSP160..DXCOM,F,GL ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V) |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-02027 |
NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V) |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-02025 |
NCP16#,NSP160..PROB |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52661 |
NCP16#,NSP160 |
1 | ||
| 89650-52F40 |
NCP16#,NSP160..PROB JTEKT/DENSO |
1 | ||
| 89650-52660 |
NCP16#,NSP160 |
1 | ||
| Common parts | ||||
| 90159-60613 | ||||
| 91671-80612 | ||||
| 91673-80616 | ||||
| 93313-15010 | ||||
| 93568-55016 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 5501 | ||||

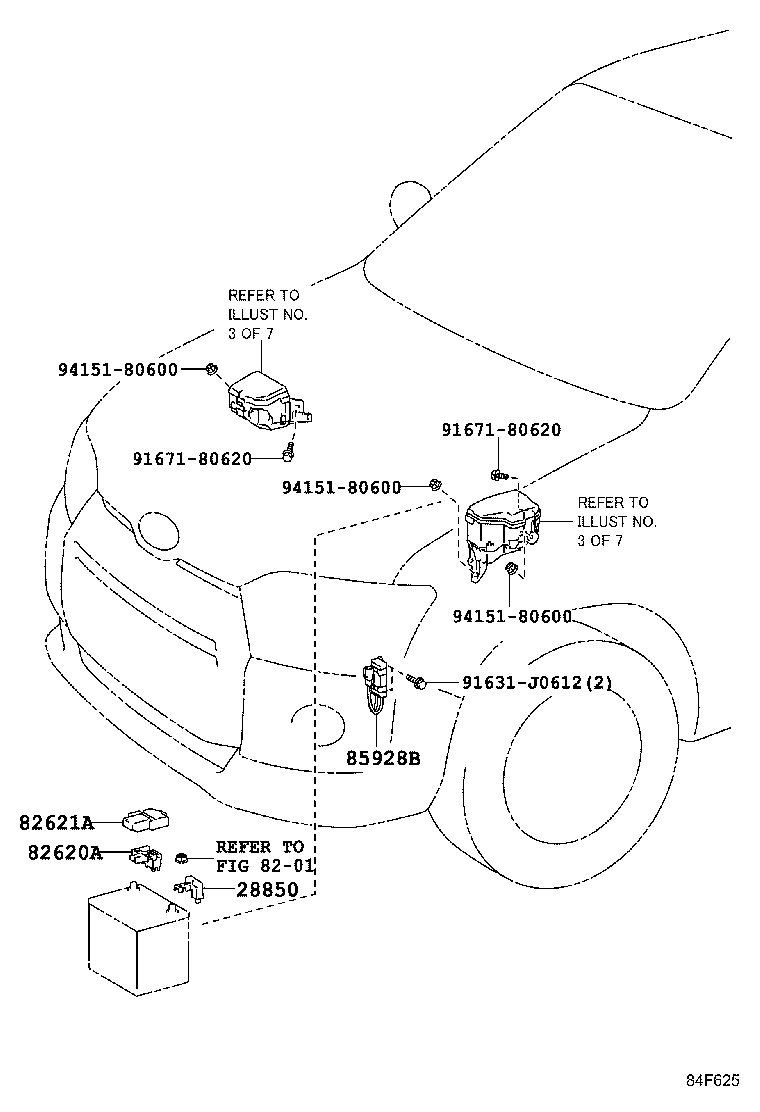

ILLUST NO. 2 OF 7(1409- )NCP16#,NSP160
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-40010 |
1NZFE,1NRFE..NCP16#,NSP160..PROB |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52070 |
NCP16#,NSP160 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52140 |
NCP16#,NSP160 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52032 |
NCP160,NSP160..PROB |
1 | ||
| 85928-52030 |
NCP16#,NSP160 |
1 | ||
| Common parts | ||||
| 91631-J0612 | ||||
| 91671-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8201 | ||||

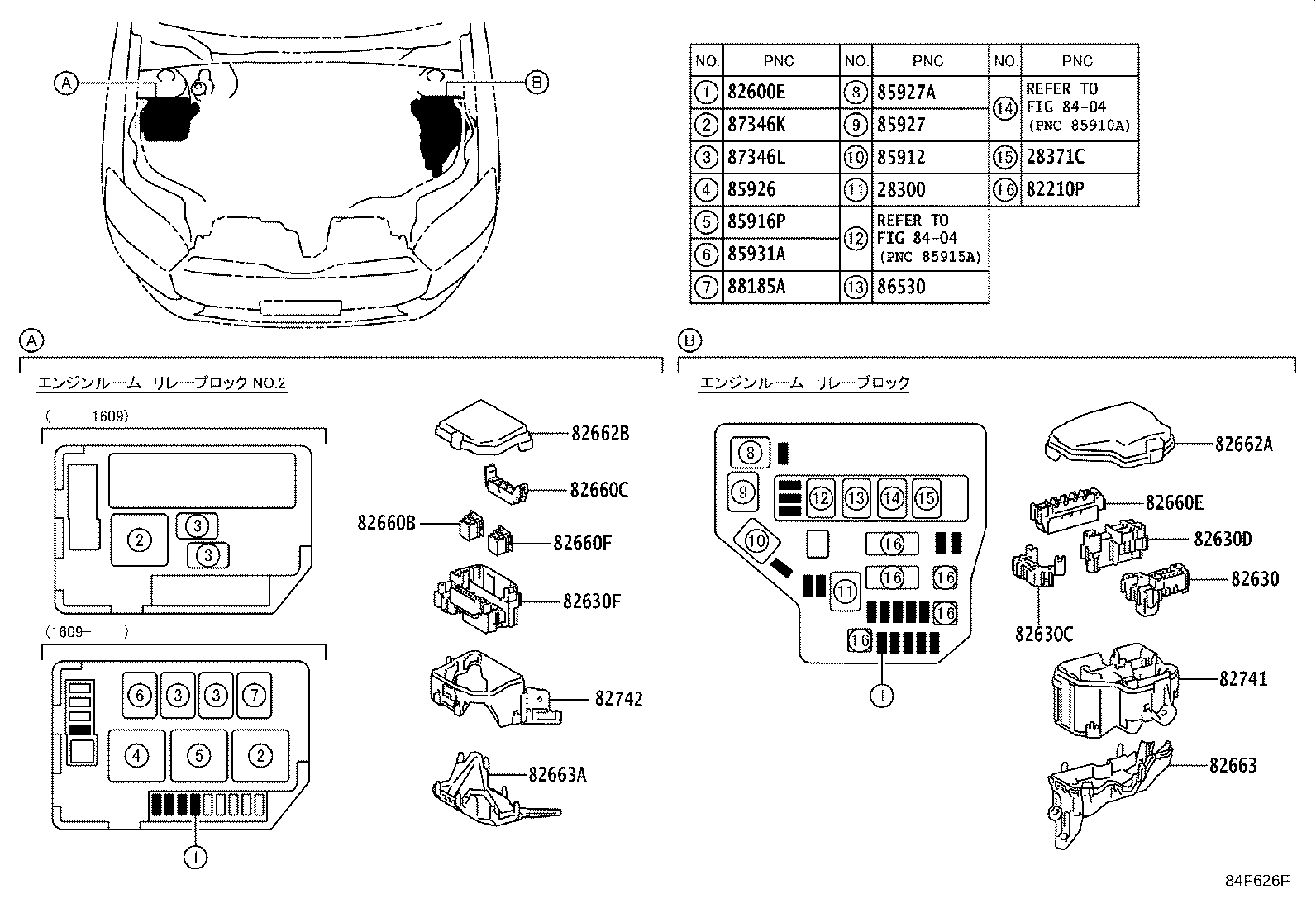

ILLUST NO. 3 OF 7(1409- )NCP16#,NSP160
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
1NZFE,1NRFE..NCP16#,NSP160..PROB |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
1NZFE,1NRFE..NCP16#,NSP160..PROB |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08294 |
NCP16#,NHP160,NSP160 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08296 |
NCP16#,NSP160 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08300 |
NCP16#,NSP160 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08307 |
NCP16#,NSP160 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08295 |
NCP16#,NHP160,NSP160 30A,ﾒｽ端子,桃 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09025 |
NCP16#,NHP160,NSP160 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09019 |
NCP16#,NSP160 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
NCP16#,NHP160,NSP160 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
NCP16#,NHP160,NSP160 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
NCP16#,NHP160,NSP160 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
NCP16#,NHP160,NSP160 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-52010 |
NCP16#,NSP160 |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-52020 |
NCP16#,NSP160 |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-52030 |
NCP16#,NSP160 |
1 | ||
| 82630F - HOLDER, FUSE | ||||
| 82631-52040 |
NCP16#,NSP160 |
1 | ||
| 82631-52040 |
NCP16#,NSP160 寒冷地仕様 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
NCP16#,NSP160 寒冷地仕様 |
1 | ||
| 82660-52010 |
NCP160 無し(STOP & STARTｼｽﾃﾑ)&寒冷地仕様 |
2 | ||
| 82660-0H070 |
NCP160 無し(STOP & STARTｼｽﾃﾑ) |
1 | ||
| 82660-0H070 |
NCP160 寒冷地仕様 |
1 | ||
| 82660-52010 |
NCP160 |
1 | ||
| 82660-0H070 |
NCP160 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52120 |
NCP16#,NSP160 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82631-52070 |
NCP16#,NSP160 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
NCP16# 寒冷地仕様 |
1 | ||
| 82660-26270 |
NCP160 無し(STOP & STARTｼｽﾃﾑ)&寒冷地仕様 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52830 |
NCP16#,NSP160 |
1 | ||
| 82662-52A00 |
NCP16#,NSP160 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52A10 |
NCP16#,NSP160 寒冷地仕様 |
1 | ||
| 82662-52A90 |
NCP16#,NSP160 |
1 | ||
| 82662-52840 |
NCP16#,NSP160 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52080 |
NCP16#,NSP160 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52090 |
NCP16#,NSP160 |
1 | ||
| 82663-52090 |
NCP16#,NSP160 寒冷地仕様 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12130 |
NCP16#,NSP160 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52080 |
NCP16#,NSP160 寒冷地仕様 |
1 | ||
| 82741-52080 |
NCP16#,NSP160 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
NCP16#,NSP160..PROB |
1 | ||
| 90987-02027 |
NCP16#..DXCOM 特殊用途 ﾊﾟｯｹｰｼﾞ−保冷ﾊﾞﾝ |
1 | ||
| 90987-02027 |
NCP16#..DXCOM 特殊用途 ﾊﾟｯｹｰｼﾞ−ｸｰﾘﾝｸﾞﾊﾞﾝ |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NCP160,NHP160,NSP160..PROB |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NCP160,NSP160..PROB |
1 | ||
| 85931A - RELAY, BRAKE LAMP | ||||
| 90987-04004 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
NCP16#,NSP160..PROB |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
NCP16#,NSP160..PROB 寒冷地仕様 |
1 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-02027 |
NCP16#,NSP160..PROB 寒冷地仕様 |
2 | ||
| 88185A - RELAY, PRE-COLLISION CITY HEATER | ||||
| 90987-02027 |
NCP16#,NHP160,NSP160..PROB ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 90987-02027 |
NCP16#,NHP160,NSP160 |
1 | ||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 4 OF 7(1609- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08283 |
NCP16#,NSP160 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08285 |
NCP16#,NSP160 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08284 |
NCP16#,NSP160 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08306 |
NCP16#,NHP160,NSP160..PROB 30A,ﾒｽ端子,桃 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08283 |
NCP16#,NSP160 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08285 |
NCP16#,NSP160 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08284 |
NCP16#,NSP160 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08306 |
NCP16#,NHP160,NSP160..PROB 30A,ﾒｽ端子,桃 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09010 |
NCP16#,NSP160 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
NCP16#,NSP160 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09009 |
NCP16#,NSP160 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09019 |
NCP16#,NHP160,NSP160..PROB 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09020 |
NCP16#,NHP160,NSP160..PROB 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
NCP16#,NHP160,NSP160..PROB 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09011 |
NCP16#,NSP160 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
NCP16#,NHP160,NSP160..PROB 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
NCP16#,NHP160,NSP160..PROB 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
NCP16#,NHP160,NSP160..PROB 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09010 |
NCP16#,NSP160 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
NCP16#,NSP160 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09009 |
NCP16#,NSP160 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09019 |
NCP16#,NHP160,NSP160..PROB 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09020 |
NCP16#,NHP160,NSP160..PROB 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
NCP16#,NHP160,NSP160..PROB 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09011 |
NCP16#,NSP160 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
NCP16#,NHP160,NSP160..PROB 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
NCP16#,NHP160,NSP160..PROB 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
NCP16#,NHP160,NSP160..PROB 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-60270 |
NCP16#,NHP160,NSP160 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-52131 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 82672-52130 |
NCP16#,NSP160 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52R10 |
NCP16#,NSP160 |
1 | ||
| 82730-52R11 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 82732-52330 |
NCP16#,NSP160 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
NCP16#,NHP160,NSP160 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19026 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 84340-19025 |
NCP16#,NSP160 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
NCP16#,NHP160,NSP160 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 90987-02027 |
NCP16#,NSP160 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
NCP16#,NHP160,NSP160 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 90987-02027 |
NCP16#,NSP160 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-52040 |
NCP16#,NHP160,NSP160..DXCOM,F,GL ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V) |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-02025 |
NCP16#,NSP160..PROB |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-52021 |
NCP16#,NSP160 |
1 | ||
| 89100-52021 |
NCP16#,NSP160 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 89100-52040 |
NCP16#,NHP160,NSP160..PROB ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 89100-52040 |
NCP16#,NHP160,NSP160 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-52010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-52870 |
NCP16#,NHP160,NSP160..DX |
1 | ||
| 89221-52780 |
NCP16#,NHP160,NSP160..DX |
1 | ||
| 89221-52770 |
NCP16#,NHP160,NSP160..DXCOM,F,GL |
1 | ||
| 89221-52860 |
NCP16#,NHP160,NSP160..DXCOM,F,GL |
1 | ||
| 89420F - SENSOR ASSY, VACUUM | ||||
| 89420-52120 |
NCP160..PROB |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52661 |
NCP16#,NSP160 |
1 | ||
| 89650-52F40 |
NCP16#,NSP160..PROB JTEKT/DENSO |
1 | ||
| 89650-52660 |
NCP16#,NSP160 |
1 | ||
| Common parts | ||||
| 82715-5C400 | ||||
| 90119-06951 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90179-06115 | ||||
| 91671-80612 | ||||
| 91671-80620 | ||||
| 91673-80616 | ||||
| 93313-15010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 5 OF 7(1812- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52160 |
NCP16#,NSP160 |
1 | ||
| 84152-52161 |
NCP16#,NSP160 |
1 | ||
| 84152-52091 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-52020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-52130 |
NCP16#,NSP160 |
1 | ||
| 84332-52131 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 84470A - SWITCH ASSY, ECORUN CANCEL | ||||
| 84470-28011 |
NCP160..PROB |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
NHP160..UL;NCP16#,NSP160..DXCOM,UL ｱｳﾀﾐﾗｰ−*57(材料着色) & 有り(ﾋｰﾀﾐﾗｰ) |
1 | ||
| 84870-28020 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 84870-28020 |
NCP16#,NHP160,NSP160..DX,U 寒冷地仕様 |
1 | ||
| 84870-28020 |
NHP160..UL;NCP16#,NSP160..DXCOM,UL ｱｳﾀﾐﾗｰ−*57(材料着色) |
1 | ||
| 84870-34010 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-52040 |
NHP160..UL;NCP16#,NSP160..DXCOM,UL ｱｳﾀﾐﾗｰ−*57(材料着色) |
1 | ||
| 84872-52030 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL |
1 | ||
| 84872-52040 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 84872-52040 |
NHP160..UL;NCP16#,NSP160..DXCOM,UL ｱｳﾀﾐﾗｰ−*57(材料着色) & 有り(ﾋｰﾀﾐﾗｰ) |
1 | ||
| 84872-52040 |
NCP16#,NHP160,NSP160..DX,U 寒冷地仕様 |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-52020 |
NCP16#,NHP160,NSP160..DX |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-52110 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-52080 |
NCP16#,NSP160 |
1 | ||
| 84988-52081 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85530-58080C0 |
NCP16#,NHP160,NSP160..DXCOM,F,GL ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V),BLACK,TRIM1# |
1 | ||
| 85530-35010 |
NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V) |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-12010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-30020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 86516A - CONDENSER | ||||
| 86516-52010 |
NCP16#,NHP160,NSP160..DX |
1 | ||

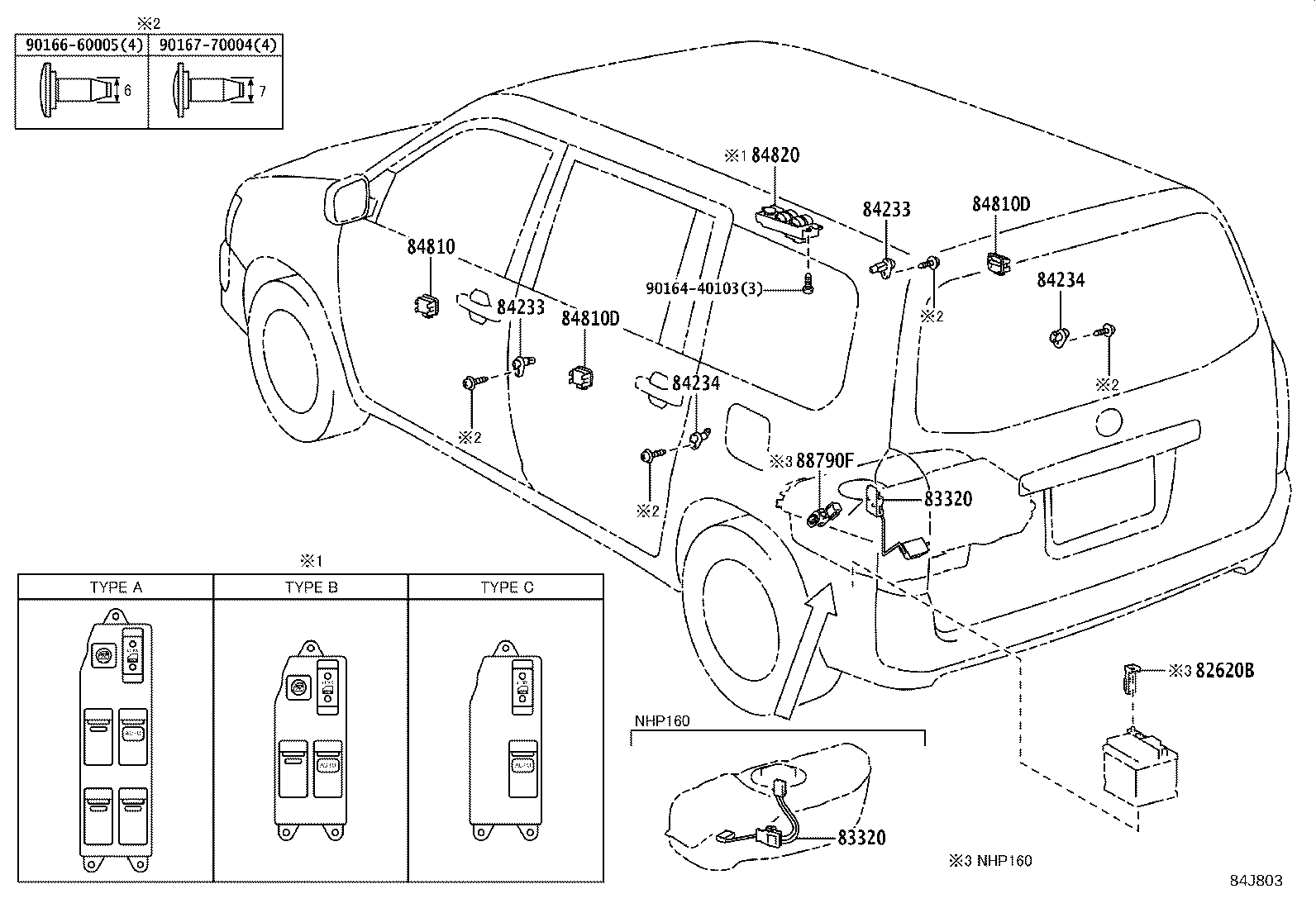

ILLUST NO. 7 OF 7(1409- )
ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52300 |
NCP16#,NSP160 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52300 |
NCP16#,NSP160 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52060C0 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX BLACK,TRIM1# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52040C0 |
NCP16#,NHP160..F,TX BLACK,TRIM1# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52040C0 |
NCP16#,NHP160..F,TX BLACK,TRIM1# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-52491 |
NCP16#,NHP160..F,TX TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 84820-52361 |
NCP16#,NHP160,NSP160..DXCOM,UL TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 84820-52490 |
NCP16#..F,TX TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 84820-52360 |
NCP16#,NSP160..DXCOM,UL TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90167-70004 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
