NCP160V-EXXCK (2014)
Toyota Probox/Succeed

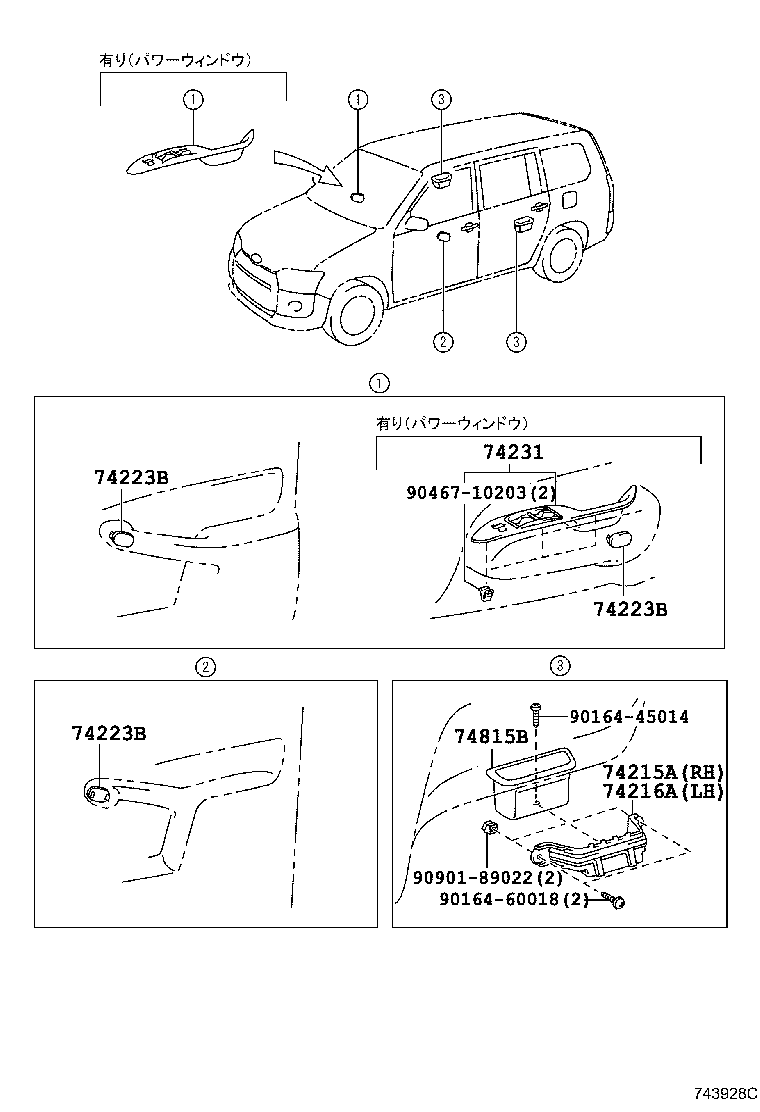

ILLUST NO. 1 OF 2(1409- )
ｱｰﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74215A - BASE, DOOR ARMREST RH | ||||
| 74215-12050 |
NCP16#,NHP160,NSP160 |
1 | ||
| 74216A - BASE, DOOR ARMREST, LH | ||||
| 74215-12050 |
NCP16#,NHP160,NSP160 |
1 | ||
| 74223B - CAP, DOOR ARMREST, FRONT | ||||
| 74223-52020C0 |
NCP16#,NHP160,NSP160..DXCOM,F,GL,TX,UL,ULX BLACK,TRIM1#,運転席 |
1 | ||
| 74223-52010C0 |
NCP16#,NHP160,NSP160..DX,U BLACK,TRIM1# |
2 | ||
| 74223-52010C0 |
NCP16#,NHP160,NSP160..DXCOM,F,GL,TX,UL,ULX BLACK,TRIM1#,助手席 |
1 | ||
| 74223B - CAP, DOOR ARMREST, FRONT | ||||
| 74223-52020C0 |
NCP16#,NHP160,NSP160..DXCOM,F,GL,TX,UL,ULX BLACK,TRIM1#,運転席 |
1 | ||
| 74223-52010C0 |
NCP16#,NHP160,NSP160..DX,U BLACK,TRIM1# |
2 | ||
| 74223-52010C0 |
NCP16#,NHP160,NSP160..DXCOM,F,GL,TX,UL,ULX BLACK,TRIM1#,助手席 |
1 | ||
| 74223B - CAP, DOOR ARMREST, FRONT | ||||
| 74223-52020C0 |
NCP16#,NHP160,NSP160..DXCOM,F,GL,TX,UL,ULX BLACK,TRIM1#,運転席 |
1 | ||
| 74223-52010C0 |
NCP16#,NHP160,NSP160..DX,U BLACK,TRIM1# |
2 | ||
| 74223-52010C0 |
NCP16#,NHP160,NSP160..DXCOM,F,GL,TX,UL,ULX BLACK,TRIM1#,助手席 |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-52150C1 |
NCP16#,NHP160..F,TX BLACK,TRIM1# |
1 | ||
| 74231-52180C1 |
NCP16#,NHP160,NSP160..DXCOM,UL BLACK,TRIM1# |
1 | ||
| 74815B - HANDLE, REAR DOOR PULL | ||||
| 74811-12060C0 |
NCP16#,NHP160,NSP160 BLACK,TRIM1# |
2 | ||
| Common parts | ||||
| 90164-45014 | ||||
| 90164-60018 | ||||
| 90467-10203 | ||||
| 90901-89022 | ||||

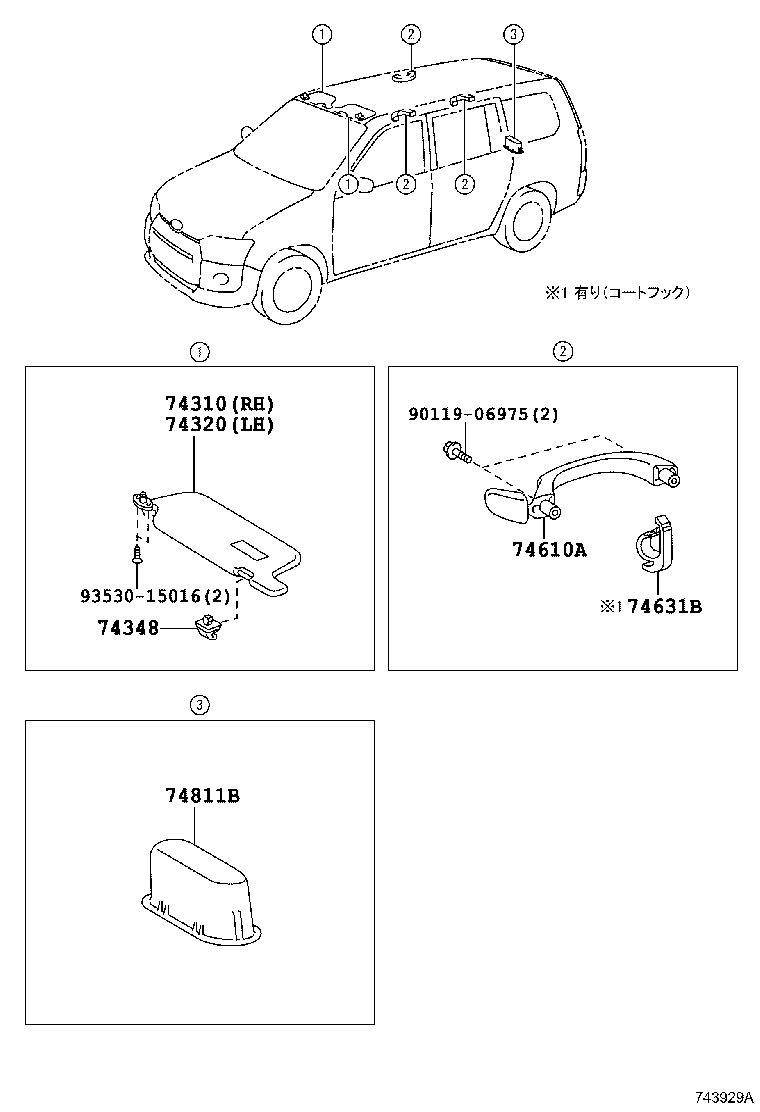

ILLUST NO. 2 OF 2(1409- )
ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-52G40B0 |
NCP16#,NSP160 LT.GRAY,TRIM1# |
1 | ||
| 74310-52610B0 |
NCP16#,NSP160 LT.GRAY,TRIM1# |
1 | ||
| 74310-52E80B0 |
NCP16#,NHP160,NSP160 LT.GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-52G10B0 |
NCP16#,NHP160,NSP160 LT.GRAY,TRIM1# |
1 | ||
| 74320-52E30B0 |
NCP16#,NSP160 LT.GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-52010B0 |
NCP16#,NHP160,NSP160 LT.GRAY,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74611-52010B0 |
NCP16#,NHP160,NSP160 LT.GRAY,TRIM1# |
3 | ||
| 74631B - HOOK, COAT | ||||
| 74631-28010B1 |
NCP16#,NHP160,NSP160 LT.GRAY,TRIM1# |
1 | ||
| 74811B - HANDLE, DOOR PULL | ||||
| 74811-13010C2 |
NCP16#,NHP160,NSP160 BLACK,TRIM1# |
1 | ||
| 74811-13010C0 |
NCP16#,NSP160 BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06975 | ||||
| 93530-15016 | ||||
