NCP160V-EXXCK (2014)
Toyota Probox/Succeed
Production
Sep 2014
-
Sep 9999
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1409- )

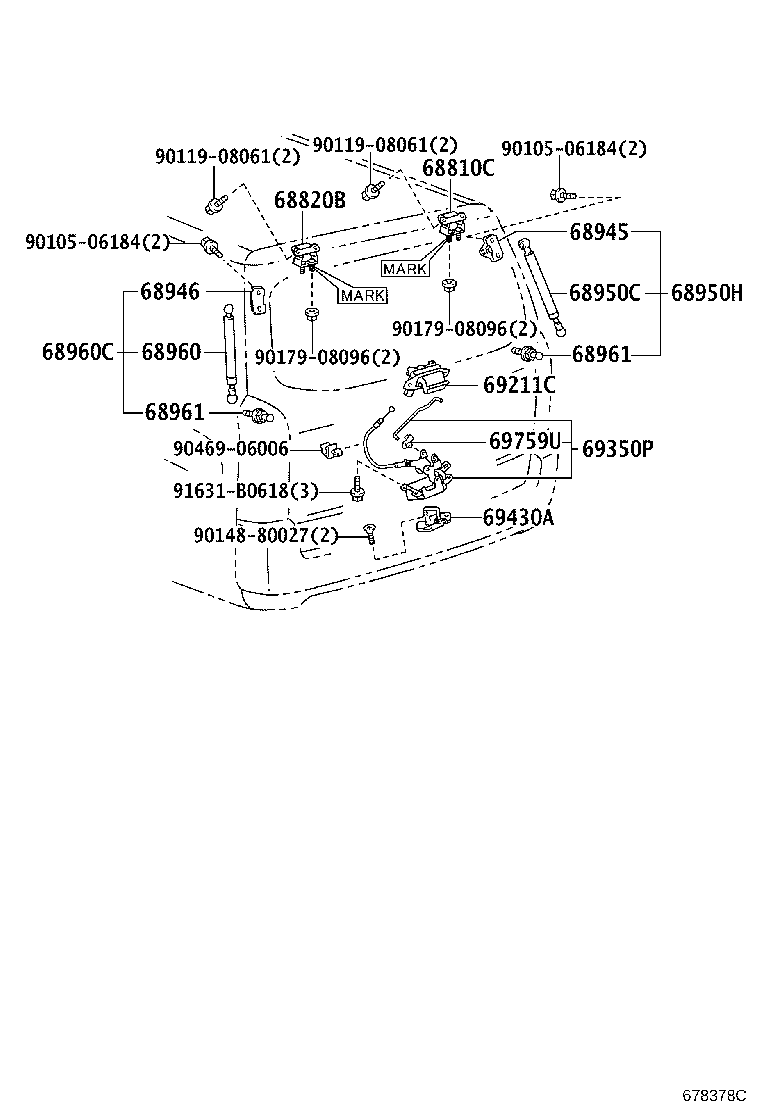

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810C - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-21050 |
NCP16#,NSP160 無し(CCC ﾏｰｸ) |
1 | ||
| 68810-21051 |
NCP16#,NHP160,NSP160..PROB 有り(CCC ﾏｰｸ) |
1 | ||
| 68820B - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-21050 |
NCP16#,NSP160 無し(CCC ﾏｰｸ) |
1 | ||
| 68810-21051 |
NCP16#,NHP160,NSP160..PROB 有り(CCC ﾏｰｸ) |
1 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-52030 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68945-52030 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-52131 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 68950H - STAY SET, BACK DOOR, RH | ||||
| 68950-59096 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-52101 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 68960C - STAY SET, BACK DOOR, LH | ||||
| 68960-59066 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-30020 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-30020 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 69211C - HANDLE, BACK DOOR OUTSIDE | ||||
| 69023-13020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-52130 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 69430A - STRIKER ASSY, BACK DOOR LOWER LOCK | ||||
| 69430-52020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 69759U - SNAP, BACK DOOR LOCK CONTROL LINK | ||||
| 69759-20200 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| Common parts | ||||
| 90105-06184 | ||||
| 90119-08061 | ||||
| 90148-80027 | ||||
| 90179-08096 | ||||
| 90469-06006 | ||||
| 91631-B0618 | ||||
