NCP160V-EXXCK (2014)
Toyota Probox/Succeed

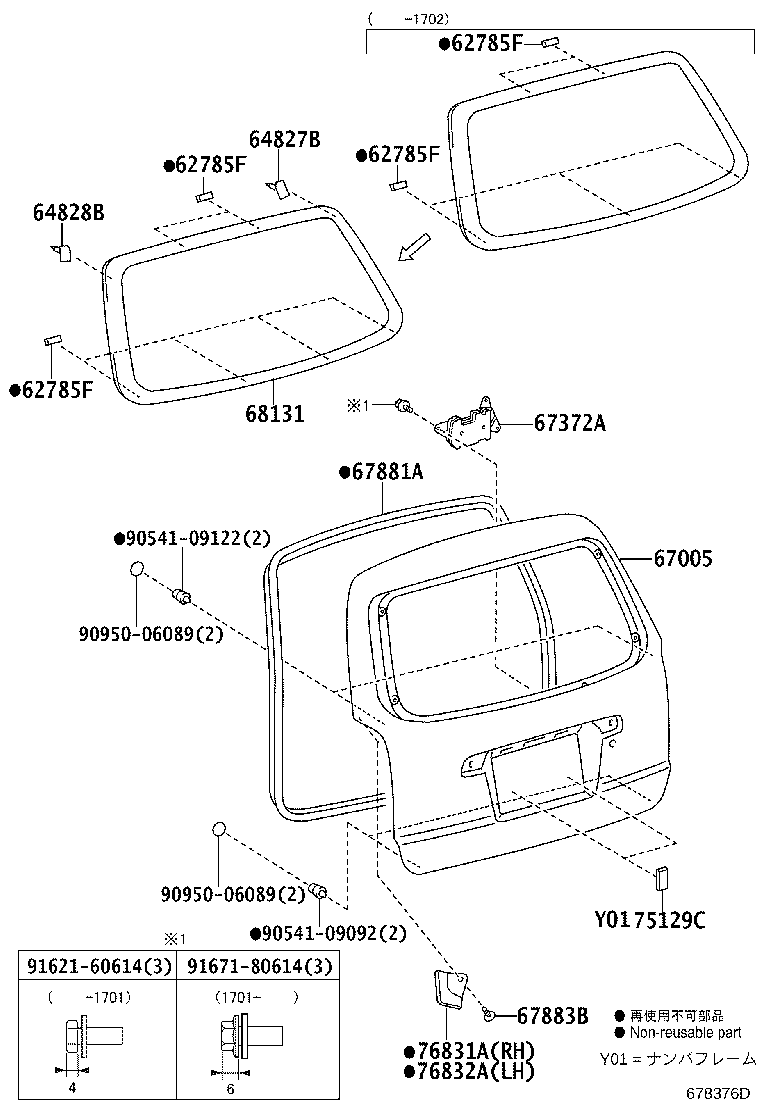

ILLUST NO. 1 OF 2(1409- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-16030 |
NCP16#,NSP160 |
5 | ||
| 62785-16030 |
NCP16#,NHP160,NSP160..PROB |
6 | ||
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-16030 |
NCP16#,NSP160 |
5 | ||
| 62785-16030 |
NCP16#,NHP160,NSP160..PROB |
6 | ||
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-16030 |
NCP16#,NSP160 |
5 | ||
| 62785-16030 |
NCP16#,NHP160,NSP160..PROB |
6 | ||
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-16030 |
NCP16#,NSP160 |
5 | ||
| 62785-16030 |
NCP16#,NHP160,NSP160..PROB |
6 | ||
| 64827B - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-52030 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 64828B - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-52030 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-52E40 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL |
1 | ||
| 67005-52F30 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 67005-52F00 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 67005-52472 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 67005-52F00 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 67005-52472 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 67372A - WEIGHT, BACK DOOR | ||||
| 67049-52010 |
NCP16#,NHP160,NSP160..DX,DXCOM ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 67049-52010 |
NCP16#,NHP160,NSP160..DX,DXCOM 寒冷地仕様 |
1 | ||
| 67049-52010 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-52051 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 67883B - CLIP, BACK DOOR WEATHERSTRIP | ||||
| 90467-05005 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-52490 |
NCP16#,NSP160..DX,DXCOM,U,UL |
1 | ||
| 68105-52190 |
NCP16#,NSP160..DX,DXCOM,U,UL ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ﾌﾟﾗｲﾊﾞｼ |
1 | ||
| 68105-52191 |
NCP16#,NHP160,NSP160..F,GL |
1 | ||
| 68105-52190 |
NCP16#,NSP160..F,GL,TX,ULX |
1 | ||
| 68105-52191 |
NCP16#,NHP160,NSP160..DX,DXCOM ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ﾌﾟﾗｲﾊﾞｼ |
1 | ||
| 68105-52491 |
NCP16#,NHP160,NSP160..DX,DXCOM |
1 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-13020 |
NCP16#,NSP160 |
2 | ||
| 75129-87502 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 76831A - COVER, BACK DOOR FINISH PANEL, RH | ||||
| 76831-52030 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 76832A - COVER, BACK DOOR FINISH PANEL, LH | ||||
| 76832-52030 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| Common parts | ||||
| 90541-09092 | ||||
| 90541-09122 | ||||
| 90950-06089 | ||||
| 91621-60614 | ||||
| 91671-80614 | ||||

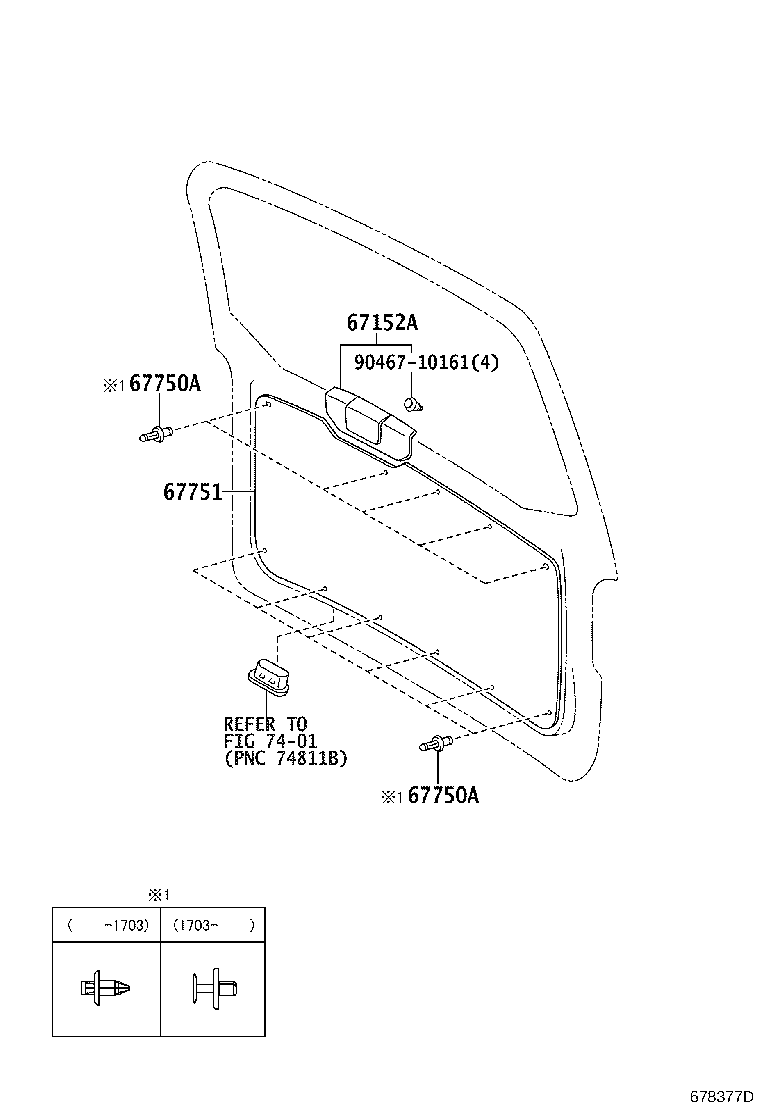

ILLUST NO. 2 OF 2(1409- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67152A - COVER, BACK DOOR SERVICE HOLE | ||||
| 85131-52030C0 |
NCP16#,NHP160,NSP160 BLACK,TRIM1# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-07214 |
NCP16#,NHP160,NSP160 |
11 | ||
| 90467-07076C0 |
NCP16#,NSP160 BLACK,TRIM1# |
11 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-07214 |
NCP16#,NHP160,NSP160 |
11 | ||
| 90467-07076C0 |
NCP16#,NSP160 BLACK,TRIM1# |
11 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67751-52101B1 |
NCP16#,NHP160,NSP160 STONE,TRIM1# |
1 | ||
| 67751-52100B1 |
NCP16#,NHP160,NSP160 STONE,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 7401 | ||||
