NCP160V-EXXCK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Sep 9999
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

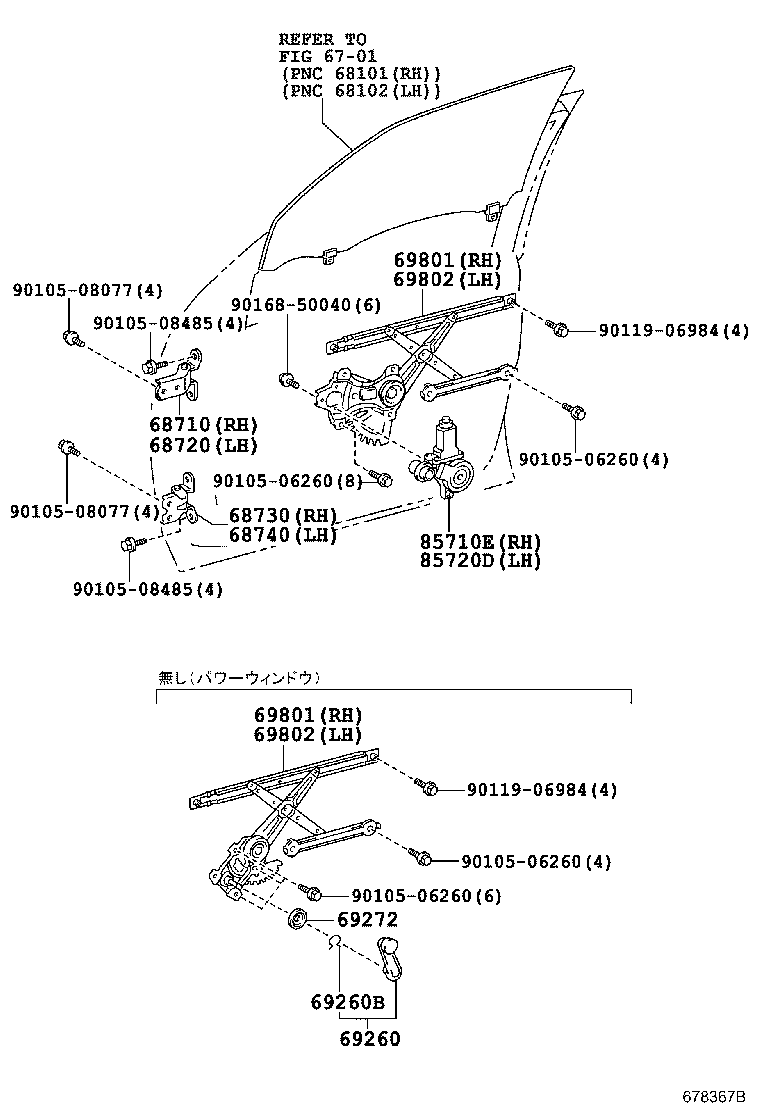

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 85710E 85720D 9010506260 9010506260 9010506260 9010506260 9010508077 9010508077 9010508485 9010508485 9011906984 9011906984 9016850040
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12151

NCP16#,NHP160,NSP160..PROB

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12151

NCP16#,NHP160,NSP160..PROB

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-52010

NCP16#,NHP160,NSP160..PROB

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-52010

NCP16#,NHP160,NSP160..PROB

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-52070C0

NCP16#,NHP160,NSP160..DXCOM,UL

BLACK,TRIM1#

 1
69260-52070C0

NCP16#,NHP160,NSP160..DX,U

BLACK,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

NCP16#,NHP160,NSP160..DX,DXCOM,U,UL

 1
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-22010

NCP16#,NHP160,NSP160..DX,U

 2
69285-22010

NCP16#,NHP160,NSP160..DXCOM,UL

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-52220

NCP16#,NHP160,NSP160..DX,U

 1
69801-52080

NCP16#,NHP160,NSP160..DXCOM,F,GL,TX,UL,ULX

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-52220

NCP16#,NHP160,NSP160..DX,U

 1
69801-52080

NCP16#,NHP160,NSP160..DXCOM,F,GL,TX,UL,ULX

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-52190

NCP16#,NHP160,NSP160..DX,DXCOM,U,UL

 1
69802-52080

NCP16#,NHP160,NSP160..F,GL,TX,ULX

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-52190

NCP16#,NHP160,NSP160..DX,DXCOM,U,UL

 1
69802-52080

NCP16#,NHP160,NSP160..F,GL,TX,ULX

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-42080

NCP16#,NHP160,NSP160..DXCOM,F,GL,TX,UL,ULX

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-35140

NCP16#,NHP160,NSP160..F,GL,TX,ULX

 1
Common parts
90105-06260
90105-08077
90105-08485
90119-06984
90168-50040
Linked diagrams
6701
