NCP160V-EXXCK (2014)
Toyota Probox/Succeed

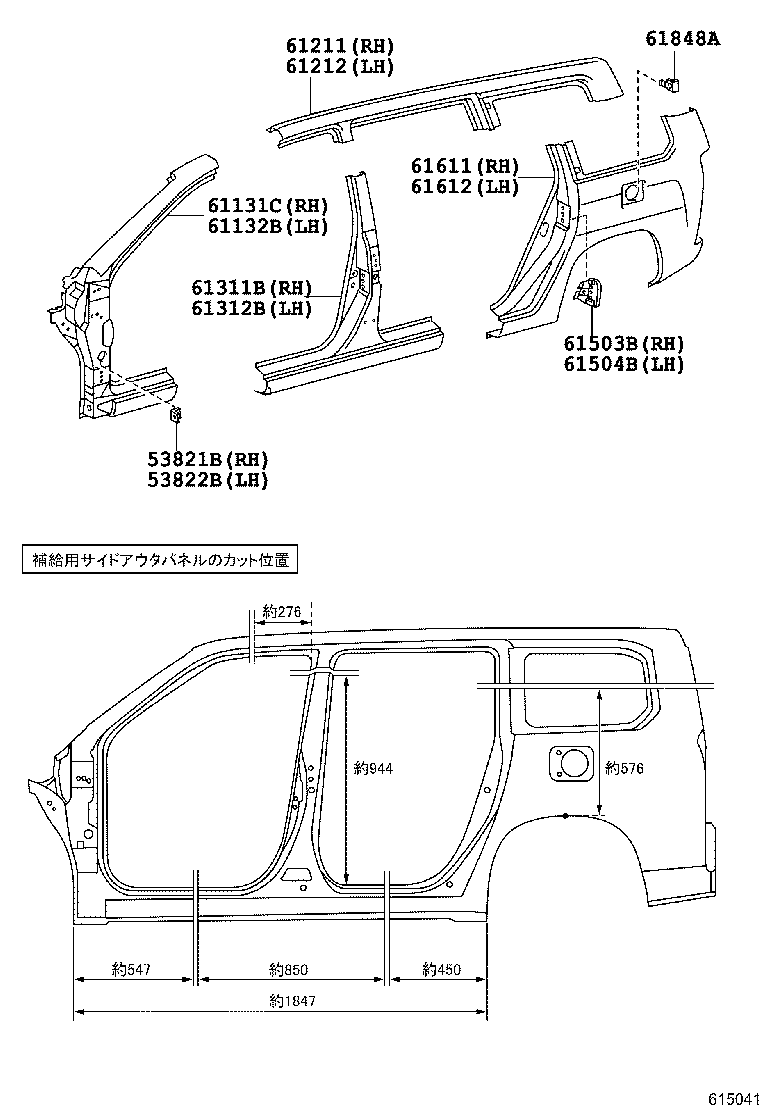

ILLUST NO. 1 OF 2(1409- )
ｱｳﾀﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-16010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-16010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-52360 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-52120 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-52082 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-52091 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-52070 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-52030 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-52050 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-52050 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-52212 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-52221 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61848A - RETAINER, QUARTER PANEL, LH | ||||
| 61848-52010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||

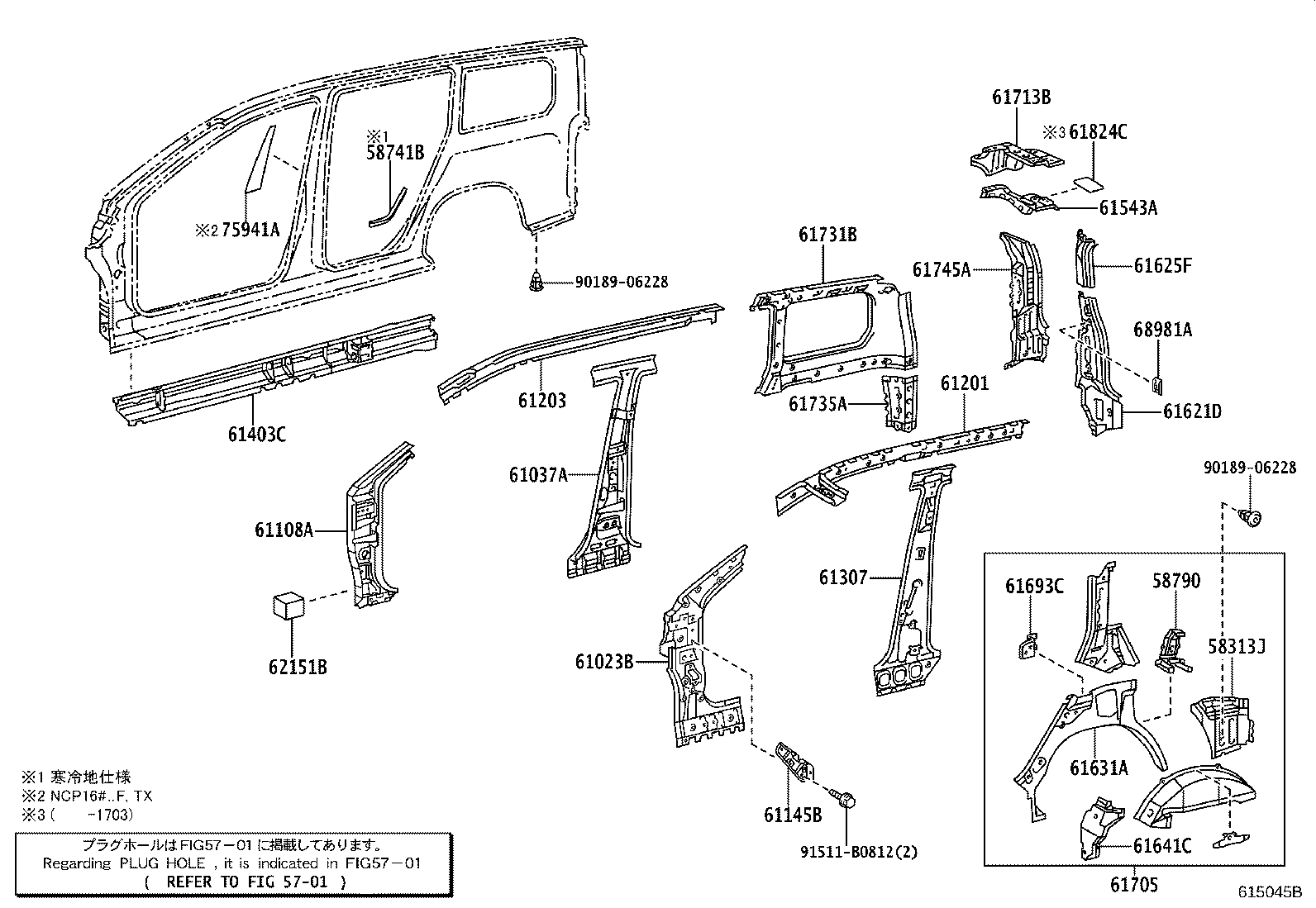

ILLUST NO. 2 OF 2(1409- )
ｲﾝﾅﾊﾟﾈﾙ,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58313J - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-52030 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-52230 |
NCP16#,NHP160,NSP160..PROB 寒冷地仕様 |
1 | ||
| 58790 - CARRIER ASSY, JACK | ||||
| 58790-52030 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-52200 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-52310 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-52210 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-52080 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61205-52020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-52010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-52400 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-52240 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61543A - PANEL, REAR UPPER SIDE INNER CORNER, RH | ||||
| 61543-52030 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-52070 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61625F - EXTENSION, QUARTER PANEL, UPPER RH | ||||
| 61625-52060 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-52060 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-52030 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61693C - RETAINER, REAR SEAT BACK SET, RH | ||||
| 61693-52080 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-52530 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61713B - REINFORCE, ROOF SIDE, OUTER RH | ||||
| 61713-52041 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61713-52040 |
NCP16#,NSP160 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-52300 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-52040 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-52030 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61825-52040 |
NCP16#,NSP160 |
3 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52010 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-52010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 75941A - STRIPE, CENTER PILLAR, RH | ||||
| 75941-52011C0 |
NCP16#..F,TX BLACK,058 ,1E7 ,209 ,3R9 ,6U6 ,8P4 |
1 | ||
| Common parts | ||||
| 90189-06228 | ||||
| 91511-B0812 | ||||
| Linked diagrams | ||||
| 5701 | ||||

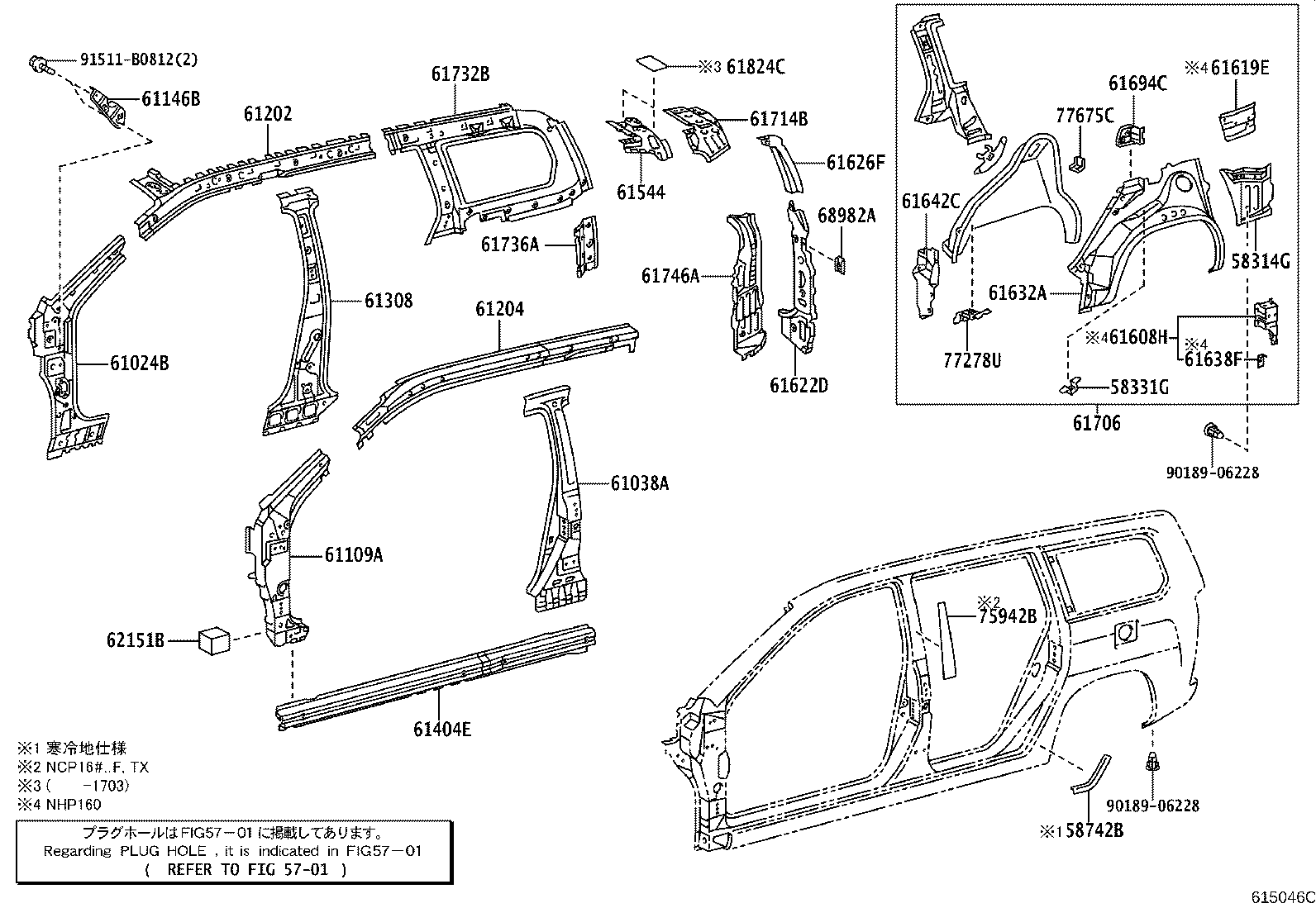

ILLUST NO. 2 OF 2(1409- )
ｲﾝﾅﾊﾟﾈﾙ,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58314G - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-52030 |
NCP16#,NSP160..PROB |
1 | ||
| 58331G - BRACKET, FUEL PIPE PROTECTOR | ||||
| 58331-10010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-52200 |
NCP16#,NHP160,NSP160..PROB 寒冷地仕様 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-52220 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-52310 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-52200 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-52090 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61206-52040 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-52010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-52410 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-52230 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61544 - PANEL, REAR UPPER SIDE INNER CORNER, LH | ||||
| 61544-52020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-52070 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61626F - EXTENSION, QUARTER PANEL, UPPER LH | ||||
| 61626-52060 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-52060 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-52040 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61694C - RETAINER, REAR SEAT BACK SET, LH | ||||
| 61694-52070 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-52502 |
NCP16#,NSP160..PROB |
1 | ||
| 61706-52500 |
NCP16#,NSP160 |
1 | ||
| 61706-52501 |
NCP16#,NSP160 |
1 | ||
| 61714B - REINFORCE, ROOF SIDE, OUTER LH | ||||
| 61714-52040 |
NCP16#,NSP160 |
1 | ||
| 61714-52041 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-52340 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-52040 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-52030 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61825-52040 |
NCP16#,NSP160 |
3 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52010 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68981-52010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 75942B - STRIPE, CENTER PILLAR, LH | ||||
| 75942-52011C0 |
NCP16#..F,TX BLACK,058 ,1E7 ,209 ,3R9 ,6U6 ,8P4 |
1 | ||
| 77278U - BRACKET, FUEL TANK FILLER PIPE PROTECTOR | ||||
| 77278-52011 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 77278-52010 |
NCP16#,NSP160 |
1 | ||
| 77675C - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.1 | ||||
| 77675-52010 |
NCP16#,NSP160 |
1 | ||
| 77675-52011 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| Common parts | ||||
| 90189-06228 | ||||
| 91511-B0812 | ||||
| Linked diagrams | ||||
| 5701 | ||||
