NCP160V-EXXCK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Sep 9999
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )NCP16#,NSP160

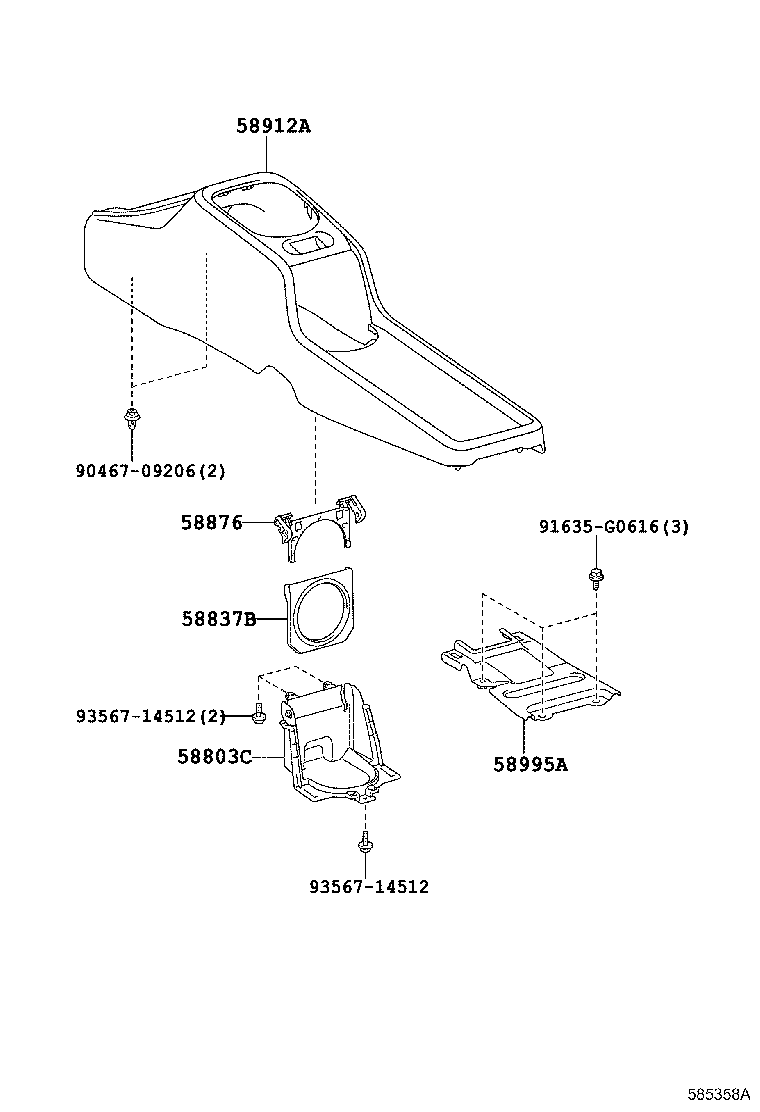

Click highlighted areas on diagram

diagram 58803C 58837B 58876 58912A 58995A 9046709206 91635G0616 9356714512 9356714512
Part # Description Qty Price
58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER
58803-52010C0

NCP16#,NSP160

BLACK,TRIM1#

 1
58837B - BOX, CONSOLE CUP HOLDER
58837-52050C0

NCP16#,NHP160,NSP160

BLACK,TRIM1#

 1
58876 - ARM, CONSOLE UPPER PANEL
58876-52010C0

NCP16#,NHP160,NSP160

BLACK,TRIM1#

 1
58912A - BOX, REAR CONSOLE
58911-52230C0

NCP16#,NSP160

BLACK,TRIM1#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-52100

NCP16#,NSP160..PROB

 1
Common parts
90467-09206
91635-G0616
93567-14512
