NCP160V-EXXCK (2014)
Toyota Probox/Succeed
(1409- )NCP16#,NSP160

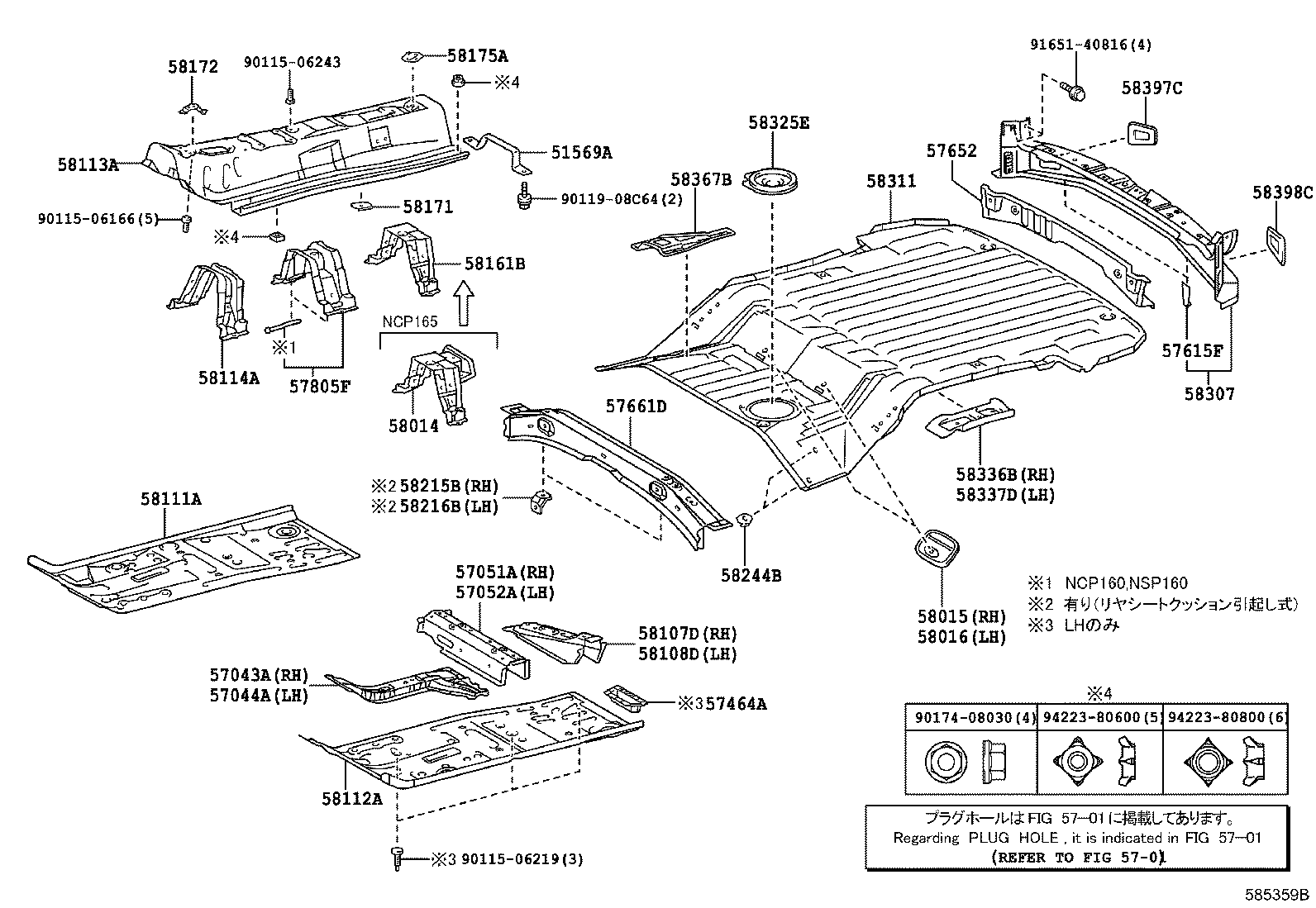

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-52031 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 57043-52030 |
NCP16#,NSP160 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-52031 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 57044-52030 |
NCP16#,NSP160 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-52050 |
NCP16#,NSP160..PROB |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-52040 |
NCP16#,NSP160..PROB |
1 | ||
| 57464A - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57464-52050 |
NCP16#,NSP160..PROB |
1 | ||
| 57615F - BRACKET, REAR BUMPER MOUNTING | ||||
| 52185-52050 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 57652 - CROSSMEMBER, REAR FLOOR, NO.2 | ||||
| 57659-52050 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 57661D - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 57661-52040 |
NCP16#,NSP160..PROB |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-52160 |
NCP160,NSP160..PROB |
1 | ||
| 58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH | ||||
| 58015-52030 |
NCP16#,NSP160..PROB |
1 | ||
| 58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH | ||||
| 58015-52030 |
NCP16#,NSP160..PROB |
1 | ||
| 58107D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH | ||||
| 58107-52020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 58108D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH | ||||
| 58108-52020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-52260 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-52920 |
NCP16#,NSP160..PROB |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-52930 |
NCP16#,NSP160..PROB |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-52130 |
NCP16#,NSP160..PROB |
1 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-52120 |
NCP160,NSP160..PROB |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-52110 |
NCP16#,NSP160..PROB |
1 | ||
| 58172 - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-52030 |
NCP16#,NSP160..PROB |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58175-52020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 58215B - BRACKET, REAR SEAT MOUNTING, RH | ||||
| 58215-52050 |
NCP16#..F |
1 | ||
| 58215-52050 |
NCP16#,NSP160..DXCOM,GL ﾘﾔﾍｯﾄﾞﾚｽﾄ−別体(2個) |
1 | ||
| 58216B - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58215-52050 |
NCP16#..F |
1 | ||
| 58215-52050 |
NCP16#,NSP160..DXCOM,GL ﾘﾔﾍｯﾄﾞﾚｽﾄ−別体(2個) |
1 | ||
| 58244B - BRACKET, REAR SEAT CUSHION MOUNTING | ||||
| 58244-52060 |
NCP16#,NSP160..PROB |
4 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-52162 |
NCP16#,NSP160 |
1 | ||
| 58307-52163 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-52240 |
NCP16#,NSP160..PROB |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-52020 |
NCP16#,NSP160..PROB |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-52010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 58337D - REINFORCEMENT, REAR FLOOR PAN, LH | ||||
| 58337-52010 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 58367B - BRACKET, FUEL TUBE | ||||
| 58367-52060 |
NCP16#,NSP160..PROB |
1 | ||
| 58397C - COVER, BODY LOWER BACK, RH | ||||
| 58397-52030 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 58398C - COVER, BODY LOWER BACK, LH | ||||
| 58398-52020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90115-06243 | ||||
| 90119-08C64 | ||||
| 90174-08030 | ||||
| 91651-40816 | ||||
| 94223-80600 | ||||
| 94223-80800 | ||||
| Linked diagrams | ||||
| 5701 | ||||
