NCP160V-EXXCK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Sep 9999
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

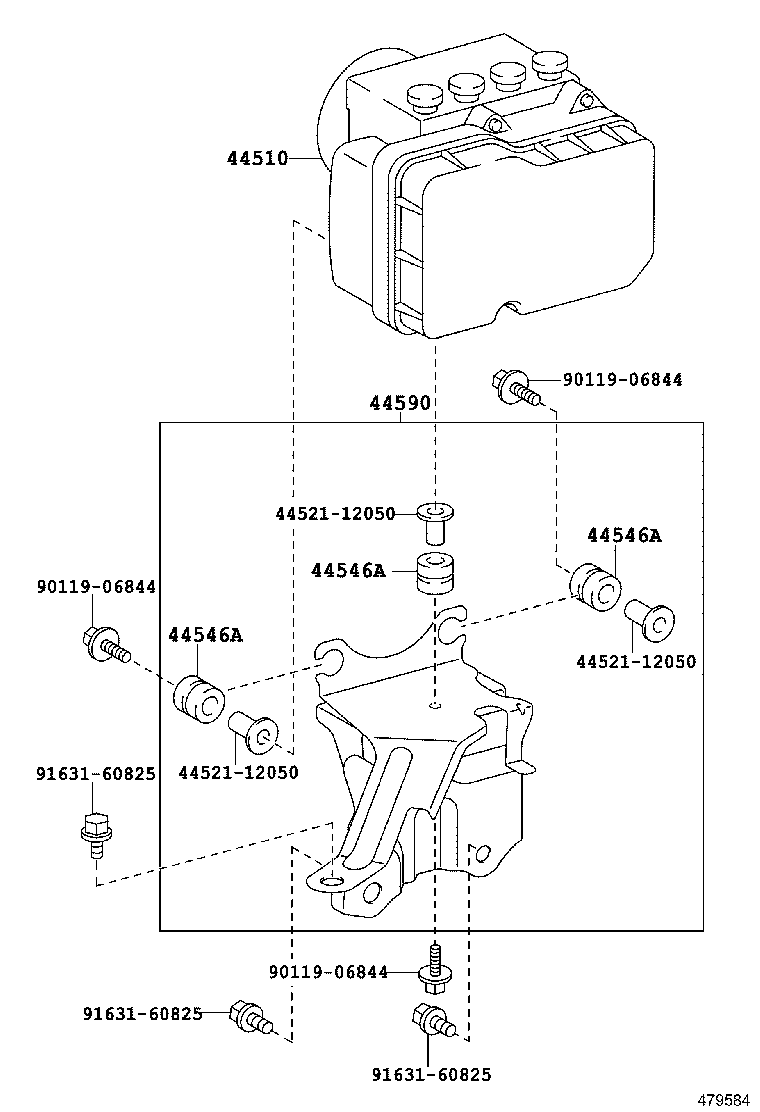

ILLUST NO. 2 OF 2(1409- )NCP16#,NSP160

Click highlighted areas on diagram

ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ

diagram 44510 4452112050 4452112050 4452112050 44546A 44546A 44546A 44590 9011906844 9011906844 9011906844 9163160825 9163160825 9163160825
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-52J60

NCP160,NSP160

 1
44050-52J61

NCP160,NSP160..PROB

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP16#,NSP160..PROB

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP16#,NSP160..PROB

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP16#,NSP160..PROB

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-52230

NCP16#,NSP160..PROB

 1
Common parts
44521-12050
90119-06844
91631-60825

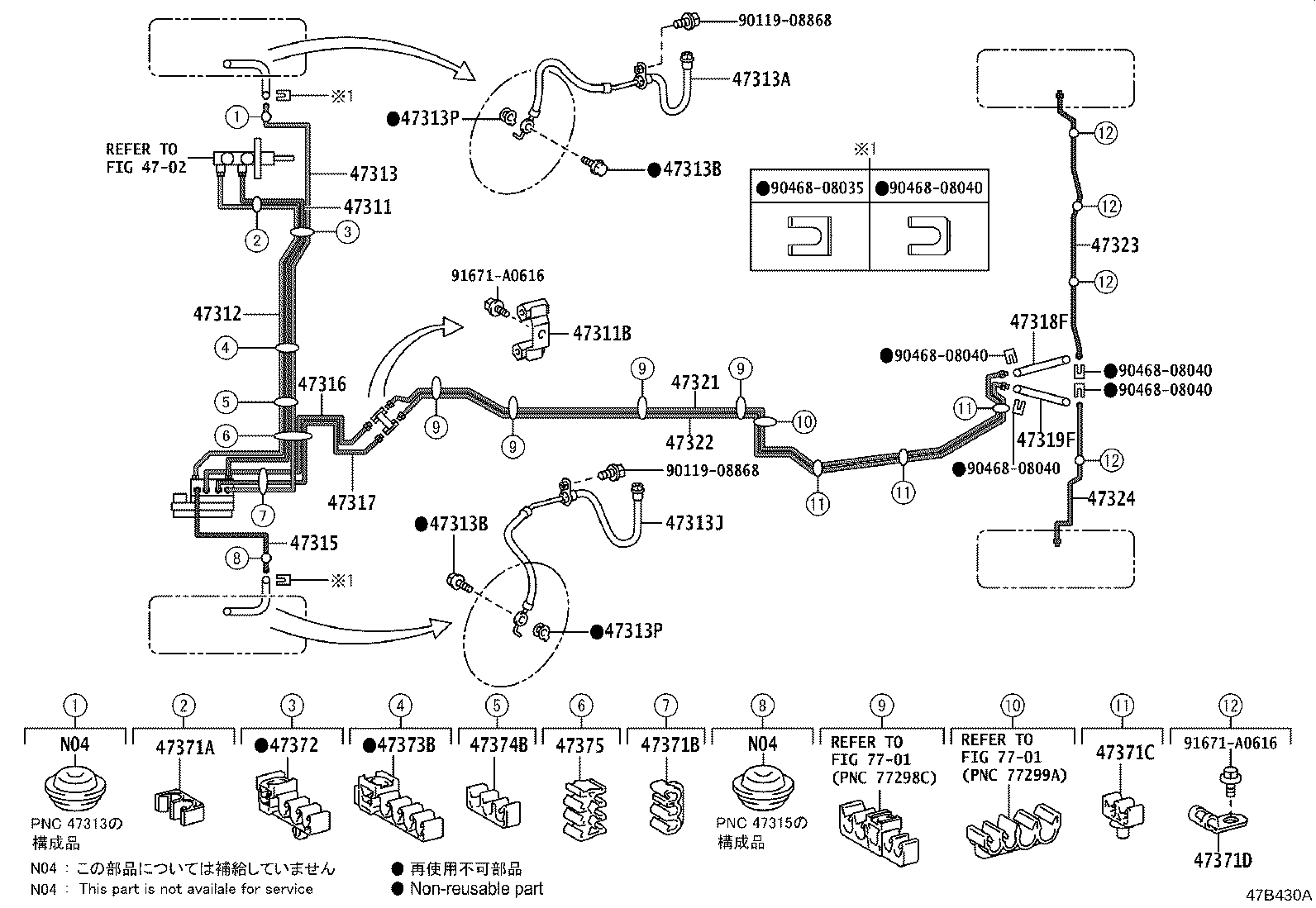

ILLUST NO. 1 OF 2(1409- )NCP16#,NSP160

Click highlighted areas on diagram

ﾌﾞﾚｰｷﾁｭｰﾌﾞ

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47371A 47371B 47371C 47371D 47372 47373B 47374B 47375 7701 7701 9011908868 9011908868 9046808035 9046808040 9046808040 9046808040 9046808040 9046808040 91671A0616 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52610

NCP16#,NSP160..PROB

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10285

NCP16#,NHP160,NSP160..PROB

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52420

NCP16#,NSP160..PROB

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52231

NCP16#,NSP160..PROB

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H35

NCP16#,NSP160

 1
90947-02H71

NCP16#,NHP160,NSP160..PROB

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP16#,NHP160,NSP160..PROB

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP16#,NHP160,NSP160..PROB

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02H36

NCP16#,NSP160

 1
90947-02H72

NCP16#,NHP160,NSP160..PROB

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP16#,NHP160,NSP160..PROB

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP16#,NHP160,NSP160..PROB

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52231

NCP16#,NSP160..PROB

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52191

NCP16#,NSP160..PROB

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52191

NCP16#,NSP160..PROB

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02H27

NCP16#,NHP160,NSP160..PROB

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02H27

NCP16#,NHP160,NSP160..PROB

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52250

NCP16#,NSP160..PROB

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-52370

NCP16#,NSP160..PROB

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52180

NCP160,NHP160,NSP160..PROB

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52170

NCP16#,NHP160,NSP160..PROB

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00899

NCP16#,NSP160..PROB

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D92

NCP16#,NSP160..PROB

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01E02

NCP16#,NSP160..PROB

 3
47371D - CLAMP, BRAKE TUBE, NO.8
96221-10706

NCP16#,NSP160..PROB

 4
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D94

NCP16#,NSP160..PROB

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D97

NCP16#,NSP160..PROB

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D93

NCP16#,NSP160..PROB

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01D98

NCP16#,NSP160..PROB

 1
Common parts
90119-08868
90468-08035
90468-08040
91671-A0616
Linked diagrams
4702
7701
