NCP160V-EXXCK (2014)
Toyota Probox/Succeed
Production
Sep 2014
-
Sep 9999
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1409- )1NZFE..NCP160

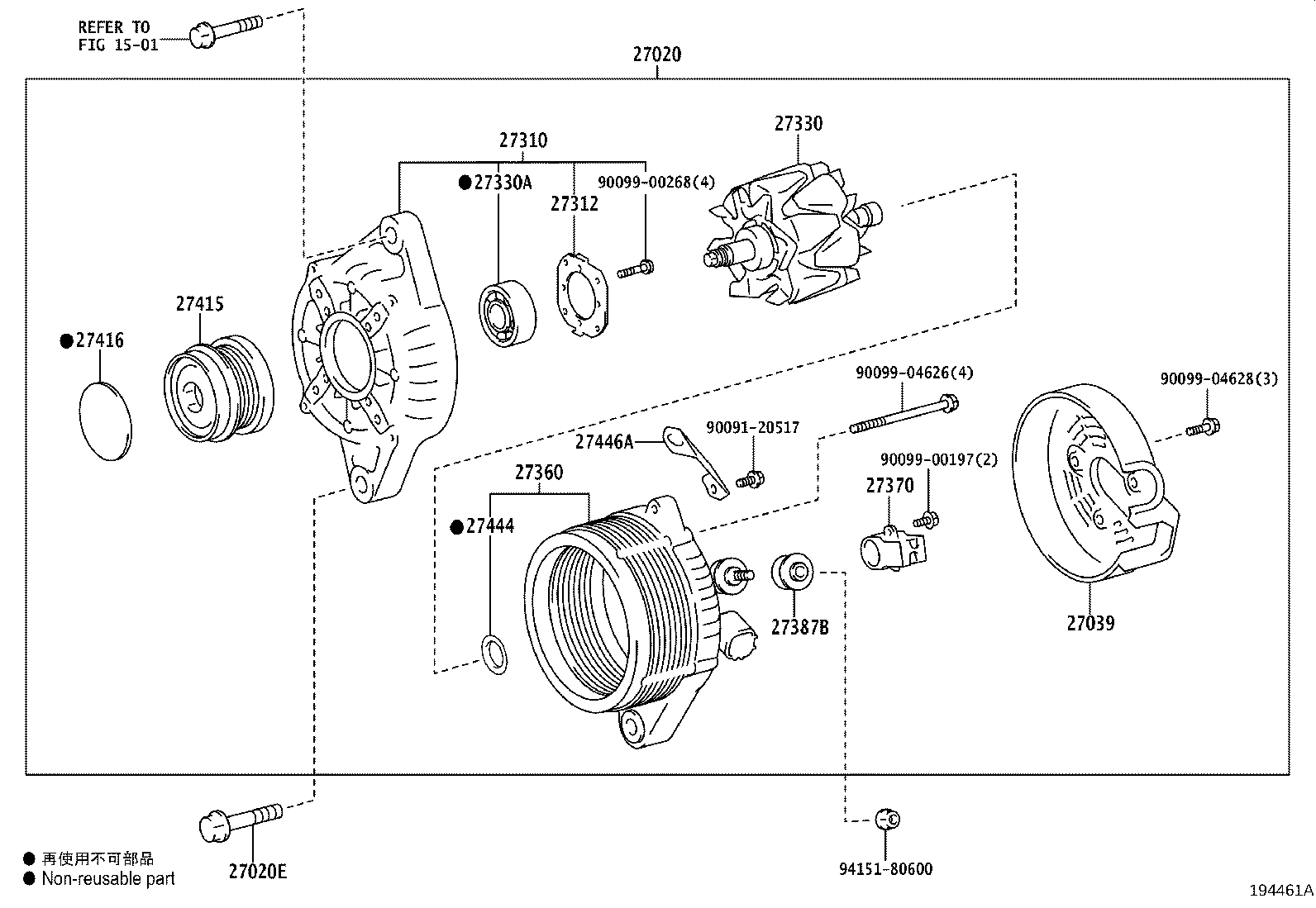

Click highlighted areas on diagram
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-21180 |
1NZFE..NCP160..PROB 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1NZFE..NCP16#..PROB |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-47310 |
1NZFE,1NRFE..NCP16#,NSP160..PROB |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-21210 |
1NZFE..NCP16#..PROB |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1NZFE,1NRFE..NCP16#,NSP160..PROB |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-47310 |
1NZFE,1NRFE..NCP16#,NSP160..PROB |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10227 |
1NZFE,1NRFE..NCP16#,NSP160..PROB |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-21210 |
1NZFE..NCP16#..PROB |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
1NZFE,1NRFE..NCP16#,NSP160..PROB |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-47310 |
1NZFE,1NRFE..NCP16#,NSP160..PROB |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0M011 |
1NZFE..NCP160..PROB |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
1NZFE,1NRFE..NCP160,NSP160..PROB |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-21190 |
1NZFE,1NRFE..NCP16#,NSP160..PROB |
1 | ||
| 27446A - CLAMP | ||||
| 27446-21020 |
1NZFE..NCP16#..PROB |
1 | ||
| Common parts | ||||
| 90091-20517 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04626 | ||||
| 90099-04628 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1501 | ||||
