NCP160V-EXXCK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Sep 9999
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )1NZFE

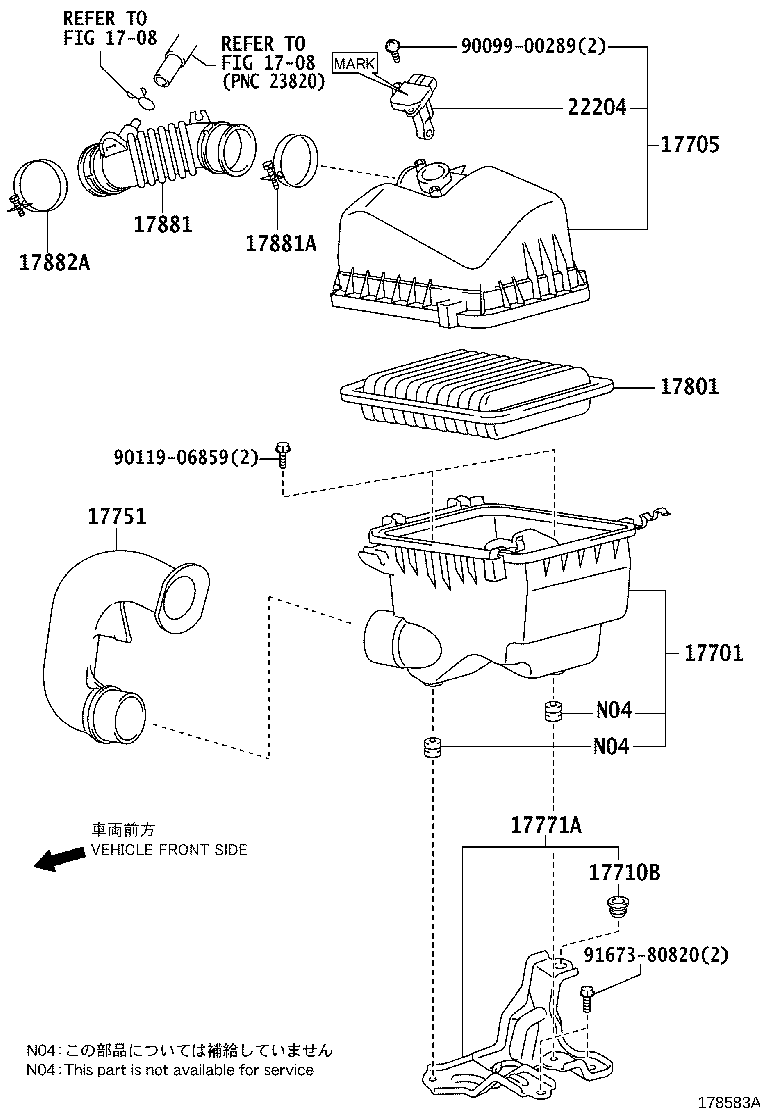

Click highlighted areas on diagram

diagram 1708 1708 17701 17705 17710B 17751 17771A 17801 17881 17881A 17882A 22204 9009900289 9011906859 9167380820
Part # Description Qty Price
17701 - CASE SUB-ASSY, AIR CLEANER
17701-21100

1NZFE..NCP16#..PROB

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-37181

1NZFE..NCP16#..PROB

 1
17710B - GROMMET
90480-18006

1NZFE..NCP16#..PROB

 1
17751 - INLET, AIR CLEANER, NO.1
17751-21230

1NZFE..NCP160..PROB

 1
17771A - BRACKET, AIR CLEANER
17771-21050

1NZFE..NCP16#..PROB

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-21050

1NZFE..NCP16#..PROB

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-21091

1NZFE..NCP16#..PROB

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

1NZFE,1NRFE..NCP16#,NSP160..PROB

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10690

1NZFE..NCP16#..PROB

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-28010

1NZ#,1NRFE..NCP16#,NHP160,NSP160..PROB

ﾏｰｸ 22204−28010

 1
22204-0T040

1NZ#,1NRFE..NCP16#,NHP160,NSP160..PROB

ﾏｰｸ 22204−0T040

 1
22204-0V020

1NZ#,1NRFE..NCP16#,NHP160,NSP160..PROB

ﾏｰｸ 22204−0V020

 1
22204-0V010

1NZ#,1NRFE..NCP16#,NHP160,NSP160..PROB

ﾏｰｸ 22204−0V010

 1
Common parts
90099-00289
90119-06859
91673-80820
Linked diagrams
1708
