NCP160V-EXXCK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Sep 9999
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )1NZFE..NCP160

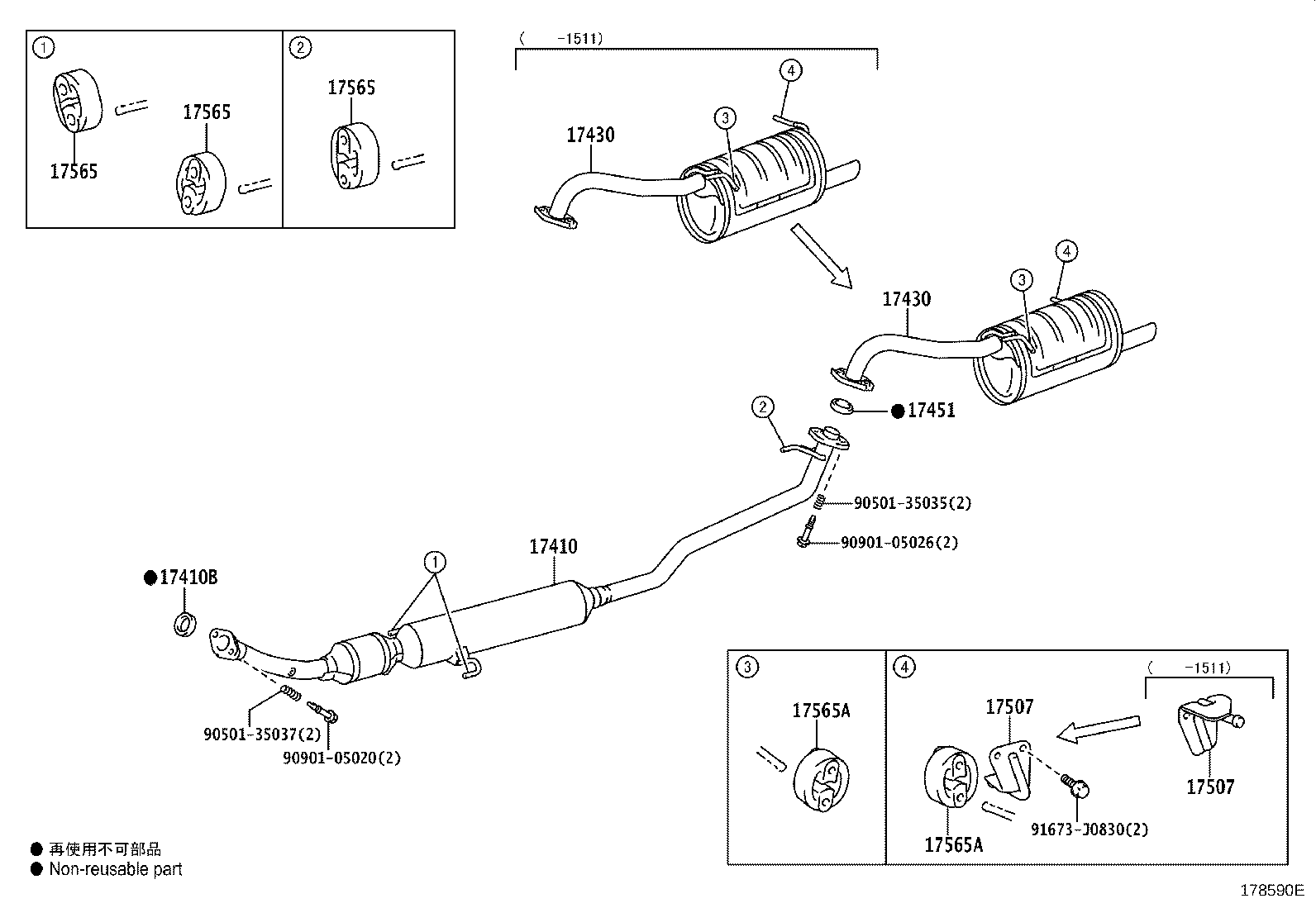

Click highlighted areas on diagram

diagram 17410 17410B 17430 17430 17451 17507 17507 17565 17565 17565 17565A 17565A 9050135035 9050135037 9090105020 9090105026 91673J0830
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-21D30

1NZFE..NCP160..PROB

 1
17410B - GASKET, EXHAUST PIPE
17451-21070

1NZ#,1NRFE..NCP16#,NHP160,NSP160..PROB

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-21A40

1NZFE..NCP160

 1
17430-21A81

1N#..NCP16#,NSP160

 1
17430-21A80

1NZFE..NCP160

 1
17430-21A82

1NZFE,1NRFE..NCP16#,NSP160..PROB

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-21A40

1NZFE..NCP160

 1
17430-21A81

1N#..NCP16#,NSP160

 1
17430-21A80

1NZFE..NCP160

 1
17430-21A82

1NZFE,1NRFE..NCP16#,NSP160..PROB

 1
17451 - GASKET, EXHAUST PIPE
17451-23042

1NZ#,1NRFE..NCP160,NHP160,NSP160..PROB

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-21021

1NZFE..NCP160

 1
17507-21030

1NZ#..NCP160,NHP160..PROB

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-21021

1NZFE..NCP160

 1
17507-21030

1NZ#..NCP160,NHP160..PROB

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-47010

1NZ#,1NRFE..NCP160,NHP160,NSP160..PROB

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-47010

1NZ#,1NRFE..NCP160,NHP160,NSP160..PROB

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-47010

1NZ#,1NRFE..NCP160,NHP160,NSP160..PROB

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74280

1NZ#,1NRFE..NCP16#,NHP160,NSP160..PROB

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74280

1NZ#,1NRFE..NCP16#,NHP160,NSP160..PROB

 2
Common parts
90501-35035
90501-35037
90901-05020
90901-05026
91673-J0830
