ZVW52-AHXHB (2019)
Toyota Prius Phv

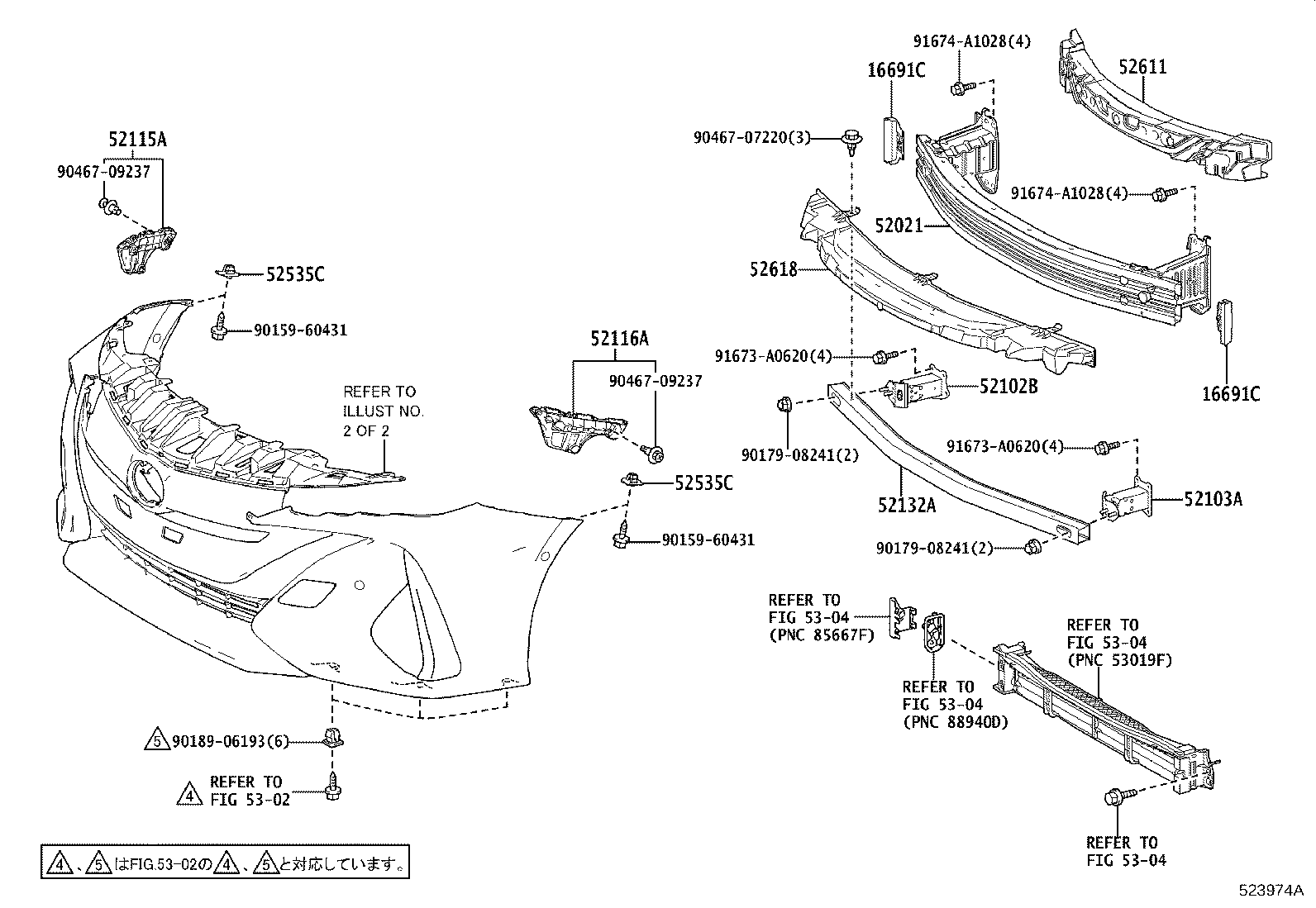

ILLUST NO. 1 OF 2(1905- )CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16691C - PLATE, RADIATOR SIDE AIR GUIDE, FRONT | ||||
| 16691-37020 |
2ZRFXE..ZVW52..CBU |
2 | ||
| 16691C - PLATE, RADIATOR SIDE AIR GUIDE, FRONT | ||||
| 16691-37020 |
2ZRFXE..ZVW52..CBU |
2 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-47110 |
ZVW52..CBU |
1 | ||
| 52102B - EXTENSION SUB-ASSY, FRONT BUMPER, RH | ||||
| 52102-47020 |
ZVW52..CBU |
1 | ||
| 52103A - EXTENSION SUB-ASSY, FRONT BUMPER, LH | ||||
| 52103-47010 |
ZVW52..CBU |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-47070 |
ZVW52..CBU |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-47070 |
ZVW52..CBU |
1 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-47010 |
ZVW52..CBU |
1 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
ZVW52..CBU |
2 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
ZVW52..CBU |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-47170 |
ZVW52..CBU |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-47100 |
ZVW52..CBU |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90179-08241 | ||||
| 90189-06193 | ||||
| 90467-07220 | ||||
| 90467-09237 | ||||
| 91673-A0620 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 5304 | ||||

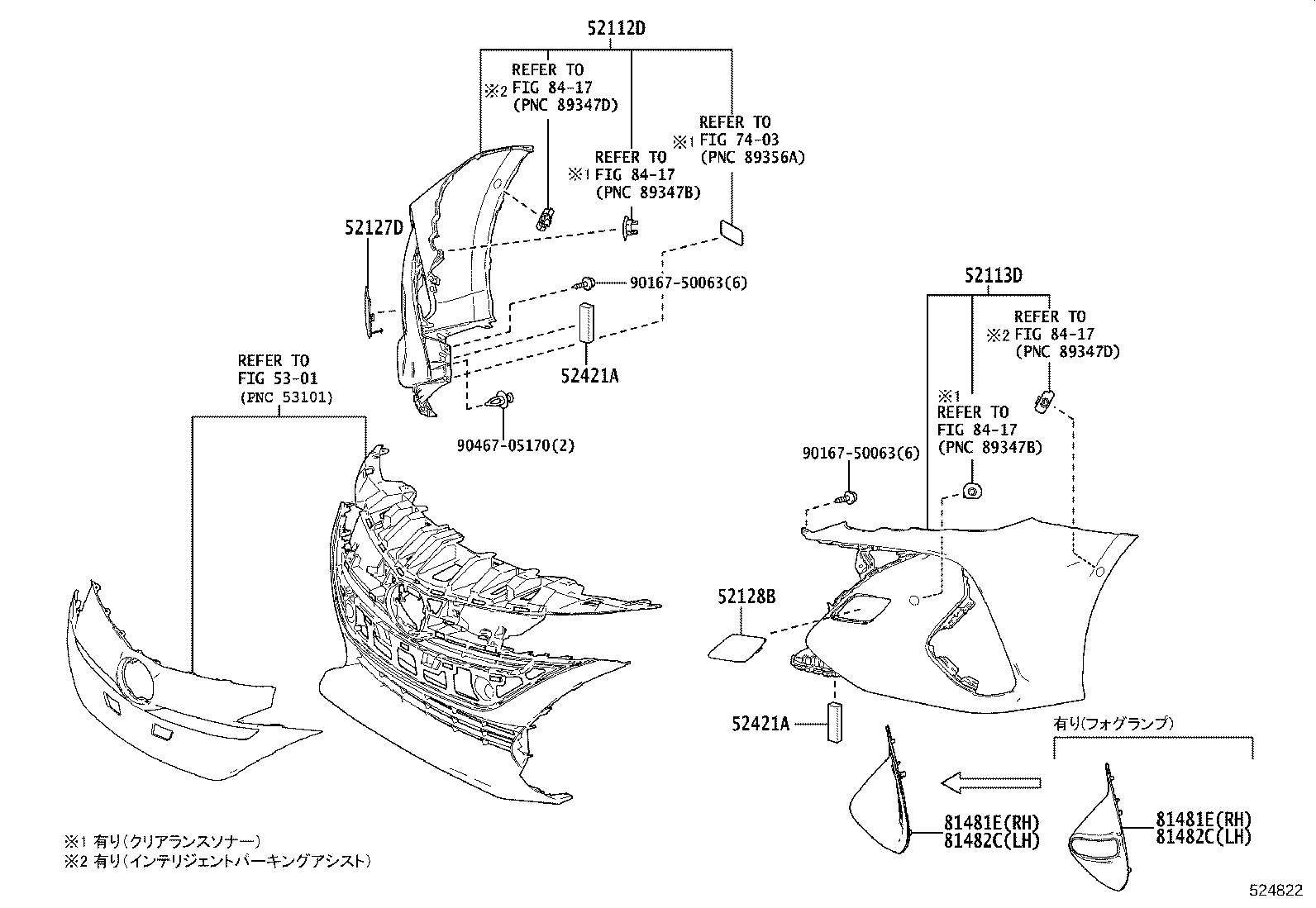

ILLUST NO. 2 OF 2(1905- )CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-47905A1 |
ZVW52..A,PREM WHITE PEARL CS.,070 |
1 | ||
| 52112-47905J0 |
ZVW52..A,PREM DK. BLUE MC.,8X8 |
1 | ||
| 52112-47905A0 |
ZVW52..A,PREM SUPER WHITE 2,040 |
1 | ||
| 52112-47905C0 |
ZVW52..A,PREM ATTITUDE BLACK MC.,218 |
1 | ||
| 52112-47905B1 |
ZVW52..A,PREM GRAY ME.,1G3 |
1 | ||
| 52112-47905B0 |
ZVW52..A,PREM SILVER ME.,1F7 |
1 | ||
| 52112-47905H0 |
ZVW52..A,PREM SPIRITED AQUA ME.,791 |
1 | ||
| 52112-47905E0 |
ZVW52..A,PREM STEEL BLONDE,4X1 |
1 | ||
| 52112-47905D1 |
ZVW52..A,PREM EMOTIONAL RED 2,3U5 |
1 | ||
| 52112-47905A2 |
ZVW52..A,PREM PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-47905A1 |
ZVW52..A,PREM WHITE PEARL CS.,070 |
1 | ||
| 52113-47905A0 |
ZVW52..A,PREM SUPER WHITE 2,040 |
1 | ||
| 52113-47905B0 |
ZVW52..A,PREM SILVER ME.,1F7 |
1 | ||
| 52113-47905J0 |
ZVW52..A,PREM DK. BLUE MC.,8X8 |
1 | ||
| 52113-47905D1 |
ZVW52..A,PREM EMOTIONAL RED 2,3U5 |
1 | ||
| 52113-47905H0 |
ZVW52..A,PREM SPIRITED AQUA ME.,791 |
1 | ||
| 52113-47905C0 |
ZVW52..A,PREM ATTITUDE BLACK MC.,218 |
1 | ||
| 52113-47905B1 |
ZVW52..A,PREM GRAY ME.,1G3 |
1 | ||
| 52113-47905E0 |
ZVW52..A,PREM STEEL BLONDE,4X1 |
1 | ||
| 52113-47905A2 |
ZVW52..A,PREM PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-47120B1 |
ZVW52..CBU GRAY ME.,1G3 |
1 | ||
| 52127-47120E0 |
ZVW52..CBU STEEL BLONDE,4X1 |
1 | ||
| 52127-47120B0 |
ZVW52..CBU SILVER ME.,1F7 |
1 | ||
| 52127-47120A0 |
ZVW52..CBU SUPER WHITE 2,040 |
1 | ||
| 52127-47120H0 |
ZVW52..CBU SPIRITED AQUA ME.,791 |
1 | ||
| 52127-47120A2 |
ZVW52..CBU PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 52127-47120D1 |
ZVW52..CBU EMOTIONAL RED 2,3U5 |
1 | ||
| 52127-47120A1 |
ZVW52..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-47120J0 |
ZVW52..CBU DK. BLUE MC.,8X8 |
1 | ||
| 52127-47120C0 |
ZVW52..CBU ATTITUDE BLACK MC.,218 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-47080B1 |
ZVW52..CBU GRAY ME.,1G3 |
1 | ||
| 52128-47080A0 |
ZVW52..CBU SUPER WHITE 2,040 |
1 | ||
| 52128-47080E0 |
ZVW52..CBU STEEL BLONDE,4X1 |
1 | ||
| 52128-47080H0 |
ZVW52..CBU SPIRITED AQUA ME.,791 |
1 | ||
| 52128-47080J0 |
ZVW52..CBU DK. BLUE MC.,8X8 |
1 | ||
| 52128-47080A1 |
ZVW52..CBU WHITE PEARL CS.,070 |
1 | ||
| 52128-47080C0 |
ZVW52..CBU ATTITUDE BLACK MC.,218 |
1 | ||
| 52128-47080A2 |
ZVW52..CBU PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 52128-47080D1 |
ZVW52..CBU EMOTIONAL RED 2,3U5 |
1 | ||
| 52128-47080B0 |
ZVW52..CBU SILVER ME.,1F7 |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-47010 |
ZVW52..CBU |
2 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-47010 |
ZVW52..CBU |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-47130 |
ZVW52..A,PREM |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-47130 |
ZVW52..A,PREM |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-47130 |
ZVW52..A,PREM |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-47130 |
ZVW52..A,PREM |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| 90467-05170 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 7403 | ||||
| 8417 | ||||
