8716 - HEATING & AIR CONDITIONING - WATER PIPING

ZVW52-AHXHB (2016)

Toyota Prius Phv

Production Sep 2016 - Apr 2019

Engine 2ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1609-1905)CBU

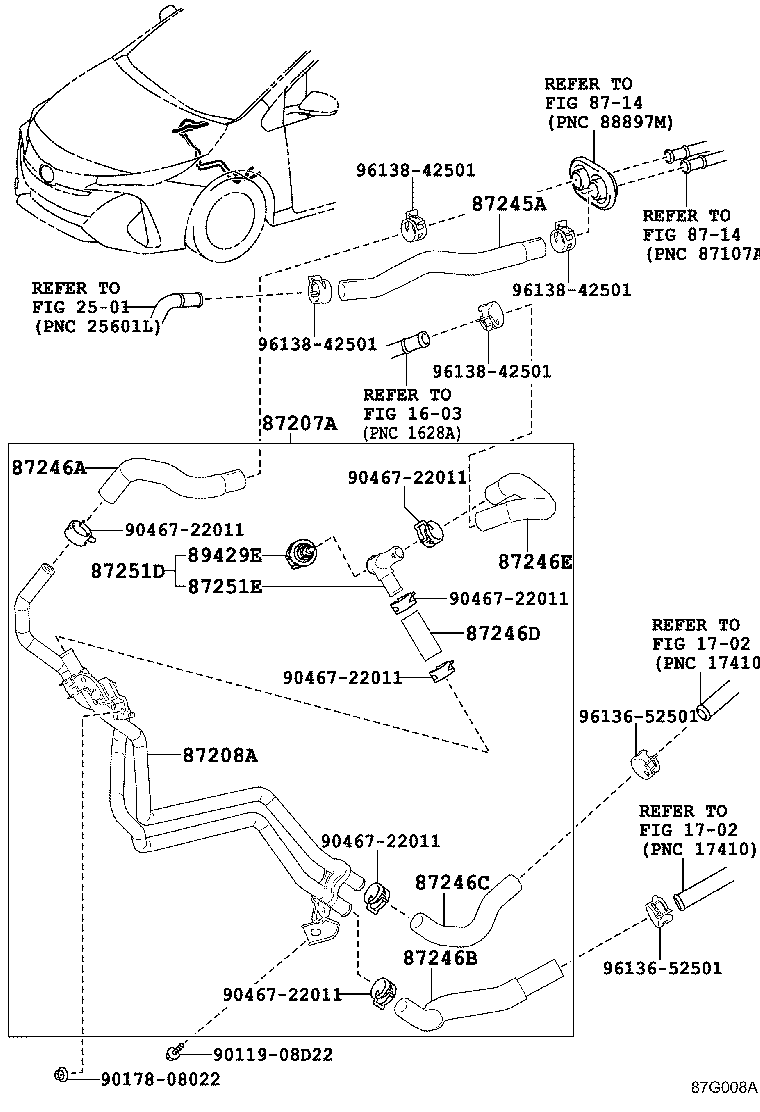

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
87207A - PIPE & HOSE SUB-ASSY, WATER A
87207-47090	ZVW52..CBU	09/2016 - 04/2019	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-47060	ZVW52..CBU	09/2016 - 04/2019	1
87245A - HOSE, HEATER WATER, INLET A
87245-47330	ZVW52..CBU	09/2016 - 04/2019	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-47430	ZVW52..CBU	09/2016 - 04/2019	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-47420	ZVW52..CBU	09/2016 - 04/2019	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-47410	ZVW52..CBU	09/2016 - 04/2019	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-47400	ZVW52..CBU	09/2016 - 04/2019	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-47390	ZVW52..CBU	09/2016 - 04/2019	1
87251D - JOINT, WATER, NO.1
87252-47030	ZVW52..CBU	09/2016 - 04/2019	1
87251E - JOINT, WATER, NO.2
87251-47030	ZVW52..CBU	09/2016 - 04/2019	1
89429E - SENSOR, WATER TEMPERATURE
89429-47010	ZVW52..CBU	09/2016 - 04/2019	1
Common parts
90119-08D22
90178-08022
90467-22011
96136-52501
96138-42501
Linked diagrams
1603
1702
2501
8714
