ZVW52-AHXHB (2016)
Toyota Prius Phv

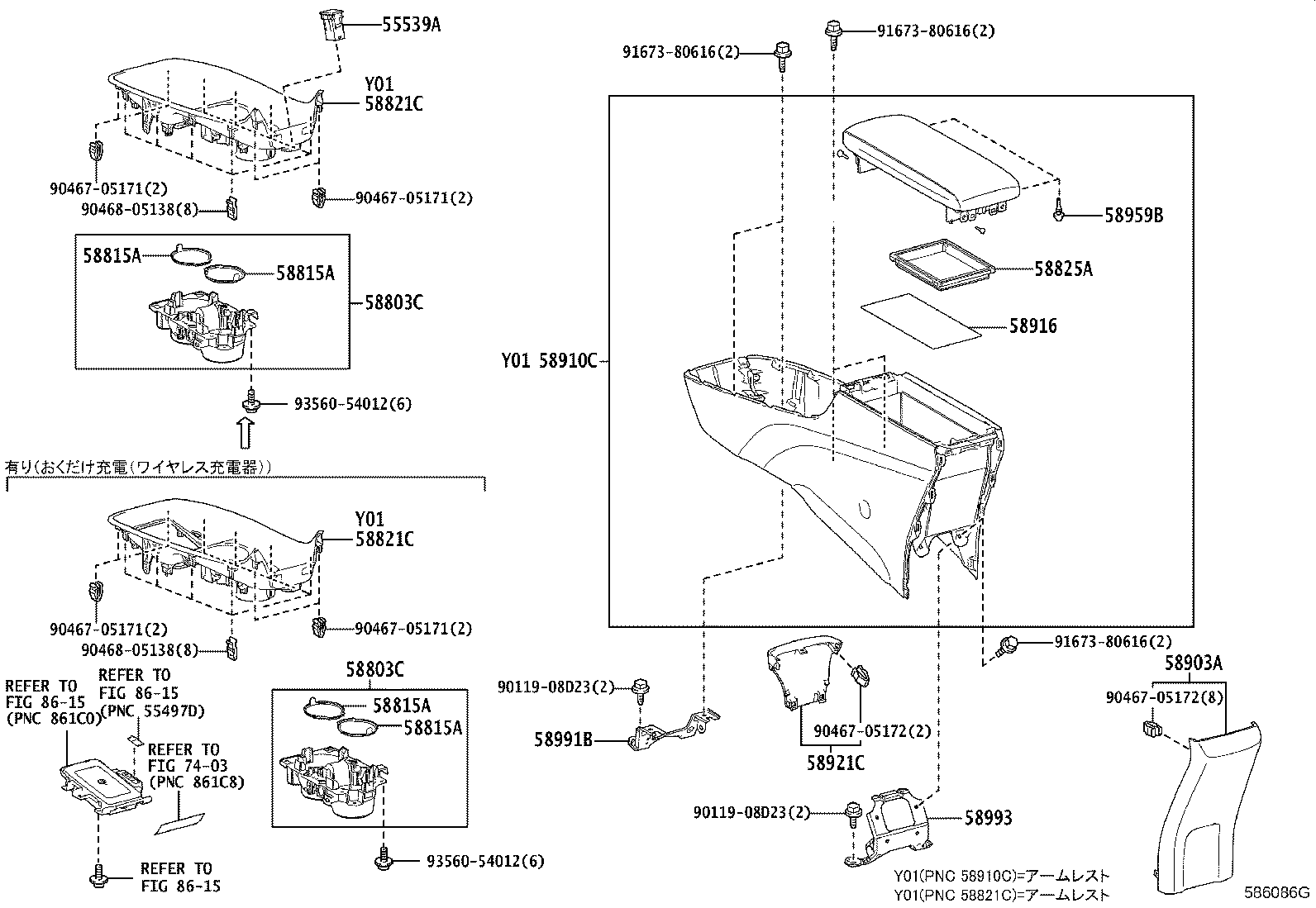

ILLUST NO. 1 OF 2(1609-1905)CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-47011C0 |
ZVW52..PREM BLACK METALLC,TRIM2# |
1 | ||
| 58803-47011A0 |
ZVW52..A WHITE,TRIM10 |
1 | ||
| 58803-47011C0 |
ZVW52..A BLACK METALLC,TRIM10,2# |
1 | ||
| 58803-47011A0 |
ZVW52..PREM WHITE,TRIM1# |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-47011C0 |
ZVW52..PREM BLACK METALLC,TRIM2# |
1 | ||
| 58803-47011A0 |
ZVW52..A WHITE,TRIM10 |
1 | ||
| 58803-47011C0 |
ZVW52..A BLACK METALLC,TRIM10,2# |
1 | ||
| 58803-47011A0 |
ZVW52..PREM WHITE,TRIM1# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-47080 |
ZVW52..CBU |
2 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-47080 |
ZVW52..CBU |
2 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-47080 |
ZVW52..CBU |
2 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-47080 |
ZVW52..CBU |
2 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-47041A0 |
ZVW52..PREM おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,WHITE,TRIM1# |
1 | ||
| 58821-47041A0 |
ZVW52..A おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,WHITE,TRIM10 |
1 | ||
| 58821-47051A0 |
ZVW52..A WHITE,TRIM10 |
1 | ||
| 58821-47051A0 |
ZVW52..PREM WHITE,TRIM1# |
1 | ||
| 58821-47051C0 |
ZVW52..PREM BLACK METALLC,TRIM2# |
1 | ||
| 58821-47041C0 |
ZVW52..A おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK METALLC,TRIM10,2# |
1 | ||
| 58821-47041C0 |
ZVW52..PREM おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK METALLC,TRIM2# |
1 | ||
| 58821-47051C0 |
ZVW52..A BLACK METALLC,TRIM10,2# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-47041A0 |
ZVW52..PREM おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,WHITE,TRIM1# |
1 | ||
| 58821-47041A0 |
ZVW52..A おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,WHITE,TRIM10 |
1 | ||
| 58821-47051A0 |
ZVW52..A WHITE,TRIM10 |
1 | ||
| 58821-47051A0 |
ZVW52..PREM WHITE,TRIM1# |
1 | ||
| 58821-47051C0 |
ZVW52..PREM BLACK METALLC,TRIM2# |
1 | ||
| 58821-47041C0 |
ZVW52..A おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK METALLC,TRIM10,2# |
1 | ||
| 58821-47041C0 |
ZVW52..PREM おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK METALLC,TRIM2# |
1 | ||
| 58821-47051C0 |
ZVW52..A BLACK METALLC,TRIM10,2# |
1 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58825-47060 |
ZVW52..CBU |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-47070C0 |
ZVW52..(A,S)..CBU BLACK,TRIM1#,2# |
1 | ||
| 58903-47060C0 |
ZVW52..PREM BLACK,TRIM1#,2# |
1 | ||
| 58903-47060C0 |
ZVW52..(A,S)..CBU ｱｸｾｻﾘｺﾝｾﾝﾄ−有り,BLACK,TRIM1#,2# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-47030C2 |
ZVW52..PREM BLACK,TRIM1#,2# |
1 | ||
| 58910-47140C0 |
ZVW52..(A,S)..CBU BLACK,TRIM1#,2# |
1 | ||
| 58910-47030C2 |
ZVW52..A “ﾚｻﾞｰﾊﾟｯｹｰｼﾞ”&ﾌﾛﾝﾄｼｰﾄ−運転席(ﾊﾟﾜｰｼｰﾄ)&ｼｰﾄ表皮−本革,BLACK,TRIM1#,2# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-47020 |
ZVW52..CBU |
1 | ||
| 58921C - PLATE, BOX, UPPER NO.1 | ||||
| 58921-47021C0 |
ZVW52..PREM BLACK METALLC,TRIM2# |
1 | ||
| 58921-47021A0 |
ZVW52..PREM WHITE,TRIM1# |
1 | ||
| 58921-47021C0 |
ZVW52..A BLACK METALLC,TRIM10,2# |
1 | ||
| 58921-47021A0 |
ZVW52..A WHITE,TRIM10 |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 90541-03078 |
ZVW52..CBU |
2 | ||
| 58991B - BRACKET, CONSOLE BOX MOUNTING, FRONT | ||||
| 58991-47020 |
ZVW52..CBU |
1 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58996-47030 |
ZVW52..CBU |
1 | ||
| Common parts | ||||
| 90119-08D23 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-05138 | ||||
| 91673-80616 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8615 | ||||

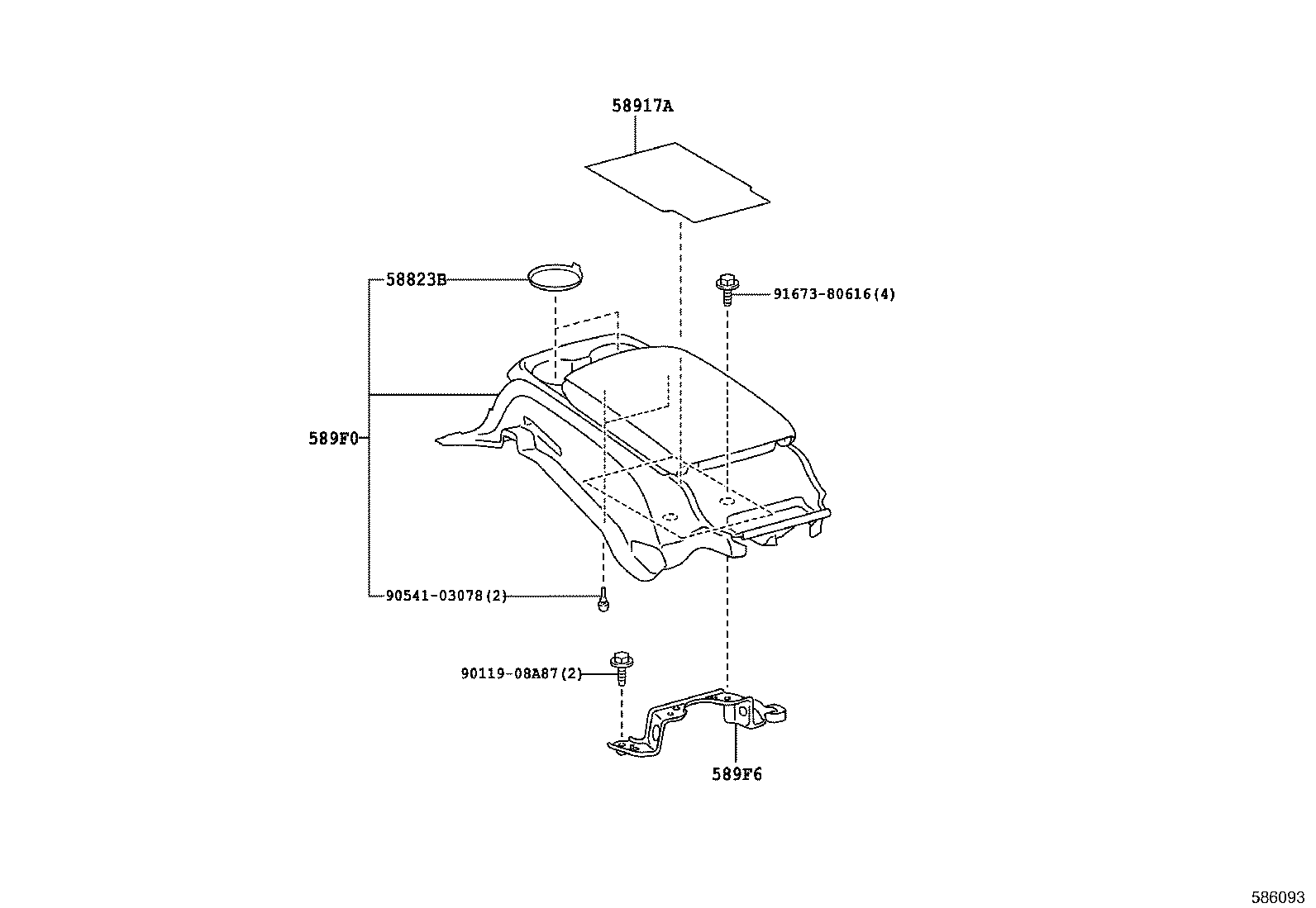

ILLUST NO. 2 OF 2(1609-1905)CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58823B - BOX, CONSOLE COMPARTMENT | ||||
| 58823-78010 |
ZVW52..CBU |
2 | ||
| 58917A - COVER, CONSOLE BOX, REAR | ||||
| 58917-47020 |
ZVW52..CBU |
1 | ||
| 589F0 - BOX ASSY, REAR SEAT CONSOLE | ||||
| 589F0-47010C2 |
ZVW52..PREM BLACK/WHITE,TRIM1# |
1 | ||
| 589F0-47010C3 |
ZVW52..A “ﾚｻﾞｰﾊﾟｯｹｰｼﾞ”&ﾌﾛﾝﾄｼｰﾄ−運転席(ﾊﾟﾜｰｼｰﾄ)&ｼｰﾄ表皮−本革,BLACK/BLACK METALLC,TRIM2# |
1 | ||
| 589F0-47010C3 |
ZVW52..PREM BLACK/BLACK METALLC,TRIM2# |
1 | ||
| 589F0-47011C2 |
ZVW52..PREM BLACK/WHITE,TRIM1# |
1 | ||
| 589F0-47011C3 |
ZVW52..A “ﾚｻﾞｰﾊﾟｯｹｰｼﾞ”&ﾌﾛﾝﾄｼｰﾄ−運転席(ﾊﾟﾜｰｼｰﾄ)&ｼｰﾄ表皮−本革,BLACK/BLACK METALLC,TRIM2# |
1 | ||
| 589F0-47011C2 |
ZVW52..A “ﾚｻﾞｰﾊﾟｯｹｰｼﾞ”&ﾌﾛﾝﾄｼｰﾄ−運転席(ﾊﾟﾜｰｼｰﾄ)&ｼｰﾄ表皮−本革,BLACK/WHITE,TRIM1# |
1 | ||
| 589F0-47011C3 |
ZVW52..PREM BLACK/BLACK METALLC,TRIM2# |
1 | ||
| 589F0-47031C3 |
ZVW52..(A,S)..CBU BLACK,TRIM1#,2# |
1 | ||
| 589F0-47010C2 |
ZVW52..A “ﾚｻﾞｰﾊﾟｯｹｰｼﾞ”&ﾌﾛﾝﾄｼｰﾄ−運転席(ﾊﾟﾜｰｼｰﾄ)&ｼｰﾄ表皮−本革,BLACK/WHITE,TRIM1# |
1 | ||
| 589F0-47030C3 |
ZVW52..(A,S)..CBU BLACK,TRIM1#,2# |
1 | ||
| 589F6 - BRACKET, REAR SEAT CONSOLE BOX, LWR | ||||
| 589F6-47010 |
ZVW52..CBU |
1 | ||
| Common parts | ||||
| 90119-08A87 | ||||
| 90541-03078 | ||||
| 91673-80616 | ||||
