ZVW52-AHXHB (2016)
Toyota Prius Phv

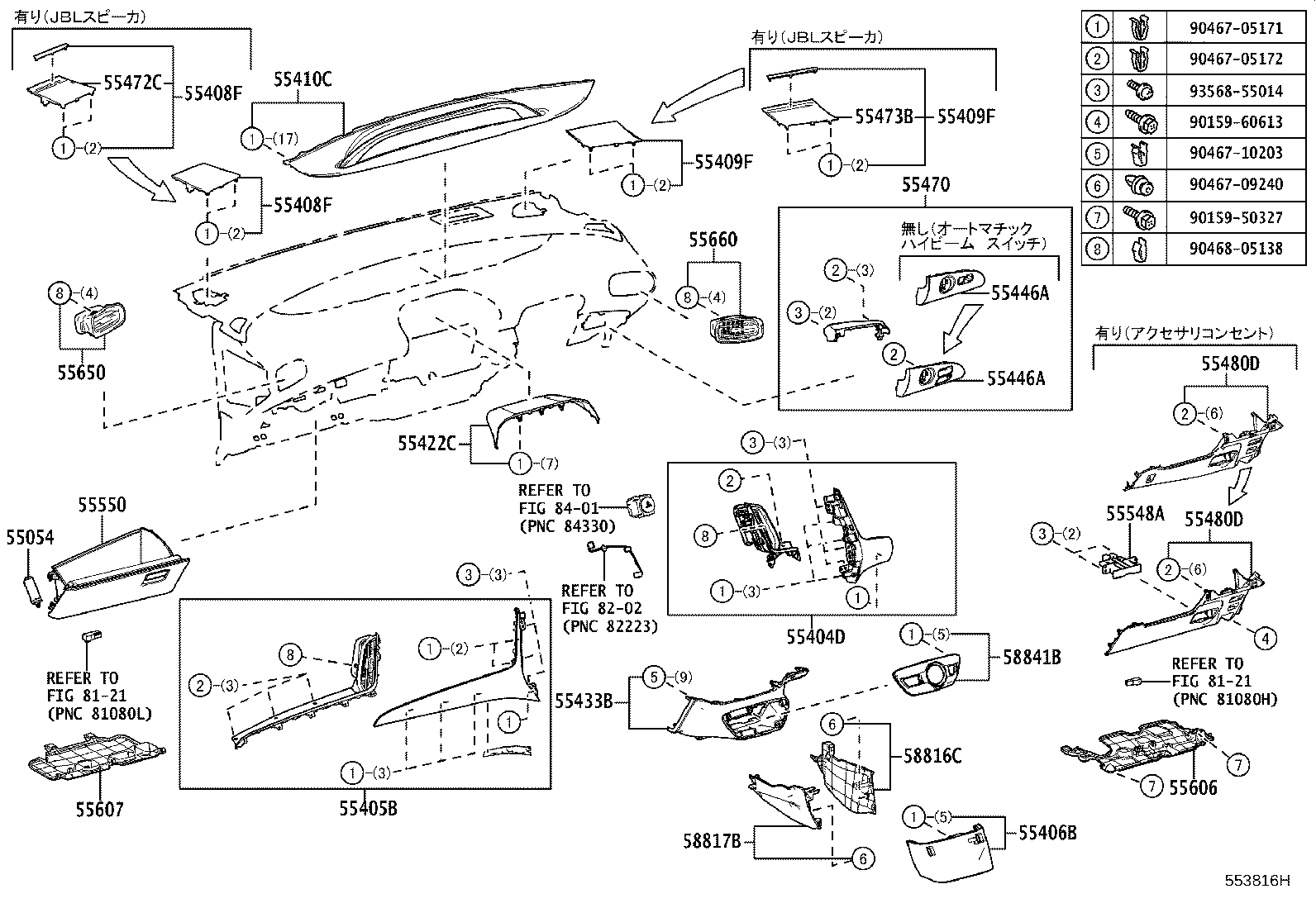

ILLUST NO. 2 OF 2(1609- )CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-75020 |
ZVW52..CBU |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-47180 |
ZVW52..A,PREM ﾒｯｷ ﾓｰﾙﾃﾞｨﾝｸﾞ付き |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-47060C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-47020C0 |
ZVW52..A,PREM ｵｰﾃﾞｨｵ−11ｲﾝﾁ,AVN&Wi−Fi&*BT&USB&JBL,BLACK,TRIM1#,2# |
1 | ||
| 55472-47070C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-47010C0 |
ZVW52..A,PREM ｵｰﾃﾞｨｵ−11ｲﾝﾁ,AVN&Wi−Fi&*BT&USB&JBL,BLACK,TRIM1#,2# |
1 | ||
| 55473-47070C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-47100 |
ZVW52..CBU |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-47060C0 |
ZVW52..A,PREM BLACK,TRIM1#,2# |
1 | ||
| 55422-47060 |
ZVW52..A,PREM |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-47060C0 |
ZVW52..A,PREM BLACK,TRIM1#,2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-47200 |
ZVW52..A,PREM |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-47060 |
ZVW52..A,PREM |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-47120C0 |
ZVW52..(A,S)..CBU BLACK,TRIM1#,2# |
1 | ||
| 55480-47180C0 |
ZVW52..PREM BLACK,TRIM1#,2# |
1 | ||
| 55480-47180C0 |
ZVW52..(A,S)..CBU ｱｸｾｻﾘｺﾝｾﾝﾄ−有り,BLACK,TRIM1#,2# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-47060C0 |
ZVW52..CBU ETC−有り,BLACK,TRIM1#,2# |
1 | ||
| 55548-47060C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-47140C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-47080 |
ZVW52..CBU |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-47080 |
ZVW52..CBU |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-47250C0 |
ZVW52..A,PREM PRECIOUS BLACK,TRIM10,2# |
1 | ||
| 55650-47250H0 |
ZVW52..A,PREM TURQUOIISE,TRIM10 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-47190H0 |
ZVW52..A,PREM TURQUOIISE,TRIM10 |
1 | ||
| 55660-47190C0 |
ZVW52..A,PREM PRECIOUS BLACK,TRIM10,2# |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-47060C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 58817B - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-47060C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 58841B - COVER, SHIFTING HOLE | ||||
| 58841-47081A0 |
ZVW52..(A,S)..CBU WHITE,TRIM1#,2# |
1 | ||
| 58841-47081A0 |
ZVW52..PREM WHITE,TRIM1#,2# |
1 | ||
| 58841-47081A0 |
ZVW52..(A,S)..CBU WHITE,TRIM10,20 |
1 | ||
| 58841-47081A0 |
ZVW52..CBU WHITE,TRIM1#,2# |
1 | ||
| 58841-47081C0 |
ZVW52..(A,S)..CBU “Safety Plus”*(C)or“Utility Plus”*(A),BLACK METALLC,TRIM10,20 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90159-60613 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-09240 | ||||
| 90467-10203 | ||||
| 90468-05138 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

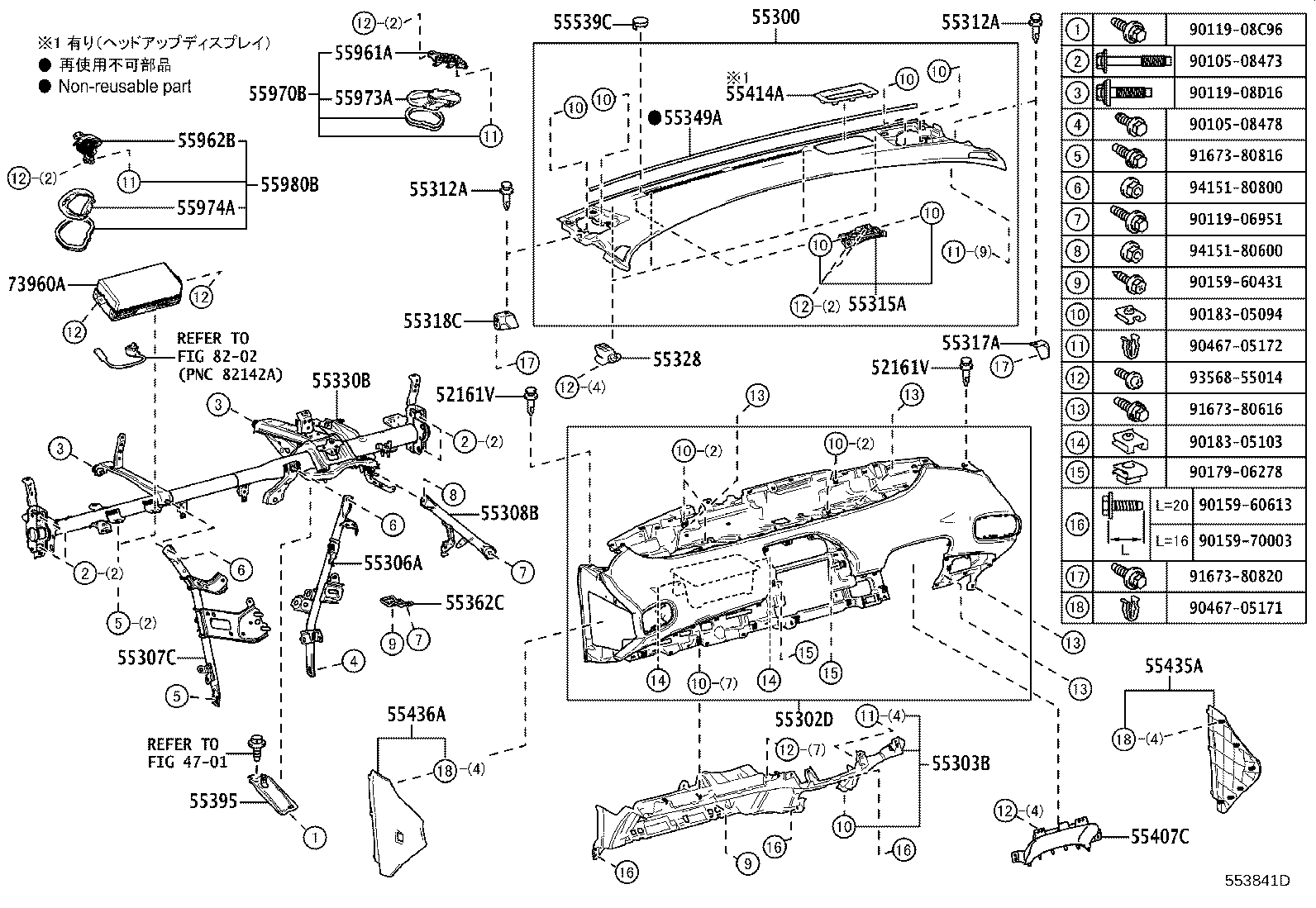

ILLUST NO. 1 OF 2(1609- )CBU
ｱﾘ(ｵｵｶﾞﾀ ﾃﾞｨｽﾌﾟﾚｲ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
ZVW52..CBU |
2 | ||
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
ZVW52..CBU |
2 | ||
| 55300 - PANEL ASSY, INSTRUMENT, UPPER | ||||
| 55300-47331C0 |
ZVW52..PREM BLACK,TRIM1#,2# |
1 | ||
| 55300-47340C0 |
ZVW52..A,S BLACK,TRIM1#,2# |
1 | ||
| 55300-47341C0 |
ZVW52..(A,S)..CBU BLACK,TRIM1#,2# |
1 | ||
| 55300-47330C0 |
ZVW52..PREM BLACK,TRIM1#,2# |
1 | ||
| 55302D - PANEL SUB-ASSY, INSTRUMENT, LOWER, NO.1 | ||||
| 55302-47120C0 |
ZVW52..A,PREM BLACK,TRIM2#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55302-47121B0 |
ZVW52..A,PREM COOL GRAY,TRIM1#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55302-47120B0 |
ZVW52..A,PREM COOL GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55302-47121C0 |
ZVW52..A,PREM BLACK,TRIM2#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-47111C0 |
ZVW52..A,PREM BLACK,TRIM1#,2#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55303-47110C0 |
ZVW52..A,PREM BLACK,TRIM1#,2#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-47140 |
ZVW52..A,PREM |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-47090 |
ZVW52..A,PREM |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-47060 |
ZVW52..CBU |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
ZVW52..CBU |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
ZVW52..CBU |
2 | ||
| 55314A - PANEL, INSTRUMENT, LOWER CENTER | ||||
| 55314-47020 |
ZVW52..A,PREM |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-47090 |
ZVW52..CBU |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-47060 |
ZVW52..CBU |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-47070 |
ZVW52..CBU |
1 | ||
| 55322A - BRACKET, INSTRUMENT PANEL, NO.2 | ||||
| 55322-47120 |
ZVW52..A,PREM |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-47170 |
ZVW52..CBU |
4 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-47171 |
ZVW52..CBU |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-47030 |
ZVW52..CBU |
1 | ||
| 55362C - BRACKET, PARKING BRAKE MOUNTING | ||||
| 55362-47060 |
ZVW52..CBU |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-47020 |
ZVW52..CBU |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-47020 |
ZVW52..CBU |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-47120C0 |
ZVW52..PREM BLACK,TRIM1#,2# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-47050C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-47050C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-47010C0 |
ZVW52..CBU ETC−有り,BLACK,TRIM1#,2# |
1 | ||
| 55539-47010C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55961-47040C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55962B - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55962-47020C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55970B - NOZZLE ASSY, SIDE DEFROSTER, RH | ||||
| 55970-47010C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55973A - DUCT, SIDE DEFROSTER NOZZLE, NO.3 | ||||
| 55973-47060 |
ZVW52..CBU |
1 | ||
| 55974A - DUCT, SIDE DEFROSTER NOZZLE, NO.4 | ||||
| 55974-47020 |
ZVW52..CBU |
1 | ||
| 55980B - NOZZLE ASSY, SIDE DEFROSTER, LH | ||||
| 55980-47010C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-47110 |
ZVW52..CBU |
1 | ||
| Common parts | ||||
| 62217-78010 | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90119-06951 | ||||
| 90119-08C96 | ||||
| 90119-08D16 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 91673-80820 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4701 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(1609- )CBU
ｱﾘ(ｵｵｶﾞﾀ ﾃﾞｨｽﾌﾟﾚｲ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-75020 |
ZVW52..CBU |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-47120 |
ZVW52..A,PREM |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-47180 |
ZVW52..A,PREM ﾒｯｷ ﾓｰﾙﾃﾞｨﾝｸﾞ付き |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-47060C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-47020C0 |
ZVW52..A,PREM ｵｰﾃﾞｨｵ−11ｲﾝﾁ,AVN&Wi−Fi&*BT&USB&JBL,BLACK,TRIM1#,2# |
1 | ||
| 55472-47070C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-47020C0 |
ZVW52..A,PREM ｵｰﾃﾞｨｵ−11ｲﾝﾁ,AVN&Wi−Fi&*BT&USB&JBL,BLACK,TRIM1#,2# |
1 | ||
| 55472-47070C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-47010C0 |
ZVW52..A,PREM ｵｰﾃﾞｨｵ−11ｲﾝﾁ,AVN&Wi−Fi&*BT&USB&JBL,BLACK,TRIM1#,2# |
1 | ||
| 55473-47070C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-47010C0 |
ZVW52..A,PREM ｵｰﾃﾞｨｵ−11ｲﾝﾁ,AVN&Wi−Fi&*BT&USB&JBL,BLACK,TRIM1#,2# |
1 | ||
| 55473-47070C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-47100 |
ZVW52..CBU |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-47060C0 |
ZVW52..A,PREM BLACK,TRIM1#,2# |
1 | ||
| 55422-47060 |
ZVW52..A,PREM |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-47060C0 |
ZVW52..A,PREM BLACK,TRIM1#,2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-47200 |
ZVW52..A,PREM |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-47200 |
ZVW52..A,PREM |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-47060 |
ZVW52..A,PREM |
1 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-47080C0 |
ZVW52..A,PREM ｵｰﾃﾞｨｵ−11ｲﾝﾁ,AVN&Wi−Fi&*BT&USB&JBL,BLACK,TRIM1#,2# |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-47020C0 |
ZVW52..A,PREM ｵｰﾃﾞｨｵ−11ｲﾝﾁ,AVN&Wi−Fi&*BT&USB&JBL,BLACK,TRIM1#,2# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-47120C0 |
ZVW52..(A,S)..CBU BLACK,TRIM1#,2# |
1 | ||
| 55480-47180C0 |
ZVW52..PREM BLACK,TRIM1#,2# |
1 | ||
| 55480-47180C0 |
ZVW52..(A,S)..CBU ｱｸｾｻﾘｺﾝｾﾝﾄ−有り,BLACK,TRIM1#,2# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-47120C0 |
ZVW52..(A,S)..CBU BLACK,TRIM1#,2# |
1 | ||
| 55480-47180C0 |
ZVW52..PREM BLACK,TRIM1#,2# |
1 | ||
| 55480-47180C0 |
ZVW52..(A,S)..CBU ｱｸｾｻﾘｺﾝｾﾝﾄ−有り,BLACK,TRIM1#,2# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-47060C0 |
ZVW52..CBU ETC−有り,BLACK,TRIM1#,2# |
1 | ||
| 55548-47060C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-47140C0 |
ZVW52..CBU BLACK,TRIM1#,2# |

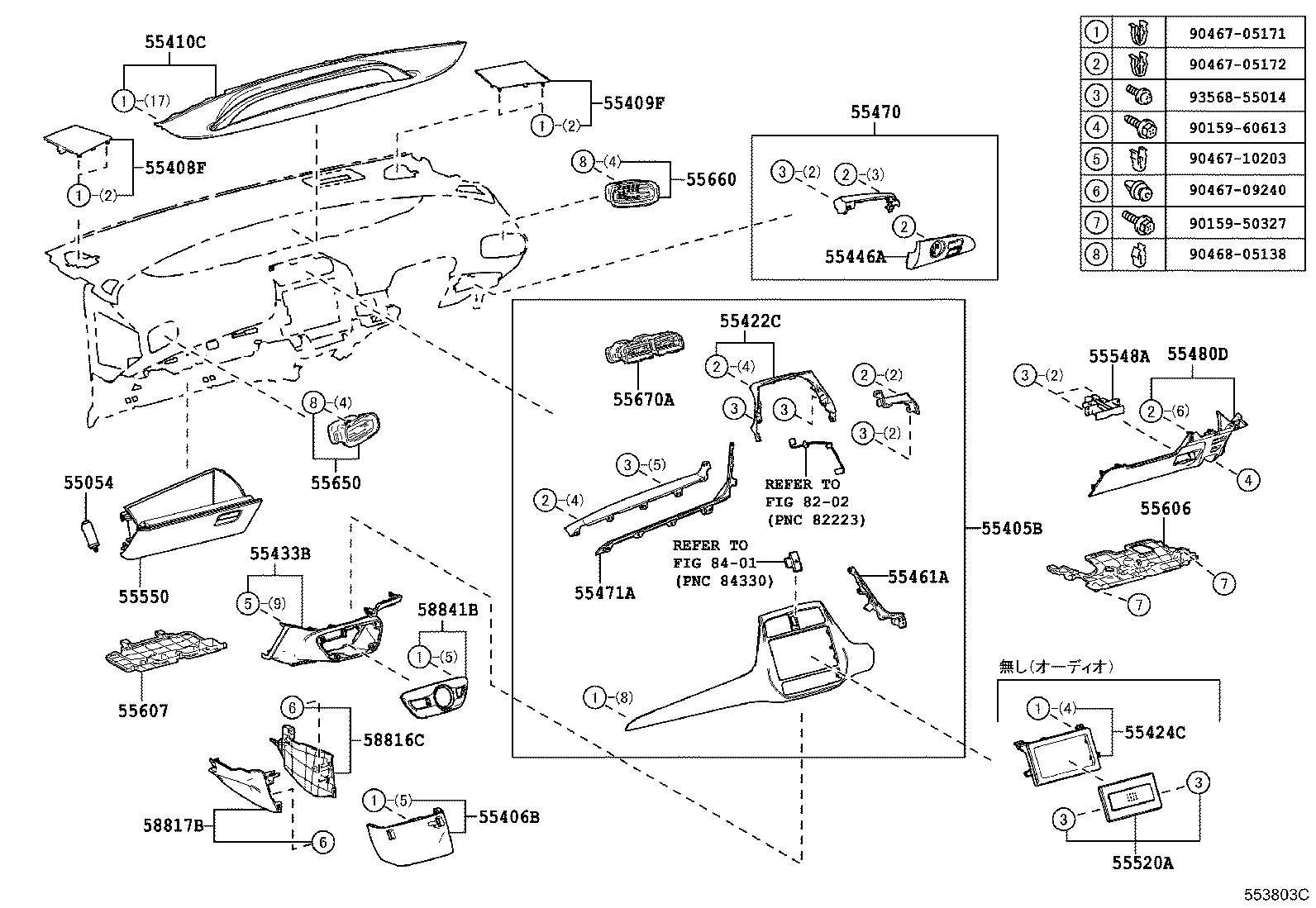

1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-47080 |
ZVW52..CBU |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-47080 |
ZVW52..CBU |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-47250C0 |
ZVW52..A,PREM PRECIOUS BLACK,TRIM10,2# |
1 | ||
| 55650-47250H0 |
ZVW52..A,PREM TURQUOIISE,TRIM10 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-47190H0 |
ZVW52..A,PREM TURQUOIISE,TRIM10 |
1 | ||
| 55660-47190C0 |
ZVW52..A,PREM PRECIOUS BLACK,TRIM10,2# |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-47060C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 58817B - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-47060C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 58841B - COVER, SHIFTING HOLE | ||||
| 58841-47081A0 |
ZVW52..(A,S)..CBU WHITE,TRIM1#,2# |
1 | ||
| 58841-47081A0 |
ZVW52..PREM WHITE,TRIM1#,2# |
1 | ||
| 58841-47081A0 |
ZVW52..(A,S)..CBU WHITE,TRIM10,20 |
1 | ||
| 58841-47081A0 |
ZVW52..CBU WHITE,TRIM1#,2# |
1 | ||
| 58841-47081C0 |
ZVW52..(A,S)..CBU “Safety Plus”*(C)or“Utility Plus”*(A),BLACK METALLC,TRIM10,20 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90159-60613 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-09240 | ||||
| 90467-10203 | ||||
| 90468-05138 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||

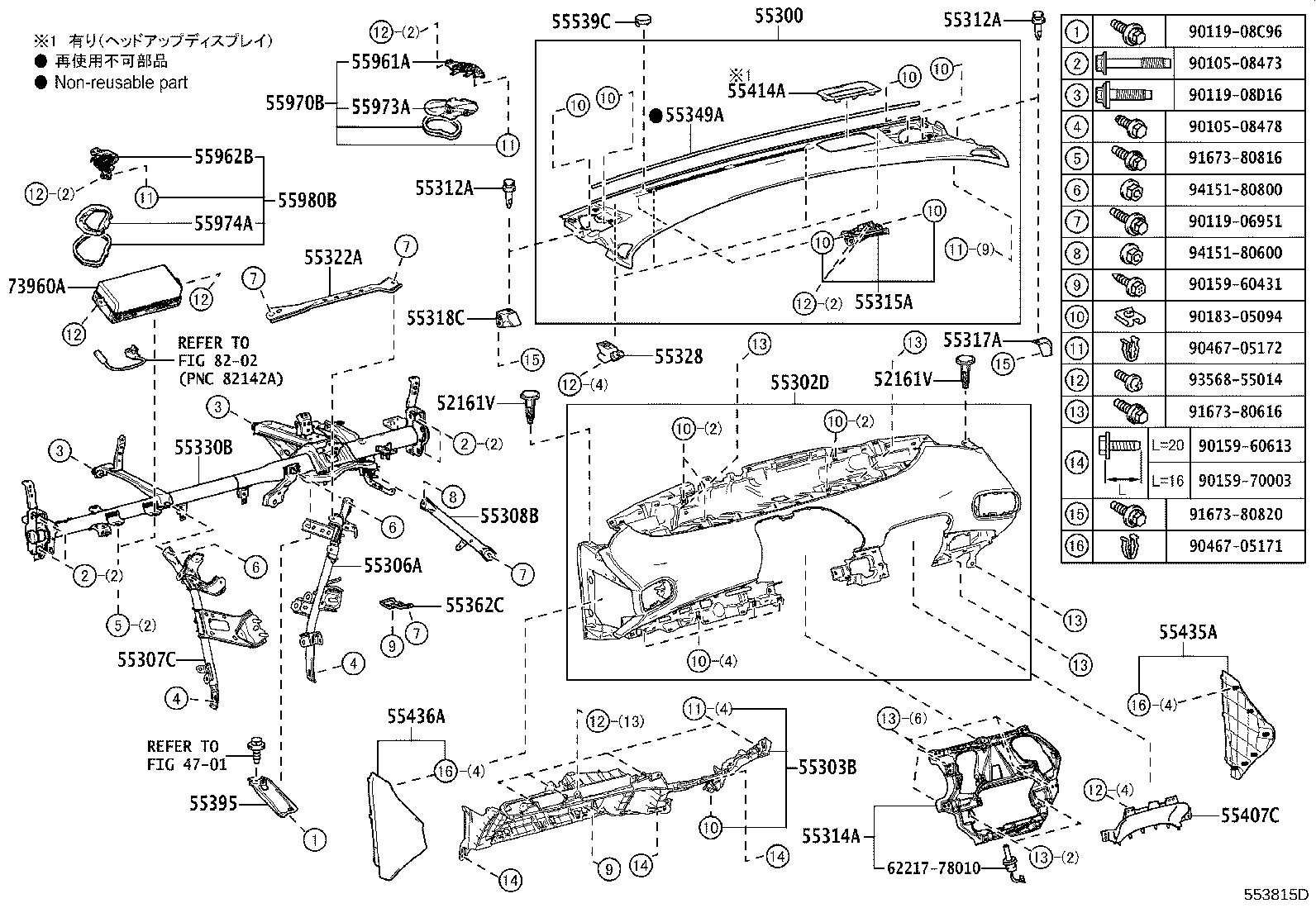

ILLUST NO. 1 OF 2(1609- )CBU
TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
ZVW52..CBU |
2 | ||
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
ZVW52..CBU |
2 | ||
| 55300 - PANEL ASSY, INSTRUMENT, UPPER | ||||
| 55300-47331C0 |
ZVW52..PREM BLACK,TRIM1#,2# |
1 | ||
| 55300-47340C0 |
ZVW52..A,S BLACK,TRIM1#,2# |
1 | ||
| 55300-47341C0 |
ZVW52..(A,S)..CBU BLACK,TRIM1#,2# |
1 | ||
| 55300-47330C0 |
ZVW52..PREM BLACK,TRIM1#,2# |
1 | ||
| 55302D - PANEL SUB-ASSY, INSTRUMENT, LOWER, NO.1 | ||||
| 55302-47120C0 |
ZVW52..A,PREM BLACK,TRIM2#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55302-47121B0 |
ZVW52..A,PREM COOL GRAY,TRIM1#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55302-47120B0 |
ZVW52..A,PREM COOL GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55302-47121C0 |
ZVW52..A,PREM BLACK,TRIM2#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-47111C0 |
ZVW52..A,PREM BLACK,TRIM1#,2#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55303-47110C0 |
ZVW52..A,PREM BLACK,TRIM1#,2#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-47140 |
ZVW52..A,PREM |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-47090 |
ZVW52..A,PREM |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-47060 |
ZVW52..CBU |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
ZVW52..CBU |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
ZVW52..CBU |
2 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-47090 |
ZVW52..CBU |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-47060 |
ZVW52..CBU |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-47070 |
ZVW52..CBU |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-47170 |
ZVW52..CBU |
4 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-47171 |
ZVW52..CBU |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-47030 |
ZVW52..CBU |
1 | ||
| 55362C - BRACKET, PARKING BRAKE MOUNTING | ||||
| 55362-47060 |
ZVW52..CBU |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-47020 |
ZVW52..CBU |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-47020 |
ZVW52..CBU |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-47120C0 |
ZVW52..PREM BLACK,TRIM1#,2# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-47050C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-47050C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-47010C0 |
ZVW52..CBU ETC−有り,BLACK,TRIM1#,2# |
1 | ||
| 55539-47010C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55961-47040C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55962B - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55962-47020C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55970B - NOZZLE ASSY, SIDE DEFROSTER, RH | ||||
| 55970-47010C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 55973A - DUCT, SIDE DEFROSTER NOZZLE, NO.3 | ||||
| 55973-47060 |
ZVW52..CBU |
1 | ||
| 55974A - DUCT, SIDE DEFROSTER NOZZLE, NO.4 | ||||
| 55974-47020 |
ZVW52..CBU |
1 | ||
| 55980B - NOZZLE ASSY, SIDE DEFROSTER, LH | ||||
| 55980-47010C0 |
ZVW52..CBU BLACK,TRIM1#,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-47110 |
ZVW52..CBU |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90119-06951 | ||||
| 90119-08C96 | ||||
| 90119-08D16 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 91673-80820 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4701 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
