ZVW52-AHXHB (2016)
Toyota Prius Phv

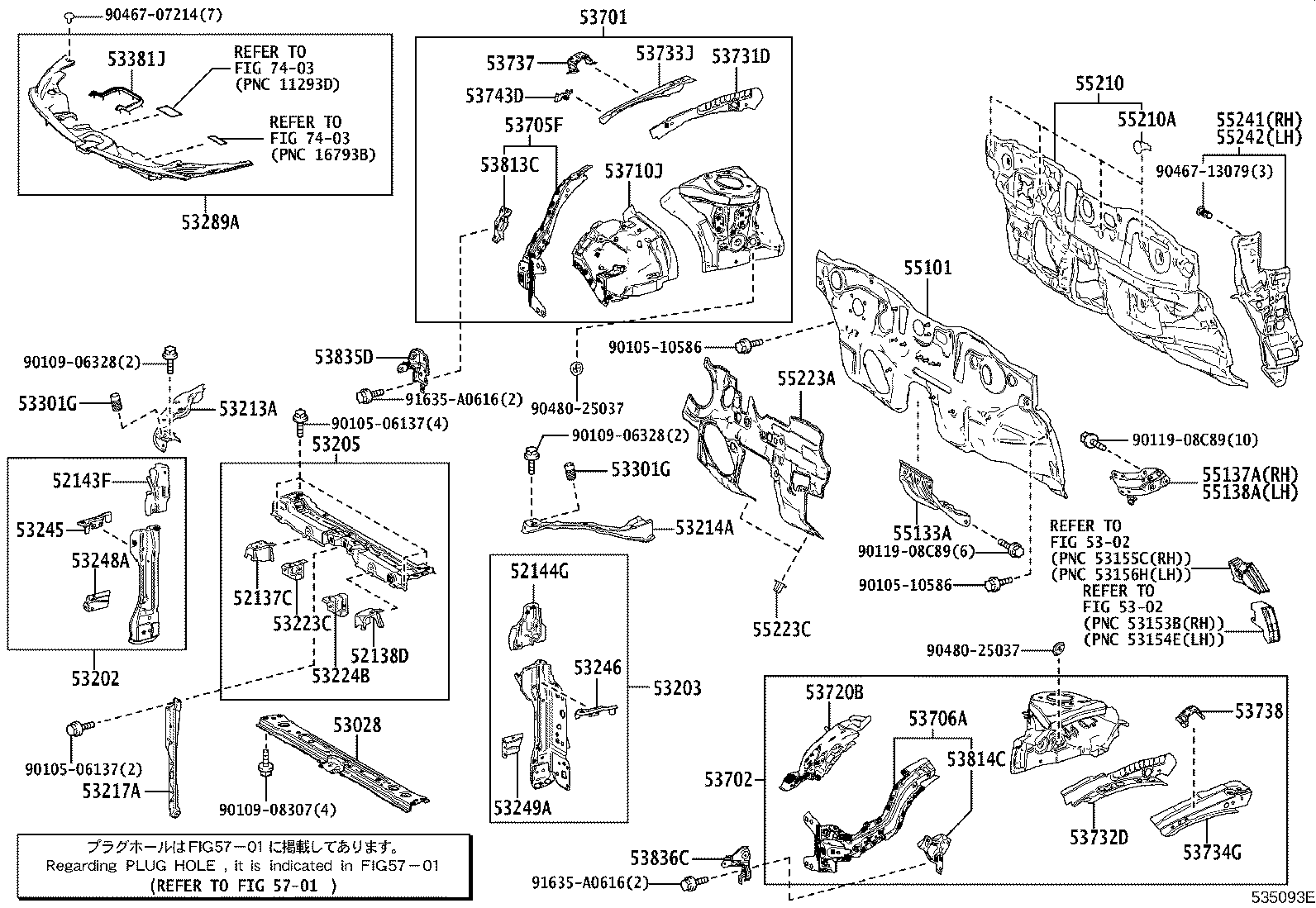

ILLUST NO. 2 OF 2(1609- )CBU
ﾗｼﾞｴｰﾀｻﾎﾟｰﾄ&ﾌｪﾝﾀﾞｴﾌﾟﾛﾝ&ﾀﾞｯｼｭﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52137C - BRACKET, FRONT BUMPER ARM MOUNTING, NO.3 | ||||
| 52137-47010 |
ZVW52..CBU |
1 | ||
| 52138D - BRACKET, FRONT BUMPER ARM MOUNTING, NO.4 | ||||
| 52138-47010 |
ZVW52..CBU |
1 | ||
| 52143F - BRACKET, FRONT BUMPER SIDE, RH | ||||
| 52143-47030 |
ZVW52..CBU |
1 | ||
| 52144G - BRACKET, FRONT BUMPER SIDE, LH | ||||
| 52144-47050 |
ZVW52..CBU |
1 | ||
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-12050 |
ZVW52..CBU |
1 | ||
| 53028-47010 |
ZVW52..CBU |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-47902 |
ZVW52..CBU |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-47902 |
ZVW52..CBU |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-47901 |
ZVW52..CBU |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-47050 |
ZVW52..CBU |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-47050 |
ZVW52..CBU |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-47041 |
ZVW52..CBU |
1 | ||
| 53217-47040 |
ZVW52..CBU |
1 | ||
| 53223C - BRACKET, RADIATOR GRILLE MOUNTING, RH | ||||
| 53223-47020 |
ZVW52..CBU |
1 | ||
| 53224B - BRACKET, RADIATOR GRILLE MOUNTING, LH | ||||
| 53224-47010 |
ZVW52..CBU |
1 | ||
| 53245 - BRACKET, HEADLAMP, RH | ||||
| 53245-47020 |
ZVW52..CBU |
1 | ||
| 53246 - BRACKET, HEADLAMP, LH | ||||
| 53246-47020 |
ZVW52..CBU |
1 | ||
| 53248A - BRACKET, RADIATOR SHUTTER, RH | ||||
| 53248-47010 |
ZVW52..CBU |
1 | ||
| 53249A - BRACKET, RADIATOR SHUTTER, LH | ||||
| 53249-47010 |
ZVW52..CBU |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-47060 |
ZVW52..CBU |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15037 |
ZVW52..CBU |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15037 |
ZVW52..CBU |
2 | ||
| 53381J - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-47060 |
ZVW52..CBU |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-47121 |
ZVW52..CBU |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-47111 |
ZVW52..CBU |
1 | ||
| 53705F - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-47901 |
ZVW52..CBU |
1 | ||
| 53706A - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-47901 |
ZVW52..CBU |
1 | ||
| 53710J - APRON ASSY, FRONT FENDER, RH | ||||
| 53710-47060 |
ZVW52..CBU |
1 | ||
| 53720B - APRON ASSY, FRONT FENDER, LH | ||||
| 53720-47070 |
ZVW52..CBU |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-47031 |
ZVW52..CBU |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-47020 |
ZVW52..CBU |
1 | ||
| 53733J - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH | ||||
| 53733-47020 |
ZVW52..CBU |
1 | ||
| 53734G - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH | ||||
| 53734-47020 |
ZVW52..CBU |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-47050 |
ZVW52..CBU |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-47050 |
ZVW52..CBU |
1 | ||
| 53743D - REINFORCEMENT, FRONT FENDER APRON FRONT EXTENSION, RH | ||||
| 53743-47020 |
ZVW52..CBU |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-47050 |
ZVW52..CBU |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-47030 |
ZVW52..CBU |
1 | ||
| 53835D - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53835-47060 |
ZVW52..CBU |
1 | ||
| 53836C - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53836-47060 |
ZVW52..CBU |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-47903 |
ZVW52..CBU |
1 | ||
| 55101-47905 |
ZVW52..CBU |
1 | ||
| 55133A - REINFORCEMENT, DASH TO FLOOR, RH | ||||
| 55133-47010 |
ZVW52..CBU |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-47040 |
ZVW52..CBU |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-47070 |
ZVW52..CBU |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-47230 |
ZVW52..CBU |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
ZVW52..CBU |
4 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-47100 |
ZVW52..CBU |
1 | ||
| 55223C - CLIP | ||||
| 90467-06197 |
ZVW52..CBU |
2 | ||
| 90467-06197 |
ZVW52..CBU |
2 | ||
| 55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH | ||||
| 55241-47010 |
ZVW52..CBU |
1 | ||
| 55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH | ||||
| 55242-47010 |
ZVW52..CBU |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90105-10586 | ||||
| 90109-06328 | ||||
| 90109-08307 | ||||
| 90119-08C89 | ||||
| 90467-07214 | ||||
| 90467-13079 | ||||
| 90480-25037 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 5701 | ||||
| 7403 | ||||

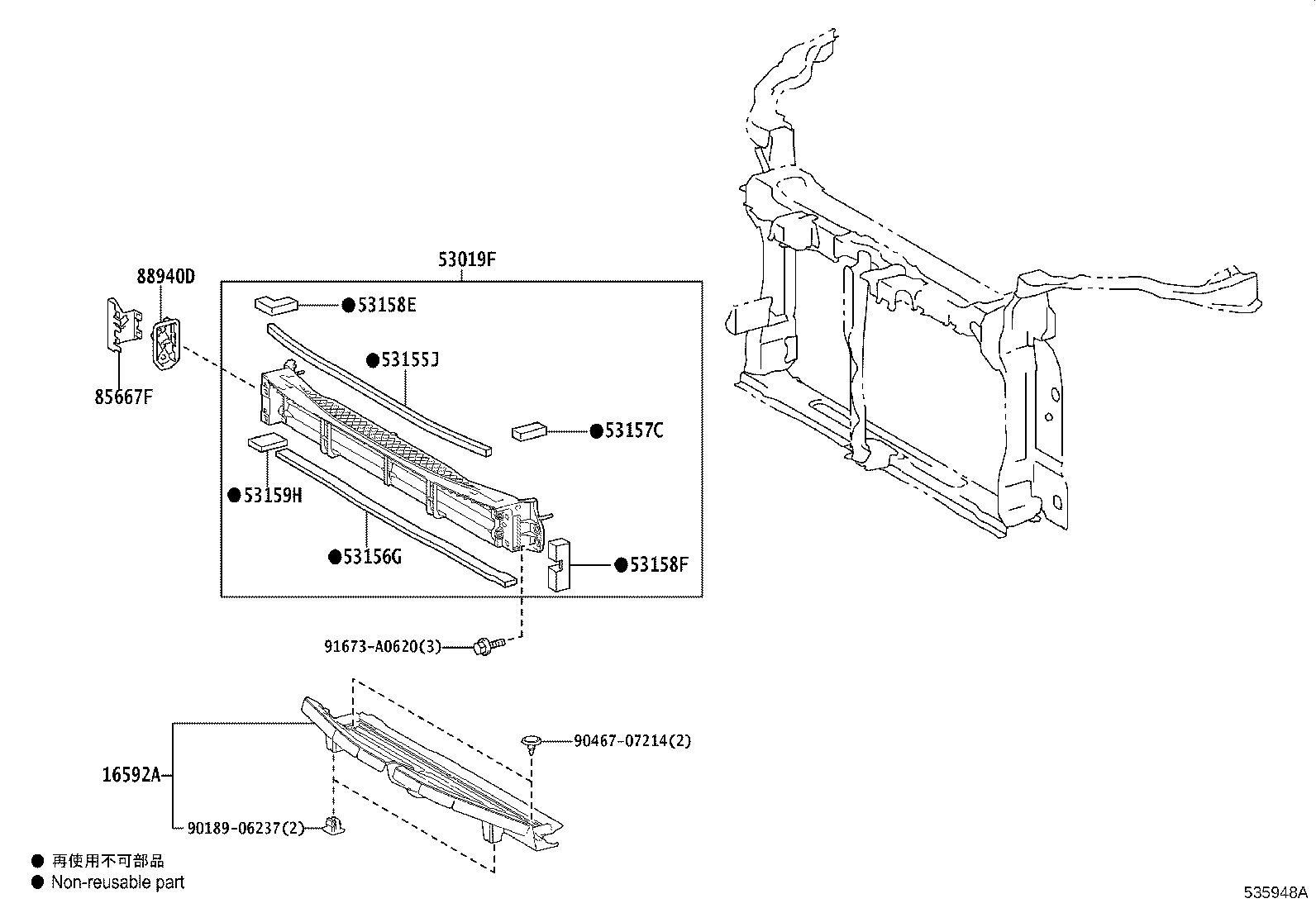

ILLUST NO. 1 OF 2(1609-1803)CBU
ｴｱｶﾞｲﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16592A - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-37020 |
2ZRFXE..ZVW52..CBU |
1 | ||
| 16592-37120 |
2ZRFXE..ZVW52..CBU |
1 | ||
| 53019F - SHUTTER SUB-ASSY, RADIATOR | ||||
| 53019-47020 |
ZVW52..CBU |
1 | ||
| 53155J - SEAL, RADIATOR GRILLE, NO.1 | ||||
| 53155-47030 |
ZVW52..CBU |
1 | ||
| 53156G - SEAL, RADIATOR GRILLE, NO.2 | ||||
| 53156-47010 |
ZVW52..CBU 長さ=800 |
1 | ||
| 53156-47030 |
ZVW52..CBU 長さ=775 |
1 | ||
| 53157C - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-47020 |
ZVW52..CBU |
1 | ||
| 53158E - SEAL, RADIATOR GRILLE, NO.4 | ||||
| 53158-47010 |
ZVW52..CBU |
1 | ||
| 53158F - SEAL, RADIATOR GRILLE, NO.4 | ||||
| 53158-47020 |
ZVW52..CBU |
1 | ||
| 53159H - SEAL, RADIATOR GRILLE, NO.5 | ||||
| 53159-47030 |
ZVW52..CBU |
1 | ||
| 85667F - COVER, MOTOR | ||||
| 85667-47010 |
ZVW52..CBU |
1 | ||
| 88940D - ACTUATOR ASSY, SWING GRILLE | ||||
| 88940-47040 |
ZVW52..CBU |
1 | ||
| Common parts | ||||
| 90189-06237 | ||||
| 90467-07214 | ||||
| 91673-A0620 | ||||

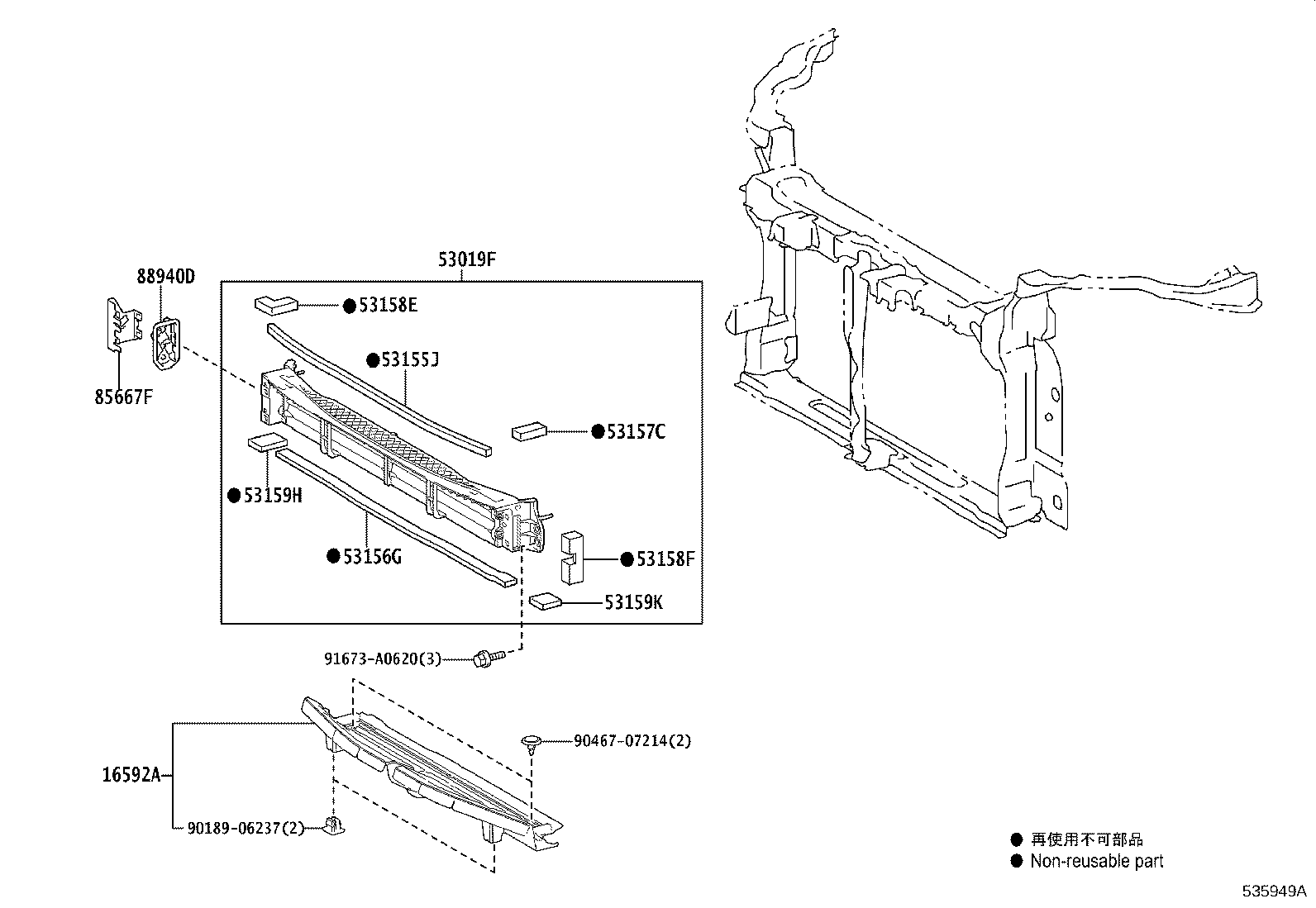

ILLUST NO. 1 OF 2(1803-1904)CBU
ｴｱｶﾞｲﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16592A - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-37020 |
2ZRFXE..ZVW52..CBU |
1 | ||
| 16592-37120 |
2ZRFXE..ZVW52..CBU |
1 | ||
| 53019F - SHUTTER SUB-ASSY, RADIATOR | ||||
| 53019-47020 |
ZVW52..CBU |
1 | ||
| 53155J - SEAL, RADIATOR GRILLE, NO.1 | ||||
| 53155-47030 |
ZVW52..CBU |
1 | ||
| 53156G - SEAL, RADIATOR GRILLE, NO.2 | ||||
| 53156-47010 |
ZVW52..CBU 長さ=800 |
1 | ||
| 53156-47030 |
ZVW52..CBU 長さ=775 |
1 | ||
| 53157C - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-47020 |
ZVW52..CBU |
1 | ||
| 53158E - SEAL, RADIATOR GRILLE, NO.4 | ||||
| 53158-47010 |
ZVW52..CBU |
1 | ||
| 53158F - SEAL, RADIATOR GRILLE, NO.4 | ||||
| 53158-47020 |
ZVW52..CBU |
1 | ||
| 53159H - SEAL, RADIATOR GRILLE, NO.5 | ||||
| 53159-47030 |
ZVW52..CBU |
1 | ||
| 53159K - SEAL, RADIATOR GRILLE, NO.5 | ||||
| 53159-47040 |
ZVW52..CBU |
1 | ||
| 85667F - COVER, MOTOR | ||||
| 85667-47010 |
ZVW52..CBU |
1 | ||
| 88940D - ACTUATOR ASSY, SWING GRILLE | ||||
| 88940-47040 |
ZVW52..CBU |
1 | ||
| Common parts | ||||
| 90189-06237 | ||||
| 90467-07214 | ||||
| 91673-A0620 | ||||
