ZVW52-AHXGB (2016)
Toyota Prius Phv
Production
Sep 2016
-
Apr 2019
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1609- )CBU
Click highlighted areas on diagram
ｺﾝﾃﾞﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121E - CONDENSER | ||||
| 90980-04206 |
ZVW52..CBU |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 863B0-47030 |
ZVW52..CBU |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
(1609-1904)CBU

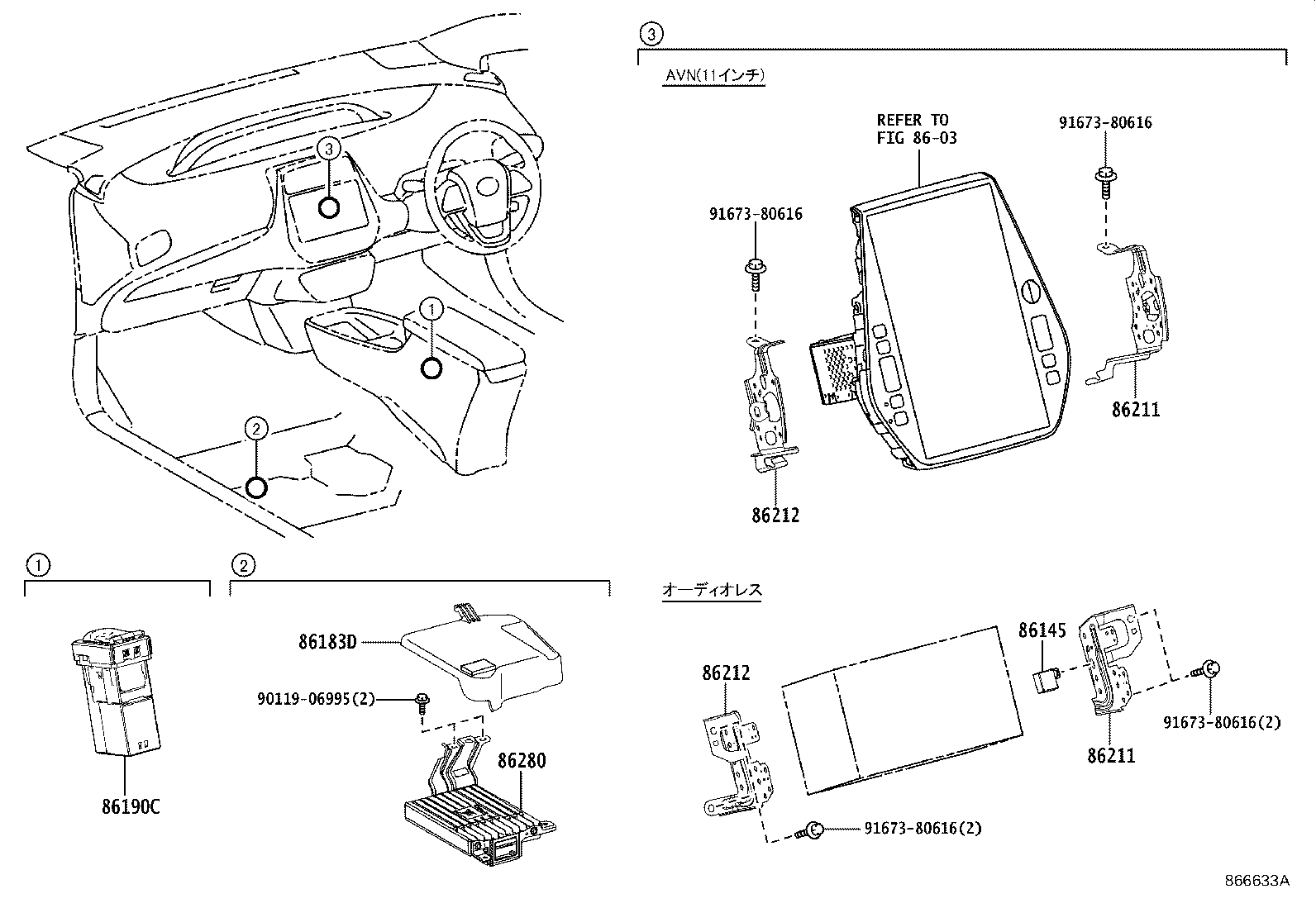

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86183D - COVER, AUDIO AMPLIFIER | ||||
| 86183-47120 |
ZVW52..A,PREM ｵｰﾃﾞｨｵ−11ｲﾝﾁ,AVN&Wi−Fi&*BT&USB&JBL |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-42040 |
ZVW52..A,PREM |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-47150 |
ZVW52..A,PREM |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-47150 |
ZVW52..A,PREM |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-47150 |
ZVW52..A,PREM |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-47150 |
ZVW52..A,PREM |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-47050 |
ZVW52..A,PREM ｵｰﾃﾞｨｵ−11ｲﾝﾁ,AVN&Wi−Fi&*BT&USB&JBL |
1 | ||
| 86280-47051 |
ZVW52..A,PREM ｵｰﾃﾞｨｵ−11ｲﾝﾁ,AVN&Wi−Fi&*BT&USB&JBL |
1 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8603 | ||||
