ZVW52-AHXGB (2016)

Toyota Prius Phv

Production Sep 2016 - Apr 2019
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

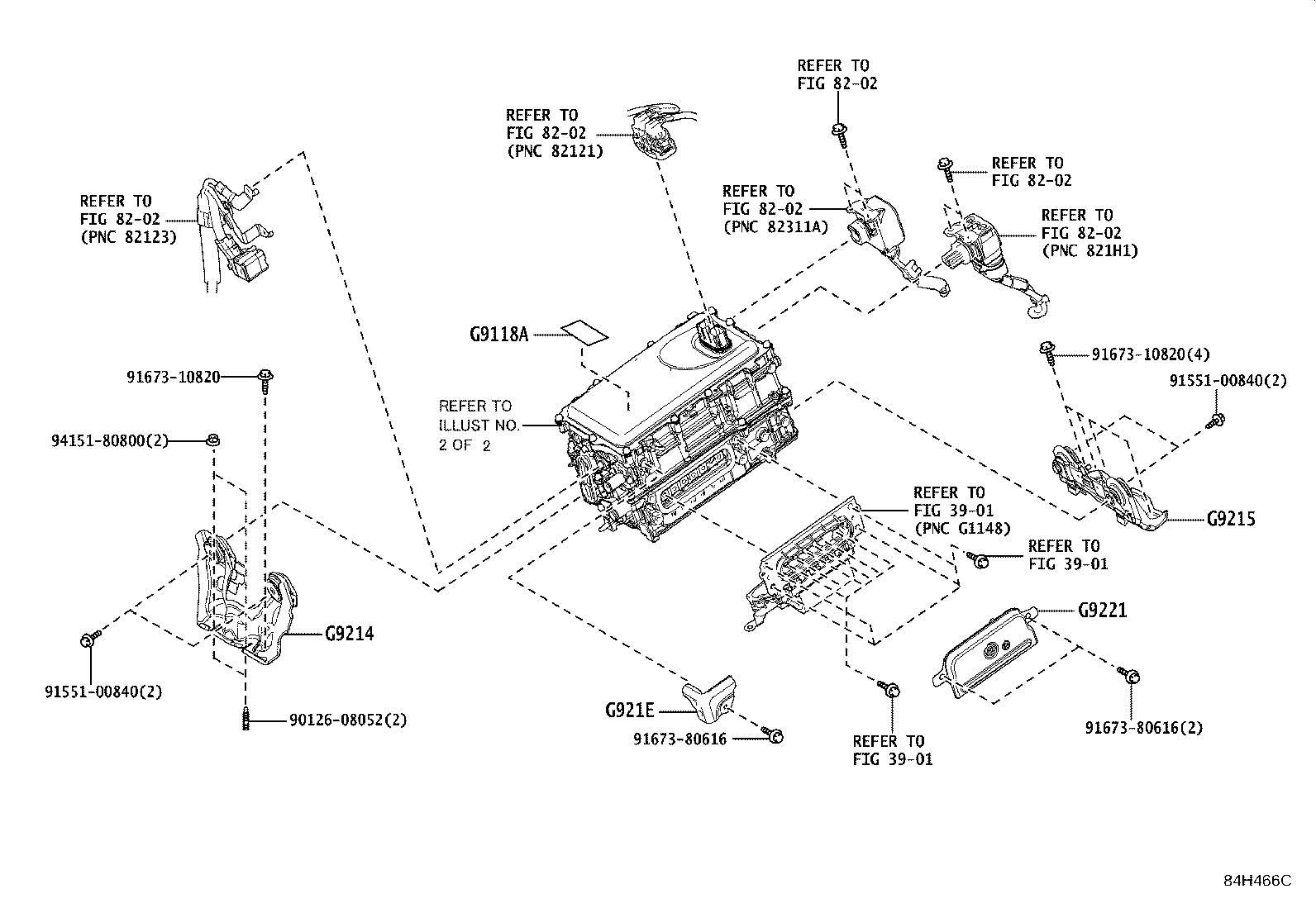

ILLUST NO. 1 OF 2(1609- )CBU

Click highlighted areas on diagram

ｲﾝﾊﾞｰﾀ ｼｭｳﾍﾝﾌﾞﾋﾝ

diagram 3901 3901 3901 8202 8202 8202 8202 8202 8202 9012608052 9155100840 9155100840 9167310820 9167310820 9167380616 9167380616 9415180800 G9118A G9214 G9215 G921E G9221
Part # Description Qty Price
G9214 - BRACKET, INVERTER, NO.1
G9214-47070

ZVW52..CBU

 1
G9215 - BRACKET, INVERTER, NO.2
G9215-47050

ZVW52..CBU

 1
G921E - PROTECTOR, INVERTER
G921E-47010

ZVW52..CBU

 1
G9221 - COVER, INVERTER
G9022-47050

ZVW52..CBU

 1
Common parts
90126-08052
91551-00840
91673-10820
91673-80616
94151-80800
Linked diagrams
3901
8202

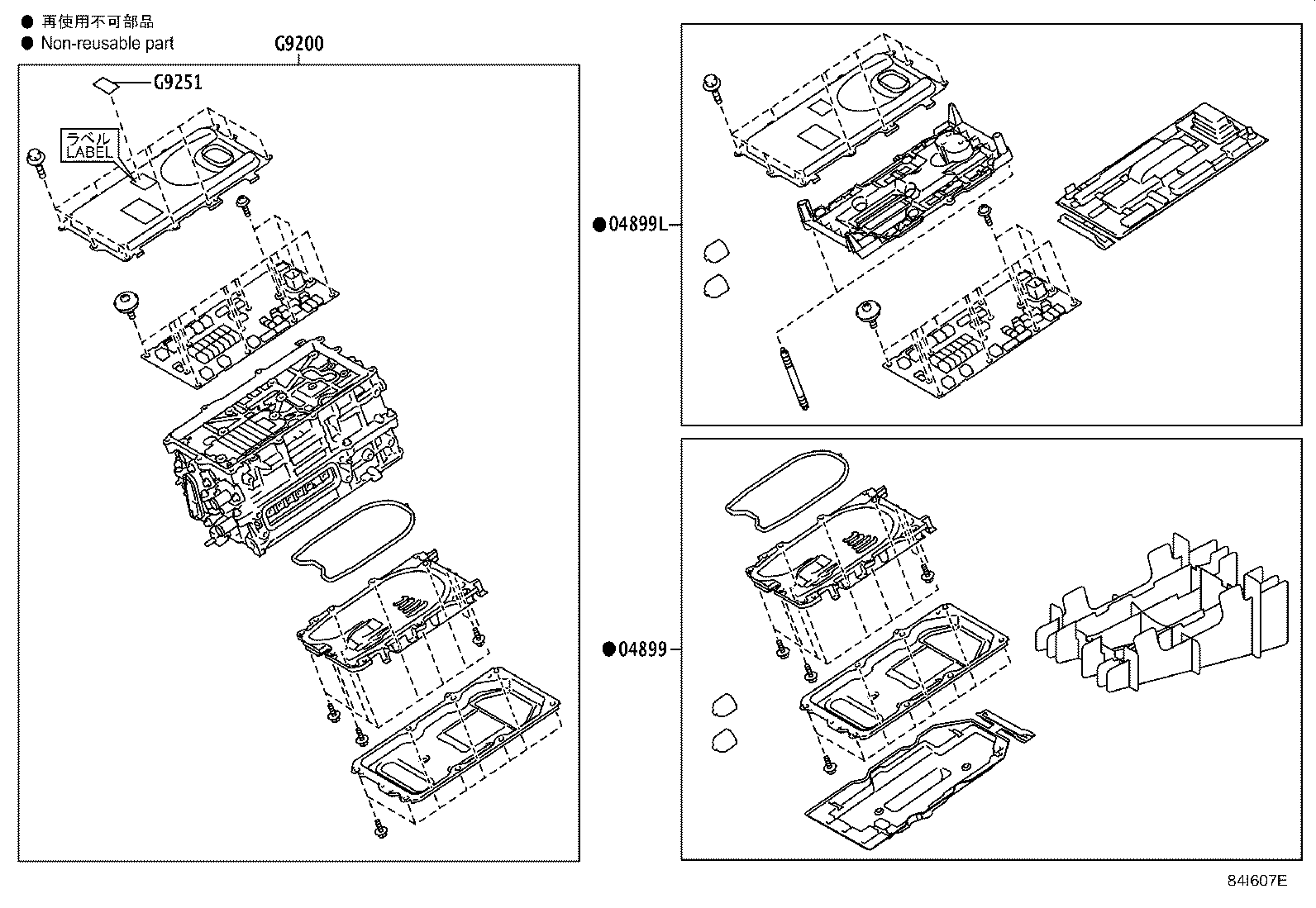

ILLUST NO. 2 OF 2(1609- )CBU

Click highlighted areas on diagram

ｲﾝﾊﾞｰﾀASSY

diagram 04899 04899L G9200 G9251
Part # Description Qty Price
04899 - CONVERTER KIT, HV
04899-47160

ZVW52..CBU

 1
04899L - COMPUTER KIT, MOTOR GENERATOR CONTROL
04899-47151

ZVW52..CBU

 1
04899-47150

ZVW52..CBU

 1
04899-47152

ZVW52..CBU

 1
G9200 - INVERTER ASSY, W/CONVERTER
G9200-49105

ZVW52..CBU

 1
G9200-49106

ZVW52..CBU

 1
G9200-49107

ZVW52..CBU

 1
