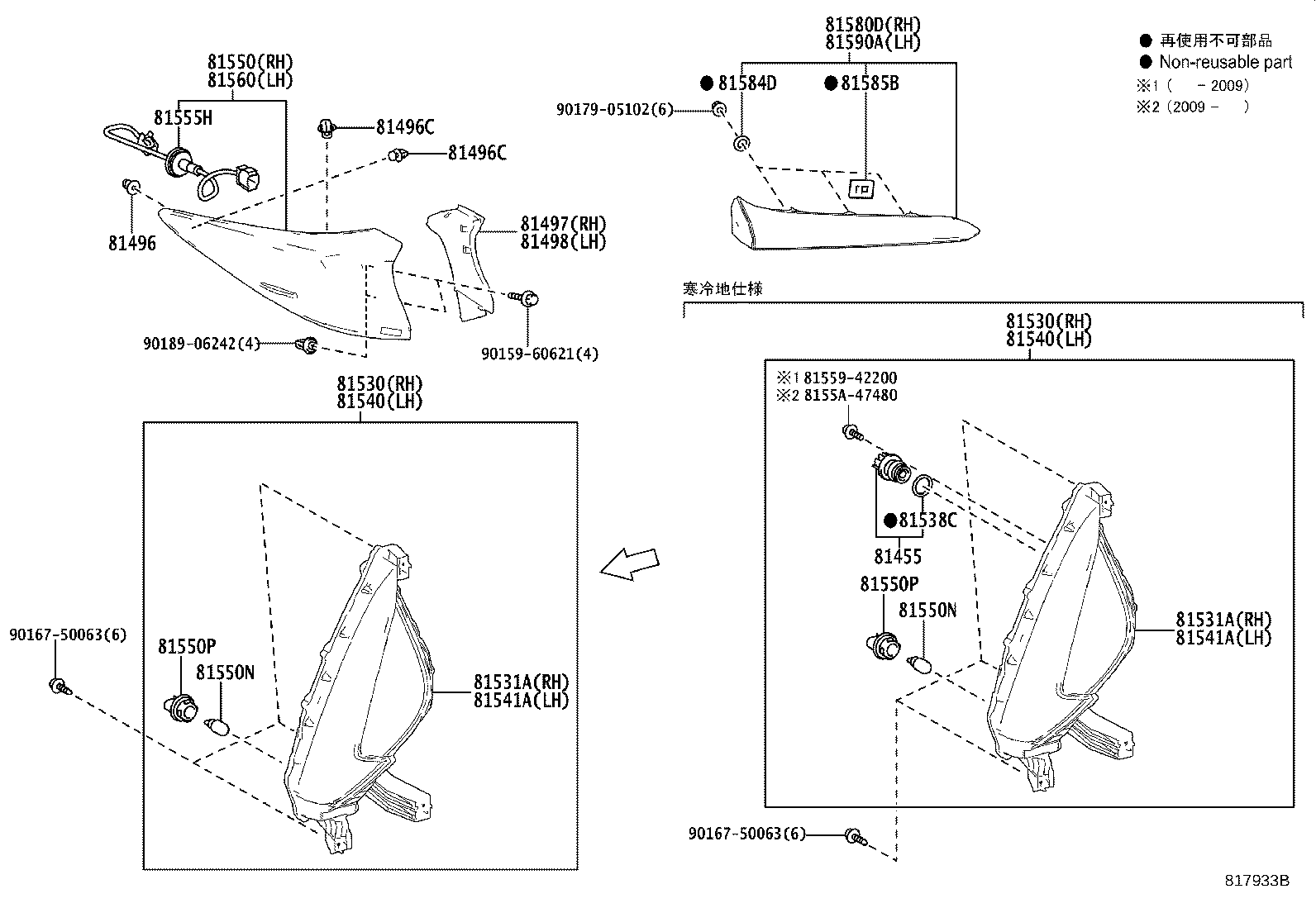

Toyota Prius phv ZVW52 REAR COMBINATION LAMP

Part #	Description	Period	Qty
81455 - LED, REAR FOG LAMP
81455-42060	ZVW52..CBU 寒冷地仕様	09/2016 - 04/2019	2
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020	ZVW52..CBU	09/2016 - 04/2019	2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-48010	ZVW52..CBU	09/2016 - 04/2019	4
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-48010	ZVW52..CBU	09/2016 - 04/2019	4
81497 - COVER, REAR COMBINATION LAMP, RH
81497-47030	ZVW52..CBU	09/2016 - 04/2019	1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-47030	ZVW52..CBU	09/2016 - 04/2019	1
81530 - LAMP ASSY, REAR TURN SIGNAL, RH
81530-47030	ZVW52..CBU 寒冷地仕様	09/2016 - 04/2019	1
81530-47020	ZVW52..CBU	09/2016 - 04/2019	1
81530-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”	10/2017 - 04/2019	1
81530-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”&寒冷地仕様	10/2017 - 04/2019	1
81530-47040	ZVW52..S..CBU “GR SPORT”&寒冷地仕様	10/2017 - 04/2019	1
81530-47040	ZVW52..S..CBU “GR SPORT”	10/2017 - 04/2019	1
81530 - LAMP ASSY, REAR TURN SIGNAL, RH
81530-47030	ZVW52..CBU 寒冷地仕様	09/2016 - 04/2019	1
81530-47020	ZVW52..CBU	09/2016 - 04/2019	1
81530-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”	10/2017 - 04/2019	1
81530-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”&寒冷地仕様	10/2017 - 04/2019	1
81530-47040	ZVW52..S..CBU “GR SPORT”&寒冷地仕様	10/2017 - 04/2019	1
81530-47040	ZVW52..S..CBU “GR SPORT”	10/2017 - 04/2019	1
81531A - LENS & BODY, REAR TURN SIGNAL LAMP, RH
81531-47040	ZVW52..S..CBU “GR SPORT”	10/2017 - 04/2019	1
81531-47040	ZVW52..S..CBU “GR SPORT”&寒冷地仕様	10/2017 - 04/2019	1
81531-47020	ZVW52..CBU	09/2016 - 04/2019	1
81531-47030	ZVW52..CBU 寒冷地仕様	09/2016 - 04/2019	1
81531-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”&寒冷地仕様	10/2017 - 04/2019	1
81531-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”	10/2017 - 04/2019	1
81531A - LENS & BODY, REAR TURN SIGNAL LAMP, RH
81531-47040	ZVW52..S..CBU “GR SPORT”	10/2017 - 04/2019	1
81531-47040	ZVW52..S..CBU “GR SPORT”&寒冷地仕様	10/2017 - 04/2019	1
81531-47020	ZVW52..CBU	09/2016 - 04/2019	1
81531-47030	ZVW52..CBU 寒冷地仕様	09/2016 - 04/2019	1
81531-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”&寒冷地仕様	10/2017 - 04/2019	1
81531-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”	10/2017 - 04/2019	1
81538C - GASKET, REAR FOG LAMP
81538-42200	ZVW52..CBU 寒冷地仕様	09/2016 - 04/2019	2
81540 - LAMP ASSY, REAR TURN SIGNAL, LH
81540-47020	ZVW52..CBU	09/2016 - 04/2019	1
81540-47030	ZVW52..CBU 寒冷地仕様	09/2016 - 04/2019	1
81540-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”	10/2017 - 04/2019	1
81540-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”&寒冷地仕様	10/2017 - 04/2019	1
81540-47040	ZVW52..S..CBU “GR SPORT”	10/2017 - 04/2019	1
81540-47040	ZVW52..S..CBU “GR SPORT”&寒冷地仕様	10/2017 - 04/2019	1
81540 - LAMP ASSY, REAR TURN SIGNAL, LH
81540-47020	ZVW52..CBU	09/2016 - 04/2019	1
81540-47030	ZVW52..CBU 寒冷地仕様	09/2016 - 04/2019	1
81540-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”	10/2017 - 04/2019	1
81540-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”&寒冷地仕様	10/2017 - 04/2019	1
81540-47040	ZVW52..S..CBU “GR SPORT”	10/2017 - 04/2019	1
81540-47040	ZVW52..S..CBU “GR SPORT”&寒冷地仕様	10/2017 - 04/2019	1
81541A - LENS & BODY, REAR TURN SIGNAL LAMP, LH
81541-47040	ZVW52..S..CBU “GR SPORT”	10/2017 - 04/2019	1
81541-47030	ZVW52..CBU 寒冷地仕様	09/2016 - 04/2019	1
81541-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”&寒冷地仕様	10/2017 - 04/2019	1
81541-47040	ZVW52..S..CBU “GR SPORT”&寒冷地仕様	10/2017 - 04/2019	1
81541-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”	10/2017 - 04/2019	1
81541-47020	ZVW52..CBU	09/2016 - 04/2019	1
81541A - LENS & BODY, REAR TURN SIGNAL LAMP, LH
81541-47040	ZVW52..S..CBU “GR SPORT”	10/2017 - 04/2019	1
81541-47030	ZVW52..CBU 寒冷地仕様	09/2016 - 04/2019	1
81541-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”&寒冷地仕様	10/2017 - 04/2019	1
81541-47040	ZVW52..S..CBU “GR SPORT”&寒冷地仕様	10/2017 - 04/2019	1
81541-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”	10/2017 - 04/2019	1
81541-47020	ZVW52..CBU	09/2016 - 04/2019	1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-47330	ZVW52..CBU	09/2016 - 04/2019	1
81550-47440	ZVW52..S..CBU “GR SPORT”	10/2017 - 04/2019	1
81550-47440	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”	10/2017 - 04/2019	1
81550N - BULB, BACK UP LAMP
90981-11059	ZVW52..CBU 12V 16W	09/2016 - 04/2019	2
81550N - BULB, BACK UP LAMP
90981-11059	ZVW52..CBU 12V 16W	09/2016 - 04/2019	2
81550P - SOCKET, BACK UP LAMP
81615-12590	ZVW52..CBU	09/2016 - 04/2019	2
81550P - SOCKET, BACK UP LAMP
81615-12590	ZVW52..CBU	09/2016 - 04/2019	2
81555H - SOCKET & WIRE, REAR COMBINATION LAMP
81555-47330	ZVW52..CBU	09/2016 - 04/2019	2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-47320	ZVW52..CBU	09/2016 - 04/2019	1
81560-47440	ZVW52..S..CBU “GR SPORT”	10/2017 - 04/2019	1
81560-47440	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”	10/2017 - 04/2019	1
81580D - LAMP ASSY, REAR, RH
81580-47030	ZVW52..CBU	09/2016 - 04/2019	1
81580-47040	ZVW52..S..CBU “GR SPORT”	10/2017 - 04/2019	1
81580-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”	10/2017 - 04/2019	1
81584D - GASKET, REAR LAMP
81584-47030	ZVW52..CBU	09/2016 - 04/2019	6
81585B - PACKING, REAR CONBINATION
81582-47030	ZVW52..CBU	09/2016 - 04/2019	2
81590A - LAMP ASSY, REAR, LH
81590-47030	ZVW52..CBU	09/2016 - 04/2019	1
81590-47040	ZVW52..S..CBU “GR SPORT”	10/2017 - 04/2019	1
81590-47040	ZVW52..S..CBU “ﾅﾋﾞﾊﾟｯｹｰｼﾞ･GR SPORT”	10/2017 - 04/2019	1
Common parts
81559-42200
8155A-47480
90159-60621
90167-50063
90179-05102
90189-06242

ZVW52-AHXEB (2016)

(1609- )CBU
