ZVW52-AHXEB (2016)
Toyota Prius Phv
Production
Sep 2016
-
Apr 2019
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1609- )CBU

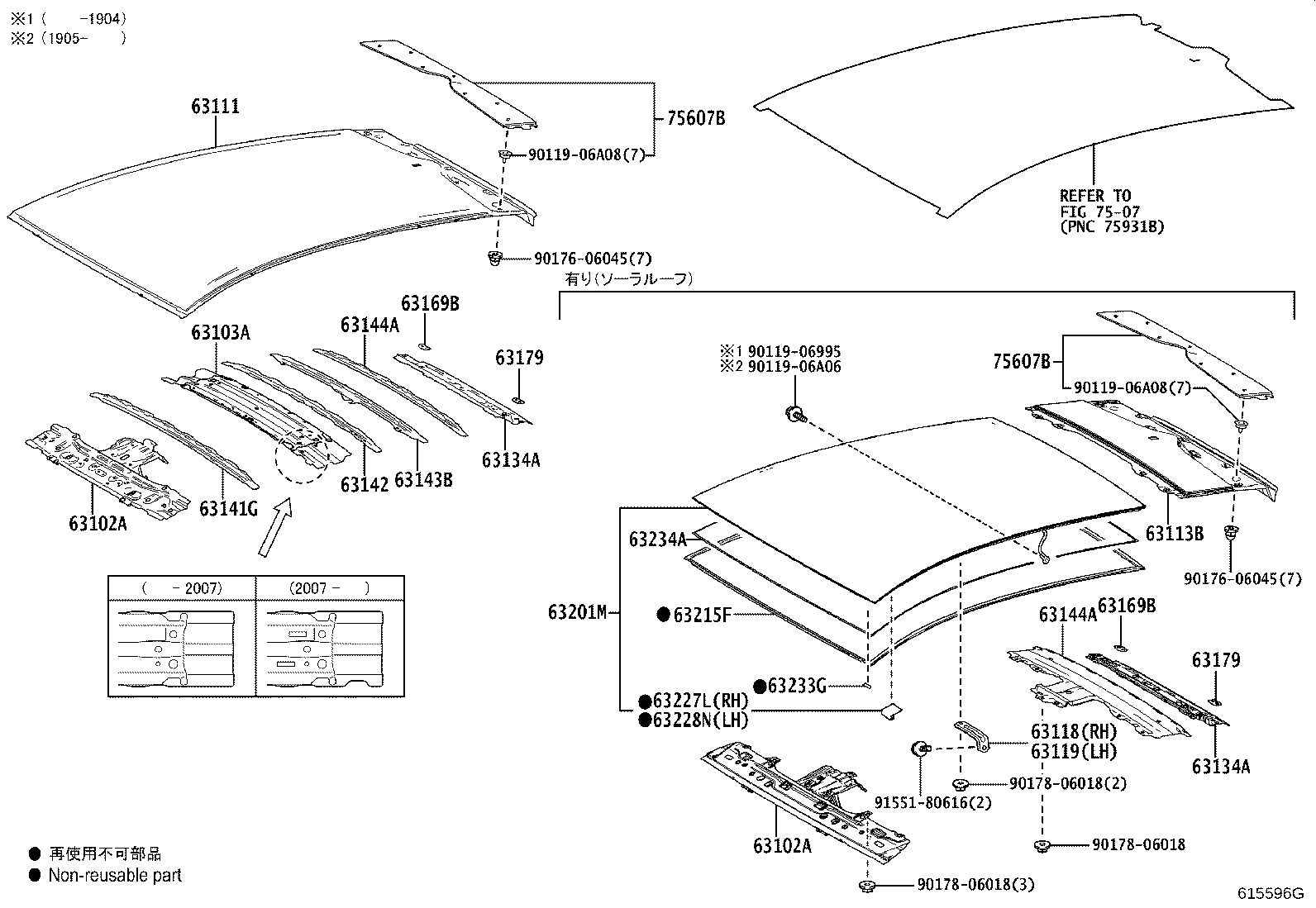

Click highlighted areas on diagram
ﾙｰﾌﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-47904 |
ZVW52..S..CBU ｿｰﾗﾙｰﾌ−有り |
1 | ||
| 63102-47902 |
ZVW52..CBU |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-47904 |
ZVW52..S..CBU ｿｰﾗﾙｰﾌ−有り |
1 | ||
| 63102-47902 |
ZVW52..CBU |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-47040 |
ZVW52..CBU |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-47060 |
ZVW52..CBU |
1 | ||
| 63113B - PANEL, ROOF, REAR | ||||
| 63113-47020 |
ZVW52..S..CBU ｿｰﾗﾙｰﾌ−有り |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-47020 |
ZVW52..S..CBU ｿｰﾗﾙｰﾌ−有り |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-47020 |
ZVW52..S..CBU ｿｰﾗﾙｰﾌ−有り |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-47040 |
ZVW52..CBU |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-47040 |
ZVW52..CBU |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63142-47040 |
ZVW52..CBU |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63143-47050 |
ZVW52..CBU |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63144-47050 |
ZVW52..CBU |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63142-47060 |
ZVW52..S..CBU ｿｰﾗﾙｰﾌ−有り |
1 | ||
| 63177-47010 |
ZVW52..CBU |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63142-47060 |
ZVW52..S..CBU ｿｰﾗﾙｰﾌ−有り |
1 | ||
| 63177-47010 |
ZVW52..CBU |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-47010 |
ZVW52..CBU |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-47010 |
ZVW52..CBU |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-47010 |
ZVW52..CBU |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-47010 |
ZVW52..CBU |
1 | ||
| 63201M - GLASS SUB-ASSY, ROOF WINDOW, NO.1 | ||||
| 63202-47070 |
ZVW52..S..CBU ｿｰﾗﾙｰﾌ−有り |
1 | ||
| 63215F - MOULDING, ROOF WINDOW, UPPER | ||||
| 63215-47020 |
ZVW52..S..CBU ｿｰﾗﾙｰﾌ−有り |
1 | ||
| 63227L - CLIP, ROOF WINDOW | ||||
| 63227-47030 |
ZVW52..S..CBU ｿｰﾗﾙｰﾌ−有り |
1 | ||
| 63228N - CLIP, ROOF WINDOW, SIDE | ||||
| 63228-47030 |
ZVW52..S..CBU ｿｰﾗﾙｰﾌ−有り |
1 | ||
| 63233G - PROTECTOR, ROOF WINDOW MOULDING, LOWER | ||||
| 63233-47040 |
ZVW52..S..CBU ｿｰﾗﾙｰﾌ−有り |
2 | ||
| 63234A - SEAL, ROOF WINDOW, NO.1 | ||||
| 63234-47010 |
ZVW52..S..CBU ｿｰﾗﾙｰﾌ−有り |
1 | ||
| 75607B - MOULDING SUB-ASSY, ROOF TOP | ||||
| 75607-47010 |
ZVW52..CBU |
1 | ||
| 75607B - MOULDING SUB-ASSY, ROOF TOP | ||||
| 75607-47010 |
ZVW52..CBU |
1 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 90119-06A06 | ||||
| 90119-06A08 | ||||
| 90176-06045 | ||||
| 90178-06018 | ||||
| 91551-80616 | ||||
| Linked diagrams | ||||
| 7507 | ||||
