Toyota Prius phv ZVW52 INTERIOR LAMP

ZVW52-AHXEB (2019)

Toyota Prius Phv

Production May 2019 - Sep 9999

Engine 2ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1905- )CBU

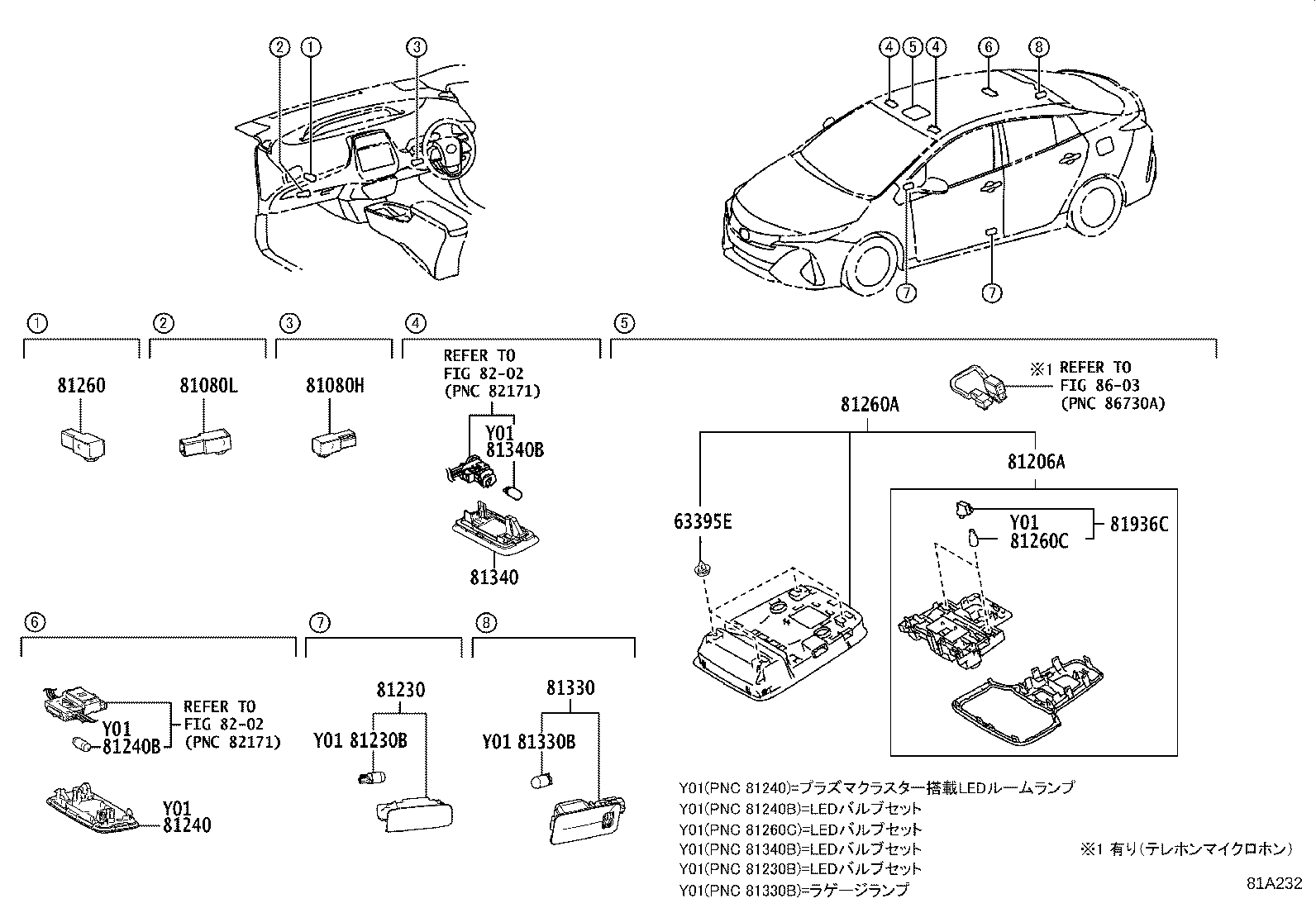

Click highlighted areas on diagram

ｱﾘ(ﾃﾚﾏﾃｨｸｽ)

Part #	Description	Period	Qty
63395E - CLIP(FOR MAP LAMP)
90467-09245	ZVW52..CBU	07/2019 - 12/2999	4
90467-09240	ZVW52..CBU	05/2019 - 06/2019	4
81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080-33290	ZVW52..S..CBU JAPAN ﾅﾋﾞﾊﾟｯｹｰｼﾞ	05/2019 - 07/2020	1
81080-33290	ZVW52..A,PREM	05/2019 - 12/2999	1
81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080-33290	ZVW52..S..CBU JAPAN ﾅﾋﾞﾊﾟｯｹｰｼﾞ	05/2019 - 07/2020	1
81080-33290	ZVW52..A,PREM	05/2019 - 12/2999	1
81206A - LAMP SUB-ASSY, CONSOLE BOX
81206-47020B0	ZVW52..CBU COOL GRAY,TRIM2#,有り(ﾏｲｸ)	05/2019 - 12/2999	1
81206-47010B0	ZVW52..CBU COOL GRAY,TRIM2#,無し(ﾏｲｸ)	05/2019 - 12/2999	1
81230 - LAMP ASSY, COURTESY
81230-30200	ZVW52..CBU	05/2019 - 12/2999	2
81230B - BULB(FOR COURTESY LAMP)
90981-12010	ZVW52..CBU 12V 5W	05/2019 - 12/2999	2
81240 - LAMP ASSY, ROOM, NO.1
81240-47010B0	ZVW52..CBU COOL GRAY,TRIM1#,2#	05/2019 - 12/2999	1
81240B - BULB, ROOM LAMP, NO.1
90981-14011	ZVW52..CBU 12V 8W	05/2019 - 12/2999	1
81260 - LAMP ASSY, GLOVE BOX
81080-33290	ZVW52..CBU	05/2019 - 12/2999	1
81260A - LAMP ASSY, MAP
81208-47330B0	ZVW52..CBU COOL GRAY,TRIM1#,2#	05/2019 - 06/2021	1
81260C - BULB(FOR MAP LAMP)
99132-12050	ZVW52..CBU 12V 5W	05/2019 - 12/2999	1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-58010	ZVW52..CBU	05/2019 - 12/2999	1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050	ZVW52..CBU 12V 5W	05/2019 - 12/2999	1
81340 - LAMP ASSY, VANITY
81340-30110	ZVW52..CBU	05/2019 - 12/2999	2
81340B - BULB (FOR VANITY LAMP)
90981-11062	ZVW52..CBU 12V 8W	05/2019 - 12/2999	2
81936C - BULB ASSY
81936-12160	ZVW52..CBU	05/2019 - 12/2999	2
Linked diagrams
8202
8603

(1905- )CBU

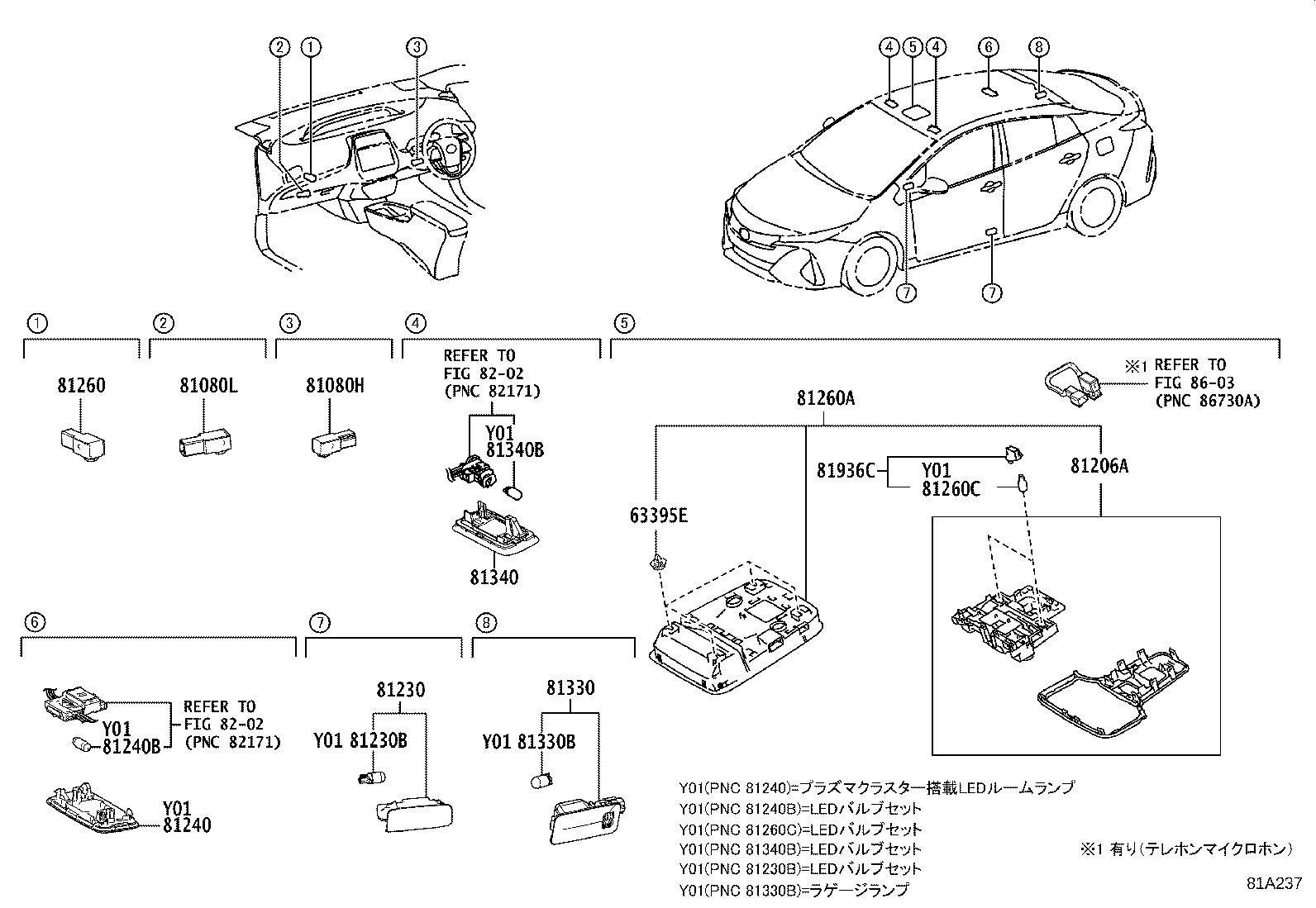

Click highlighted areas on diagram

Part #	Description	Period	Qty
63395E - CLIP(FOR MAP LAMP)
90467-09245	ZVW52..CBU	07/2019 - 12/2999	4
90467-09240	ZVW52..CBU	05/2019 - 06/2019	4
81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080-33290	ZVW52..S..CBU JAPAN ﾅﾋﾞﾊﾟｯｹｰｼﾞ	05/2019 - 07/2020	1
81080-33290	ZVW52..A,PREM	05/2019 - 12/2999	1
81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080-33290	ZVW52..S..CBU JAPAN ﾅﾋﾞﾊﾟｯｹｰｼﾞ	05/2019 - 07/2020	1
81080-33290	ZVW52..A,PREM	05/2019 - 12/2999	1
81206A - LAMP SUB-ASSY, CONSOLE BOX
81206-47020B0	ZVW52..CBU COOL GRAY,TRIM2#,有り(ﾏｲｸ)	05/2019 - 12/2999	1
81206-47010B0	ZVW52..CBU COOL GRAY,TRIM2#,無し(ﾏｲｸ)	05/2019 - 12/2999	1
81230 - LAMP ASSY, COURTESY
81230-30200	ZVW52..CBU	05/2019 - 12/2999	2
81230B - BULB(FOR COURTESY LAMP)
90981-12010	ZVW52..CBU 12V 5W	05/2019 - 12/2999	2
81240 - LAMP ASSY, ROOM, NO.1
81240-47010B0	ZVW52..CBU COOL GRAY,TRIM1#,2#	05/2019 - 12/2999	1
81240B - BULB, ROOM LAMP, NO.1
90981-14011	ZVW52..CBU 12V 8W	05/2019 - 12/2999	1
81260 - LAMP ASSY, GLOVE BOX
81080-33290	ZVW52..CBU	05/2019 - 12/2999	1
81260A - LAMP ASSY, MAP
81208-47330B0	ZVW52..CBU COOL GRAY,TRIM1#,2#	05/2019 - 06/2021	1
81260C - BULB(FOR MAP LAMP)
99132-12050	ZVW52..CBU 12V 5W	05/2019 - 12/2999	1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-58010	ZVW52..CBU	05/2019 - 12/2999	1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050	ZVW52..CBU 12V 5W	05/2019 - 12/2999	1
81340 - LAMP ASSY, VANITY
81340-30110	ZVW52..CBU	05/2019 - 12/2999	2
81340B - BULB (FOR VANITY LAMP)
90981-11062	ZVW52..CBU 12V 8W	05/2019 - 12/2999	2
81936C - BULB ASSY
81936-12160	ZVW52..CBU	05/2019 - 12/2999	2
Linked diagrams
8202
8603
