ZVW41W-AXXEB (2011)

Toyota Prius A(Alpha)

Production Apr 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1104-1411)

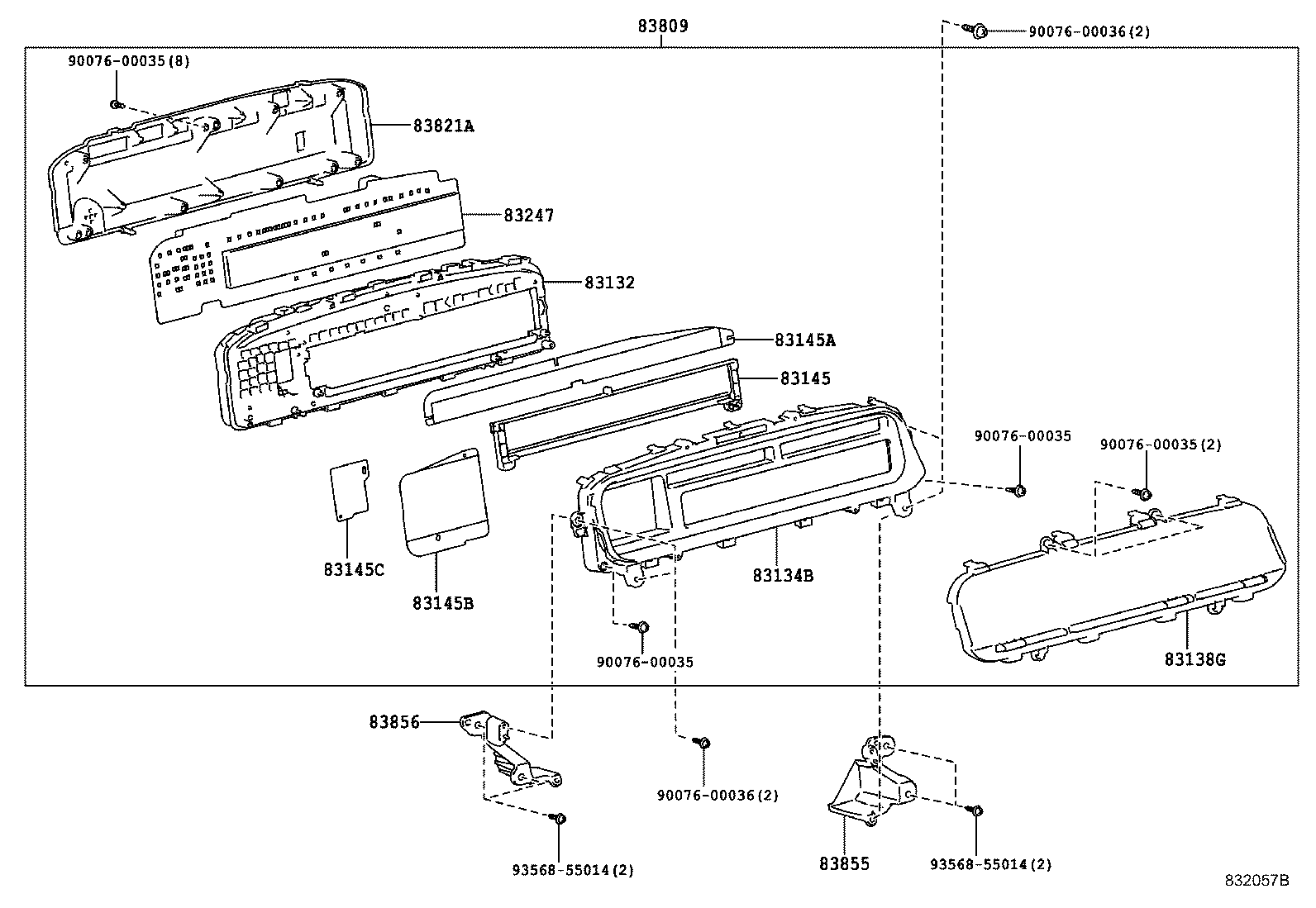

Click highlighted areas on diagram

diagram 83132 83134B 83138G 83145 83145A 83145B 83145C 83247 83809 83821A 83855 83856 9007600035 9007600035 9007600035 9007600035 9007600036 9007600036 9356855014 9356855014
Part # Description Qty Price
83132 - CASE, COMBINATION METER
83841-47580

ZVW4#..CBU

 1
83134B - COVER, COMBINATION METER, NO.2
83822-47580

ZVW4#..CBU

 1
83138G - GLASS, COMBINATION METER
83852-47580

ZVW4#..CBU

 1
83145 - LENS, METER, NO.1
83831-47580

ZVW4#..CBU

 1
83145A - LENS, METER, NO.2
83832-47580

ZVW4#..CBU

 1
83145B - LENS, METER, NO.3
83833-47580

ZVW4#..CBU

 1
83145C - LENS, METER, NO.4
83834-47580

ZVW4#..CBU

 1
83247 - PLATE, METER CIRCUIT
83861-47580

ZVW4#..CBU

 1
83861-47581

ZVW4#..CBU

 1
83809 - METER SUB-ASSY, COMBINATION
83809-47011

ZVW4#..CBU

YAZAKI

 1
83809-47010

ZVW4#..CBU

YAZAKI

 1
83821A - COVER, COMBINATION METER, NO.1
83821-47580

ZVW4#..CBU

 1
83855 - BRACKET, COMBINATION METER, NO.1
83855-47580

ZVW4#..CBU

 1
83856 - BRACKET, COMBINATION METER, NO.2
83856-47580

ZVW4#..CBU

 1
Common parts
90076-00035
90076-00036
93568-55014
