ZVW40W-AWXGB (2011)
Toyota Prius A(Alpha)
ILLUST NO. 2 OF 2(1104- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-47280B0 |
ZVW4#..CBU BLACK/GRAY,TRIM1# |
1 | ||
| 67610-47280G0 |
ZVW4#..CBU BLACK/AQUA,TRIM6# |
1 | ||
| 67610-47280B1 |
ZVW4#..CBU GRAY/BLACK,TRIM2# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZVW4#..CBU |
18 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZVW4#..CBU |
18 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZVW4#..CBU |
18 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-47260B0 |
ZVW4#..CBU BLACK/GRAY,TRIM1# |
1 | ||
| 67620-47260G0 |
ZVW4#..CBU BLACK/AQUA,TRIM6# |
1 | ||
| 67620-47260B1 |
ZVW4#..CBU GRAY/BLACK,TRIM2# |
1 | ||
| 67625 - BRACKET, FRONT DOOR TRIM, RH | ||||
| 67625-47030 |
ZVW4#..CBU |
1 | ||
| 67626 - BRACKET, FRONT DOOR TRIM, LH | ||||
| 67625-47030 |
ZVW4#..CBU |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-48010 |
ZVW4#..CBU |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-48010 |
ZVW4#..CBU |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-47050 |
ZVW4#..CBU |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-47050 |
ZVW4#..CBU |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90189-06018 | ||||
| 93568-55016 | ||||
| 93568-55018 | ||||
| Linked diagrams | ||||
| 7401 | ||||

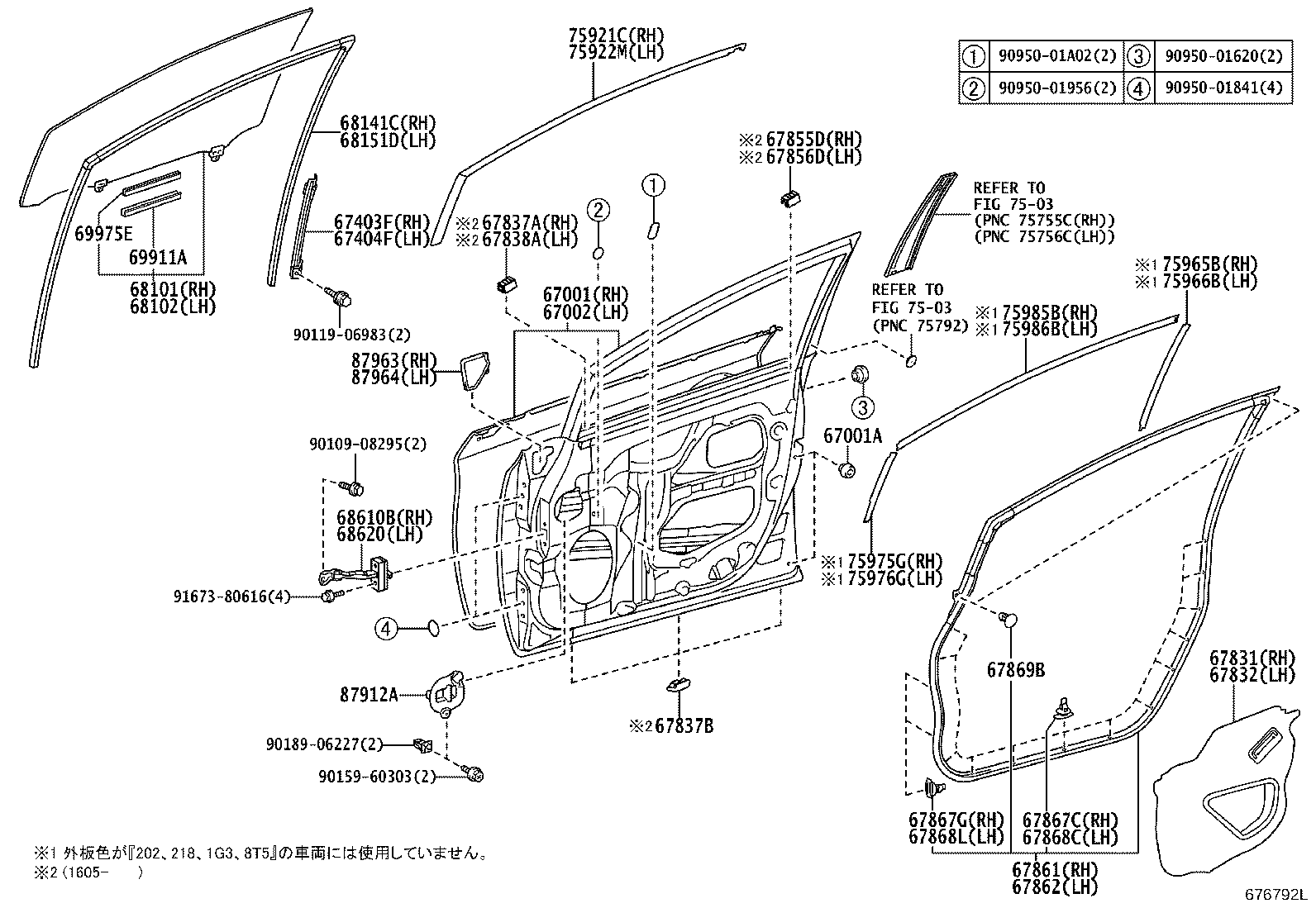

ILLUST NO. 1 OF 2(1104- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-47111 |
ZVW4#..CBU |
1 | ||
| 67001-47110 |
ZVW4#..CBU |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09138 |
ZVW4#..CBU |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-47110 |
ZVW4#..CBU |
1 | ||
| 67002-47111 |
ZVW4#..CBU |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-47040 |
ZVW4#..CBU |
1 | ||
| 67403-47041 |
ZVW4#..CBU |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-47040 |
ZVW4#..CBU |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-47110 |
ZVW4#..CBU |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-47090 |
ZVW4#..CBU |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-47040 |
ZVW4#..CBU |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-47040 |
ZVW4#..CBU |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZVW4#..CBU |
13 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52010 |
ZVW4#..CBU |
2 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZVW4#..CBU |
13 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52010 |
ZVW4#..CBU |
2 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 90467-06084 |
ZVW4#..CBU |
4 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-47110 |
ZVW4#..S..CBU |
1 | ||
| 68101-47120 |
ZVW4#..S..CBU 寒冷地仕様 |
1 | ||
| 68101-47120 |
ZVW4#..G |
1 | ||
| 68101-47120 |
ZVW4#..S..CBU “ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ” *(T) |
1 | ||
| 68101-47120 |
ZVW4#..S..CBU “ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ” *(T)&寒冷地仕様 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-47120 |
ZVW4#..S..CBU “ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ” *(T) |
1 | ||
| 68102-47120 |
ZVW4#..S..CBU 寒冷地仕様 |
1 | ||
| 68102-47120 |
ZVW4#..S..CBU “ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ” *(T)&寒冷地仕様 |
1 | ||
| 68102-47120 |
ZVW4#..G |
1 | ||
| 68102-47110 |
ZVW4#..S..CBU |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-47040 |
ZVW4#..CBU |
1 | ||
| 68141-47041 |
ZVW4#..CBU |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-47041 |
ZVW4#..CBU |
1 | ||
| 68151-47040 |
ZVW4#..CBU |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-47030 |
ZVW4#..CBU |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-47030 |
ZVW4#..S..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ) |
1 | ||
| 68620-47030 |
ZVW4#..S..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&手動車いす用収納装置) |
1 | ||
| 68610-47030 |
ZVW4#..CBU |
1 | ||
| 69911A - CHANNEL, FRONT DOOR GLASS, NO.1 | ||||
| 69955-47010 |
ZVW4#..CBU |
2 | ||
| 69975E - FILLER, FRONT DOOR GLASS CHANNEL, NO.1 | ||||
| 69975-47010 |
ZVW4#..CBU |
2 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-47030 |
ZVW4#..CBU |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-47030 |
ZVW4#..CBU |
1 | ||
| 75965B - STRIPE, FRONT DOOR NO.4 RH | ||||
| 75965-47020 |
ZVW4#..CBU ｲﾗｽﾄ参照 |
1 | ||
| 75966B - STRIPE, FRONT DOOR NO.4 LH | ||||
| 75966-47020 |
ZVW4#..CBU ｲﾗｽﾄ参照 |
1 | ||
| 75975G - STRIPE, FRONT DOOR, NO.2 RH | ||||
| 75975-47030 |
ZVW4#..CBU ｲﾗｽﾄ参照 |
1 | ||
| 75976G - STRIPE, FRONT DOOR, NO.2 LH | ||||
| 75976-47030 |
ZVW4#..CBU ｲﾗｽﾄ参照 |
1 | ||
| 75985B - STRIPE, FRONT DOOR, NO.3 RH | ||||
| 75985-47040 |
ZVW4#..CBU ｲﾗｽﾄ参照 |
1 | ||
| 75986B - STRIPE, FRONT DOOR, NO.3 LH | ||||
| 75986-47040 |
ZVW4#..CBU ｲﾗｽﾄ参照 |
1 | ||
| 87912A - PROTECTOR, OUTER MIRROR | ||||
| 87912-47040 |
ZVW4#..CBU 左側 |
1 | ||
| 87912-47030 |
ZVW4#..CBU 右側 |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-47020 |
ZVW4#..CBU |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-47020 |
ZVW4#..CBU |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7503 | ||||
