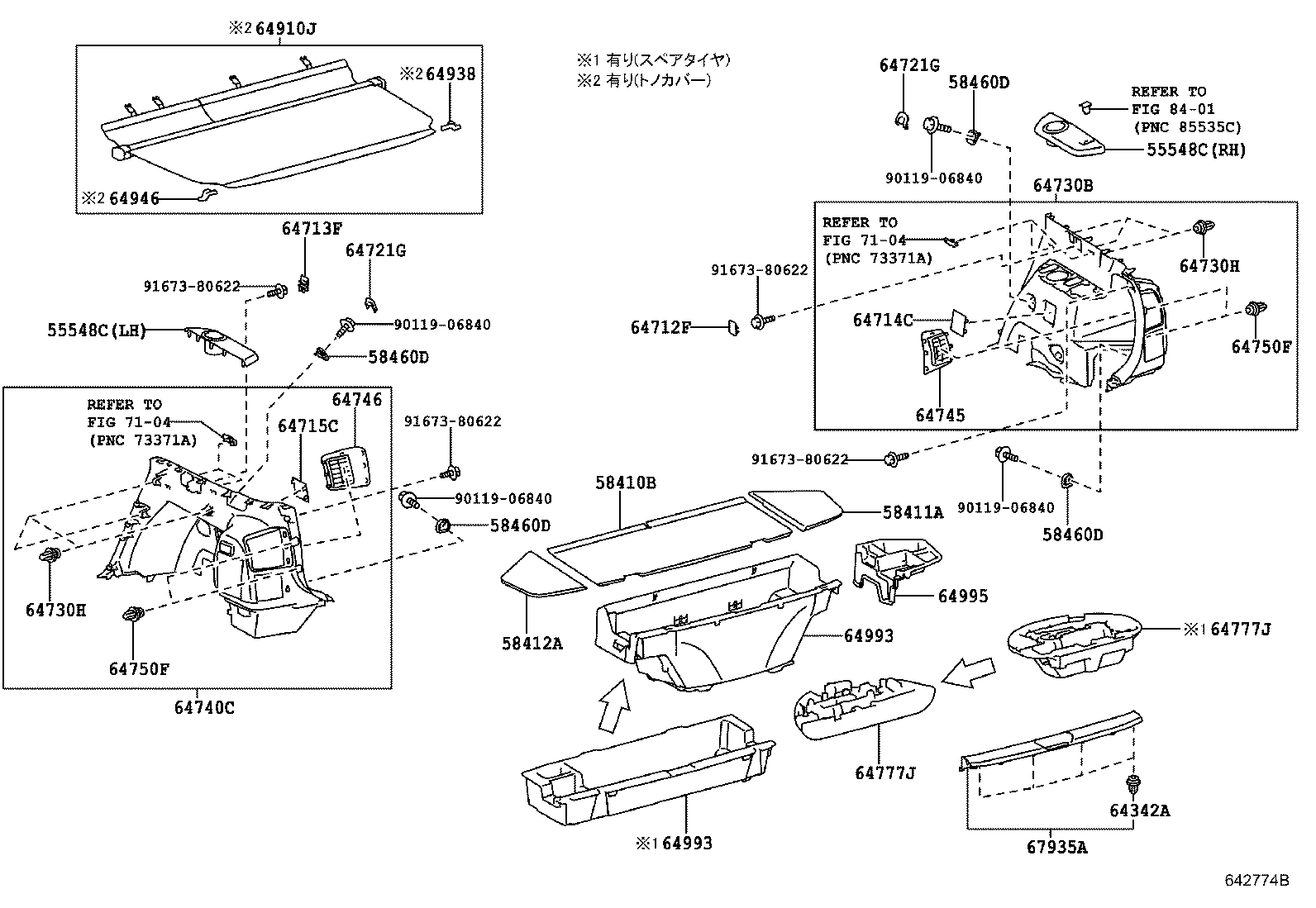

ZVW40W-AWXGB (2011)
Toyota Prius A(Alpha)
(1104- )ZVW40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55548C - HOLDER, CUP | ||||
| 66992-47010B0 |
ZVW40..CBU MD.GRAY,TRIM1#,2#,左側 |
1 | ||
| 66991-47010B0 |
ZVW40..CBU MD.GRAY,TRIM1#,2#,右側 |
1 | ||
| 66992-47010G0 |
ZVW40..CBU AQUA,TRIM6#,左側 |
1 | ||
| 66991-47010G0 |
ZVW40..CBU AQUA,TRIM6#,右側 |
1 | ||
| 55548C - HOLDER, CUP | ||||
| 66992-47010B0 |
ZVW40..CBU MD.GRAY,TRIM1#,2#,左側 |
1 | ||
| 66991-47010B0 |
ZVW40..CBU MD.GRAY,TRIM1#,2#,右側 |
1 | ||
| 66992-47010G0 |
ZVW40..CBU AQUA,TRIM6#,左側 |
1 | ||
| 66991-47010G0 |
ZVW40..CBU AQUA,TRIM6#,右側 |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-47011G2 |
ZVW40..CBU AQUA,TRIM6# |
1 | ||
| 58410-47010G2 |
ZVW40..CBU AQUA,TRIM6# |
1 | ||
| 58410-47011B1 |
ZVW40..CBU DARK GRAY,TRIM1#,2# |
1 | ||
| 58410-47010B1 |
ZVW40..CBU DARK GRAY,TRIM1#,2# |
1 | ||
| 58411A - BOARD, DECK, NO.1 | ||||
| 58411-47010G2 |
ZVW4#..CBU AQUA,TRIM6# |
1 | ||
| 58411-47010B1 |
ZVW4#..CBU DARK GRAY,TRIM1#,2# |
1 | ||
| 58412A - BOARD, DECK, NO.2 | ||||
| 58412-47010G2 |
ZVW4#..CBU AQUA,TRIM6# |
1 | ||
| 58412-47010B1 |
ZVW4#..CBU DARK GRAY,TRIM1#,2# |
1 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZVW4#..CBU |
4 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZVW4#..CBU |
4 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZVW4#..CBU |
4 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZVW4#..CBU |
4 | ||
| 64342A - CLIP | ||||
| 90467-10161 |
ZVW4#..CBU |
4 | ||
| 64712F - COVER, DECK SIDE TRIM, FRONT RH | ||||
| 64712-47010G0 |
ZVW4#..CBU AQUA,TRIM6# |
1 | ||
| 64712-47010B0 |
ZVW4#..CBU MD.GRAY,TRIM1#,2# |
1 | ||
| 64713F - COVER, DECK SIDE TRIM, FRONT LH | ||||
| 64712-47010B0 |
ZVW4#..CBU MD.GRAY,TRIM1#,2# |
1 | ||
| 64712-47010G0 |
ZVW4#..CBU AQUA,TRIM6# |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-47040B0 |
ZVW40..CBU MD.GRAY,TRIM1#,2# |
1 | ||
| 64714-47040G0 |
ZVW40..CBU AQUA,TRIM6# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-47040G0 |
ZVW40..CBU AQUA,TRIM6# |
1 | ||
| 64715-47040B0 |
ZVW40..CBU MD.GRAY,TRIM1#,2# |
1 | ||
| 64721G - COVER, DECK TRIM, NO.1 | ||||
| 64721-47020G0 |
ZVW40..CBU AQUA,TRIM6# |
2 | ||
| 64721-47020B0 |
ZVW40..CBU MD.GRAY,TRIM1#,2# |
2 | ||
| 64721G - COVER, DECK TRIM, NO.1 | ||||
| 64721-47020G0 |
ZVW40..CBU AQUA,TRIM6# |
2 | ||
| 64721-47020B0 |
ZVW40..CBU MD.GRAY,TRIM1#,2# |
2 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-47070G0 |
ZVW40..CBU AQUA,TRIM6# |
1 | ||
| 64730-47070B0 |
ZVW40..CBU MD.GRAY,TRIM1#,2# |
1 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-09236 |
ZVW4#..CBU |
6 | ||
| 90467-09240 |
ZVW4#..CBU |
6 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-09236 |
ZVW4#..CBU |
6 | ||
| 90467-09240 |
ZVW4#..CBU |
6 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-47080G0 |
ZVW40..CBU AQUA,TRIM6# |
1 | ||
| 64740-47080B0 |
ZVW40..CBU MD.GRAY,TRIM1#,2# |
1 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-47040G0 |
ZVW4#..CBU AQUA,TRIM6# |
1 | ||
| 64745-47040B0 |
ZVW4#..CBU MD.GRAY,TRIM1#,2# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-47030G0 |
ZVW4#..CBU AQUA,TRIM6# |
1 | ||
| 64746-47030B0 |
ZVW4#..CBU MD.GRAY,TRIM1#,2# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
ZVW4#..CBU |
4 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
ZVW4#..CBU |
4 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-47070 |
ZVW4#..CBU |
1 | ||
| 64777-47080 |
ZVW4#..CBU ｽﾍﾟｱﾀｲﾔ−応急用(T135/70D17) |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-47070 |
ZVW4#..CBU |
1 | ||
| 64777-47080 |
ZVW4#..CBU ｽﾍﾟｱﾀｲﾔ−応急用(T135/70D17) |
1 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-47031B0 |
ZVW4#..CBU ﾊﾟｯｹｰｼﾞﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−有り,LT.GRAY,TRIM1#,2#,6# |
1 | ||
| 64910-47030B0 |
ZVW4#..CBU ﾊﾟｯｹｰｼﾞﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−有り,LT.GRAY,TRIM1#,6# |
1 | ||
| 64938 - HOOK, TONNEAU COVER, A | ||||
| 64938-47040B0 |
ZVW4#..CBU ﾊﾟｯｹｰｼﾞﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−有り,LT.GRAY,TRIM1#,2#,6# |
1 | ||
| 64938-47040B0 |
ZVW4#..CBU ﾊﾟｯｹｰｼﾞﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−有り,LT.GRAY,TRIM1#,6# |
1 | ||
| 64946 - HOOK, TONNEAU COVER, B | ||||
| 64946-47040B0 |
ZVW4#..CBU ﾊﾟｯｹｰｼﾞﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−有り,LT.GRAY,TRIM1#,2#,6# |
1 | ||
| 64946-47040B0 |
ZVW4#..CBU ﾊﾟｯｹｰｼﾞﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−有り,LT.GRAY,TRIM1#,6# |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-47060 |
ZVW4#..CBU ｽﾍﾟｱﾀｲﾔ−応急用(T135/70D17) |
1 | ||
| 64993-47040 |
ZVW4#..CBU |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-47060 |
ZVW4#..CBU ｽﾍﾟｱﾀｲﾔ−応急用(T135/70D17) |
1 | ||
| 64993-47040 |
ZVW4#..CBU |
1 | ||
| 64995 - BOX, DECK FLOOR, RH | ||||
| 64995-47010 |
ZVW4#..CBU |
1 | ||
| 67935A - PLATE, BACK DOOR SCUFF | ||||
| 67935-47010B0 |
ZVW4#..CBU MD.GRAY,TRIM1#,2# |
1 | ||
| 67935-47010G0 |
ZVW4#..CBU AQUA,TRIM6# |
1 | ||
| Common parts | ||||
| 90119-06840 | ||||
| 91673-80622 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8401 | ||||
