ZVW40W-AWXGB (2011)
Toyota Prius A(Alpha)
Production
Apr 2011
-
Nov 2014
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

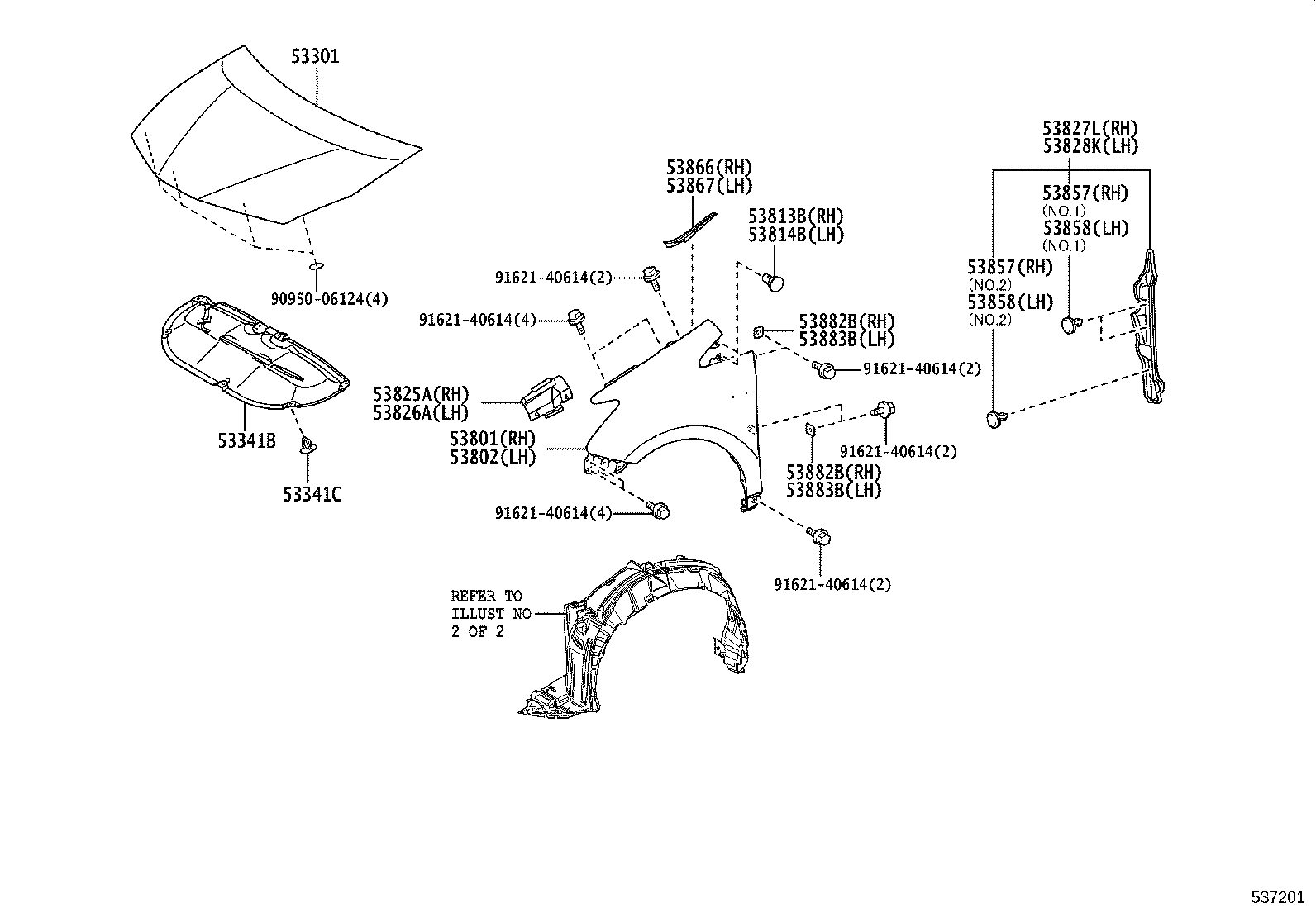

ILLUST NO. 1 OF 2(1104- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-47070 |
ZVW4#..CBU |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-47030 |
ZVW4#..CBU |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
ZVW4#..CBU |
5 | ||
| 90467-09050 |
ZVW4#..CBU |
6 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-47060 |
ZVW4#..CBU |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-47080 |
ZVW4#..CBU |
1 | ||
| 53813B - EXTENSION, FRONT FENDER, RH | ||||
| 53813-48011 |
ZVW4#..CBU |
2 | ||
| 53813-47040 |
ZVW4#..CBU |
2 | ||
| 53814B - EXTENSION, FRONT FENDER, LH | ||||
| 53813-47040 |
ZVW4#..CBU |
2 | ||
| 53813-48011 |
ZVW4#..CBU |
2 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-47020 |
ZVW4#..CBU |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-47030 |
ZVW4#..CBU |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-47040 |
ZVW4#..CBU |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-47051 |
ZVW4#..CBU |
1 | ||
| 53828-47050 |
ZVW4#..CBU |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
ZVW4#..CBU NO.2 |
1 | ||
| 53857-47020 |
ZVW4#..CBU NO.1 |
2 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
ZVW4#..CBU NO.2 |
1 | ||
| 53857-47020 |
ZVW4#..CBU NO.1 |
2 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
ZVW4#..CBU NO.2 |
1 | ||
| 53857-47020 |
ZVW4#..CBU NO.1 |
2 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47020 |
ZVW4#..CBU NO.1 |
2 | ||
| 53857-47011 |
ZVW4#..CBU NO.2 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-47030 |
ZVW4#..CBU |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-47040 |
ZVW4#..CBU |
1 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-16030 |
ZVW4#..CBU |
2 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-16030 |
ZVW4#..CBU |
2 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-16030 |
ZVW4#..CBU |
2 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-16030 |
ZVW4#..CBU |
2 | ||
| Common parts | ||||
| 90950-06124 | ||||
| 91621-40614 | ||||
ILLUST NO. 2 OF 2(1104- )
Click highlighted areas on diagram
ﾌｴﾝﾀﾞﾗｲﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749D - CLIP, PIN HOLD | ||||
| 47749-58010 |
ZVW4#..CBU |
2 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-47050 |
ZVW4#..CBU |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-47030 |
ZVW4#..CBU |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-47041 |
ZVW4#..CBU |
1 | ||
| 53875-47040 |
ZVW4#..CBU |
1 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60488 |
ZVW4#..CBU |
2 | ||
| 53875Q - SCREW, NO.2 | ||||
| 90159-60431 |
ZVW4#..CBU |
2 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-47040 |
ZVW4#..CBU |
1 | ||
| 53876-47041 |
ZVW4#..CBU |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
ZVW4#..CBU |
2 | ||
| Common parts | ||||
| 90119-06877 | ||||
| 90159-60215 | ||||
| 90159-60383 | ||||
| 90159-60476 | ||||
| 90159-60602 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
| 90467-07220 | ||||
| Linked diagrams | ||||
| 5201 | ||||
