ZVW40W-AWXGB (2014)
Toyota Prius A(Alpha)

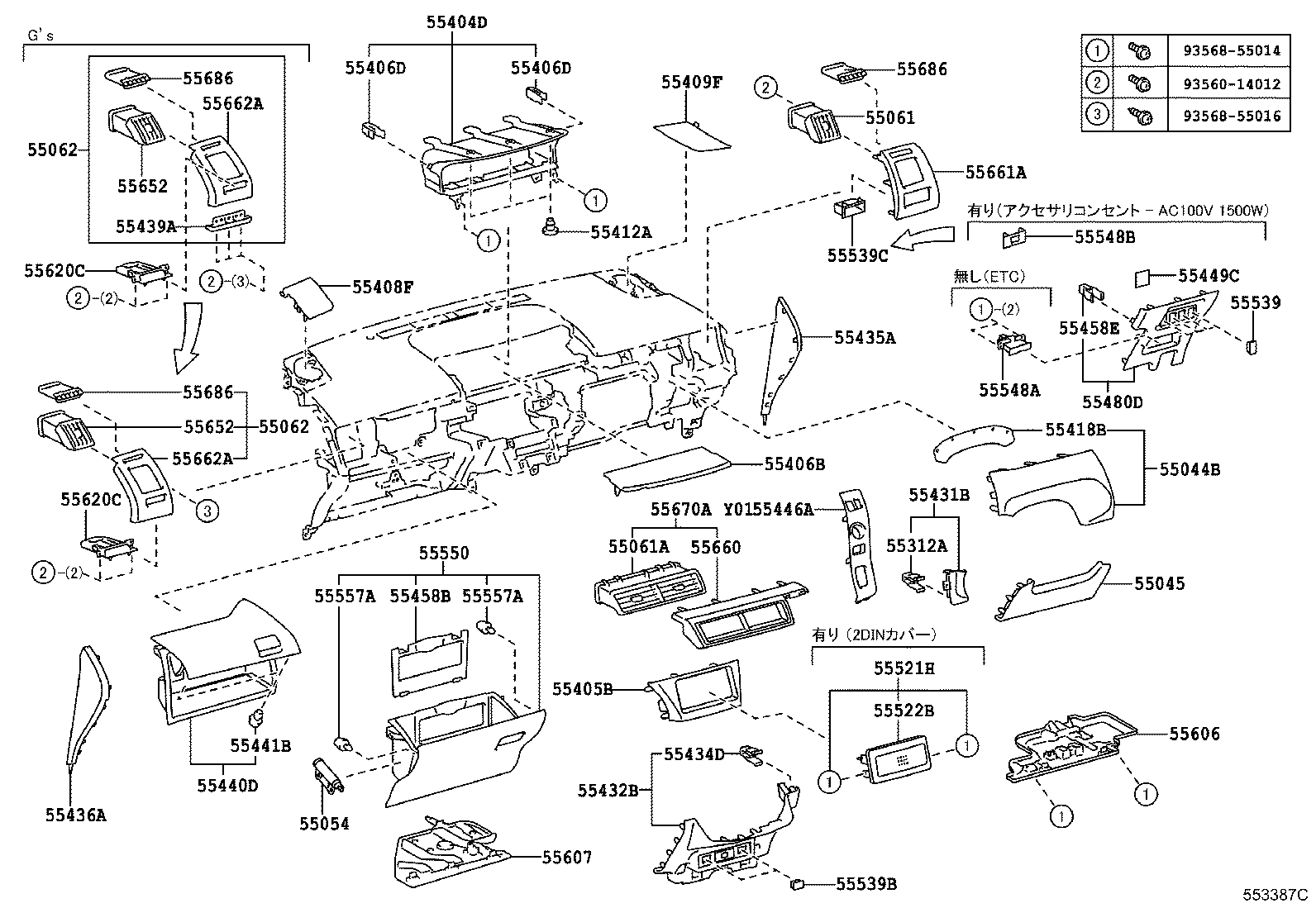

ILLUST NO. 2 OF 2(1411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55044B - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55044-47070E0 |
ZVW4#..S..CBU G’s OR GR SPORT,GREGE,TRIM4# |
1 | ||
| 55044-47110C0 |
ZVW4#..G BLACK,TRIM2# |
1 | ||
| 55044-47140C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55044-47110E0 |
ZVW4#..G GREGE,TRIM4# |
1 | ||
| 55044-47070C0 |
ZVW4#..S..CBU BLACK,TRIM2# |
1 | ||
| 55044-47070C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55044-47070E0 |
ZVW4#..S..CBU GREGE,TRIM4# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-47101E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55045-47101C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
ZVW4#..CBU |
1 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-47021 |
ZVW4#..CBU |
1 | ||
| 55061A - REGISTER SUB-ASSY, INSTRUMENT PANEL | ||||
| 55061-47080 |
ZVW4#..CBU |
1 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| 55062-47021C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55062-47021C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55062-47040C0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK,TRIM2# |
1 | ||
| 55062-47021E0 |
ZVW4#..S..CBU G’s OR GR SPORT,GREGE,TRIM4# |
1 | ||
| 55062-47021E0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),GREGE,TRIM4# |
1 | ||
| 55062-47040C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55062-47021C0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK,TRIM2# |
1 | ||
| 55062-47021E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| 55062-47021C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55062-47021C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55062-47040C0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK,TRIM2# |
1 | ||
| 55062-47021E0 |
ZVW4#..S..CBU G’s OR GR SPORT,GREGE,TRIM4# |
1 | ||
| 55062-47021E0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),GREGE,TRIM4# |
1 | ||
| 55062-47040C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55062-47021C0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK,TRIM2# |
1 | ||
| 55062-47021E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-10203 |
ZVW4#..CBU |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-47030 |
ZVW4#..CBU |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-47160 |
ZVW4#..S..CBU G’s OR GR SPORT |
1 | ||
| 55405-47160 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T) |
1 | ||
| 55405-47160 |
ZVW4#..S..CBU S“tune BLACK U”*(A) |
1 | ||
| 55405-47120 |
ZVW4#..S..CBU S“tune BLACK U”*(A) |
1 | ||
| 55405-47120 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T) |
1 | ||
| 55405-47120 |
ZVW4#..CBU |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-47100 |
ZVW4#..CBU |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90468-05135 |
ZVW4#..CBU |
2 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90468-05135 |
ZVW4#..CBU |
2 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-47040C0 |
ZVW4#..CBU BLACK,TRIM2#,4# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-47040C0 |
ZVW4#..CBU BLACK,TRIM2#,4# |
1 | ||
| 55412A - CLIP, PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 90467-11091 |
ZVW4#..CBU |
3 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-47030 |
ZVW4#..CBU |
1 | ||
| 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55431-47040C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55431-47040E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-47070E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55432-47070C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 90467-10203 |
ZVW4#..CBU |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-47030C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55435-47030E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-47030C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55436-47030E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55439A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3 | ||||
| 55439-47030 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T) |
1 | ||
| 55439-47030 |
ZVW4#..S..CBU G’s OR GR SPORT |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-47010E0 |
ZVW4#..S..CBU G’s OR GR SPORT,GREGE,TRIM4# |
1 | ||
| 55440-47040C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55440-47010C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55440-47030C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55440-47010E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55440-47010C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55441B - CUSHION, INSTRUMENT PANEL BOX | ||||
| 58959-60060 |
ZVW4#..CBU |
2 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-47100 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T) |
1 | ||
| 55446-47140 |
ZVW4#..S..CBU G’s OR GR SPORT |
1 | ||
| 55446-47140 |
ZVW4#..S..CBU S“tune BLACK U”*(A) |
1 | ||
| 55446-47100 |
ZVW4#..S..CBU S“tune BLACK U”*(A) |
1 | ||
| 55446-47140 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T) |
1 | ||
| 55446-47100 |
ZVW4#..CBU |
1 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55448-47020 |
ZVW4#..CBU |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55459-47010E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55459-47010C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
ZVW4#..CBU |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-47070C0 |
ZVW4#..S..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式)&車線維持支援−有り,BLACK,TRIM2# |
1 | ||
| 55480-47070C0 |
ZVW4#..G ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED & *AHB&車線維持支援−有り,BLACK,TRIM2# |
1 | ||
| 55480-47070E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55480-47070E0 |
ZVW4#..G ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED & *AHB&車線維持支援−有り,GREGE,TRIM4# |
1 | ||
| 55480-47041E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55480-47070E0 |
ZVW4#..S..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式)&車線維持支援−有り,GREGE,TRIM4# |
1 | ||
| 55480-47041C0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T)&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄ & ﾊﾞｯｸﾄﾞｱ) & 無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),BLACK,TRIM2# |
1 | ||
| 55480-47041C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55480-47070C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55521H - COVER ASSY, STEREO OPENING | ||||
| 55520-47020 |
ZVW4#..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ & ｵｰﾃﾞｨｵﾚｽｶﾊﾞｰ |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
ZVW4#..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ & ｵｰﾃﾞｨｵﾚｽｶﾊﾞｰ |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-47070 |
ZVW4#..CBU 寒冷地仕様 |
1 | ||
| 55539-47070 |
ZVW4#..CBU |
1 | ||
| 55539-47070 |
ZVW4#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き) |
1 | ||
| 55539-47070 |
ZVW4#..G ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-28160C0 |
ZVW4#..S..CBU S“tune BLACK U”*(A),BLACK |
1 | ||
| 55539-28160C0 |
ZVW4#..CBU BLACK |
1 | ||
| 55539-28160C1 |
ZVW4#..S..CBU S“tune BLACK U”*(A),BLACK |
1 | ||
| 55539-28160C1 |
ZVW4#..CBU BLACK |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-75040C0 |
ZVW4#..CBU BLACK,TRIM2#,4# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-47020C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55548-47020E1 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-47101C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55550-47101E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZVW4#..CBU |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZVW4#..CBU |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-47030 |
ZVW4#..CBU |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-47050 |
ZVW4#..CBU |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-47061E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55620-47090C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55620-47061E0 |
ZVW4#..S..CBU G’s OR GR SPORT,GREGE,TRIM4# |
1 | ||
| 55620-47061C0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK,TRIM2# |
1 | ||
| 55620-47090C0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK,TRIM2# |
1 | ||
| 55620-47061C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55620-47061C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55620-47061E0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),GREGE,TRIM4# |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-47061E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55620-47090C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55620-47061E0 |
ZVW4#..S..CBU G’s OR GR SPORT,GREGE,TRIM4# |
1 | ||
| 55620-47061C0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK,TRIM2# |
1 | ||
| 55620-47090C0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK,TRIM2# |
1 | ||
| 55620-47061C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55620-47061C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55620-47061E0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),GREGE,TRIM4# |
1 | ||
| 55652 - REGISTER, INSTRUMENT PANEL, NO.2 | ||||
| 55061-47041 |
ZVW4#..CBU |
1 | ||
| 55652 - REGISTER, INSTRUMENT PANEL, NO.2 | ||||
| 55061-47041 |
ZVW4#..CBU |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55062-47080 |
ZVW4#..S..CBU G’s OR GR SPORT |
1 | ||
| 55062-47080 |
ZVW4#..S..CBU S“tune BLACK U”*(A) |
1 | ||
| 55062-47060 |
ZVW4#..CBU |
1 | ||
| 55062-47060 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T) |
1 | ||
| 55062-47080 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T) |
1 | ||
| 55062-47060 |
ZVW4#..S..CBU G’s OR GR SPORT |
1 | ||
| 55062-47060 |
ZVW4#..S..CBU S“tune BLACK U”*(A) |
1 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55062-47050C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55661-47110C0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK,TRIM2# |
1 | ||
| 55062-47050C0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK,TRIM2# |
1 | ||
| 55661-47110E0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),GREGE,TRIM4# |
1 | ||
| 55661-47110C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55661-47110E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55661-47110C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55661-47110E0 |
ZVW4#..S..CBU G’s OR GR SPORT,GREGE,TRIM4# |
1 | ||
| 55662A - BEZEL, INSTRUMENT PANEL RESISTER, NO.2 | ||||
| 55661-47090E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55661-47090C0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK,TRIM2# |
1 | ||
| 55661-47090E0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),GREGE,TRIM4# |
1 | ||
| 55661-47210C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55661-47090C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55661-47090E0 |
ZVW4#..S..CBU G’s OR GR SPORT,GREGE,TRIM4# |
1 | ||
| 55661-47090C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55661-47210C0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK,TRIM2# |
1 | ||
| 55662A - BEZEL, INSTRUMENT PANEL RESISTER, NO.2 | ||||
| 55661-47090E0 |
ZVW4#..CBU GREGE,TRIM4# |
1 | ||
| 55661-47090C0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK,TRIM2# |
1 | ||
| 55661-47090E0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),GREGE,TRIM4# |
1 | ||
| 55661-47210C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55661-47090C0 |
ZVW4#..S..CBU G’s OR GR SPORT,BLACK,TRIM2# |
1 | ||
| 55661-47090E0 |
ZVW4#..S..CBU G’s OR GR SPORT,GREGE,TRIM4# |
1 | ||
| 55661-47090C0 |
ZVW4#..CBU BLACK,TRIM2# |
1 | ||
| 55661-47210C0 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK,TRIM2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-47200 |
ZVW4#..S..CBU G’s OR GR SPORT |
1 | ||
| 55670-47200 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T) |
1 | ||
| 55670-47170 |
ZVW4#..S..CBU G’s OR GR SPORT&S“ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T) |
1 | ||
| 55670-47170 |
ZVW4#..CBU |
1 | ||
| 55670-47200 |
ZVW4#..S..CBU S“tune BLACK U”*(A) |
1 | ||
| 55670-47170 |
ZVW4#..S..CBU S“tune BLACK U”*(A) |
1 | ||
| 55670-47170 |
ZVW4#..S..CBU G’s OR GR SPORT |
1 | ||
| 55686 - RETAINER, REGISTER BLADE | ||||
| 55687-47050E0 |
ZVW4#..CBU GREGE,TRIM4#,運転席側 |
1 | ||
| 55687-47050C0 |
ZVW4#..CBU BLACK,TRIM2#,運転席側 |
1 | ||
| 55687-47070C0 |
ZVW4#..CBU BLACK,TRIM2#,助手席側 |
1 | ||
| 55687-47070E0 |
ZVW4#..CBU GREGE,TRIM4#,助手席側 |
1 | ||
| 55686 - RETAINER, REGISTER BLADE | ||||
| 55687-47050E0 |
ZVW4#..CBU GREGE,TRIM4#,運転席側 |
1 | ||
| 55687-47050C0 |
ZVW4#..CBU BLACK,TRIM2#,運転席側 |
1 | ||
| 55687-47070C0 |
ZVW4#..CBU BLACK,TRIM2#,助手席側 |
1 | ||
| 55687-47070E0 |
ZVW4#..CBU GREGE,TRIM4#,助手席側 |
1 | ||
| 55686 - RETAINER, REGISTER BLADE | ||||
| 55687-47050E0 |
ZVW4#..CBU GREGE,TRIM4#,運転席側 |
1 | ||
| 55687-47050C0 |
ZVW4#..CBU BLACK,TRIM2#,運転席側 |
1 | ||
| 55687-47070C0 |
ZVW4#..CBU BLACK,TRIM2#,助手席側 |
1 | ||
| 55687-47070E0 |
ZVW4#..CBU GREGE,TRIM4#,助手席側 |
1 | ||
| Common parts | ||||
| 93560-14012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
