ZVW40W-AWXGB (2014)

Toyota Prius A(Alpha)

Production Nov 2014 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1502- )2ZRFXE..S

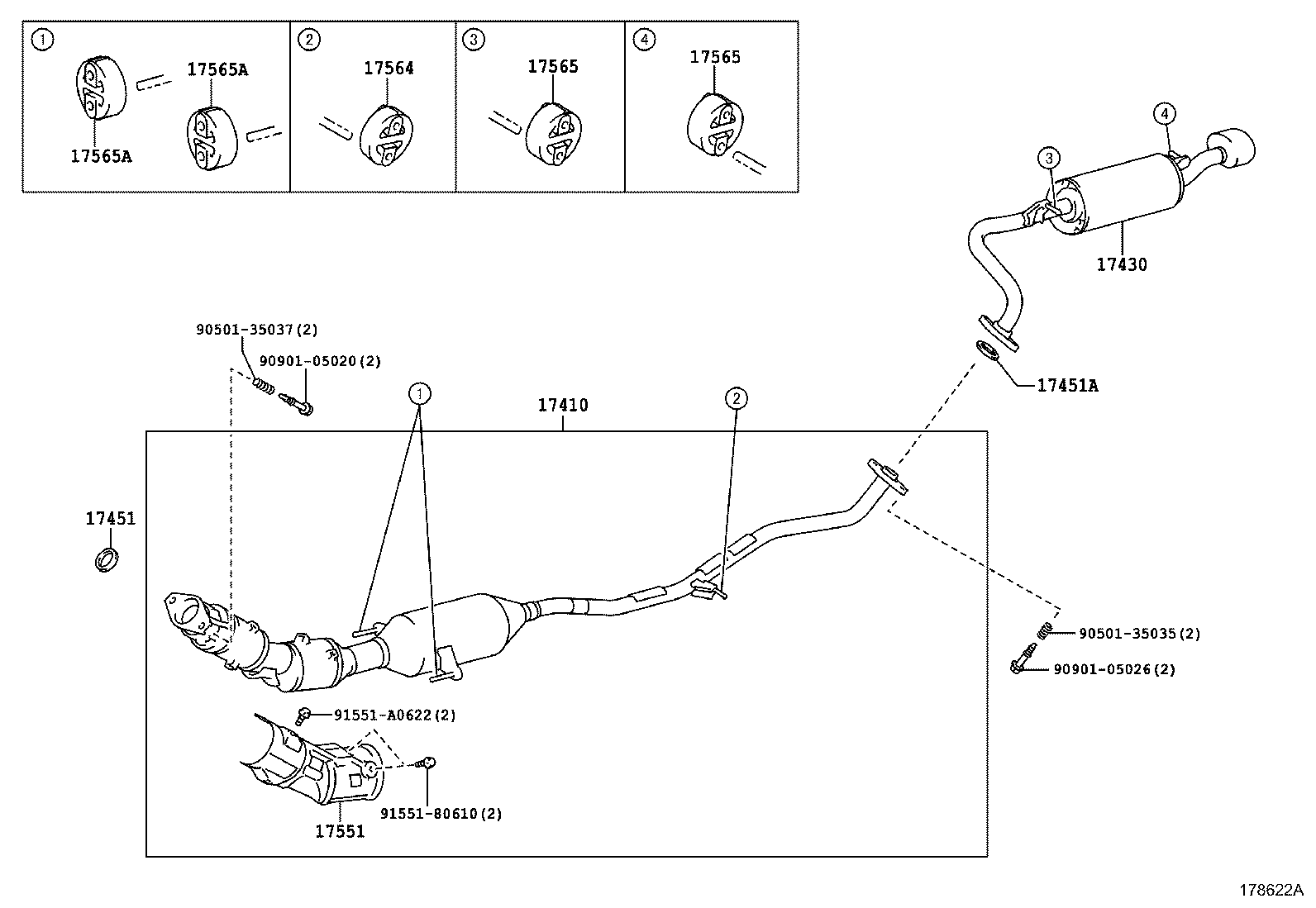

Click highlighted areas on diagram

G'S

diagram 17410 17430 17451 17451A 17551 17564 17565 17565 17565A 17565A 9050135035 9050135037 9090105020 9090105026 9155180610 91551A0622
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-37582

2ZRFXE..ZVW4#..CBU

 1
17410-37641

2ZRFXE..ZVW4#..CBU

寒冷地仕様

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-WY090

2ZRFXE..ZVW4#..S..CBU

G’s OR GR SPORT

 1
17430-37480

2ZRFXE..ZVW4#..CBU

 1
17451 - GASKET, EXHAUST PIPE
17451-28040

2ZRFXE..ZVW4#..CBU

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-23042

2ZRFXE..ZVW4#..CBU

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17055-37010

2ZRFXE..ZVW4#..CBU

寒冷地仕様

 1
17551-37050

2ZRFXE..ZVW4#..CBU

 1
17055-37010

2ZRFXE..ZVW4#..CBU

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-22030

2ZRFXE..ZVW4#..CBU

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFXE..ZVW4#..CBU

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFXE..ZVW4#..CBU

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2ZRFXE..ZVW4#..CBU

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2ZRFXE..ZVW4#..CBU

 2
Common parts
90501-35035
90501-35037
90901-05020
90901-05026
91551-80610
91551-A0622
