ZVW55-AHXGB (2018)
Toyota Prius
Production
Dec 2018
-
Sep 9999
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

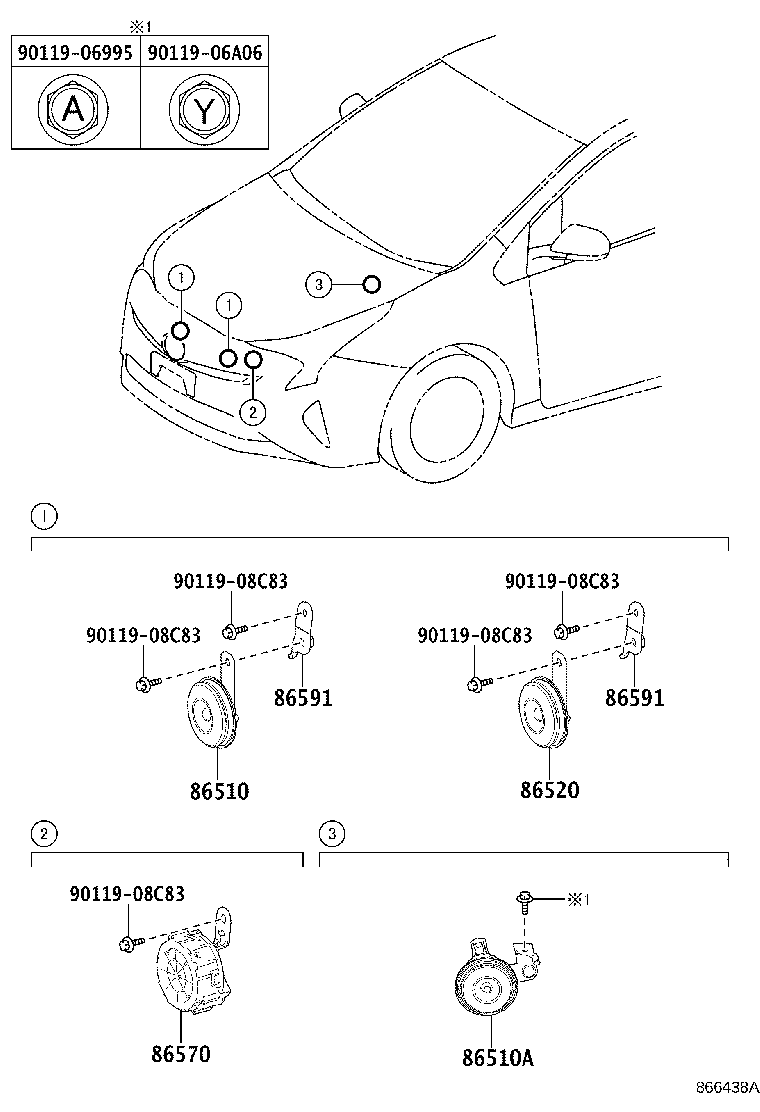

(1511-2007)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-47050 |
ZVW5#..CBU MARUKO |
1 | ||
| 86510-47060 |
ZVW5#..CBU DENSO |
1 | ||
| 86510A - HORN ASSY, SECURITY | ||||
| 86560-47050 |
ZVW5#..CBU |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-47030 |
ZVW5#..CBU MARUKO |
1 | ||
| 86520-47040 |
ZVW5#..CBU DENSO |
1 | ||
| 86570 - SPEAKER ASSY, VEHICLE APPROACHING | ||||
| 86570-12030 |
ZVW5#..CBU |
1 | ||
| 86570-47050 |
ZVW5#..CBU |
1 | ||
| 86591 - BRACKET, HORN | ||||
| 86591-47010 |
ZVW5#..CBU |
2 | ||
| 86591 - BRACKET, HORN | ||||
| 86591-47010 |
ZVW5#..CBU |
2 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 90119-06A06 | ||||
| 90119-08C83 | ||||

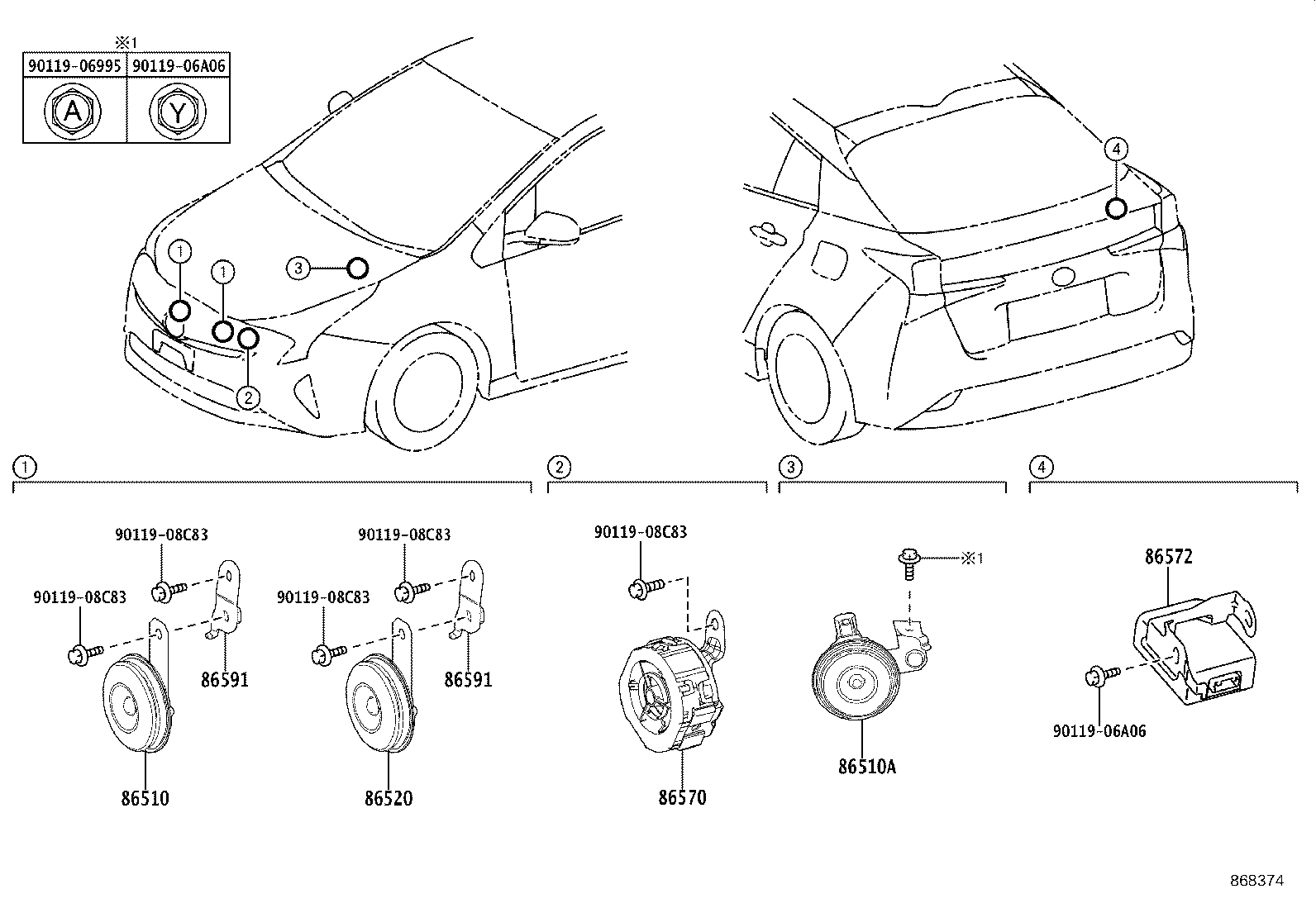

(2007- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-47050 |
ZVW5#..CBU MARUKO |
1 | ||
| 86510-47060 |
ZVW5#..CBU DENSO |
1 | ||
| 86510A - HORN ASSY, SECURITY | ||||
| 86560-47050 |
ZVW5#..CBU |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-47030 |
ZVW5#..CBU MARUKO |
1 | ||
| 86520-47040 |
ZVW5#..CBU DENSO |
1 | ||
| 86570 - SPEAKER ASSY, VEHICLE APPROACHING | ||||
| 86570-12030 |
ZVW5#..CBU |
1 | ||
| 86570-47050 |
ZVW5#..CBU |
1 | ||
| 86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER | ||||
| 86572-47190 |
ZVW5#..CBU |
1 | ||
| 86591 - BRACKET, HORN | ||||
| 86591-47010 |
ZVW5#..CBU |
2 | ||
| 86591 - BRACKET, HORN | ||||
| 86591-47010 |
ZVW5#..CBU |
2 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 90119-06A06 | ||||
| 90119-08C83 | ||||
