ZVW55-AHXGB (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

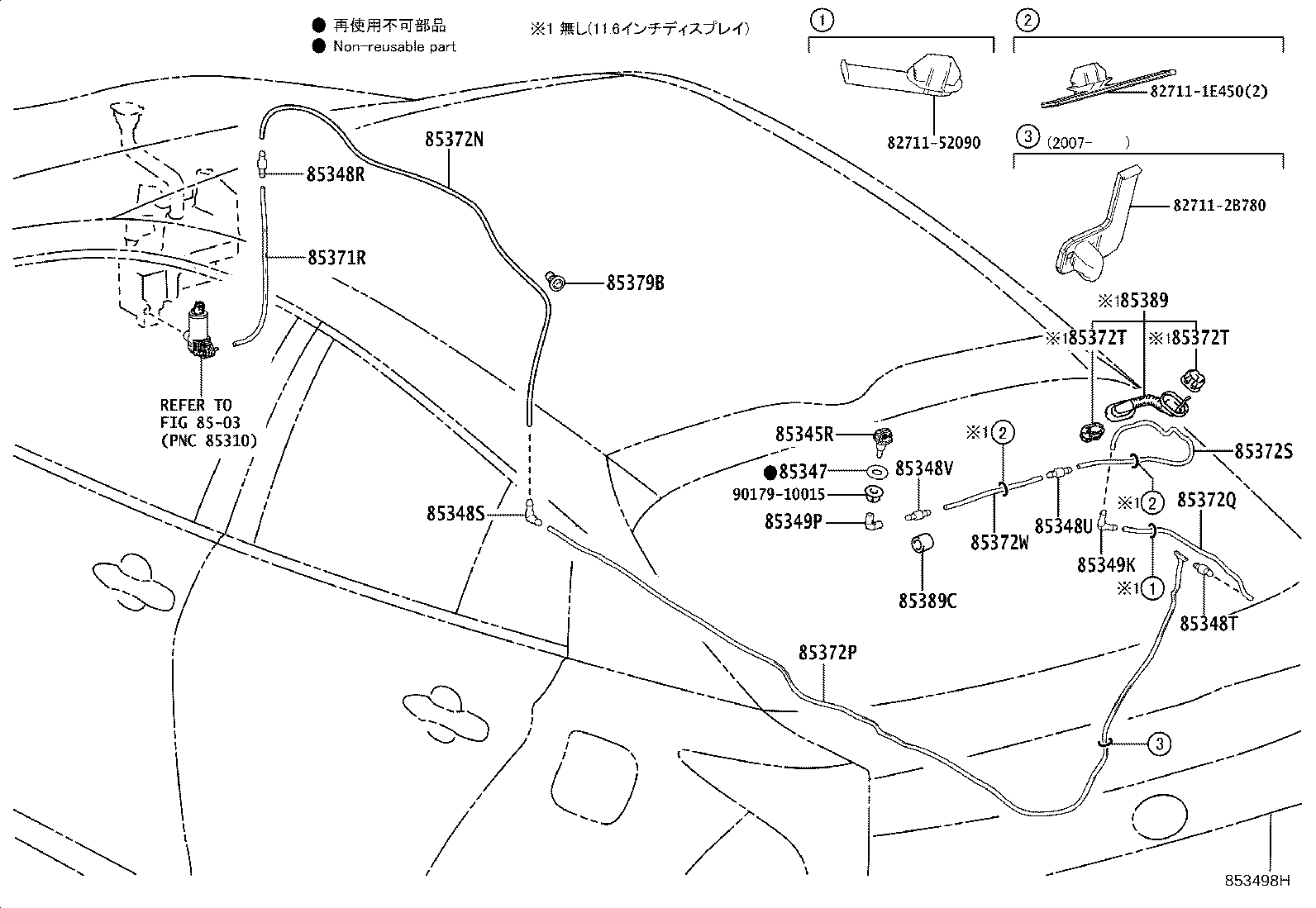

Click highlighted areas on diagram

diagram 827111E450 827112B780 8271152090 8503 85345R 85347 85348R 85348S 85348T 85348U 85348V 85349K 85349P 85371R 85372N 85372P 85372Q 85372S 85372T 85372T 85372W 85379B 85389 85389C 9017910015
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85391-47040

ZVW5#..(A,PREM,S)..CBU

 1
85347 - PACKING, REAR WASHER
85347-12010

ZVW5#..(A,PREM,S)..CBU

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ZVW5#..(A,PREM,S)..CBU

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

ZVW5#..(A,PREM,S)..CBU

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ZVW5#..(A,PREM,S)..CBU

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

ZVW5#..(A,PREM,S)..CBU

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85321-26020

ZVW5#..(A,PREM,S)..CBU

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85355-20200

ZVW5#..(A,PREM,S)..CBU

 1
85349P - JOINT, REAR WASHER ELBOW, NO.3
85355-14481

ZVW5#..(A,PREM,S)..CBU

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-62065

ZVW5#..(A,PREM,S)..CBU

長さ=350

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-62157

ZVW51,55..(A,PREM)..CBU

長さ=1355,ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃBｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)

 1
90099-62157

ZVW5#..(A,PREM,S)..CBU

長さ=1355

 1
90099-62157

ZVW51,55..(A,PREM)..CBU

長さ=1355,ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚ}ﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-62163

ZVW5#..(A,PREM,S)..CBU

長さ=2660

 1
90099-62156

ZVW5#..(A,PREM,S)..CBU

長さ=2650

 1
90099-62163

ZVW51,55..(A,PREM)..CBU

長さ=2660,ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃBｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)

 1
90099-62163

ZVW51,55..(A,PREM)..CBU

長さ=2660,ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚ}ﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-62085

ZVW51,55..(A,PREM)..CBU

長さ=340,ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨNｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)

 1
90446-07001

ZVW5#..(A,PREM,S)..CBU

*H,L=340

 1
90099-62085

ZVW5#..(A,PREM,S)..CBU

長さ=340

 1
90099-62085

ZVW51,55..(A,PREM)..CBU

長さ=340,ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏeｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-62189

ZVW51,55..(A,PREM)..CBU

長さ=690,ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏeｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)

 1
90099-62145

ZVW5#..(A,PREM,S)..CBU

長さ=510

 1
90099-33080

ZVW5#..(A,PREM,S)..CBU

*H,L=510

 1
90099-62189

ZVW51,55..(A,PREM)..CBU

長さ=690,ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨNｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)

 1
85372T - GROMMET, WASHER
82817-47L50

ZVW5#..(A,PREM,S)..CBU

 2
85372T - GROMMET, WASHER
82817-47L50

ZVW5#..(A,PREM,S)..CBU

 2
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90099-62059

ZVW51,55..(A,PREM)..CBU

長さ=60,ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃBｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)

 1
90099-62059

ZVW51,55..(A,PREM)..CBU

長さ=60,ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸX−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)

 1
90099-62129

ZVW5#..(A,PREM,S)..CBU

長さ=200

 1
85379B - GROMMET, WASHER, A
85379-12850

ZVW5#..(A,PREM,S)..CBU

 1
85389 - PACKING, WINDSHIELD WASHER HOSE, NO.1
86101-47K20

ZVW5#..(A,PREM,S)..CBU

 1
85389C - PROTECTOR, WASHER
85389-26080

ZVW5#..(A,PREM,S)..CBU

 1
Common parts
82711-1E450
82711-2B780
82711-52090
90179-10015
Linked diagrams
8503
