ZVW55-AHXGB (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

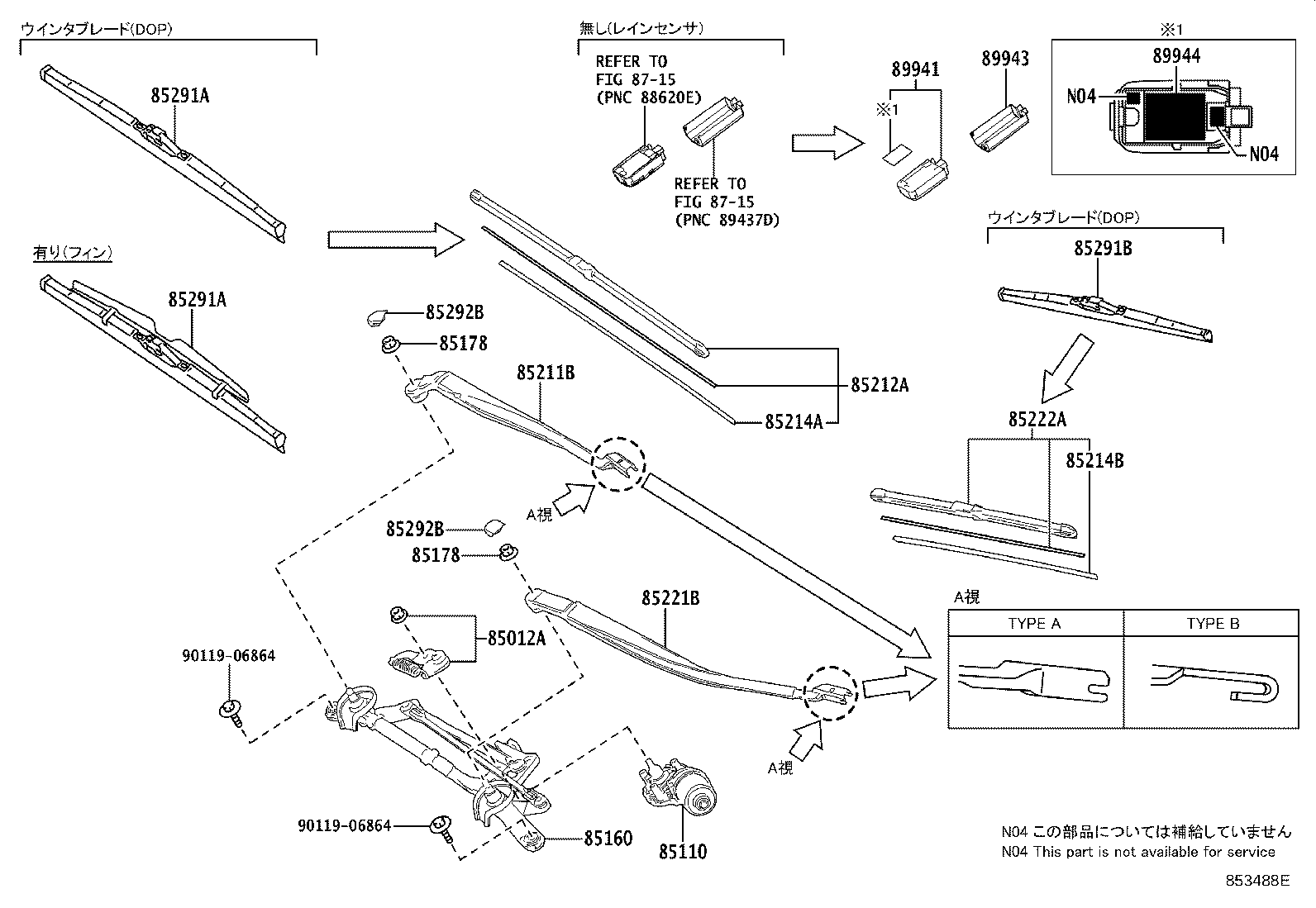

ILLUST NO. 2 OF 2(1511- )

Click highlighted areas on diagram

diagram 85012A 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 85292B 85292B 8715 8715 89941 89943 89944 9011906864 9011906864
Part # Description Qty Price
85012A - CRANK SUB-ASSY, FRONT WIPER
85012-50010

ZVW5#..CBU

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-47350

ZVW5#..CBU

 1
85110-47360

ZVW5#..CBU

寒冷地仕様

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-47210

ZVW5#..CBU

寒冷地仕様

 1
85150-47190

ZVW5#..CBU

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

ZVW5#..CBU

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

ZVW5#..CBU

 2
85211B - ARM, FRONT WIPER, RH
85211-47171

ZVW5#..CBU

TYPE A:ｲﾗｽﾄ参照

 1
85211-47220

ZVW5#..CBU

TYPE B:ｲﾗｽﾄ参照

 1
85211-47220

ZVW5#..CBU

TYPE B:ｲﾗｽﾄ参照

 1
85212A - BLADE, FR WIPER, RH
85212-47122

ZVW5#..CBU

PNC 85211B=TYPE A

 1
85212-47210

ZVW5#..CBU

PNC 85211B=TYPE B

 1
85212-47210

ZVW5#..CBU

PNC 85211B=TYPE B

 1
85214A - RUBBER, WIPER, RH
85214-28100

ZVW5#..CBU

PNC 85211B=TYPE B

 1
85214-28100

ZVW5#..CBU

PNC 85211B=TYPE B

 1
85214-47170

ZVW5#..CBU

PNC 85211B=TYPE A

 1
85214B - RUBBER, WIPER, LH
85214-47210

ZVW5#..CBU

PNC 85221B=TYPE B

 1
85214-10130

ZVW5#..CBU

PNC 85221B=TYPE A

 1
85214-47210

ZVW5#..CBU

PNC 85221B=TYPE B

 1
85221B - ARM, FRONT WIPER, LH
85221-47200

ZVW5#..CBU

TYPE B:ｲﾗｽﾄ参照

 1
85221-47150

ZVW5#..CBU

TYPE A:ｲﾗｽﾄ参照

 1
85221-47200

ZVW5#..CBU

TYPE B:ｲﾗｽﾄ参照

 1
85222A - BLADE, FR WIPER, LH
85222-47160

ZVW5#..CBU

PNC 85221B=TYPE A

 1
85222-47190

ZVW5#..CBU

PNC 85221B=TYPE B

 1
85222-47190

ZVW5#..CBU

PNC 85221B=TYPE B

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-47110

ZVW5#..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),*578

 1
85291-52110

ZVW5#..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),*579

 1
85291-47100

ZVW5#..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),PNC 85211B=TYPE A

 1
85291-52100

ZVW5#..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),PNC 85211B=TYPE B

 1
85291-52100

ZVW5#..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),PNC 85211B=TYPE B

 1
85291-52110

ZVW5#..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),*579

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-47110

ZVW5#..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),*578

 1
85291-52110

ZVW5#..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),*579

 1
85291-47100

ZVW5#..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),PNC 85211B=TYPE A

 1
85291-52100

ZVW5#..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),PNC 85211B=TYPE B

 1
85291-52100

ZVW5#..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),PNC 85211B=TYPE B

 1
85291-52110

ZVW5#..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),*579

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-28150

ZVW5#..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),PNC 85221B=TYPE B

 1
85291-28150

ZVW5#..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),PNC 85221B=TYPE B

 1
85291-78021

ZVW5#..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),PNC 85221B=TYPE A

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

ZVW5#..CBU

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

ZVW5#..CBU

 2
89941 - SENSOR, RAIN
89941-47020

ZVW51,55..(A,PREM)..CBU

 1
89943 - COVER, RAIN SENSOR
89943-47020

ZVW51,55..(A,PREM)..CBU

 1
89944 - TAPE, RAIN SENSOR
89944-42020

ZVW51,55..(A,PREM)..CBU

 1
89944-48010

ZVW51,55..(A,PREM)..CBU

 1
Common parts
90119-06864
Linked diagrams
8715

ILLUST NO. 1 OF 2(1511- )

Click highlighted areas on diagram

diagram 85213B 85213C
Part # Description Qty Price
85213B - RUBBER, WIPER BLADE, RH(FOR GLASS COAT)
85213-28110

ZVW5#..CBU

PNC 85211B=TYPE B

 1
85213-28110

ZVW5#..CBU

PNC 85211B=TYPE B

 1
85213-47010

ZVW5#..CBU

PNC 85211B=TYPE A

 1
85213C - RUBBER, WIPER BLADE, LH(FOR GLASS COAT)
85213-28120

ZVW5#..CBU

PNC 85221B=TYPE B

 1
85213-47020

ZVW5#..CBU

PNC 85221B=TYPE A

 1
85213-28120

ZVW5#..CBU

PNC 85221B=TYPE B

 1
