ZVW55-AHXGB (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

Click highlighted areas on diagram

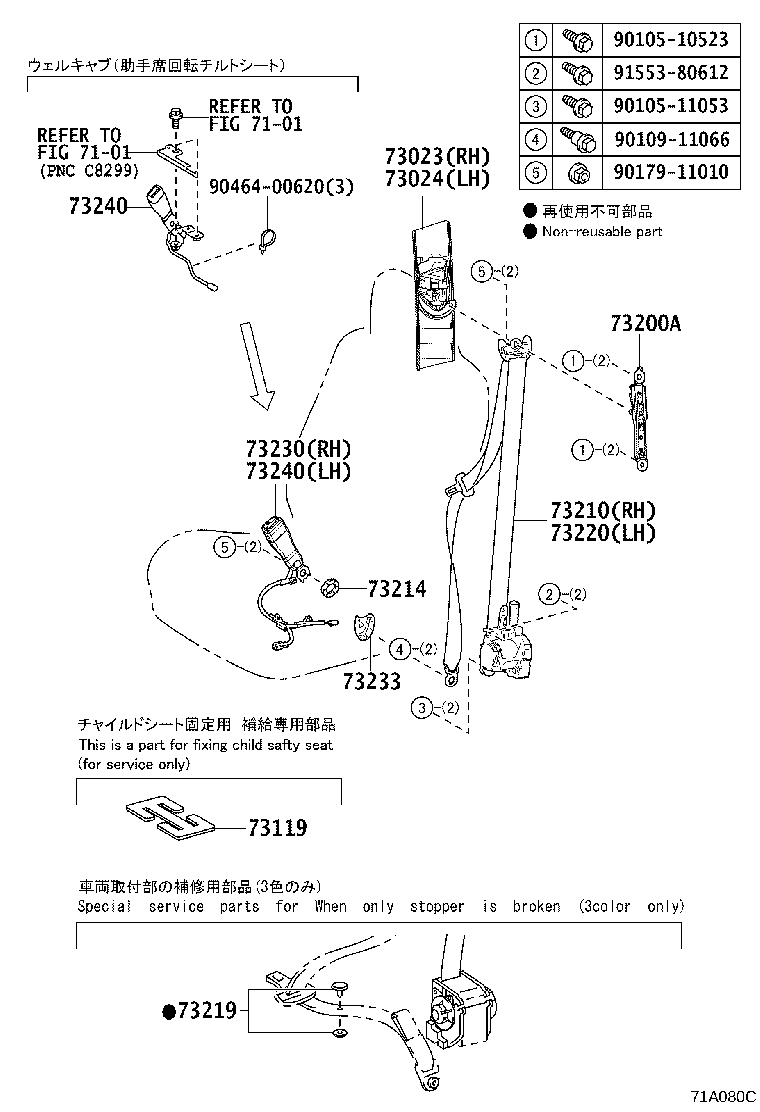

ﾌﾛﾝﾄｼｰﾄﾍﾞﾙﾄ

diagram 7101 7101 73023 73024 73119 73200A 73210 73214 73219 73220 73230 73233 73240 73240 9010510523 9010511053 9010911066 9017911010 9046400620 9155380612
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-58010C0

ZVW5#..CBU

BLACK,TRIM1#,2#

 1
73023-58010C1

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-58010C1

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 1
73024-58010C0

ZVW5#..CBU

BLACK,TRIM1#,2#

 1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

ZVW5#..CBU

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-12070

ZVW5#..CBU

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-47280C2

ZVW5#..(A,PREM,S)..CBU

BLACK,TRIM1#,2#

 1
73210-47281C7

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 1
73210-47281C2

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 1
73214 - PLATE, FRONT SEAT BELT ANCHOR
73214-75010

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1)

 1
73214-75010

ZVW5#..(A,S)..CBU

有り(助手席回転ﾁﾙﾄｼｰﾄ)

 1
73214-75010

ZVW5#..CBU

 2
73214-75010

ZVW5#..(A,S)..CBU

有り(助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ)

 1
73214-75010

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4)&SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ−有り(助手席側のみ)

 1
73219 - STOPPER, TONGUE PLATE
73219-33020

ZVW5#..CBU

ｸﾞﾚｰ

 1
73219-33030

ZVW5#..CBU

ﾍﾞｰｼﾞｭ

 1
73219-33010

ZVW5#..CBU

ﾌﾞﾗｯｸ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-47221C2

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 1
73220-47221C7

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 1
73220-47220C2

ZVW5#..(A,PREM,S)..CBU

BLACK,TRIM1#,2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-47450C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE2),BLACK,TRIM1#,2#

 1
73230-33880C0

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 1
73230-47450C0

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 1
73230-33880C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE2),BLACK,TRIM1#,2#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 2
73233-60020C0

ZVW5#..CBU

BLACK,TRIM1#,2#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-47490C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE2),BLACK,TRIM1#,2#

 1
73230-33890C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE2),BLACK,TRIM1#,2#

 1
73230-33890C0

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 1
73230-47490C0

ZVW5#..(A,E,S)..CBU

BLACK,TRIM1#,2#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-47490C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE2),BLACK,TRIM1#,2#

 1
73230-33890C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE2),BLACK,TRIM1#,2#

 1
73230-33890C0

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 1
73230-47490C0

ZVW5#..(A,E,S)..CBU

BLACK,TRIM1#,2#

 1
Common parts
90105-10523
90105-11053
90109-11066
90179-11010
90464-00620
91553-80612
Linked diagrams
7101

(1511- )

Click highlighted areas on diagram

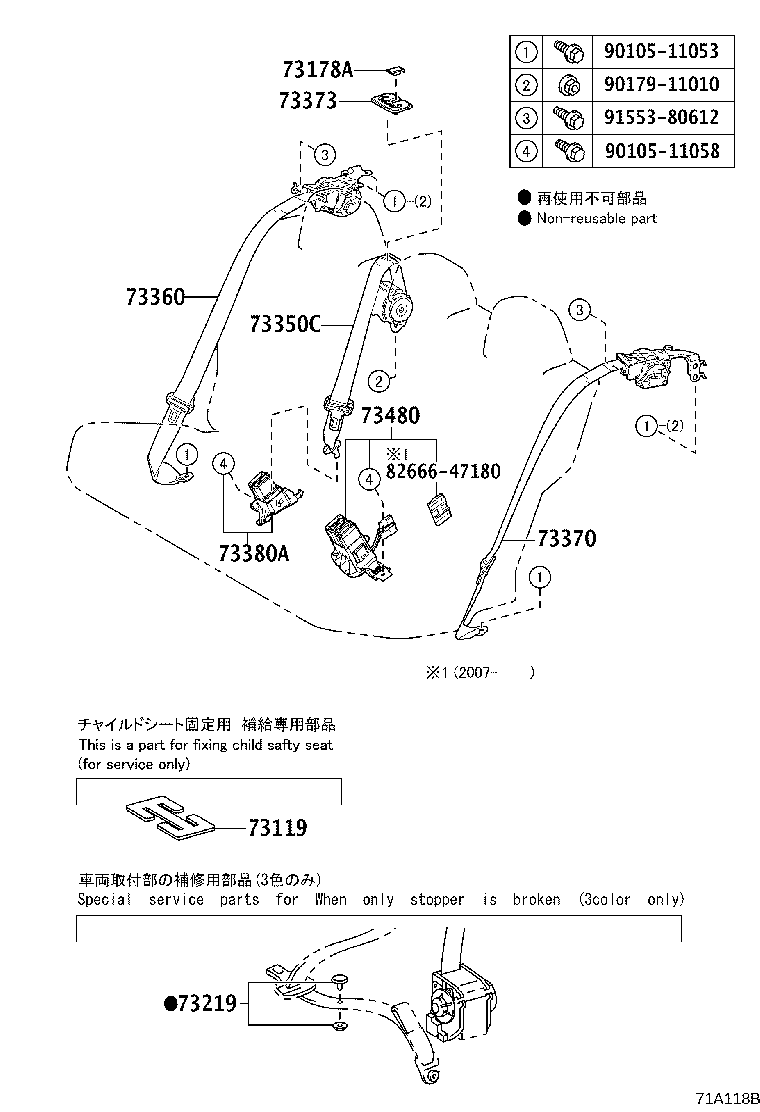

ﾘﾔｼｰﾄ

diagram 73119 73178A 73219 73350C 73360 73370 73373 73380A 73480 8266647180 9010511053 9010511058 9017911010 9155380612
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

ZVW5#..CBU

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-48010C1

ZVW5#..(A,PREM,S)..CBU

BLACK,TRIM1#,2#

 1
73178-48010C0

ZVW5#..CBU

BLACK,TRIM1#,2#

 1
73219 - STOPPER, TONGUE PLATE
73219-33020

ZVW5#..CBU

ｸﾞﾚｰ

 1
73219-33030

ZVW5#..CBU

ﾍﾞｰｼﾞｭ

 1
73219-33010

ZVW5#..CBU

ﾌﾞﾗｯｸ

 1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73350-47070C3

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-47090C0

ZVW5#..(A,E,S)..CBU

BLACK,TRIM1#,2#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-47050C0

ZVW5#..(A,E,S)..CBU

BLACK,TRIM1#,2#

 1
73373 - COVER, REAR SEAT SHOULDER BELT
73373-48080C0

ZVW5#..CBU

BLACK,TRIM1#,2#

 1
73373-48080C1

ZVW5#..(A,PREM,S)..CBU

BLACK,TRIM1#,2#

 1
73380A - BELT ASSY, REAR SEAT, INNER
73380-47070C0

ZVW5#..(A,E,S)..CBU

BLACK,TRIM1#,2#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-47070C0

ZVW5#..(A,E,S)..CBU

BLACK,TRIM1#,2#

 1
Common parts
82666-47180
90105-11053
90105-11058
90179-11010
91553-80612
