ZVW55-AHXGB (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )ZVW50,55 ; (1511- )ZVW51..S ; (1511- )ZVW51..A,E,PREM

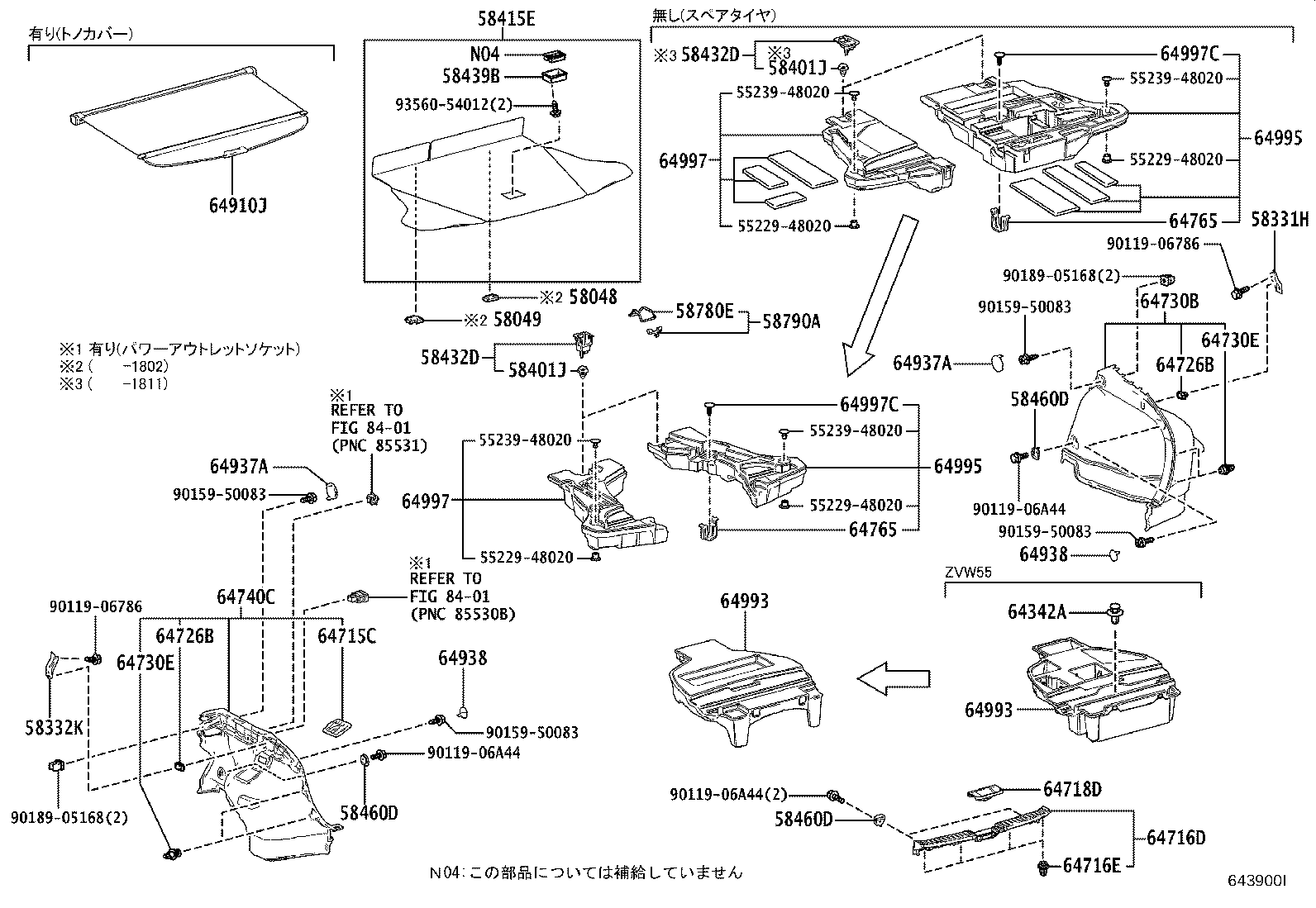

Click highlighted areas on diagram

diagram 5522948020 5522948020 5522948020 5522948020 5523948020 5523948020 5523948020 5523948020 58048 58049 58331H 58332K 58401J 58401J 58415E 58432D 58432D 58439B 58460D 58460D 58460D 58780E 58790A 64342A 64715C 64716D 64716E 64718D 64726B 64726B 64730B 64730E 64730E 64740C 64765 64765 64910J 64937A 64937A 64938 64938 64993 64993 64995 64995 64997 64997 64997C 64997C 8401 8401 9011906786 9011906786 9011906A44 9011906A44 9011906A44 9015950083 9015950083 9015950083 9015950083 9018905168 9018905168 9356054012
Part # Description Qty Price
58048 - HOOK, DECK BOARD, NO.1
58048-47010

ZVW5#..CBU

 1
58049 - HOOK, DECK BOARD, NO.2
58049-47010

ZVW5#..CBU

 1
58331H - BRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58337-47020

ZVW5#..CBU

 1
58332K - BRACKET, LUGGAGE COMPARTMENT TRIM, NO.2
58338-47010

ZVW5#..CBU

 1
58401J - CLIP(FOR DECK BOAD)
90467-10188

ZVW55..CBU

 2
58401J - CLIP(FOR DECK BOAD)
90467-10188

ZVW55..CBU

 2
58415E - BOARD, REAR FLOOR, NO.1
58415-47100C2

ZVW55..(A,S)..CBU

BLACK,TRIM1#,2#

 1
58432D - RETAINER, DECK BOARD
51962-47020

ZVW55..CBU

 2
58432D - RETAINER, DECK BOARD
51962-47020

ZVW55..CBU

 2
58439B - PROTECTOR, DECK BOARD, NO.1
58477-28020

ZVW5#..CBU

 1
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

ZVW5#..CBU

 4
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

ZVW5#..CBU

 4
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

ZVW5#..CBU

 4
58780E - BAND ASSY, TOOL BOX
58781-52010

ZVW5#..CBU

 1
58790A - CARRIER ASSY, JACK
58790-52020

ZVW5#..CBU

 1
64342A - CLIP
90467-07215

ZVW55..CBU

 1
64715C - COVER, DECK SIDE TRIM, LH
64715-47060C0

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 1
64715-47060C1

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 1
64716D - COVER, DECK TRIM, REAR
64716-47120C0

ZVW55..(A,S)..CBU

BLACK,TRIM1#,2#

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-10167

ZVW5#..CBU

 4
90467-10161

ZVW5#..CBU

 4
64718D - COVER, DECK TRIM SERVICE HOLE
64718-47080C0

ZVW5#..(A,E,S)..CBU

BLACK,TRIM1#,2#

 1
64726B - CLIP, DECK REAR TRIM
65487-47010

ZVW5#..CBU

 2
64726B - CLIP, DECK REAR TRIM
65487-47010

ZVW5#..CBU

 2
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-47220C2

ZVW55..(A,S)..CBU

BLACK,TRIM1#,2#

 1
64730E - CLIP(FOR DECK TRIM SIDE BOARD)
90467-10161

ZVW5#..CBU

 4
64730E - CLIP(FOR DECK TRIM SIDE BOARD)
90467-10161

ZVW5#..CBU

 4
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-47200C2

ZVW55..(A,S)..CBU

BLACK,TRIM1#,2#

 1
64740-47180C3

ZVW55..(A,S)..CBU

外部電源−有り(AC100V 1500W:2個),BLACK,TRIM1#,2#

 1
64740-47180C2

ZVW55..(A,S)..CBU

外部電源−有り(AC100V 1500W:2個),BLACK,TRIM1#,2#

 1
64740-47200C3

ZVW55..(A,S)..CBU

BLACK,TRIM1#,2#

 1
64765 - BEZEL, JACK COVER, UPPER
64766-47020

ZVW5#..CBU

 1
64765 - BEZEL, JACK COVER, UPPER
64766-47020

ZVW5#..CBU

 1
64910J - COVER ASSY, TONNEAU
64910-47060C0

ZVW5#..(A,S)..CBU

有り(助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM1#,2#

 1
64910-47060C0

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 1
64910-47060C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE2),BLACK,TRIM1#,2#

 1
64910-47060C0

ZVW5#..(A,S)..CBU

有り(助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ),BLACK,TRIM1#,2#

 1
64910-47060C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE3),BLACK,TRIM1#,2#

 1
64910-47060C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4),BLACK,TRIM1#,2#

 1
64910-47060C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1),BLACK,TRIM1#,2#

 1
64937A - CAP, TONNEAU COVER HOLDER, NO.1
64937-47020C0

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 2
64937-47020C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE3),BLACK,TRIM1#,2#

 2
64937-47020C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE2),BLACK,TRIM1#,2#

 2
64937-47020C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1),BLACK,TRIM1#,2#

 2
64937-47020C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4),BLACK,TRIM1#,2#

 2
64937-47020C0

ZVW5#..(A,S)..CBU

有り(助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM1#,2#

 2
64937A - CAP, TONNEAU COVER HOLDER, NO.1
64937-47020C0

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 2
64937-47020C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE3),BLACK,TRIM1#,2#

 2
64937-47020C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE2),BLACK,TRIM1#,2#

 2
64937-47020C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1),BLACK,TRIM1#,2#

 2
64937-47020C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4),BLACK,TRIM1#,2#

 2
64937-47020C0

ZVW5#..(A,S)..CBU

有り(助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM1#,2#

 2
64938 - HOOK, TONNEAU COVER, A
64938-47060C0

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 2
64938-47060C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE2),BLACK,TRIM1#,2#

 2
64938-47060C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4),BLACK,TRIM1#,2#

 2
64938-47060C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE3),BLACK,TRIM1#,2#

 2
64938-47060C0

ZVW5#..(A,S)..CBU

有り(助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM1#,2#

 2
64938-47060C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1),BLACK,TRIM1#,2#

 2
64938 - HOOK, TONNEAU COVER, A
64938-47060C0

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 2
64938-47060C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE2),BLACK,TRIM1#,2#

 2
64938-47060C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4),BLACK,TRIM1#,2#

 2
64938-47060C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE3),BLACK,TRIM1#,2#

 2
64938-47060C0

ZVW5#..(A,S)..CBU

有り(助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM1#,2#

 2
64938-47060C0

ZVW5#..(A,S)..CBU

ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1),BLACK,TRIM1#,2#

 2
64993 - BOX, DECK FLOOR, REAR
64993-47100

ZVW55..CBU

 1
64993 - BOX, DECK FLOOR, REAR
64993-47100

ZVW55..CBU

 1
64995 - BOX, DECK FLOOR, RH
64995-47040

ZVW55..CBU

 1
64995 - BOX, DECK FLOOR, RH
64995-47040

ZVW55..CBU

 1
64997 - BOX, DECK FLOOR, LH
64997-47050

ZVW55..CBU

 1
64997 - BOX, DECK FLOOR, LH
64997-47050

ZVW55..CBU

 1
64997C - CLIP(FOR DECK FLOOR BOX)
90467-07049C0

ZVW5#..CBU

BLACK

 1
90467-0704923

ZVW5#..CBU

BLACK

 1
64997C - CLIP(FOR DECK FLOOR BOX)
90467-07049C0

ZVW5#..CBU

BLACK

 1
90467-0704923

ZVW5#..CBU

BLACK

 1
Common parts
55229-48020
55239-48020
90119-06786
90119-06A44
90159-50083
90189-05168
93560-54012
Linked diagrams
8401
