ZVW55-AHXEB (2015)
Toyota Prius
ILLUST NO. 1 OF 3(1511- )
ﾋｰﾀｺﾝﾄﾛｰﾙﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-47200 |
ZVW5#..(E,S)..CBU |
1 | ||
| 55900-47250 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL |
1 | ||
| 55900-47251 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 55900-47250 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 55900-47251 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 55900-47251 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL |
1 | ||
| 55900-47201 |
ZVW5#..(E,S)..CBU |
1 | ||
| 55900-47251 |
ZVW5#..(E,S)..CBU 寒冷地仕様 |
1 | ||
| 55900-47250 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 55900-47250 |
ZVW5#..(E,S)..CBU 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||

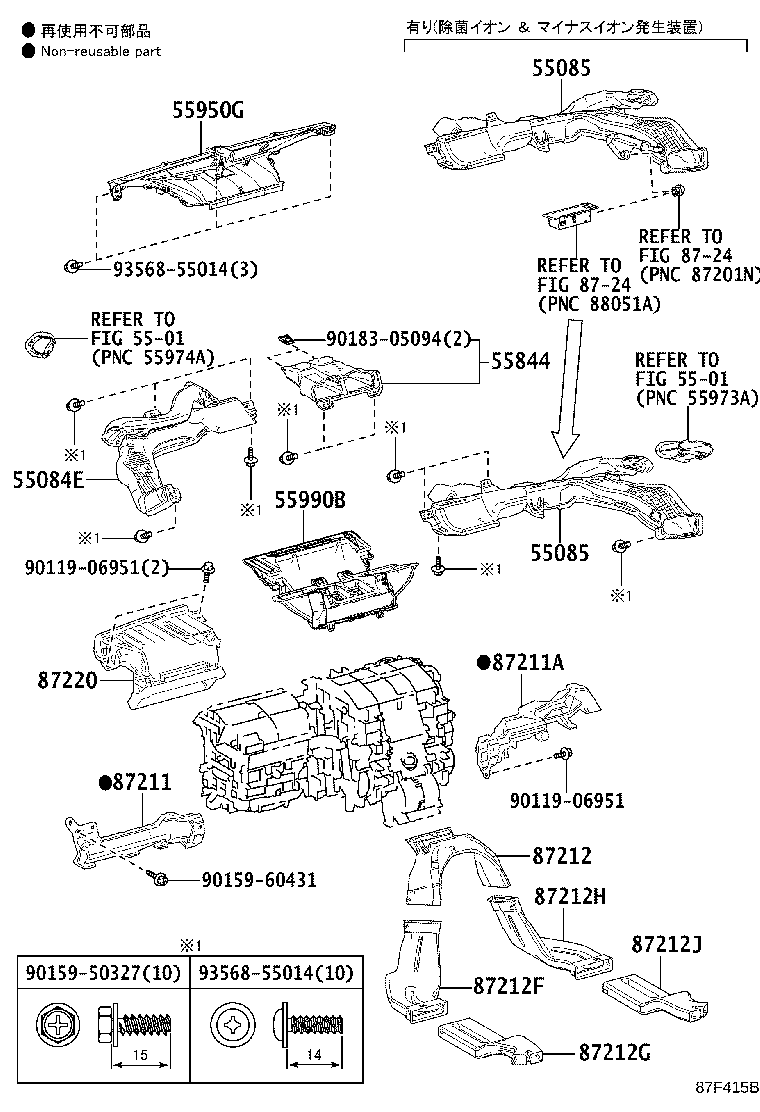

ILLUST NO. 2 OF 3(1511- )
ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55085-47060 |
ZVW5#..CBU |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55084-47110 |
ZVW51,55..A..CBU 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 55084-47110 |
ZVW5#..(A,S)..CBU 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り |
1 | ||
| 55084-47110 |
ZVW51,55..A..CBU 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL |
1 | ||
| 55084-47100 |
ZVW5#..(A,E,S)..CBU |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55084-47110 |
ZVW51,55..A..CBU 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 55084-47110 |
ZVW5#..(A,S)..CBU 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り |
1 | ||
| 55084-47110 |
ZVW51,55..A..CBU 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL |
1 | ||
| 55084-47100 |
ZVW5#..(A,E,S)..CBU |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-47140 |
ZVW51,55..A..CBU 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 55844-47100 |
ZVW5#..CBU |
1 | ||
| 55844-47140 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 55844-47140 |
ZVW51,55..A..CBU 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL |
1 | ||
| 55844-47140 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-47070 |
ZVW5#..CBU |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-47090 |
ZVW5#..CBU |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-47180 |
ZVW5#..CBU |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-47170 |
ZVW5#..CBU |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87215-47040 |
ZVW5#..CBU |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87213-47050 |
ZVW5#..CBU |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87217-47010 |
ZVW5#..CBU |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87212-47040 |
ZVW5#..CBU |
1 | ||
| 87212J - DUCT, AIR, REAR NO.5 | ||||
| 87216-47010 |
ZVW5#..CBU |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-47030 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90159-60431 | ||||
| 90183-05094 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8724 | ||||

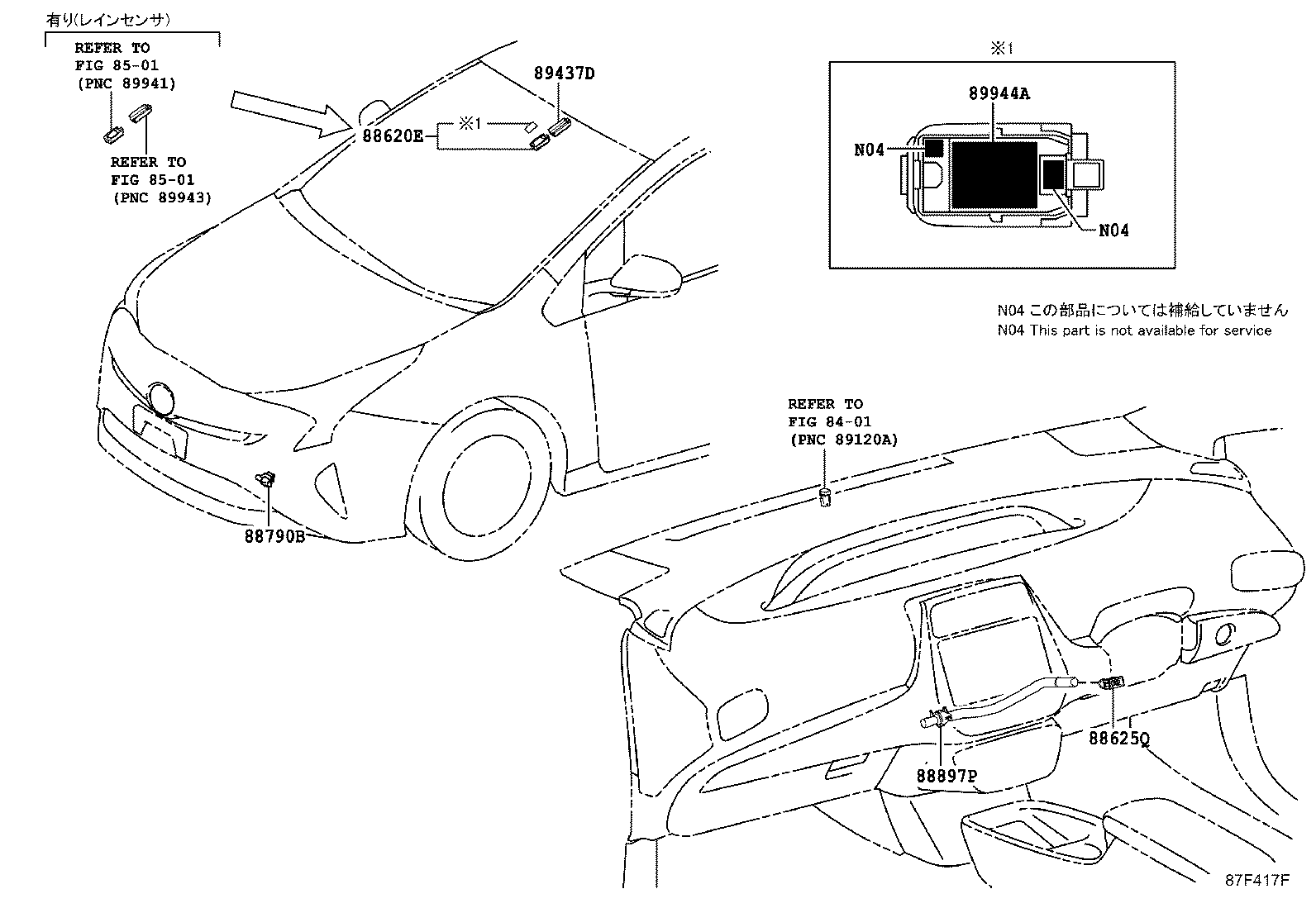

ILLUST NO. 3 OF 3(1511- )
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88620E - THERMISTOR ASSY, AIR CONDITIONER | ||||
| 89941-47040 |
ZVW5#..(E,S)..CBU |
1 | ||
| 88620-47020 |
ZVW5#..(E,S)..CBU |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
ZVW5#..CBU |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-28100 |
ZVW5#..CBU |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88505-47060 |
ZVW5#..CBU |
1 | ||
| 89437D - COVER, SENSOR | ||||
| 89943-47020 |
ZVW5#..(E,S)..CBU |
1 | ||
| 89944A - TAPE(FOR AIR CONDITIONER THERMISTOR) | ||||
| 89944-42020 |
ZVW5#..(E,S)..CBU |
1 | ||
| 89944-48010 |
ZVW5#..(E,S)..CBU |
1 | ||
| 89944-48010 |
ZVW50,55..S..CBU S”Safety Plus”*(A) |
1 | ||
| 89944-42020 |
ZVW50,55..S..CBU S”Safety Plus”*(A) |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
| 8501 | ||||
