ZVW55-AHXEB (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1711-1812)A,PREM ; (1812-2106)

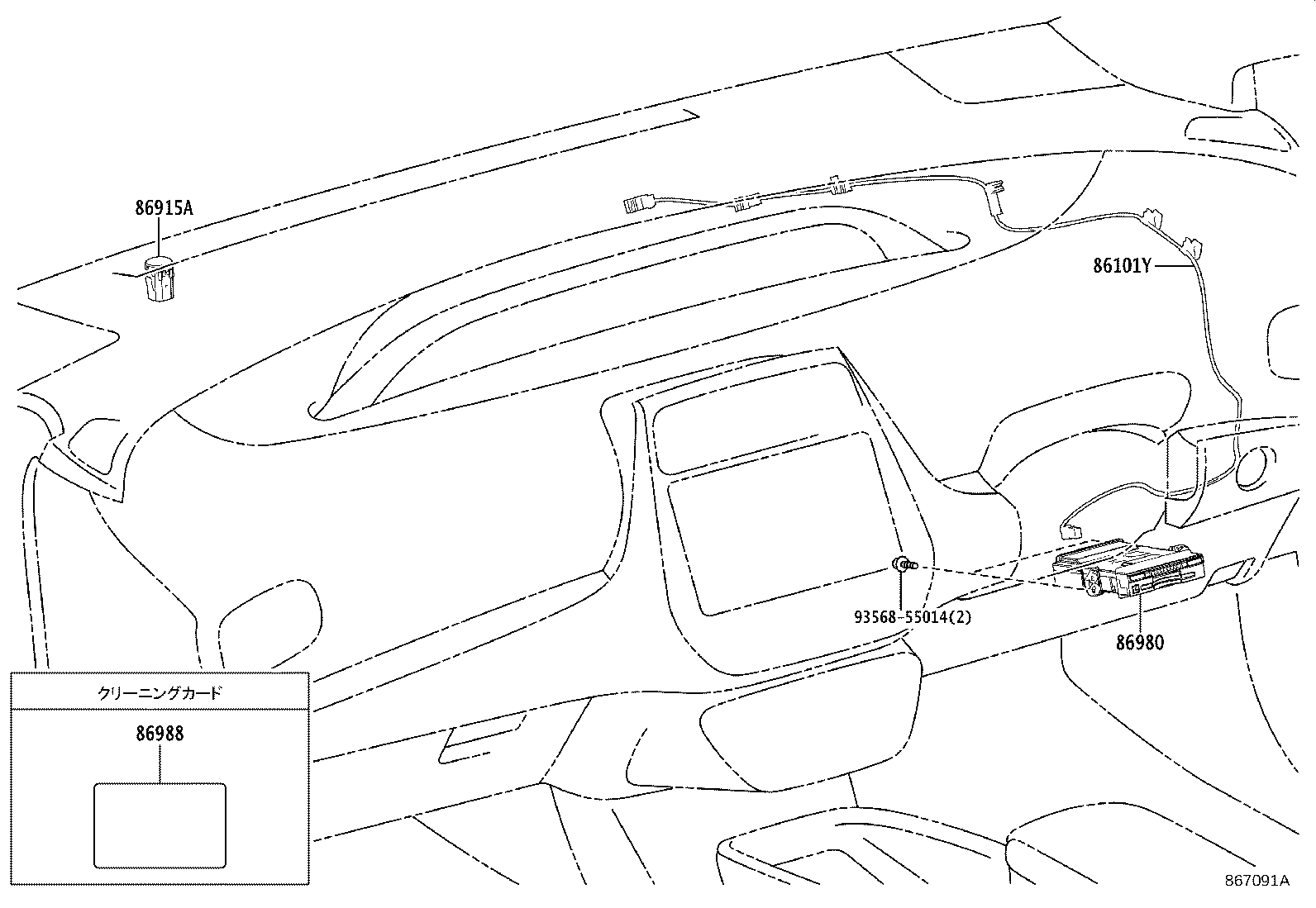

Click highlighted areas on diagram

diagram 86101Y 86915A 86980 86988 9356855014
Part # Description Qty Price
86101Y - CORD SUB-ASSY, ANTENNA
86101-47K40

ZVW51,55..(A,PREM)..CBU

ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL

 1
86101-47K40

ZVW51,55..(A,PREM)..CBU

ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ

 1
86915A - TRANSCEIVER, OPTICAL BEACON
86915-60010

ZVW51,55..(A,PREM)..CBU

ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL

 1
86915-60010

ZVW51,55..(A,PREM)..CBU

ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ

 1
86980 - COMPUTER ASSY, TOLL COLLECTION
86980-47040

ZVW51,55..(A,PREM)..CBU

ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ

 1
86980-47040

ZVW51,55..(A,PREM)..CBU

ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL

 1
Common parts
93568-55014
