ZVW55-AHXEB (2015)
Toyota Prius
(1511-1812)

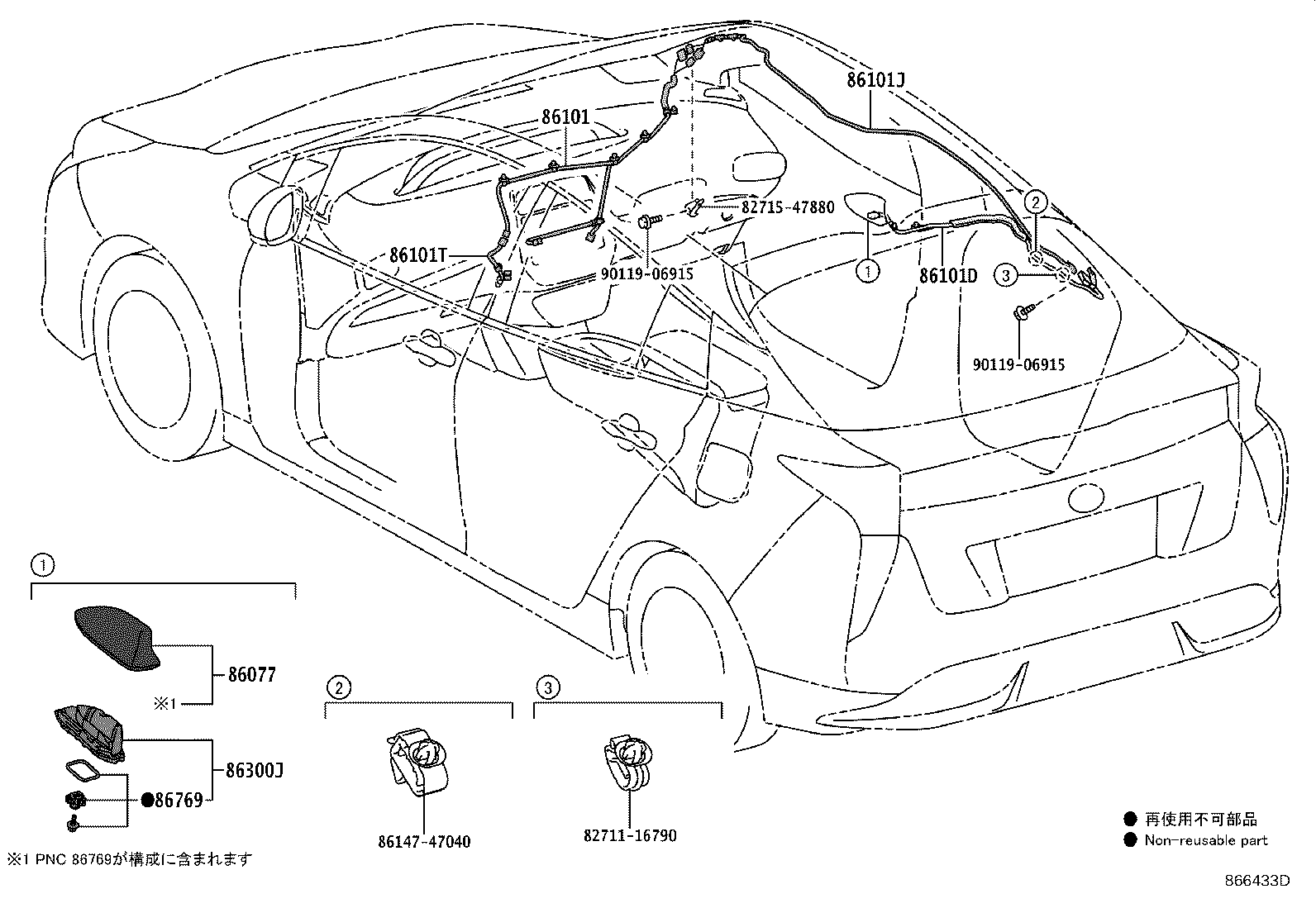

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86077 - COVER KIT, ANTENNA | ||||
| 86077-47010A1 |
ZVW51,55..(A,E)..CBU WHITE PEARL CS.,070 |
1 | ||
| 86077-47010B1 |
ZVW5#..CBU GRAY ME.,1G3 |
1 | ||
| 86077-47010C0 |
ZVW51,55..(A,E)..CBU ATTITUDE BLACK MC.,218 |
1 | ||
| 86077-47010B0 |
ZVW5#..CBU SILVER ME.,1F7 |
1 | ||
| 86077-47010J0 |
ZVW50,55..S..CBU DK.BLUE M.M.,2RC ,8W7 |
1 | ||
| 86077-47020A0 |
ZVW5#..CBU ITS Connect−有り,SUPER WHITE 2,040 |
1 | ||
| 86077-47010A0 |
ZVW5#..CBU SUPER WHITE 2,040 |
1 | ||
| 86077-47010D0 |
ZVW5#..(A,E,S)..CBU EMOTIONAL RED,3T7 |
1 | ||
| 86077-47010A1 |
ZVW5#..(PREM,S)..CBU WHITE PEARL CS.,070 ,2QJ |
1 | ||
| 86077-47020B1 |
ZVW5#..CBU ITS Connect−有り,GRAY ME.,1G3 |
1 | ||
| 86077-47020A1 |
ZVW51,55..(A,E)..CBU ITS Connect−有り,WHITE PEARL CS.,070 |
1 | ||
| 86077-47010J0 |
ZVW51,55..(A,E,PREM)..CBU DK.BLUE M.M.,8W7 |
1 | ||
| 86077-47010G0 |
ZVW5#..CBU THERMO-TECT LIME GREEN,6W7 |
1 | ||
| 86077-47020A1 |
ZVW5#..(PREM,S)..CBU ITS Connect−有り,WHITE PEARL CS.,070 ,2QJ |
1 | ||
| 86077-47020C0 |
ZVW51,55..(A,E)..CBU ITS Connect−有り,ATTITUDE BLACK MC.,218 |
1 | ||
| 86077-47020E0 |
ZVW50,55..S..CBU ITS Connect−有り,STEEL BLONDE,2RB ,4X1 |
1 | ||
| 86077-47020B0 |
ZVW5#..CBU ITS Connect−有り,SILVER ME.,1F7 |
1 | ||
| 86077-47010E0 |
ZVW50,55..S..CBU STEEL BLONDE,2RB ,4X1 |
1 | ||
| 86077-47010C0 |
ZVW50,55..S..CBU ATTITUDE BLACK MC.,218 ,2QJ ,2RB ,2RC |
1 | ||
| 86077-47020D0 |
ZVW5#..(A,E,S)..CBU ITS Connect−有り,EMOTIONAL RED,3T7 |
1 | ||
| 86077-47020J0 |
ZVW50,55..S..CBU ITS Connect−有り,DK.BLUE M.M.,2RC ,8W7 |
1 | ||
| 86077-47020E0 |
ZVW51,55..(A,E,PREM)..CBU ITS Connect−有り,STEEL BLONDE,4X1 |
1 | ||
| 86077-47020J0 |
ZVW51,55..(A,E,PREM)..CBU ITS Connect−有り,DK.BLUE M.M.,8W7 |
1 | ||
| 86077-47010E0 |
ZVW51,55..(A,E,PREM)..CBU STEEL BLONDE,4X1 |
1 | ||
| 86077-47020G0 |
ZVW5#..CBU ITS Connect−有り,THERMO-TECT LIME GREEN,6W7 |
1 | ||
| 86077-47020C0 |
ZVW50,55..S..CBU ITS Connect−有り,ATTITUDE BLACK MC.,218 ,2QJ ,2RB ,2RC |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-47N80 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47F80 |
ZVW5#..CBU |
1 | ||
| 86101-47N80 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47N70 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47N70 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47F70 |
ZVW5#..CBU ITS Connect−有り |
1 | ||
| 86101D - CORD SUB-ASSY, ANTENNA, NO.3 | ||||
| 86101-47Q30 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47Q30 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47Q10 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47Q10 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47E30 |
ZVW5#..CBU ITS Connect−有り |
1 | ||
| 86101-47Q10 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47E50 |
ZVW5#..CBU |
1 | ||
| 86101-47Q30 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47Q30 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47Q10 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-47490 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47490 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47Q20 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47E60 |
ZVW5#..CBU |
1 | ||
| 86101-47E40 |
ZVW5#..CBU ITS Connect−有り |
1 | ||
| 86101-47C60 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47C60 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47Q20 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47Q40 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47Q40 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101T - CORD SUB-ASSY, ANTENNA | ||||
| 86101-47K50 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ITS Connect−有り |
1 | ||
| 86101-47K50 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ITS Connect−有り |
1 | ||
| 86101-47C40 |
ZVW5#..CBU ITS Connect−有り |
1 | ||
| 86300J - ANTENNA ASSY, ROOF | ||||
| 86300-47170 |
ZVW5#..CBU |
1 | ||
| 86760-47080 |
ZVW5# ITS Connect−有り |
1 | ||
| 86760-47081 |
ZVW5#..CBU ITS Connect−有り |
1 | ||
| 86769 - HOUSING, ROOF ANTENNA | ||||
| 86769-12010 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82715-47880 | ||||
| 86147-47040 | ||||
| 90119-06915 | ||||

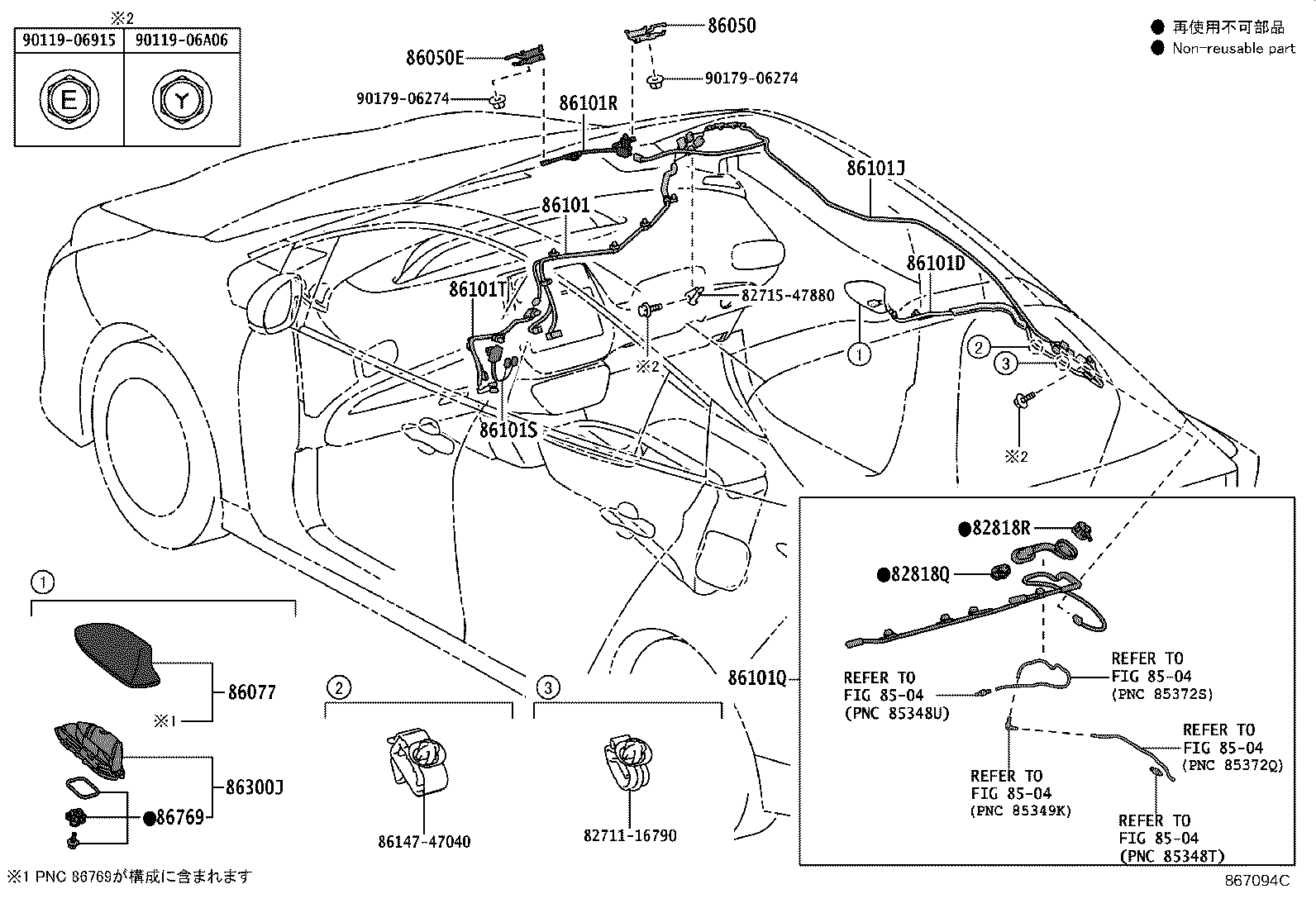

(1711-1812)A,PREM
ｱﾘ(11.6ｲﾝﾁ ﾃﾞｨｽﾌﾟﾚｲ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82818Q - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-47L50 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 82817-47L50 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 82818R - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47S70 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 82817-47S70 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86050 - ANTENNA ASSY, TELEVISION | ||||
| 86050-53180 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86050-53180 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86050E - ANTENNA ASSY, TELEVISION | ||||
| 86050-53190 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86050-53190 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86077 - COVER KIT, ANTENNA | ||||
| 86077-47010A1 |
ZVW51,55..(A,E)..CBU WHITE PEARL CS.,070 |
1 | ||
| 86077-47010B1 |
ZVW5#..CBU GRAY ME.,1G3 |
1 | ||
| 86077-47010C0 |
ZVW51,55..(A,E)..CBU ATTITUDE BLACK MC.,218 |
1 | ||
| 86077-47010B0 |
ZVW5#..CBU SILVER ME.,1F7 |
1 | ||
| 86077-47010J0 |
ZVW50,55..S..CBU DK.BLUE M.M.,2RC ,8W7 |
1 | ||
| 86077-47020A0 |
ZVW5#..CBU ITS Connect−有り,SUPER WHITE 2,040 |
1 | ||
| 86077-47010A0 |
ZVW5#..CBU SUPER WHITE 2,040 |
1 | ||
| 86077-47010D0 |
ZVW5#..(A,E,S)..CBU EMOTIONAL RED,3T7 |
1 | ||
| 86077-47010A1 |
ZVW5#..(PREM,S)..CBU WHITE PEARL CS.,070 ,2QJ |
1 | ||
| 86077-47020B1 |
ZVW5#..CBU ITS Connect−有り,GRAY ME.,1G3 |
1 | ||
| 86077-47020A1 |
ZVW51,55..(A,E)..CBU ITS Connect−有り,WHITE PEARL CS.,070 |
1 | ||
| 86077-47010J0 |
ZVW51,55..(A,E,PREM)..CBU DK.BLUE M.M.,8W7 |
1 | ||
| 86077-47010G0 |
ZVW5#..CBU THERMO-TECT LIME GREEN,6W7 |
1 | ||
| 86077-47020A1 |
ZVW5#..(PREM,S)..CBU ITS Connect−有り,WHITE PEARL CS.,070 ,2QJ |
1 | ||
| 86077-47020C0 |
ZVW51,55..(A,E)..CBU ITS Connect−有り,ATTITUDE BLACK MC.,218 |
1 | ||
| 86077-47020E0 |
ZVW50,55..S..CBU ITS Connect−有り,STEEL BLONDE,2RB ,4X1 |
1 | ||
| 86077-47020B0 |
ZVW5#..CBU ITS Connect−有り,SILVER ME.,1F7 |
1 | ||
| 86077-47010E0 |
ZVW50,55..S..CBU STEEL BLONDE,2RB ,4X1 |
1 | ||
| 86077-47010C0 |
ZVW50,55..S..CBU ATTITUDE BLACK MC.,218 ,2QJ ,2RB ,2RC |
1 | ||
| 86077-47020D0 |
ZVW5#..(A,E,S)..CBU ITS Connect−有り,EMOTIONAL RED,3T7 |
1 | ||
| 86077-47020J0 |
ZVW50,55..S..CBU ITS Connect−有り,DK.BLUE M.M.,2RC ,8W7 |
1 | ||
| 86077-47020E0 |
ZVW51,55..(A,E,PREM)..CBU ITS Connect−有り,STEEL BLONDE,4X1 |
1 | ||
| 86077-47020J0 |
ZVW51,55..(A,E,PREM)..CBU ITS Connect−有り,DK.BLUE M.M.,8W7 |
1 | ||
| 86077-47010E0 |
ZVW51,55..(A,E,PREM)..CBU STEEL BLONDE,4X1 |
1 | ||
| 86077-47020G0 |
ZVW5#..CBU ITS Connect−有り,THERMO-TECT LIME GREEN,6W7 |
1 | ||
| 86077-47020C0 |
ZVW50,55..S..CBU ITS Connect−有り,ATTITUDE BLACK MC.,218 ,2QJ ,2RB ,2RC |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-47N80 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47F80 |
ZVW5#..CBU |
1 | ||
| 86101-47N80 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47N70 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47N70 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47F70 |
ZVW5#..CBU ITS Connect−有り |
1 | ||
| 86101D - CORD SUB-ASSY, ANTENNA, NO.3 | ||||
| 86101-47Q30 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47Q30 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47Q10 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47Q10 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47E30 |
ZVW5#..CBU ITS Connect−有り |
1 | ||
| 86101-47Q10 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47E50 |
ZVW5#..CBU |
1 | ||
| 86101-47Q30 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47Q30 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47Q10 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-47490 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47490 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47Q20 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47E60 |
ZVW5#..CBU |
1 | ||
| 86101-47E40 |
ZVW5#..CBU ITS Connect−有り |
1 | ||
| 86101-47C60 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47C60 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47Q20 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47Q40 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101-47Q40 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ)&ITS Connect−有り |
1 | ||
| 86101Q - CORD SUB-ASSY, ANTENNA, NO.4 | ||||
| 86101-47480 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47480 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101R - CORD SUB-ASSY, ANTENNA, NO.5 | ||||
| 86101-47K30 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101-47K30 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾃﾚﾏﾃｨｸｽ−有り(DCM & 11.6ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 86101S - CORD SUB-ASSY, ANTENNA | ||||
| 86101-47K60 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 86101-47K60 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL |
1 | ||
| 86101T - CORD SUB-ASSY, ANTENNA | ||||
| 86101-47K50 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ITS Connect−有り |
1 | ||
| 86101-47K50 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ITS Connect−有り |
1 | ||
| 86101-47C40 |
ZVW5#..CBU ITS Connect−有り |
1 | ||
| 86300J - ANTENNA ASSY, ROOF | ||||
| 86300-47170 |
ZVW5#..CBU |
1 | ||
| 86760-47080 |
ZVW5# ITS Connect−有り |
1 | ||
| 86760-47081 |
ZVW5#..CBU ITS Connect−有り |
1 | ||
| 86769 - HOUSING, ROOF ANTENNA | ||||
| 86769-12010 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82715-47880 | ||||
| 86147-47040 | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8504 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
